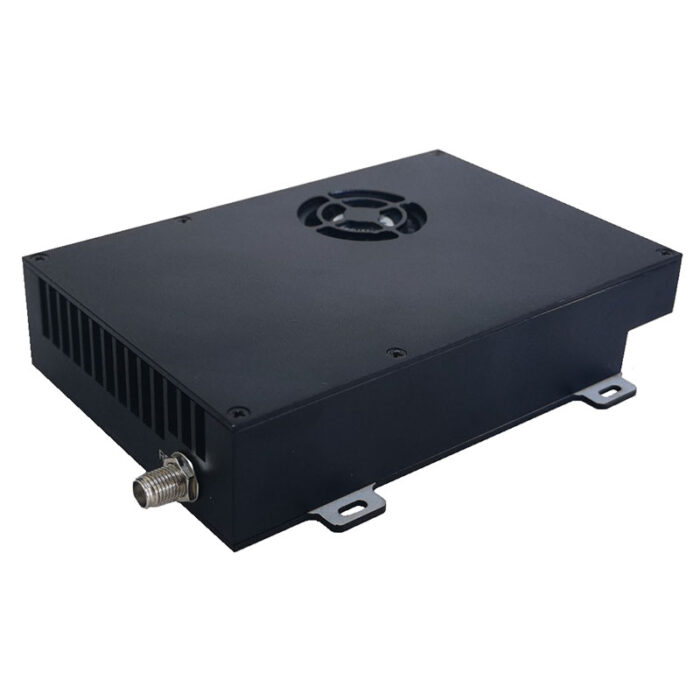

COFDM Video Transmitter XK-F143THS
$3,600
-
Non-line-of-sight transmission, long transmission distance, and strong anti-interference capability.
-
HD image transmission, the highest support 1080p60.
-
Low transmission delay.
-
AES encryption for transmission security and reliability.
-
Good RF index, high signal-to-noise ratio, and small stray.
-
Transmission frequency and bandwidth are adjustable.
-
Wide input voltage range, support DC8V~DC25V voltage input.
-

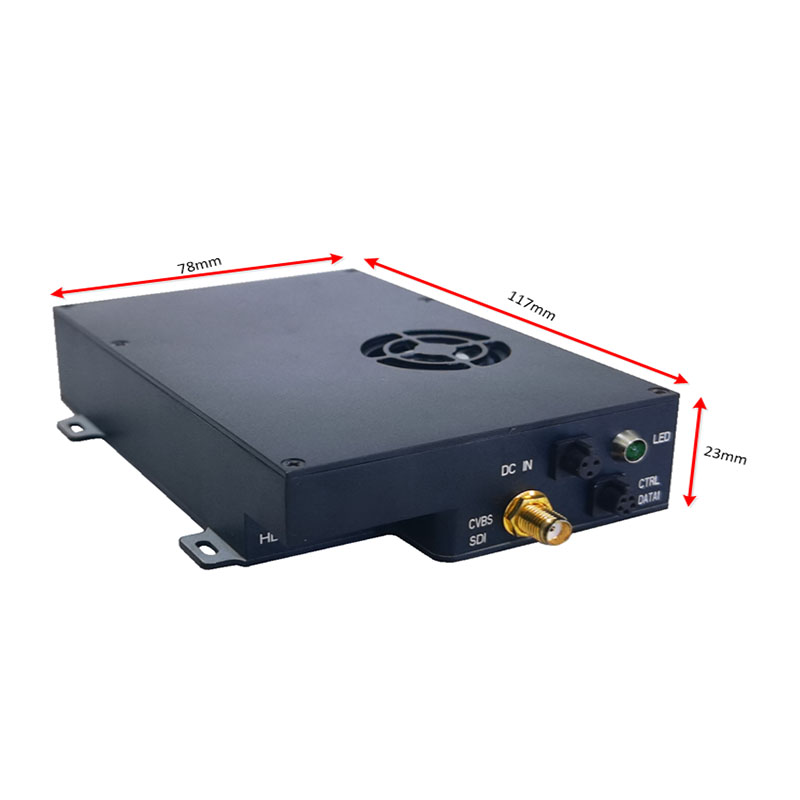

Small size.
-
Low power consumption.

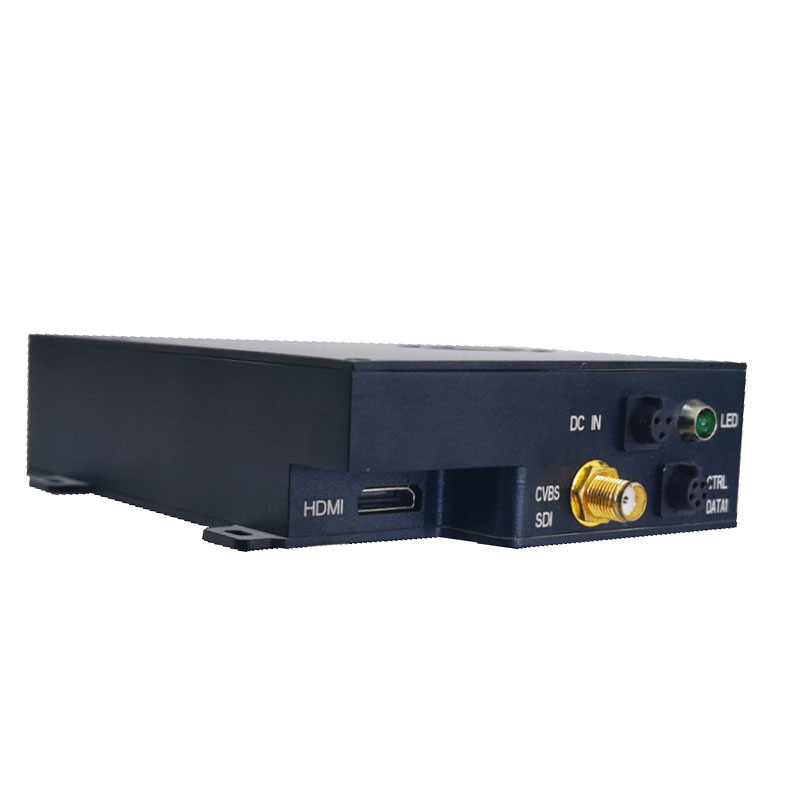

COFDM Video Transmitter XK-F143THS
2W XK-F143THS transmitter is a micro HD wireless image transmission product with low latency. Based on COFDM modulation, H. 264 compression, and AES encryption.
It is capable of stable, reliable, and real-time wireless HD image transmission in the environment of high-speed movement and urban building occlusion.
Technical Parameters
| Item | Parameter | Specification |
| Power supply | Input voltage | DC8V~DC25V, standard input DC12V |
| Overall power consumption | ≤18W @ 33dBm(2W) | |
| Digital baseband | Modulation | COFDM |
| Constellation | QPSK,16QAM,64QAM | |
| Carrier mode | 2K | |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |
| GUI | 1/32, 1/16, 1/8, 1/4 | |
| RF | Tx frequency | 1421-1453 MHz RBW 40MHz @ 33dBm(2W) |
| RF bandwidth | 2/3/4 /6 /7 /8MHz | |
| Output power | 33dBm(2W) | |
| Adjustable attenuator | 0~31.5dB | |
| A/V | Video source | HDMI,SDI |
| Resolution | 1080p60,1080p50,1080p30,1080p25,1080p24, 1080i60,1080i50,720p60,720p50,720p30,720p25,576p50,480p60,576i50,480i60. | |
| Video bit rate | 0.5~18.8Mbps | |
| Audio bit rate | 32,48,56,64,80,96,112,128,160,192,224,256,320,384Kbps | |
| Video encode | H.264/AVC | |
| Audio encode | MPEG-1 Audio Layer 2 | |
| Serial port | Configure port | Standard RS232 level, baud rate 9600 |
| Data port | Standard RS232 level, baud rate 1200~115200 | |
| Transmission encryption | AES128,AES256 | |
| Transmission delay (end-to-end) | About 300ms | |
| Transmission distance | About 30~50 km @ 33dBm(2W) | |
