Best Sale Wireless Data Link XK-F321
$2,675
Wireless Data Link Features
- High sensitivity.
- Robust NLOS performance.
- LDPC coding.
- Video/Telemetry/RC Combo Link.
- RF switch on the air unit.
- Low delay.
- ARQ retransmission.
- Adaptive frequency hopping.
Wireless Data Link XK-F321
Broadband wireless video and data transmission system Two-way communication: Video+data camera control/drone control/telemetry 3 in 1 Point to Point; Point to Multi-Points relay mode ARQ retransmission and adaptive frequency hopping
XK-F321E is a style of HD wireless digital video and data transmission device, with low power consumption, long communication distance and other characteristics, support the transmission of the network data, flight control data, PTZ control data, remote control data etc at the same time. The air unit can be configured as point-to-point and also point to multi-points relay mode, Users only need to add air units to expand the application scenarios. At the same time, it has encryption function, and users can set the channel encryption key independently.
XK-F321E supports transparent transmission protocol, which can transmit flight control data and other data information at the same time. The ground unit can interact data with ground station through serial port or network port (UDP / TCP). Support serial port and SBUs transparent transmission function.
Product Parameters
| Item | Parameters | |
| Air | Ground | |
| Input voltage | DC8V~DC30V,Rated voltage DC12V | |
| Consumption | 9W | 7W |
| FEC | 1/2,2/3,3/4,5/6 | |
| Constellation | BPSK,QPSK,16QAM | |
| Duplex | TDD | |
| Frequency | 2412MHz~2477MHz | |
| Power | ≤30dBm | |
| Band width | 10MHz | 2.5MHz |
| Transmission delay | 3ms~8ms | |
| Encryption | AES128, AES256 | |
| Interface | UART(TTL/RS232)/SBUS | |
| Uplink throughput | 115.2kbps | |
| Downlink throughput | 2 Mbps~15 Mbps | |
| antenna | Glue stick antenna(20cm) 2.5dBi | Fiber glass antenna(80cm)7 dBi |

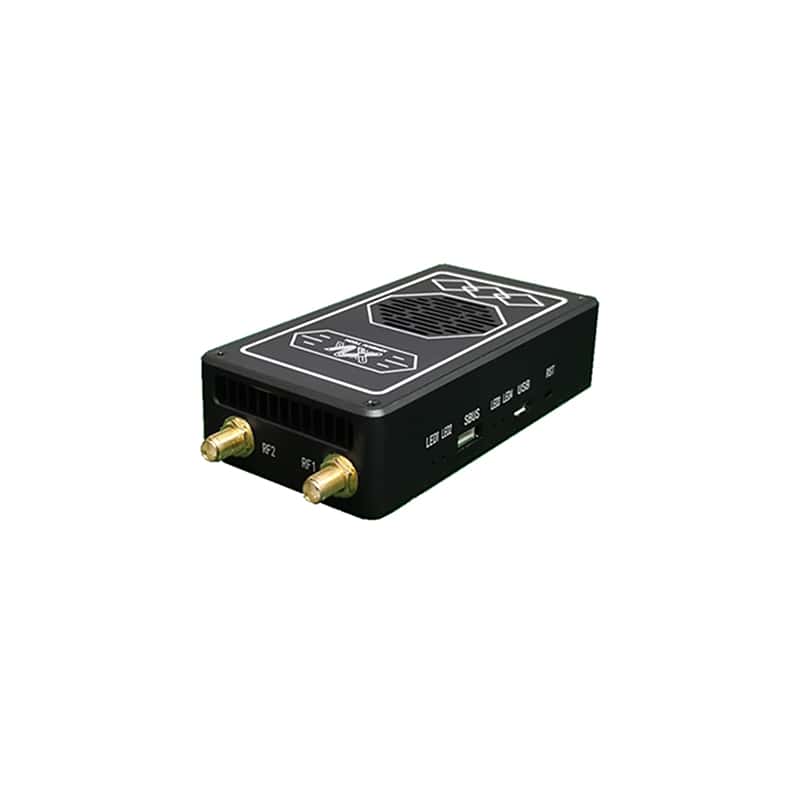

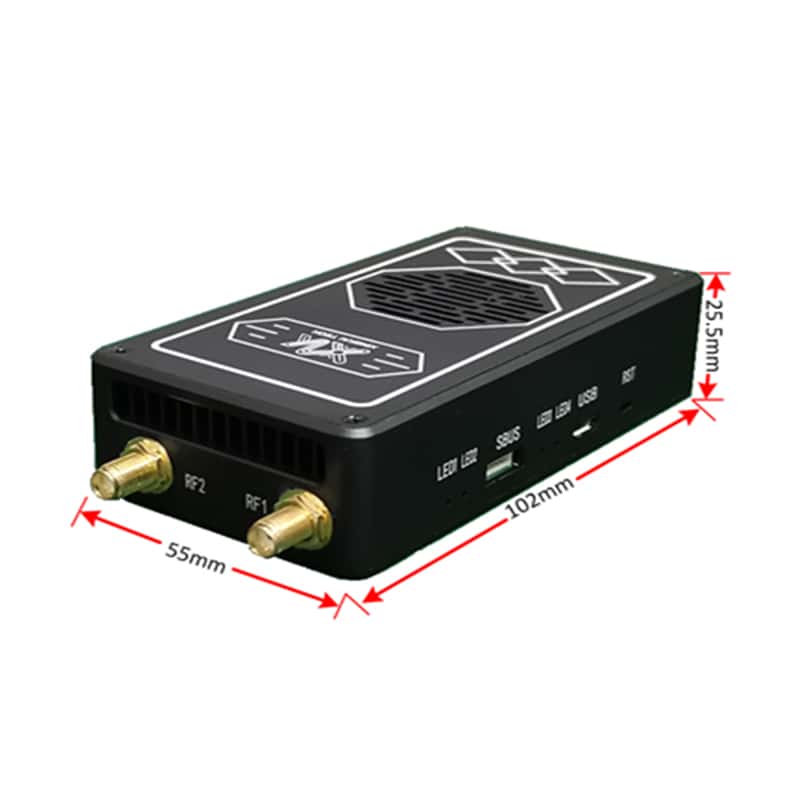

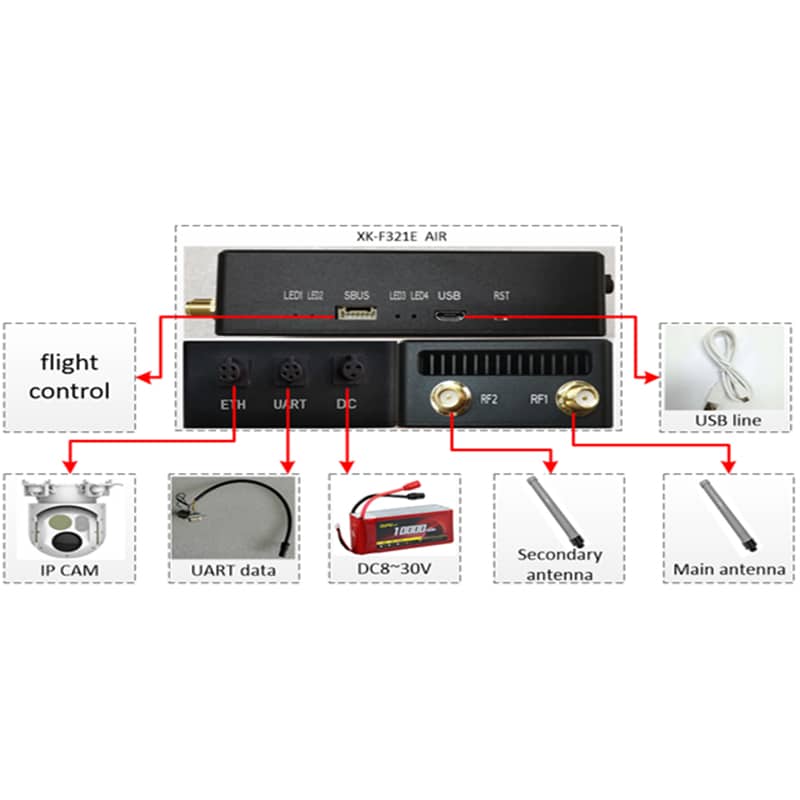

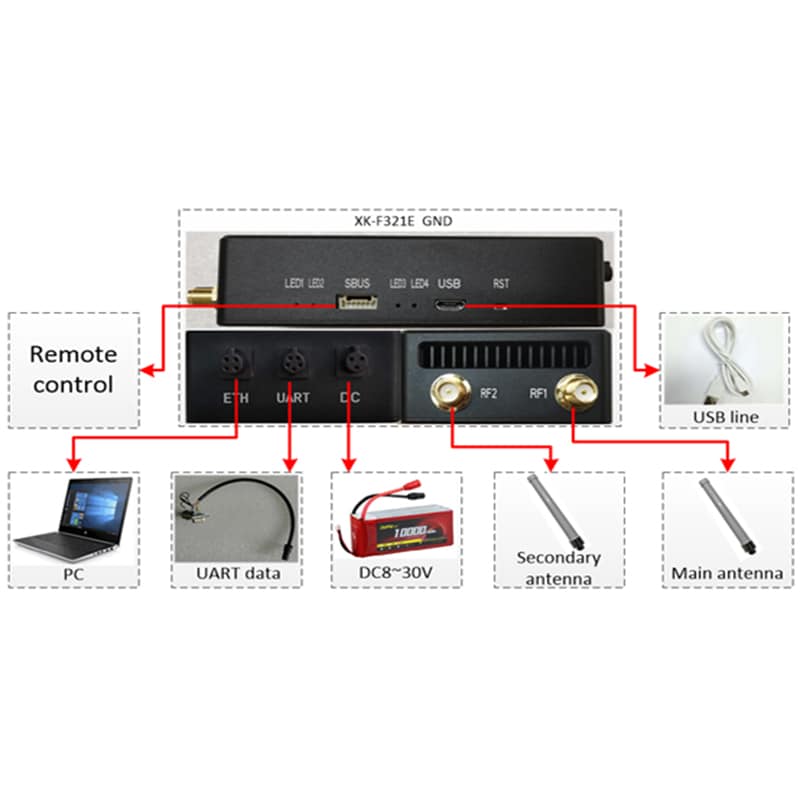

Pictures
Product functions
- The working frequency can be adjusted manually and automatically.
- The mapping mode is adjustable.
- The LDPC coding rate is adjustable.
- TDD working mode.
- Point-to-point or point-to-multi point.
- Ethernet, serial port, SBUS/PPM.
- AES128,AES256 encryption.
- Real time image transmission through network port.
Company Information
Shenzhen Xingkai Technology Co., Ltd. is a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance, and defense industries.
Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery end-to-end communications & advanced networkings.
Our company attaches great importance to the construction of the R&D team, who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.
Our products range includes mimo mesh network, tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can’t risk communication failure.
Certifications
Packaging & Delivery
Packing: Packed in a professional shipping box
Port: Yantian, Shekou or Hong Kong
FAQ:
A: We are a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance and defense industries.
A: We are able to offer you the best solutions on market by providing you OEM/ODM service.
A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days…
A. We will protect our partner’s profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface & RF indicators & sensitivity & meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
A: T/T, Western Union
