Drone Data Link XK-303E-80 Radio Telemetry Remote Control System Long Range Communication Video Data Link Transmitter and Receiver Wireless Mesh Network
$12,142
Drone Data Link Features
* Rich control interfaces, and a High carrier noise ratio.
* Wide input voltage range(DC12 ~ 25V).
* Low power consumption.
* Max downlink configuration rate: 30m, bandwidth: 20m
* Support OTA upgrade, local and remote upgrade.
* Adaptive frequency hopping, strong anti-interference ability.
Drone Data Link XK-303E-80
* The bandwidth is adjustable, including 3MHz, 5MHz, 10MHz, and 20MHz.
* The mapping mode is adjustable, including QPSK, 16QAM, and 64aqm.

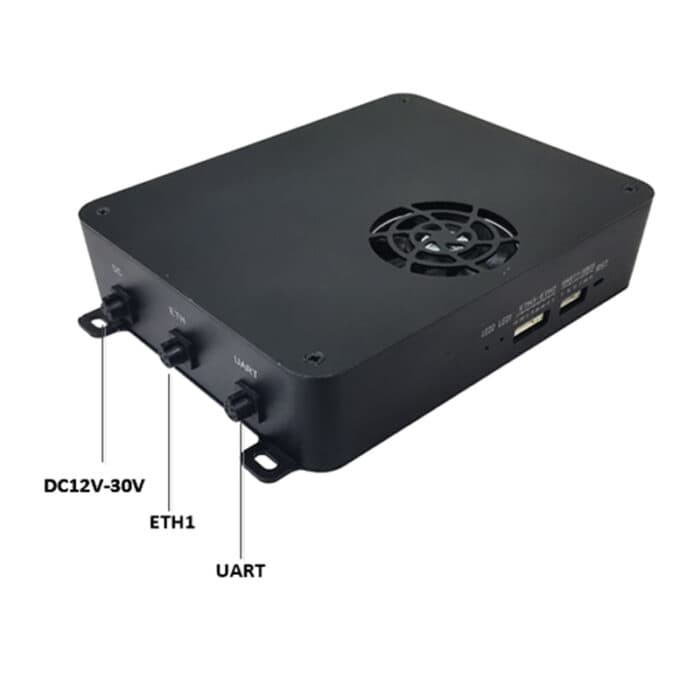

* Support Ethernet, serial port, and SBUs.
* Support AES128 and AES256 encryption.
Technical Parameters
|
Item
|
Spec/Parameters
|
|
|
Air Unit
|
Ground Unit
|
|
|
Operation
Voltage |
DC12V~DC25V,Standard input DC22V
|
|
|
Power
Consumption |
≤11W @ 33dBm
|
|
|
Modulation
|
OFDM
|
|
|
Data
interface |
UART(TTL/RS232)/SBUS
|
|
|
Frequency
|
800MHz/1.4GHz/the frequency bands can be customized.
|
|
|
Channel rate
|
Uplink(Max): 30Mbps,Downlink(Max):26Mbps
|
|
|
Bandwidth
|
3/5/10/20MHz
|
|
|
Latency
|
≤15ms
|
|
|
Tx
Power |
≤33dBm(Adjustable)
|
|
|
Working temperature
|
-30ºC~60ºC
|
|
|
Storage
temperature |
-40ºC~75ºC
|
|
|
Antenna
|
2.5dBi
|
7-16dBi
|
|
Communication
Protocol |
IEEE802.3,Transparent
serial data |
|
|
Communication
|
Point to
Point, Point to Multi-Points relay mode |
|
|

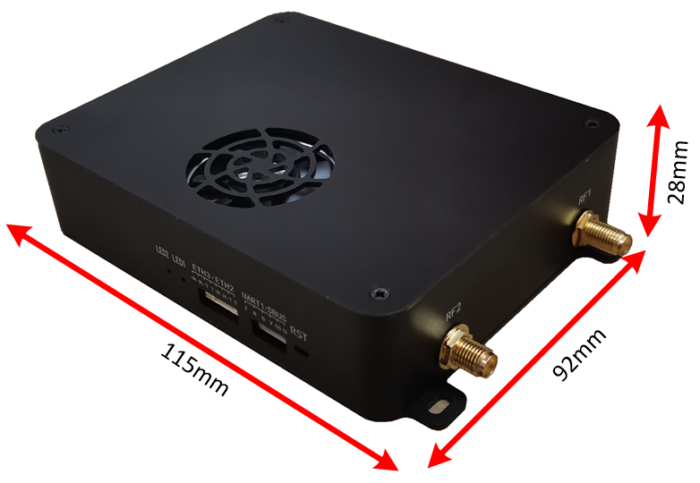

Dimensions
|
115*92*28mm
|
|
|
Weight
|
≤300g
|
|
