Uav Data Link XK-304E-150 Light Weight Drone Wireless Ground-end or Sky-end Video and Data Transmitter and Receiver with Strong Anti-interference Ability
$19,714
Uav Data Link Features
* Supporting multiple frequency ranges and bandwidths.
* Having multiple control interfaces.
* High carrier-to-noise ratio
* Wide input voltage range, supporting DC12~30V voltage input.
* Low power consumption.
* Maxdownlink rate: 30Mbps, bandwidth: 20MHz;
* Max. uplink rate : 26Mbps, bandwidth: 20MHz.
* Supporting OTA / local / remote upgrade.
* Supporting point-to-multipoint mode and multiple purposesĀ .
Uav Data Link XK-304E-150
XK-F304E-150Ā is a style of HD wireless digital video and data transmission device, with low power consumption, long communication distance and other characteristics, Support the transmission of the network data, flight control data, PTZ control data, remote control data at the same time.
The air unit can be configured as point-to-point and also point to multi-points relay mode, Users only need to add air units to expand the application scenarios. At the same time, it has encryption function, and users can set the channel encryption key independently.
* Working frequency ranges: 1.4GHz for free choice, and the frequency bands can be customized.
* Adjustable bandwidth among 3MHz, 5MHz, 10MHz and 20MHz.
* Adjustable mapping mode among QPSK, 16QAM and 64AQM.

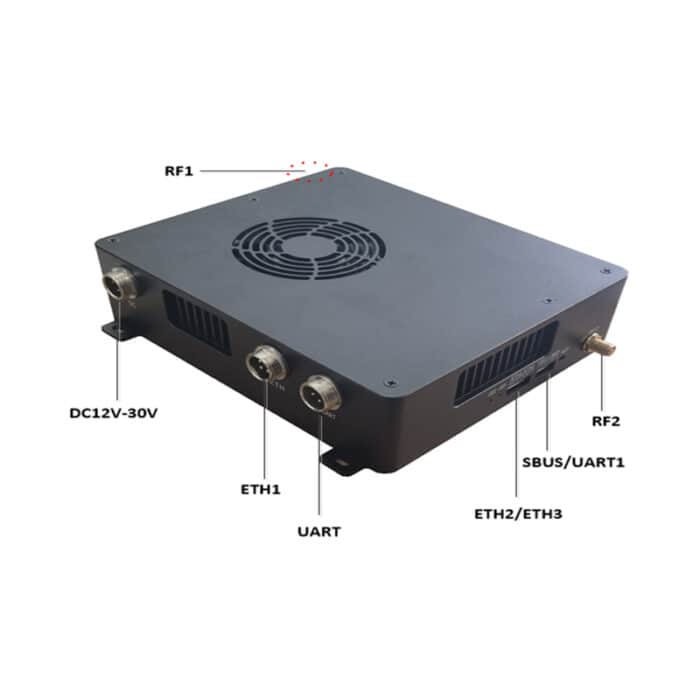

* Supporting three serial ports and one SBUS.
* Supporting simultaneous transmission of at most 3 network ports.
* Support AES128 encryption
Technical Parameters
|
Item
|
Spec/Parameters
|
|
|
Air Unit
|
Ground Unit
|
|
|
Operation Voltage
|
DC12V~DC30V,Standard input DC22V
|
|
|
Power Consumption
|
ā¤20W @ 37dBm
|
|
|
Modulation
|
OFDM
|
|
|
Data interface
|
UART(TTL/RS232)/SBUS
|
|
|
Frequency
|
800MHz/1.4GHz/ the frequency bands can be customized.
|
|
|
Channel rate
|
Uplink(Max): 30Mbps,Downlink(Max):26Mbps
|
|
|
Bandwidth
|
3/5/10/20MHz
|
|
|
Latency
|
ā¤15ms
|
|
|
Tx Power
|
ā¤37dBm(Adjustable)
|
|
|
Working temperature
|
-30ĀŗC~60ĀŗC
|
|
|
Storage temperature
|
-40ĀŗC~75ĀŗC
|
|
|
Antenna
|
3.5dBi
|
7-16dBi
|
|
Communication Protocol
|
IEEE802.3,Transparent serial data
|
|
|
Communication
|
Point to Point, Point to Multi-Points relay mode
|
|
|
Dimensions
|
125*120*30mm
|
|
|
Weight
|
ā¤470g
|
|
Shenzhen Xingkai Technology Co., Ltd. is a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance, and defense industries.
Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery end-to-end communications & advanced networkings.
Our company attaches great importance to the construction of the R&D team, who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.
Our products range includes mimo mesh network, tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who canāt risk communication failure.
