Uav Data Link XK-305E-150 Long Range Radio Broadband wireless Camera Video Data Telemetry Adaptive Frequency Hopping Communication Remote Control System
$20,483
Uav Data Link XK-305E-150 Features
* Wide frequency range and wide bandwidth are supported.
* Rich control interfaces, and a High carrier noise ratio.
* Wide input voltage range(DC12 ~ 25V).
* Low power consumption.
* Max downlink configuration rate: 30m, bandwidth: 20mMax uplink configuration rate: 26m, bandwidth: 20m.
* Support OTA upgrade, local and remote upgrade.
* Adaptive frequency hopping, strong anti-interference ability.

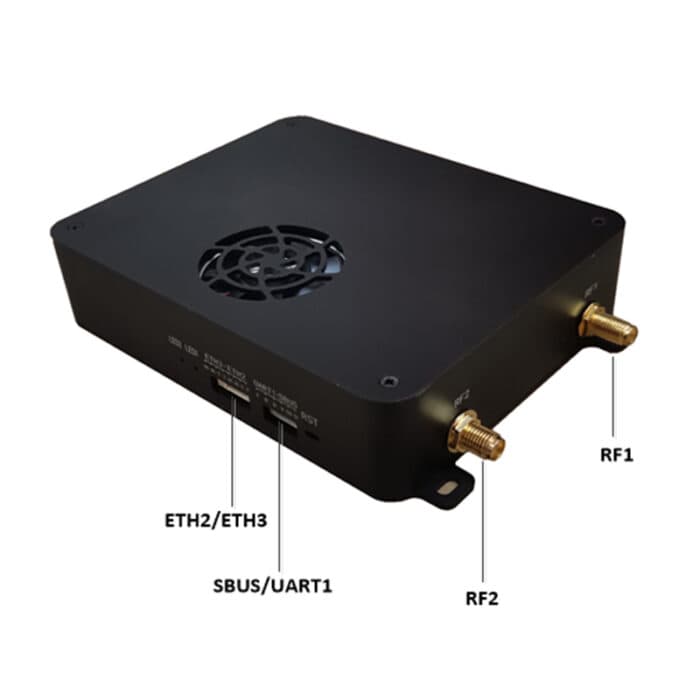

Uav Data Link XK-305E-150
XK-F305E-150 is a style of HD wireless digital video and data transmission device, with low power consumption, long communication
distance and other characteristics, Support the transmission of the network data, flight control data, PTZ control data, remote control data…at the same time.
The air unit can be configured as point-to-point and also point to multi-pointsrelay mode, Users only need to add air units to expand the application scenarios. At the same time, it has encryption function, and users can set the channel encryption key independently.
XK-F305E-150 supports transparent transmission protocol, which can transmit flight control data and other data information at the
same time. The ground unit can interact data with ground station through serial port or network port (UDP / TCP). Support serial port and SBUs transparent transmission function.
- Working frequency ranges: 800MHz / 1.4GHz / 2.4GHz for free choice.
- Adjustable bandwidth among 3MHz, 5MHz, 10MHz and 20MHz.
- Adaptive adjustment mapping mode including QPSK, 16QAM and 64AQM.
- Supporting three serial ports and one SBUS.
- Supporting simultaneous transmission of at most 3 network ports.
- Support AES128 encryption
4. Technical Parameters
| Item | Spec/Parameters | |
| Air Unit | Ground Unit | |
| Operation Voltage | DC20V~DC28V,Standard input DC24V | |
| Power Consumption | ≤32W @ 40dBm | |
| Modulation | OFDM | |
| Data interface | UART(TTL/RS232)/SBUS | |
| Frequency | 1.4GHz | |
| Channel rate | Uplink(Max):Â 30Mbps,Downlink(Max):26Mbps | |
| Bandwidth | 3/5/10/20MHz | |
| Latency | ≤15ms | |
| Tx Power | ≤40dBm(Adjustable) | |
| Working temperature | -30ºC~60ºC | |
| Storage temperature | -40ºC~75ºC | |
| Antenna | 3.5dBi | Â 12dBi or 16dBi |
| Communication Protocol | IEEE802.3,Transparent serial data | |
| Communication | Point to Point, Point to Multi-Points relay mode | |
| Range | 150Km | |

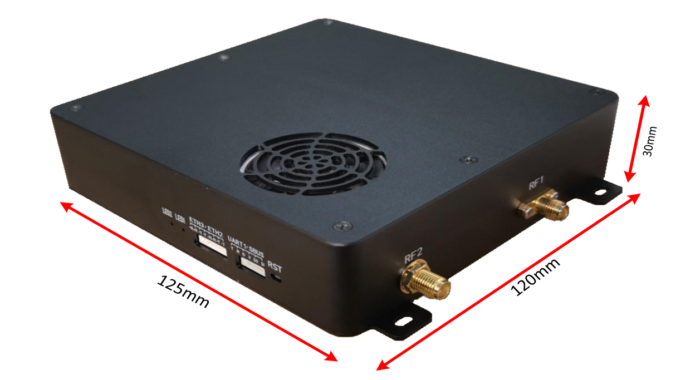

| Dimensions | 125*120*30mm | |
| Weight | ≤470g | |
Company Information
Shenzhen Xingkai Technology Co., Ltd. is a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance, and defense industries.
Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery end-to-end communications & advanced networkings.
Our company attaches great importance to the construction of the R&D team, who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.
Our products range includes mimo mesh network, tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can’t risk communication failure.
