Portable Drone Ground Control Station XK-G22
$4,857
portable drone ground control station Features
Full body aluminum alloy shell+silicone anti slip, higher protection
12.inch+15.6 inch 1000nit outdoor visual screen
Dual 10 point capacitive touch screen
Intel 15/17 high-performance CPU, capable of supporting independent display
18 physical channel outputs, dual SBUS, and USB-HID outputs
18 physical channel outputs, dual SBUS, and USB-HID outputs support up to RTX3060 independent display
Supports the installation of most data links on the market

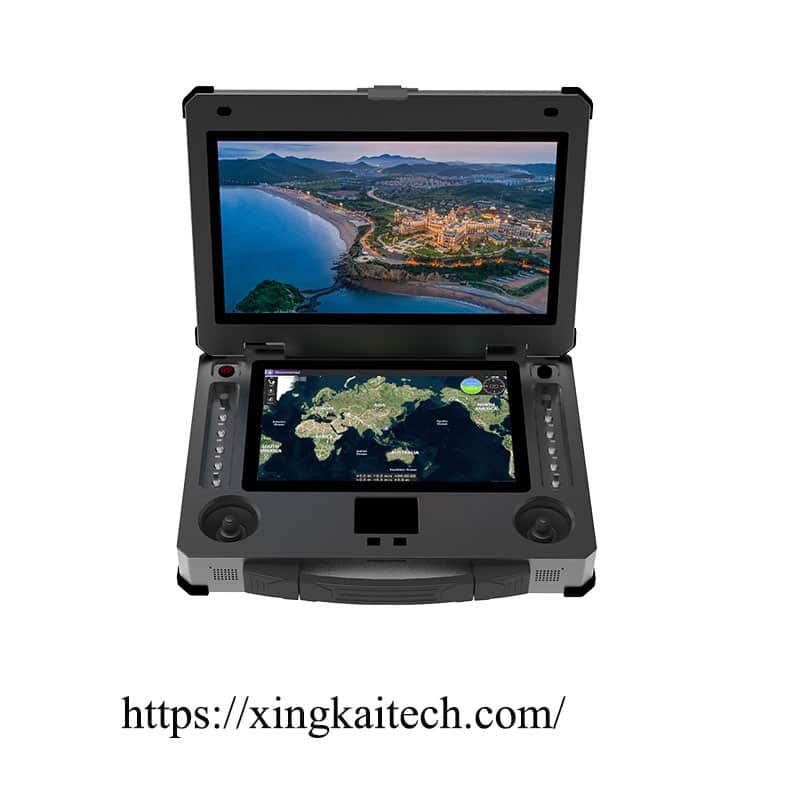

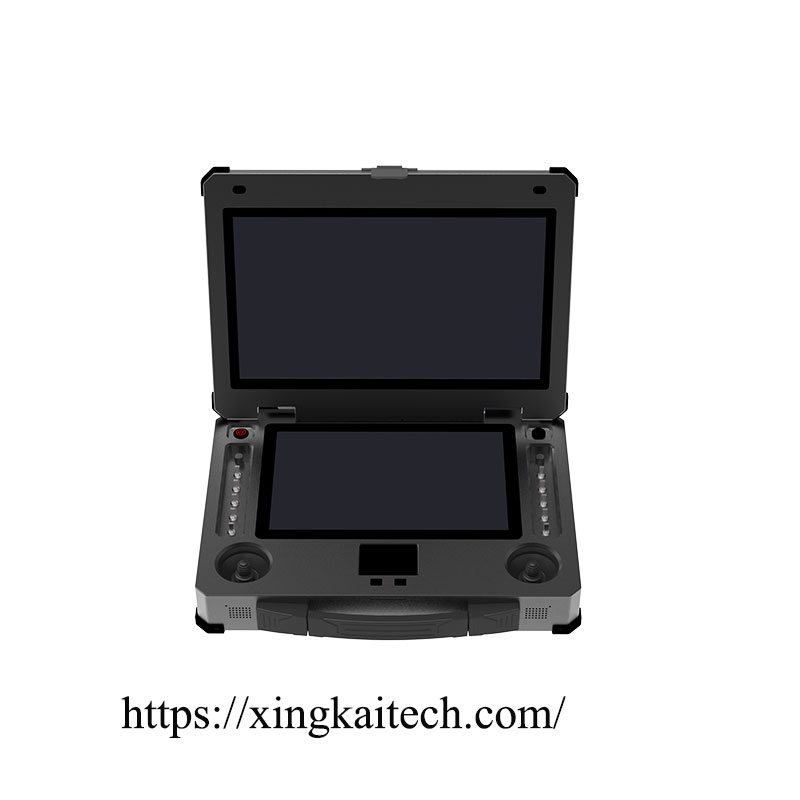

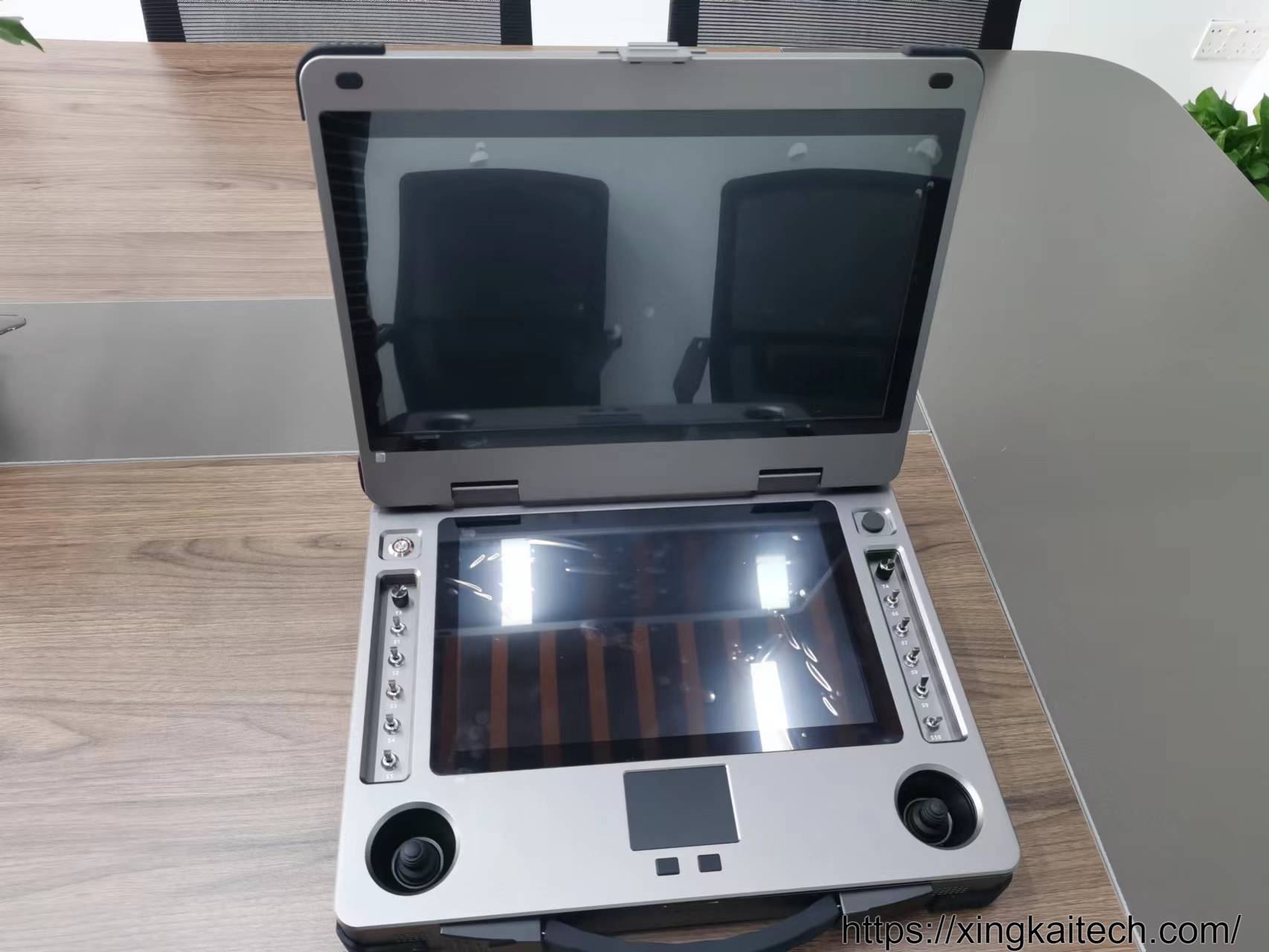

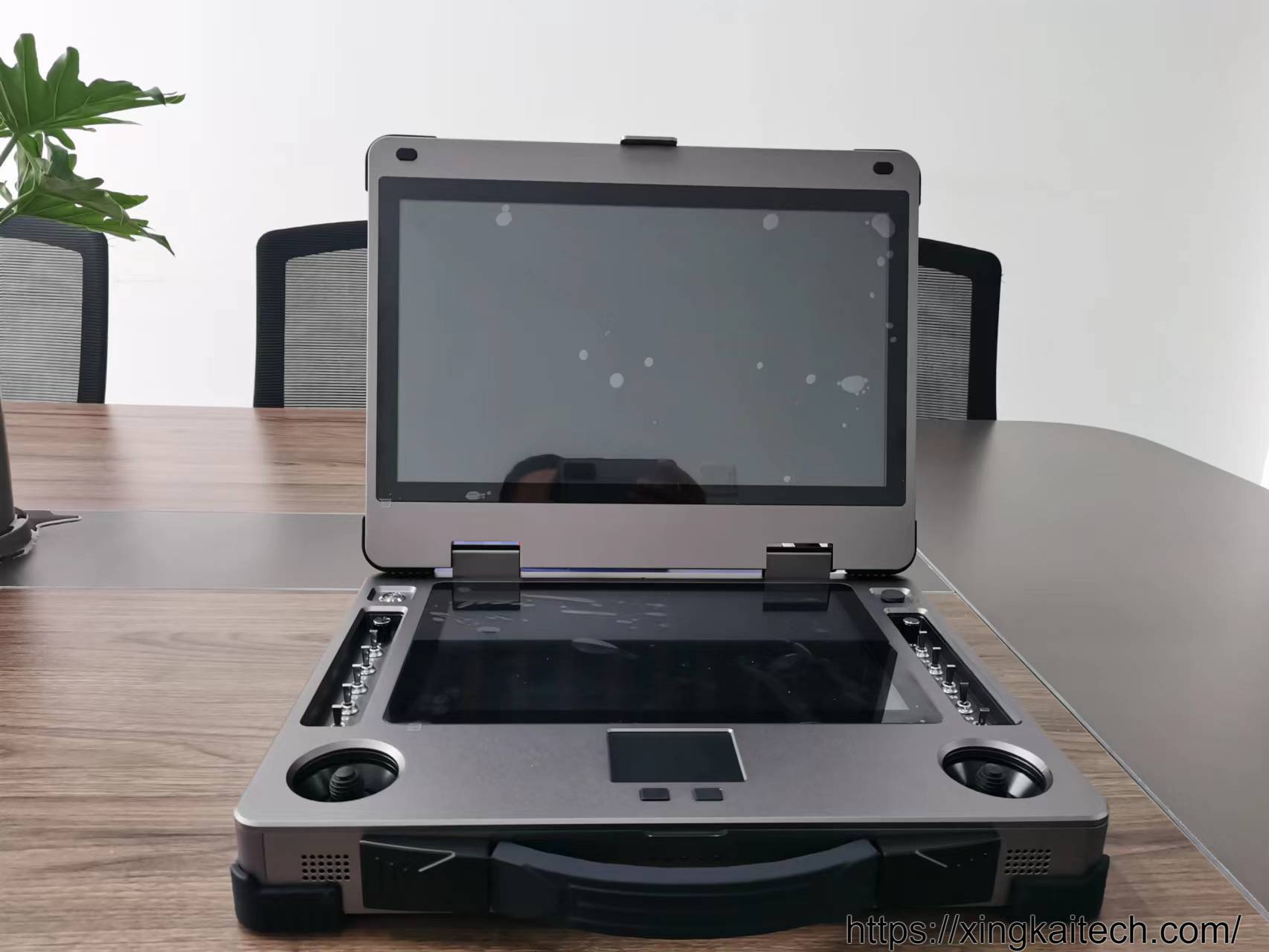

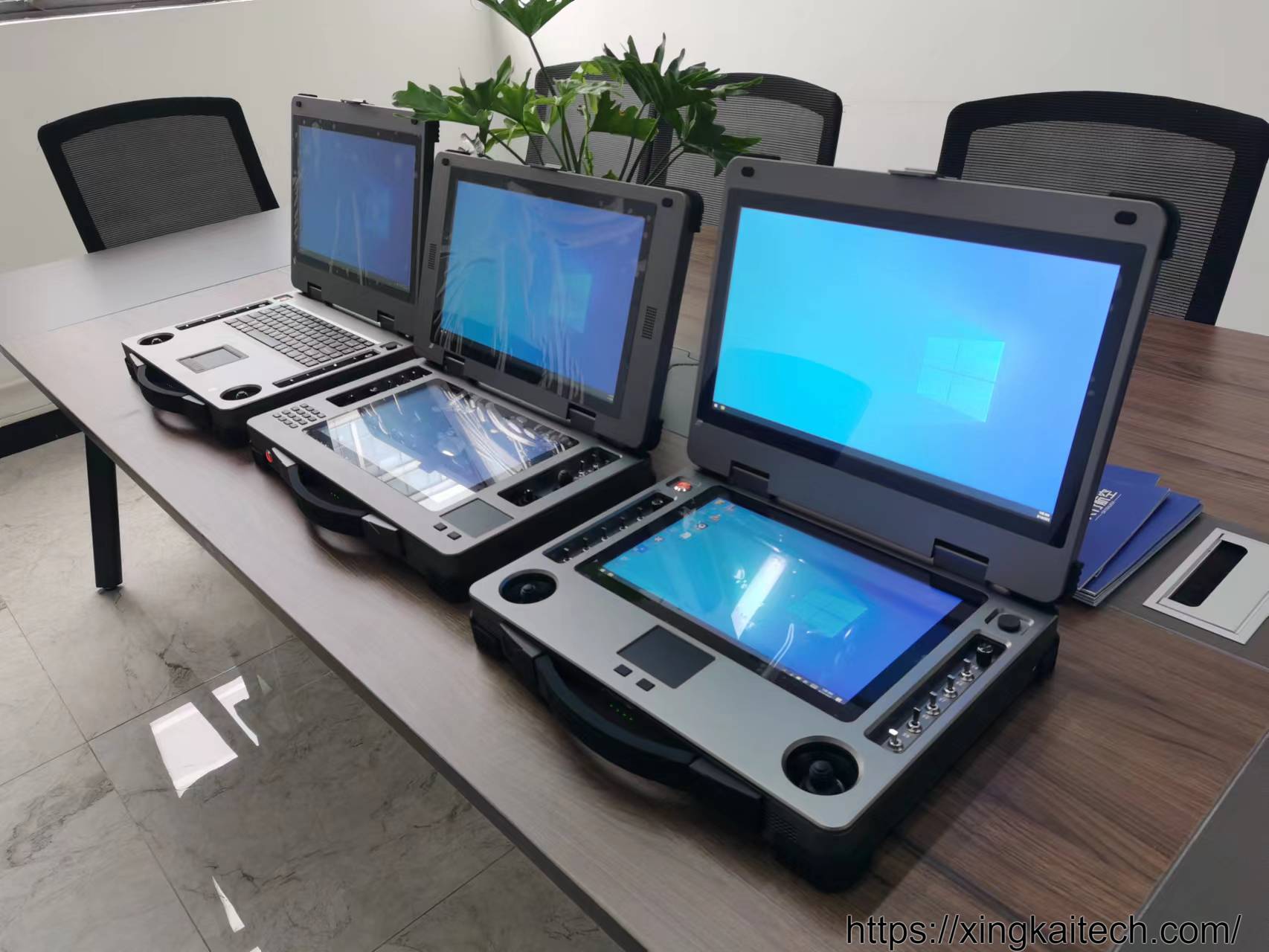

Portable Drone Ground Control Station XK-G22
1. XK-G22 dual screen ground station has lntel l5/17 high-performance CPU, supporting up to RTX3060 independent display
2.18 physical channel outputs, dual SBUS and USB-HID outputs
3. Protective measures such as dust and water splashing shall be taken at the interfaces of each peripheral device
4. XK-G22 dual screen ground station configuration with 15.6 inch+12.1 inch 10 point capacitive touch screen
5. Lithium batteries have an ultra long battery life, ensuring normal operation
6. Dual Gigabit Ethernet ports, customizable buttons, internal reserved space for secondary development
7. Supports HDMI output, SIM, TF card, USB interface, dual serial port transparent transmission, dual SBUS and other rich interfaces.
8. Support the installation of most data links on the market
9.The XK-G22 dual screen ground station can operate at -20 to 60 ° C, with a working time between 5-6 hours
10. Integrated industrial grade computers and high-definition image data transmission
11. It has functions such as displaying images, data, information status, flight data, and recording.
Technical Parameters
| Product Parameters | model | XK-G22 |
| material quality | CNC aluminum alloy | |
| anti-seismic | Equipped with 8 anti-collision corners | |
| colour | Black, Silver, Dark Green | |
| CPU | lntel 15-7200U (optional) | |
| Graphics card | intel HD Graphics 620 (0ptional GTX1050ti graphics card) | |
| storage | 8G memory (optional)/256G Solid-state drive (optional) | |
| Mouse and Keyboard | Touch pad with left and right keys/multi-function Numeric keypad | |
| network | Dual Gigabit Ethernet ports | |
| system | windows 10/Linux | |
| wifi | 2.4G/5.8Gwifi, bluetooth 4.0 | |
| screen | 16.8V 18AH | |
| Touch Screen | Computer system display/led battery level | |
| brightness | 1000nit (Customizable far higher brightness | |
| battery | 16.8VÂ 20AH | |
| Power display | 386*300*73mm | |
| working hours | 5-6h | |
| size | 416mm*330mm*82mm | |
| weight | 8kg | |
| operation temperature | -20-60ºC | |
| external interface | 2*USB3.0/1*LAN/1*HDMI/2*SMA-KF | |
| Remote control and video transmission parameters |
 Remote control output | 18 channels-dual sbus output/USB-HIDchannels |
| physical channel | 2*Flight joystick/1*Thumb joystick/8*Third gear 2*Second gear paddle/2*Knob(optional) |
|
| Remote control parameter adjustment | Upper computer | |
| Reserved space | 175x130x41mm | |
| interface Internal reserved | 6*RS232/2*USB/1*RJ45 | |
| internal reserved power supply | 12v 3A |
Company Information
Shenzhen Xingkai Technology Co., Ltd. is a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance, and defense industries.
Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery end-to-end communications & advanced networkings.
Our company attaches great importance to the construction of the R&D team, who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.
Our products range includes mimo mesh network, tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can’t risk communication failure.
Certifications
Packaging & Delivery
Packing: Packed in a professional shipping box
Port: Yantian, Shekou or Hong Kong
FAQ:
A: We are a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance and defense industries.
A: We are able to offer you the best solutions on market by providing you OEM/ODM service.
A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days…
A. We will protect our partner’s profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface & RF indicators & sensitivity & meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
A: T/T, Western Union
