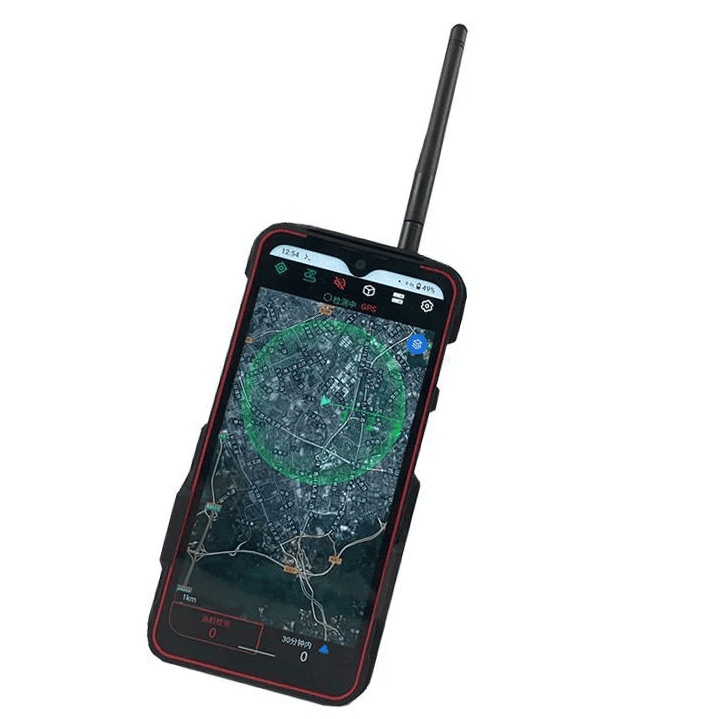

Amazing Anti Drone System XK-ADS012
$12,858
Support DJI full range of UAV detection (Mavic series, Air series, mini series, FPV series, Phantom series, Inspire series, Hiroshi Spark series, Jingwei MATRICE, Tello, etc.), 3DR, Parrot, DaoTong, Harborson, Yihang, HaoXiang, Zero, Key Stone, Xiaomi, Zendee, PuZhou, Huacol, Holystone, Spardar, Yidian, JJRC, Syma, Weili, Dahua, Kewei ,Thai, Corbett, Hava, Haikang, Smooth Sky Tour, Pegasus and other brands.
More than 33 brands and more than 350 types of drones detection, such as aircraft, FPV traversing aircraft, industry drones, WiFi drones, etc.
We can realize DIY drone detection for all kinds of free combinations, including but not limited to the combination with various domestic and foreign brands of map transmission, various domestic and foreign brands of digital transmission, and various brands of remote control, and so on.
Performance parameters
|
Note | |
Detection frequency channel | 300MHz-6000MHz; | Key detection frequency band: 2400MHz-2500MHz; 5725MHz-5875MHz; system with networking and software adjustment and upgrade function; |
Scanning time | 120M bandwidth, scan time ≤ 0.25s; | |
Fast detection performance | The farthest detection and positioning distance ≥2km for the UAVs that database stored brands and models in the open area on flat land without shading; | |
Complex track detection performance | The farthest detection and positioning distance ≥1km for the UAVs that database stored brands and models in the open area on flat land without shading; | |
Multi-target detection | The quantities of simultaneous detection ≥ 6 | |
Detection azimuth angle | Less than 3° | |
Identification distance | ≥2km | |
Identification time | Identify the UAV brand and detection synchronization | |
Identification quantities | Single identification of UAV which in database ≥ 6 | |
Connection method | Network connection WiFi hotspot | |
Working temperature | -20ºC~+45ºC | |
Power supply method | Built-in lithium polymer battery | |
Black and white list function | With | |
HD GIS system function | present the surrounding environment, equipment deployment points and other information; | |
Log and playback function | Drone intrusion log, the log shows the angle, alarm time, frequency information, can play back the drone intrusion record | |
Statistical report and alarm function | Can provide statistical reports of drone intrusion, the system can provide sound and light alarm | |
Positioning and automatic north calibration function |
System with GPS positioning function, can identify the location on the map, the system should be able to automatically calibrate the north | |
UAV signal extraction and addition function |
Can automatically collect unknown UAV signals to automatically extract parameters and add them to the UAV feature library through manual confirmation | |
Software database | Support DJI full range of UAV detection (Mavic series, Air series, mini series, FPV series, Phantom series, Inspire series, Hiroshi Spark series, Jingwei MATRICE, Tello, etc.), 3DR, Parrot, DaoTong, Harborson, Yihang, HaoXiang, Zero, Key Stone, Xiaomi, Zendee, PuZhou, Huacol, Holystone, Spardar, Yidian, JJRC, Syma, Weili, Dahua, Kewei ,Thai, Corbett, Hava, Haikang, Smooth Sky Tour, Pegasus and other brands.
More than 33 brands and more than 350 types of drones detection, such as aircraft, FPV traversing aircraft, industry drones, WiFi drones, etc. We can realize DIY drone detection for all kinds of free combinations, including but not limited to the combination with various domestic and foreign brands of map transmission, various domestic and foreign brands of digital transmission, and various brands of remote control, and so on. Including but not limited to the following brands: Futaba T8FG,Futaba 10CG, Futaba 12FG, Futaba T12K, Futaba 14SG, Futaba 16SZ, Futaba 18MZ, Futaba 18SZ, Radiolink T8FB, Radiolink AT9S, Radiolink AT10, WFLY WFT07, WFLY ET06, WFLYÂ ET07, WFLY ET12, WFLY ET16, |
|
Working Mode | CRPC + message-level protocol parsing technology | |
Features | Precise positioning drone<=10m | |
Precise positioning flyer<=10m | ||
Precise track tracking | ||
Precise identification of airframe serial number | ||
Positioning refresh time | ≤3s | |
Operating System | Android | |
Operation method | Capacitive touch screen | |
Display screen | 6 inch | |
Antenna type | Omni-directional |
Weight | 2 kg |
---|---|
Dimensions | 17 × 8 × 5 cm |
Brand |
Xingkai |
