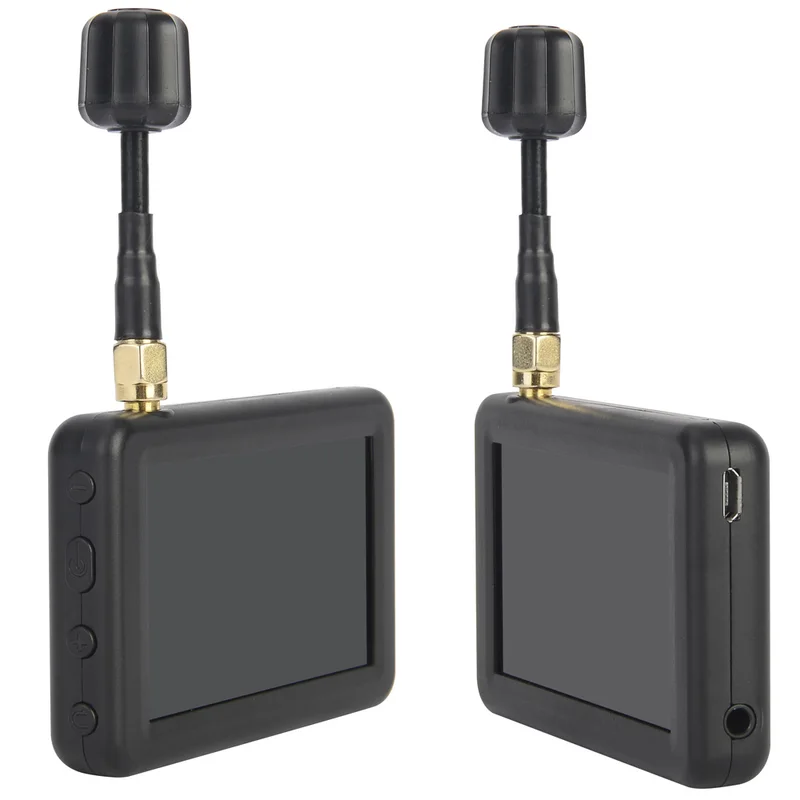

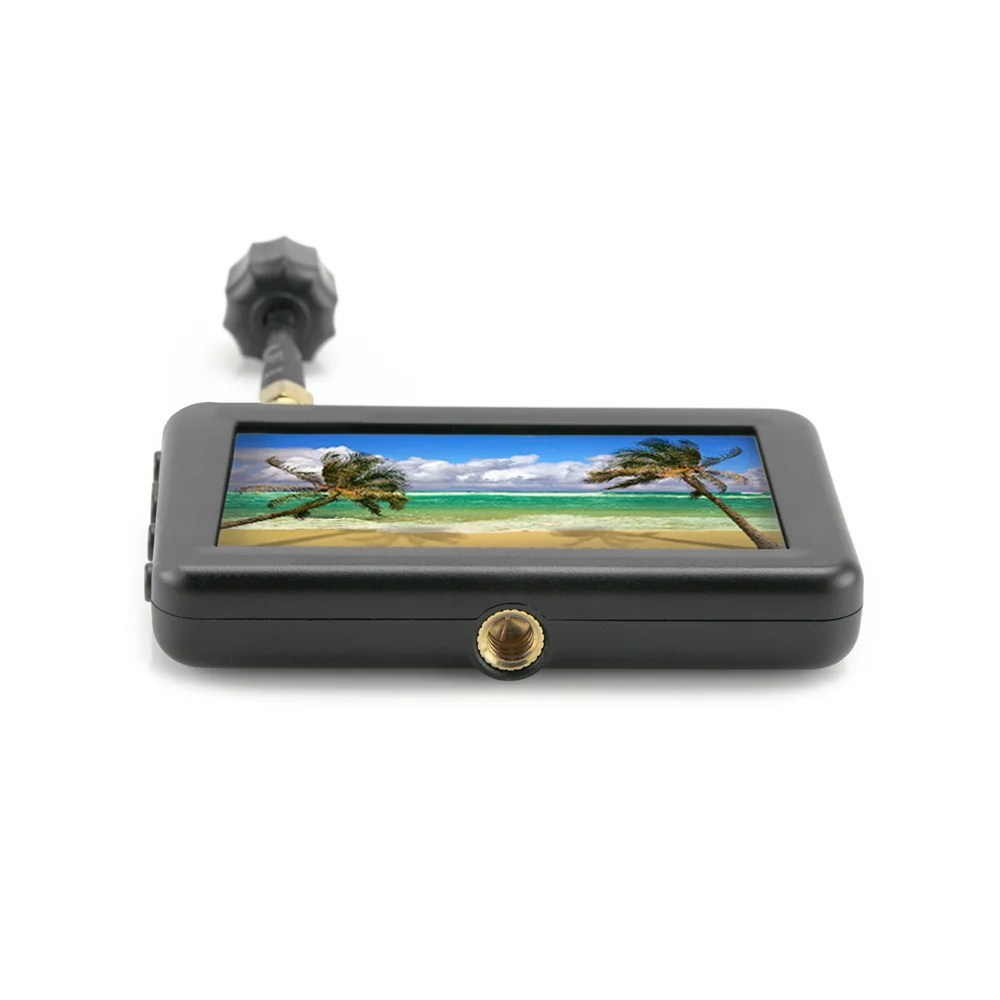

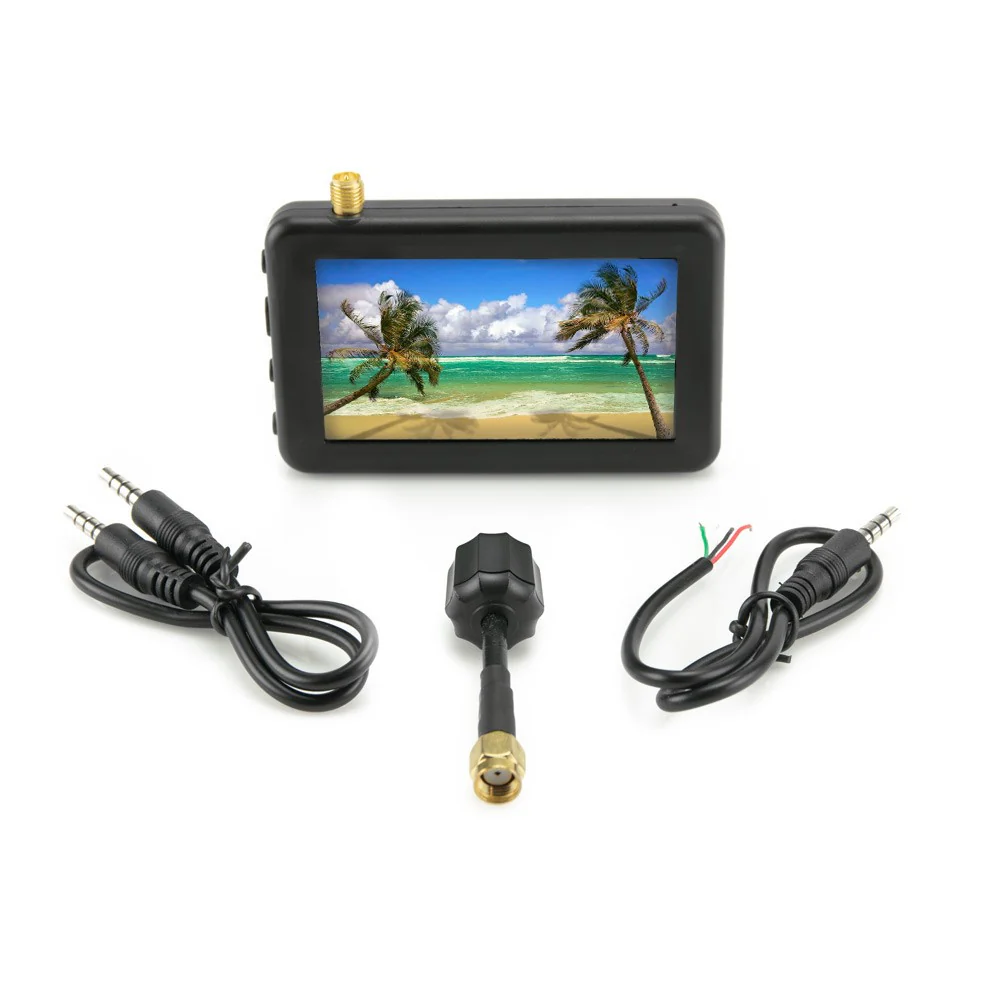

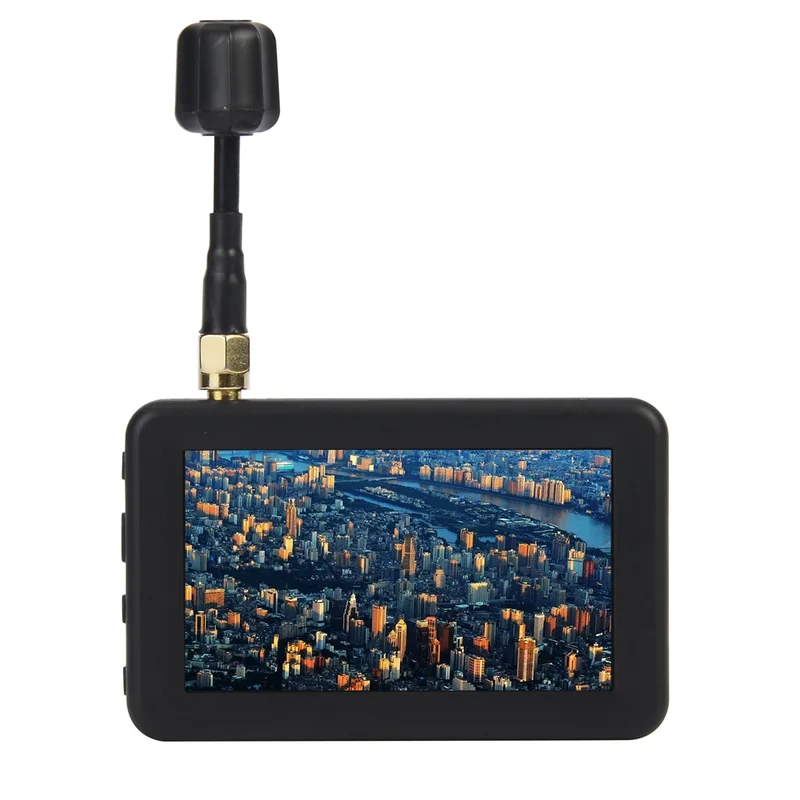

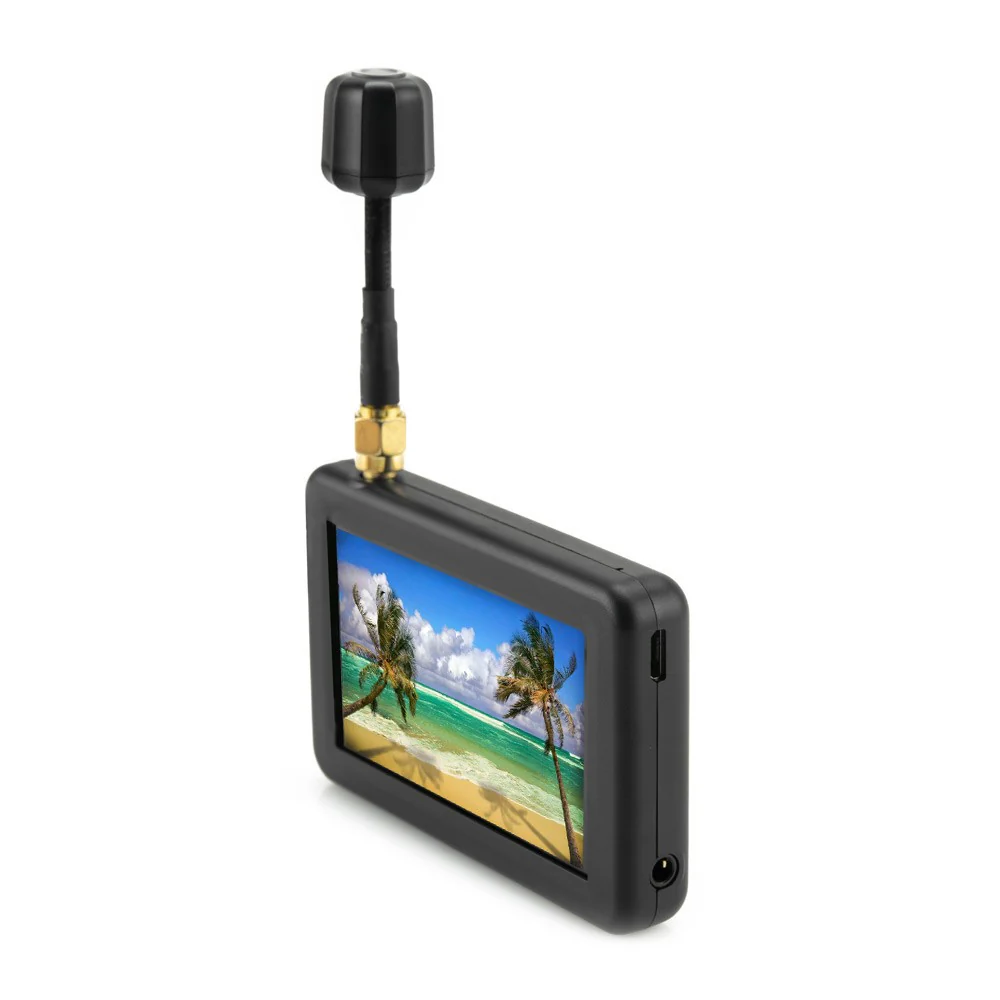

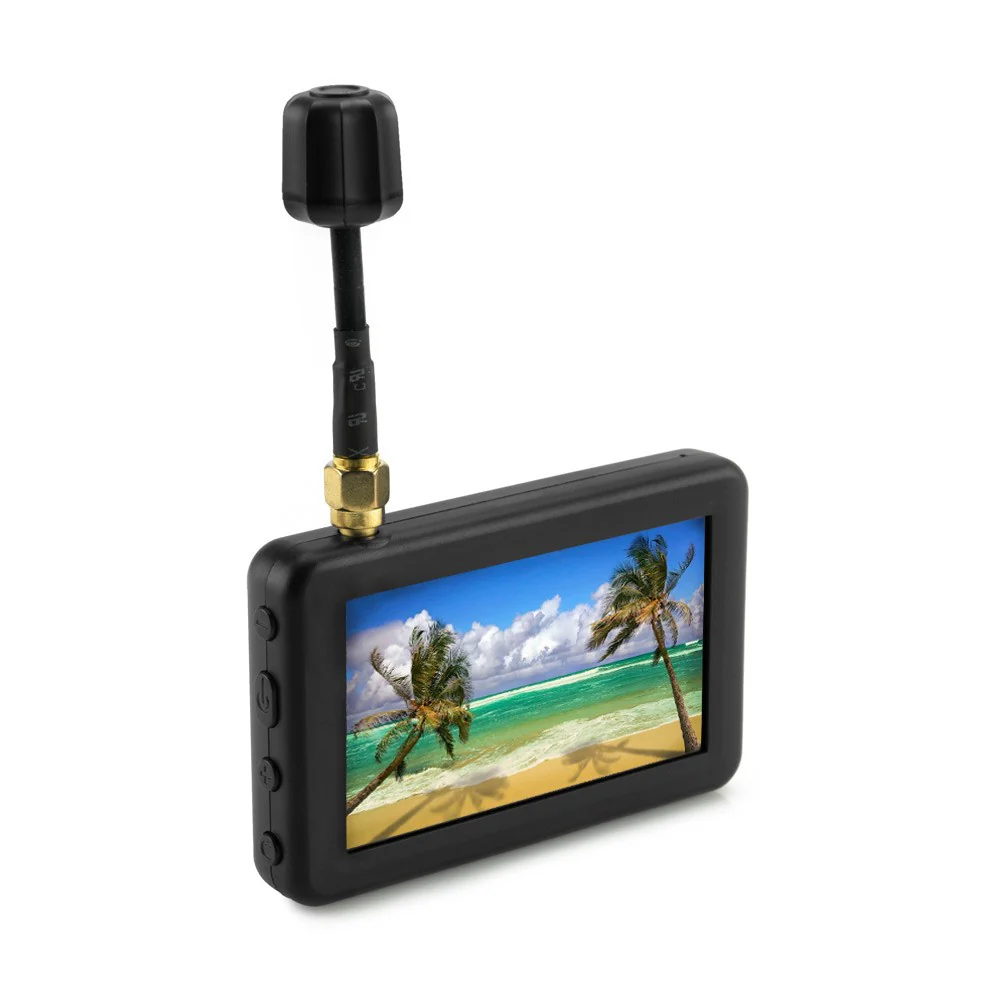

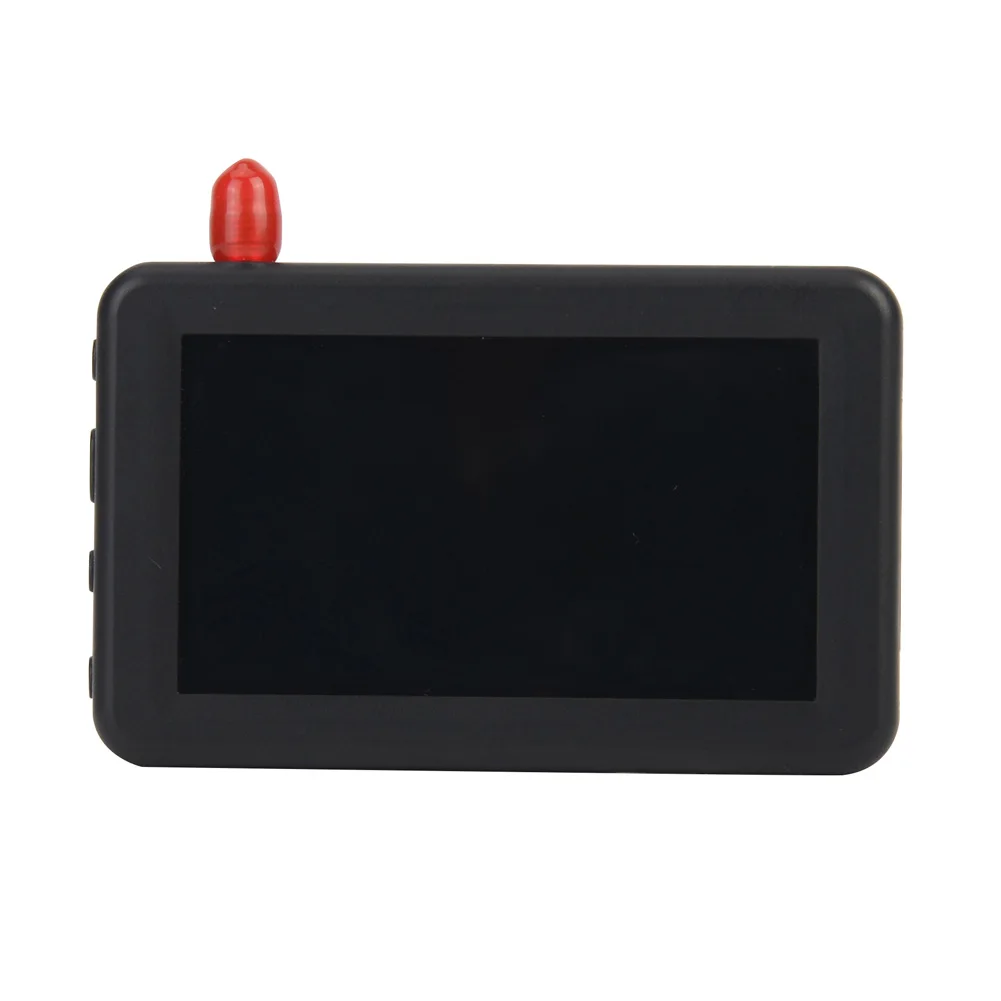

Micro 5.8G 40CH 3 Inch LCD 480×320 Auto Search FPV Monitor Mini Handheld Display Build-in Battery For RC Multicopter FPV Drone
$35
5.8G 40CH 3 Inch LCD 480×320 Auto Search FPV Monitor
Feature:
- Small size and light weight;
- Low power consumption, Working current 360~400mA;
- RaceBand 40 channel, Auto-Searching;
- 3.0 Inch 480*320 dot high brightness LCD screen;
- Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
- Built-in 3.7V/800mAh high-capacity Li-ion polymer Battery;
- Universal USB charging interface;
- Real-time video return, Very low time-delay;
- Bilingual menu in support of Chinese and English;
- Support external video signal input;
- Support AV signal output (Connect external DVR);
- It can be used as a receiver for “DJI” and other video glasses. With interest screen function;
Model LS-5804 Name Mini FPV MONITOF LCD Screen Screen:3.0 Inch IPS LCD Resolution:480*320 Display Ratio:16:9 View Angle: 360°without dead angle Brightness:500cd/m² with high brightness backlight LED Video delay Video time-delay less than 20ms Interface Antenna RP-SMA male USB To charge the battery AVJack External video signals input or internals AV signal output Languages English and Chinese Power Supply Power adapter:DC5V/1A(USB interface) Battery:
3.7V/800mAh,Each full charge revive around 2hr working timePower Consumption:
*The device operating current of 360~400mA at 3.7~4.2V;*Built-in battery maximum charge current of800mA;Wireless Frequency Table(MHz) CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 Band A 5865 5845 5825 5805 5785 5765 5745 5725 Band B 5733 5752 5771 5790 5809 5828 5847 5866 Band E 5705 5685 5665 5645 5885 5905 5925 5945 Band F 5740 5760 5780 5800 5820 5840 5860 5880 Band R 5658 5695 5732 5769 5806 5843 5880 5917

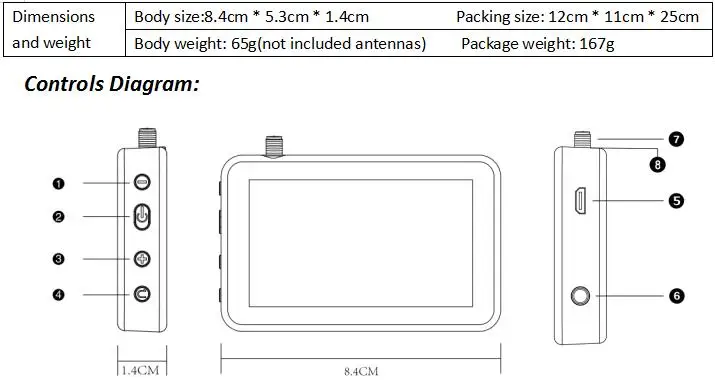

Description:
① Key 1: Short press for Band+ (Change bands A-B-E-F-R circularly).
② Key 2: Short press for MENU mode; Long press (More than 3 sec) for Power ON/OFF.
③ Key 3: Short press for Channel+ (Change channels 1-2-3-4-5-6-7-8 circularly).
④ Key 4: Short press for Auto-Searching (Automatic selection of the strongest channel).
⑤Micro-USB Charging port: Supports DC5V only.
â‘¥AV Jack:Â In RFreceiving mode can output AV signal; In AV mode can enter the video signal.
⑦ Antenna port : RP-SMA male.
⑧ Charging indicator: Red light when charging light; full power, the indicator goes off.
Menu Operation Instructions:
 In normal mode, press Key 2 to enter the MENU mode.
In MENU mode:
â‘ Â Key 2:Â Select the option bar.
â‘¡Key 1:Â Value -.
â‘¢Key 3:Â Value +
â‘£Key 4:Auto-Searching

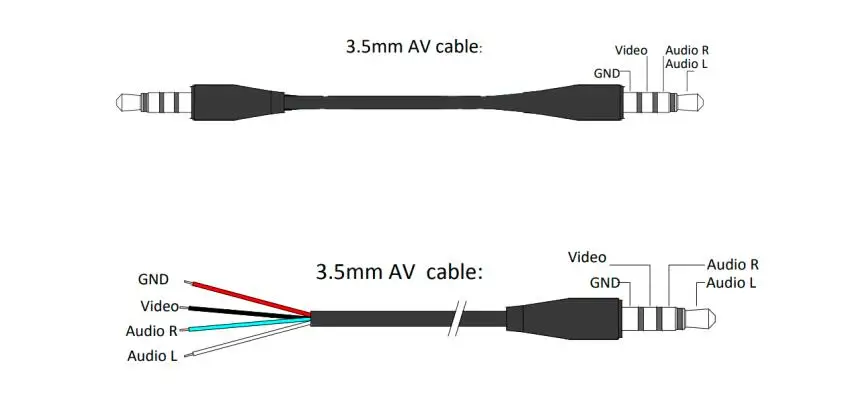

AV port Instructions:
Safety instruction:
- Read the entire instruction manual to become familiar with the features of the product before operating.
- Age Recommendation: Over 14 years old.Using any near eye displays on children under 14 can cause eye development problems. This is not a toy.
- Please avoid wet or humid environments.
- Please use standard USB charger, charging voltage can only be 5V.
- AV output and Video input cannot work at the same time,It is forbidden to insert external video in RF receiving mode.
- Please do not use corrosive cleaning agents to clean the product!
​
