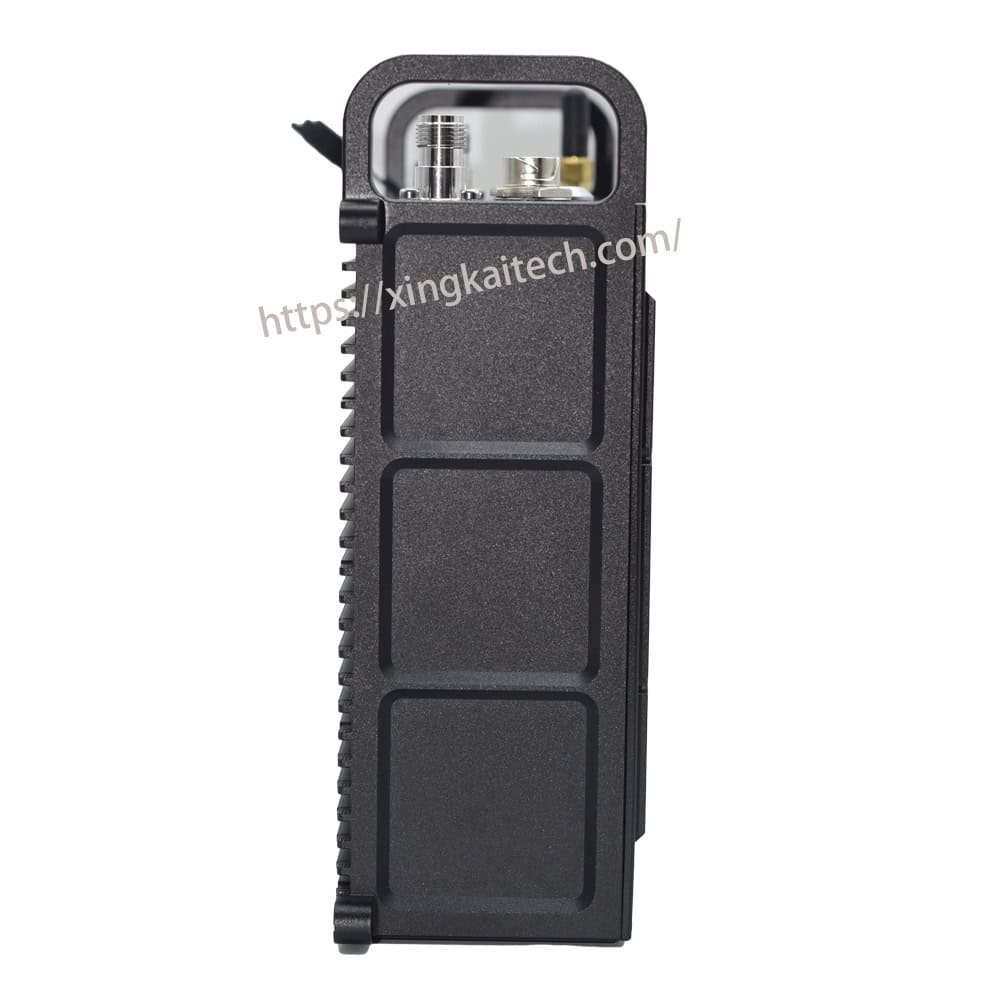

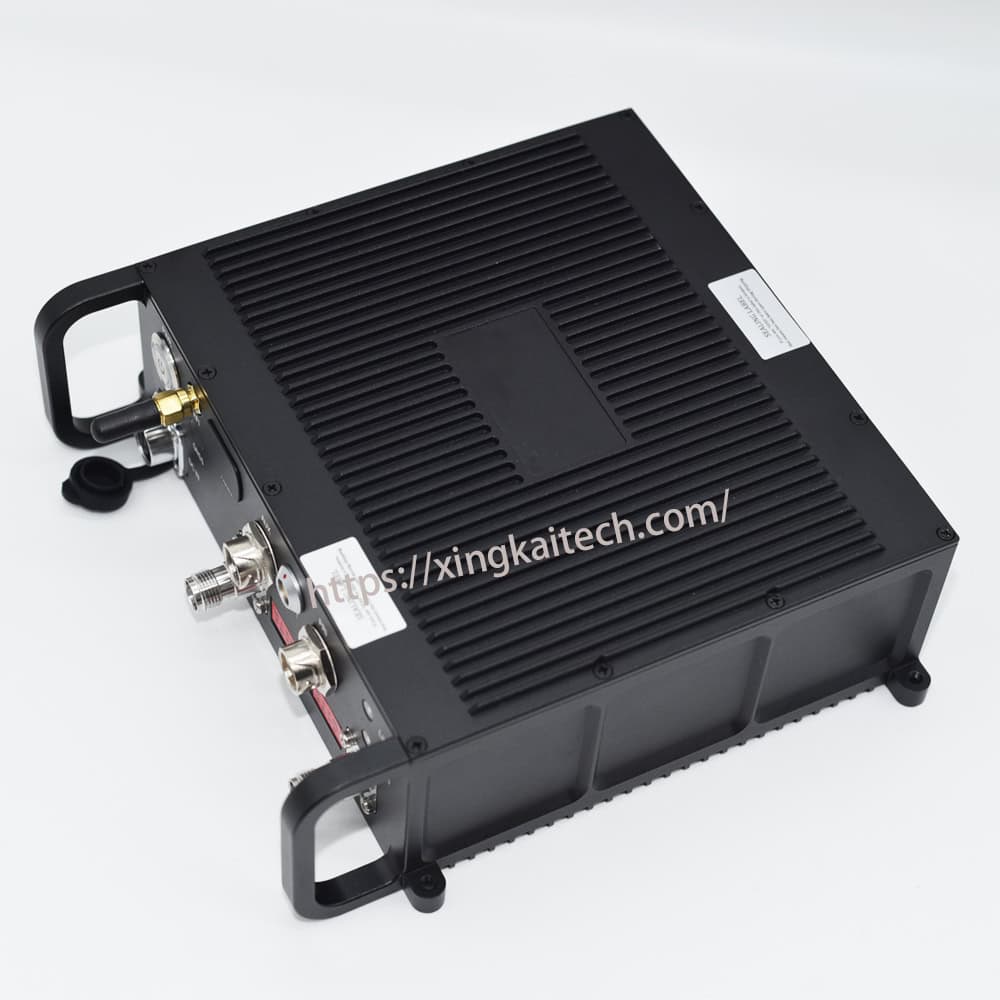

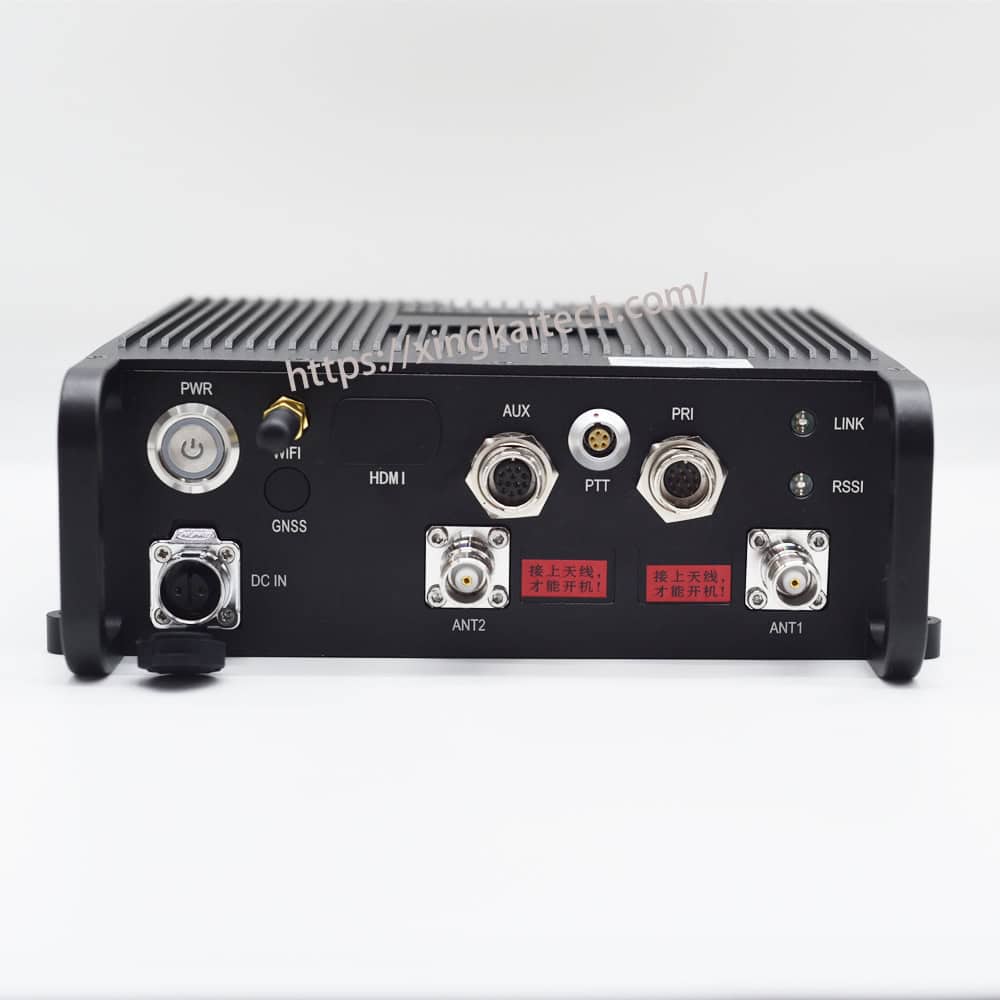

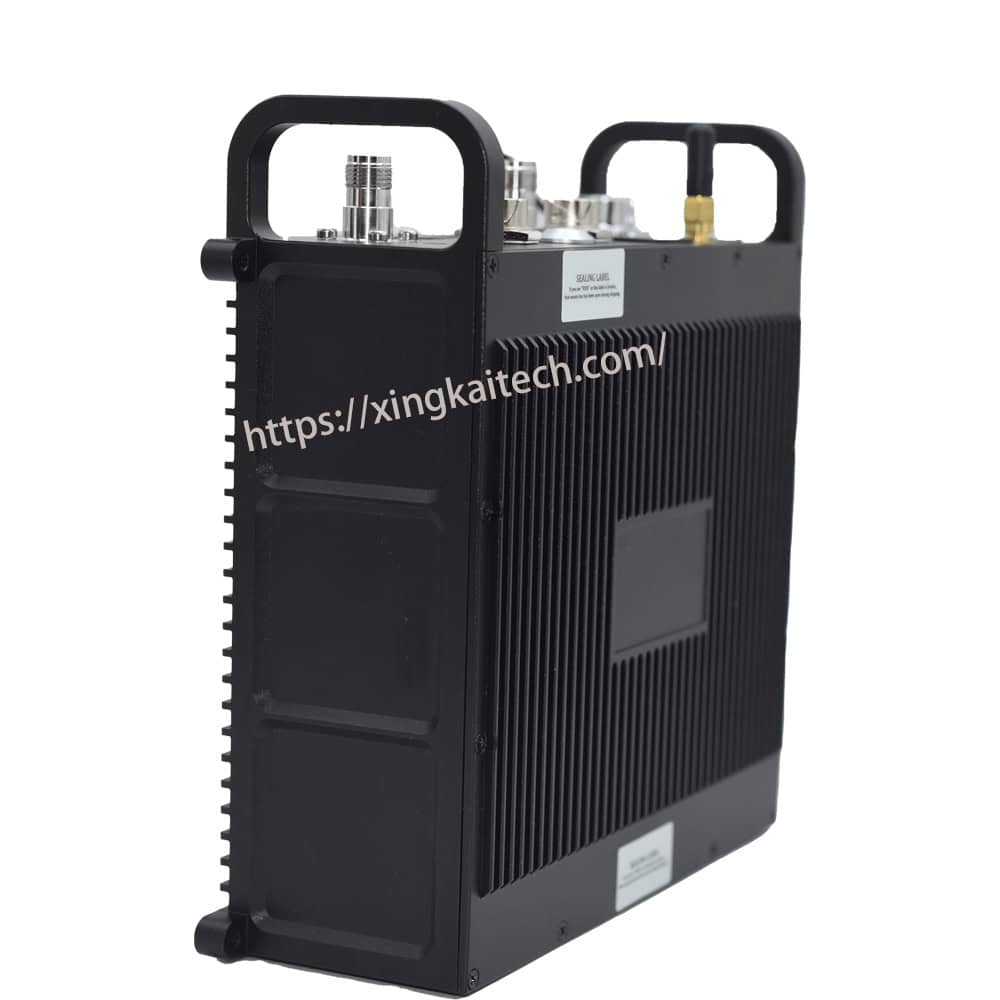

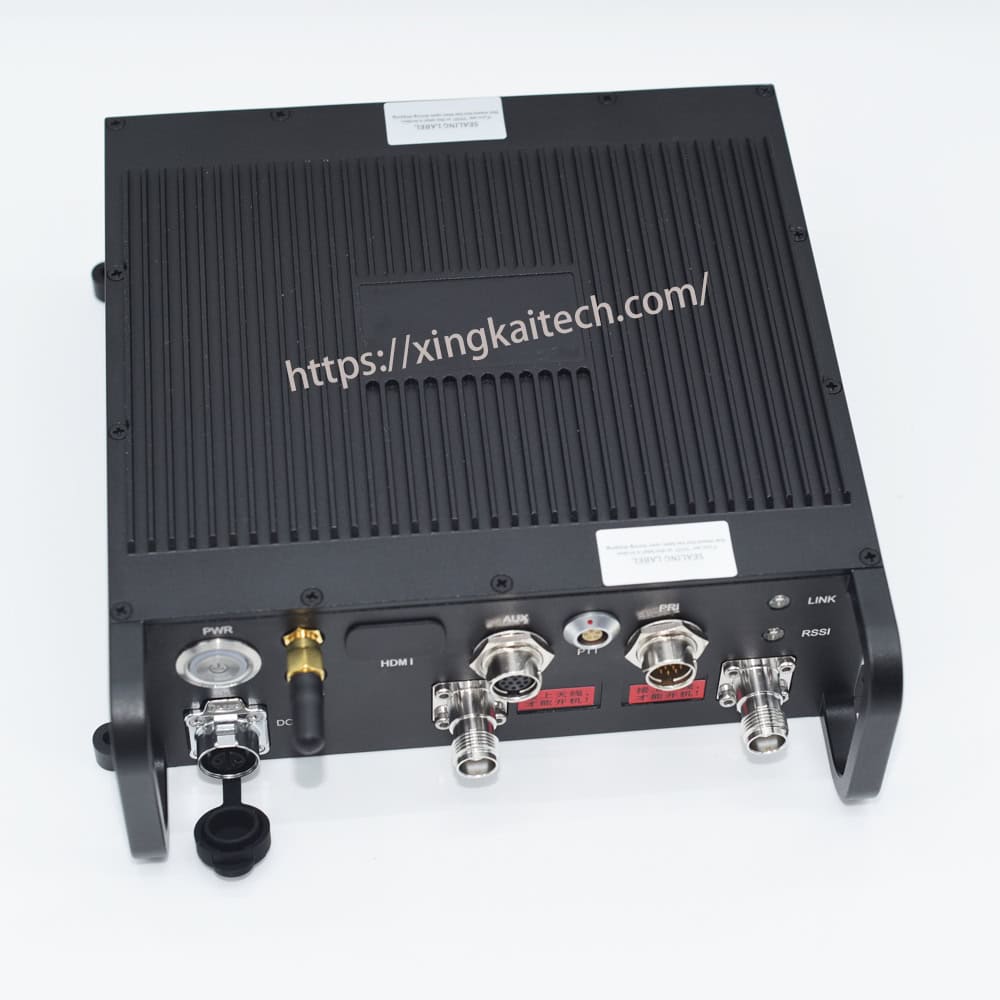

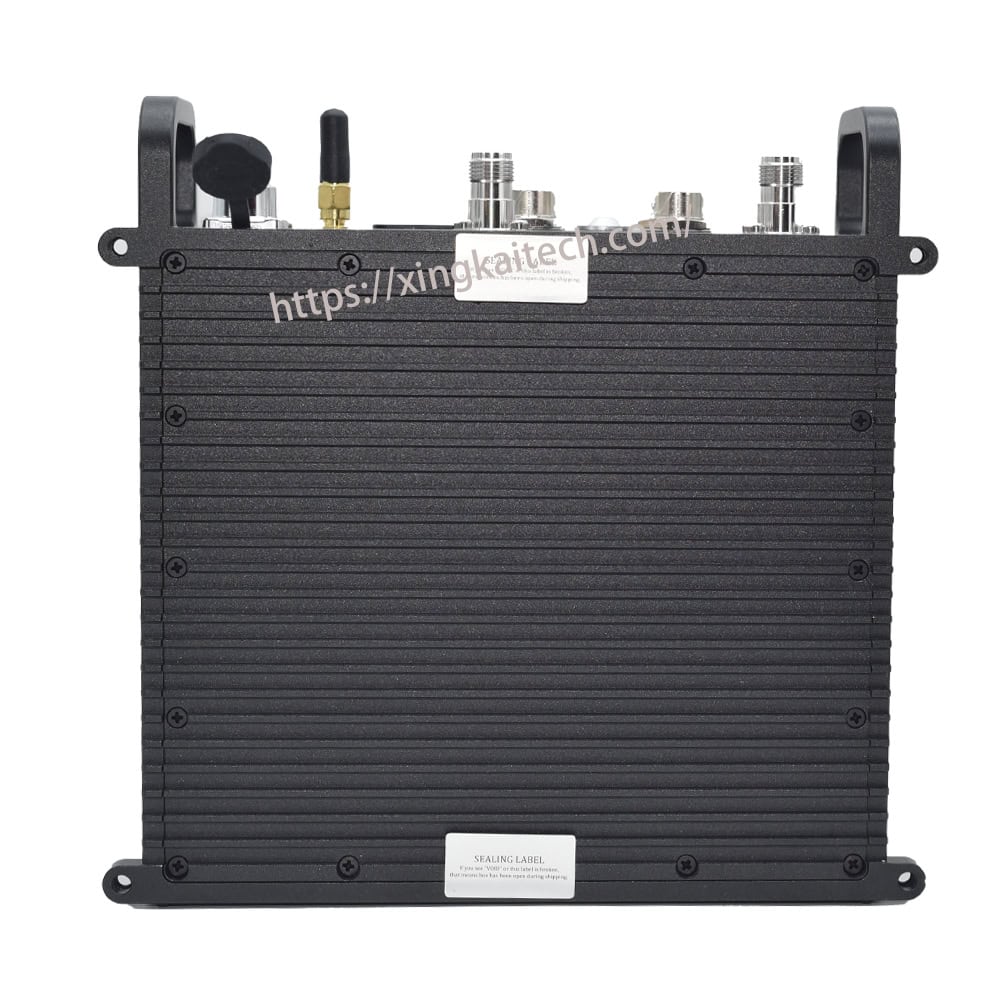

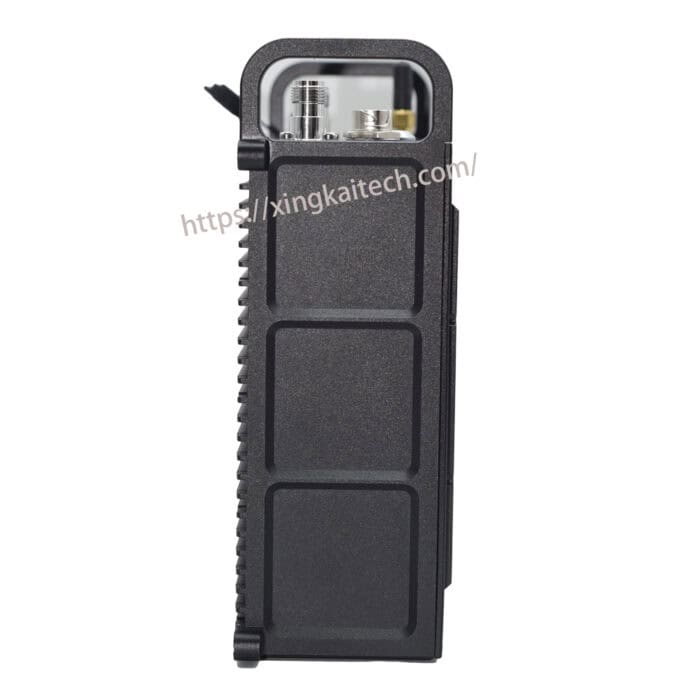

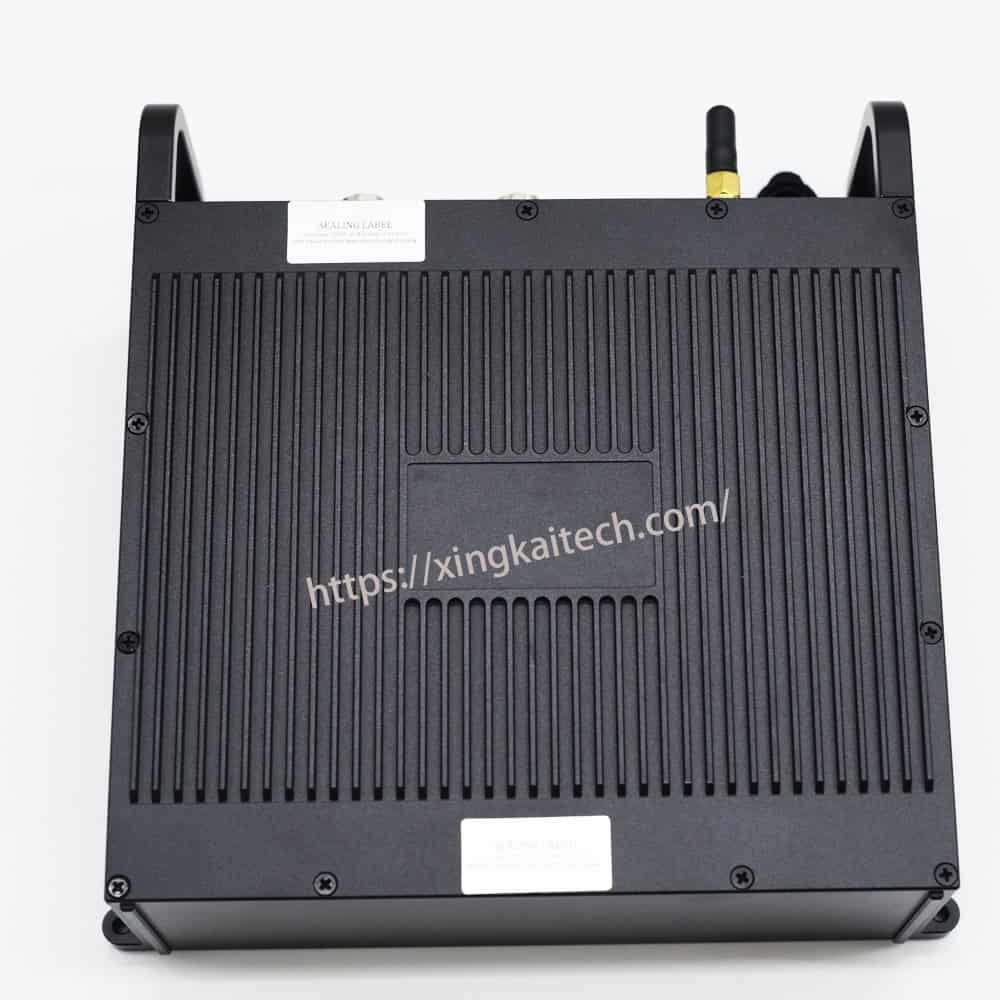

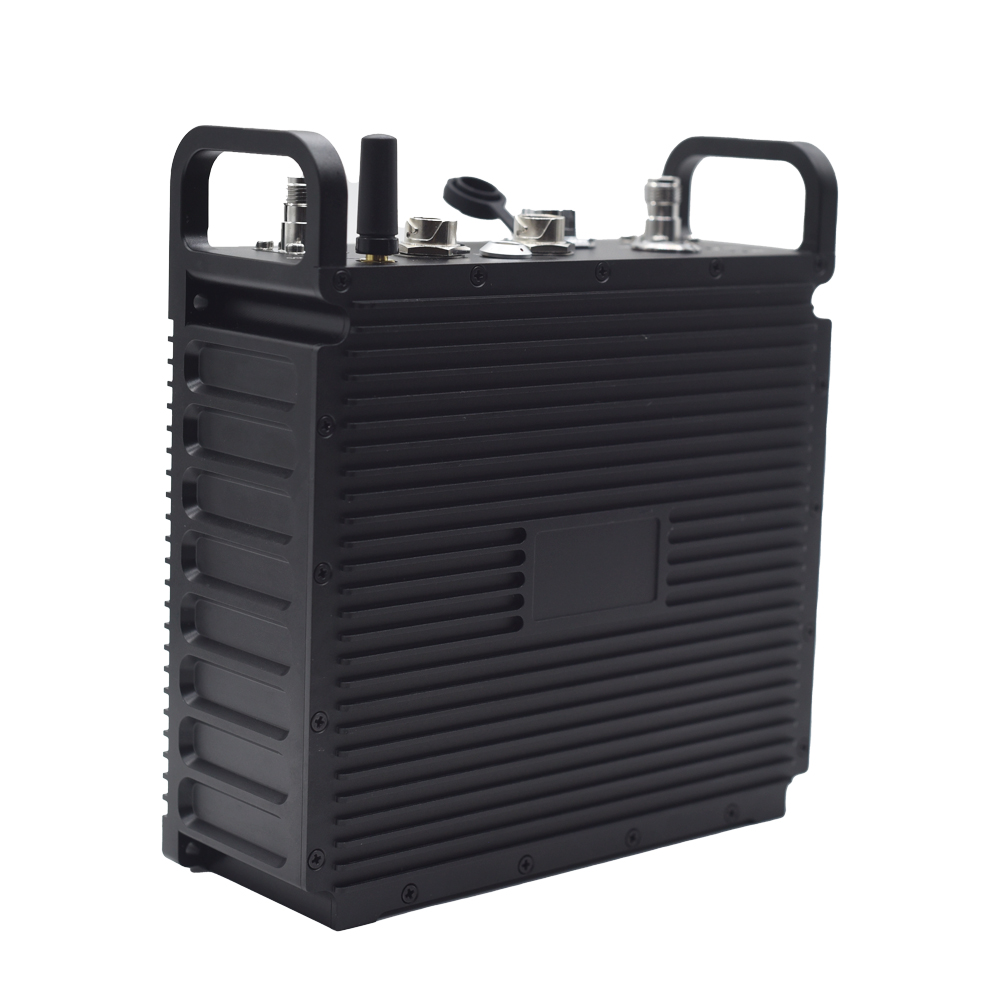

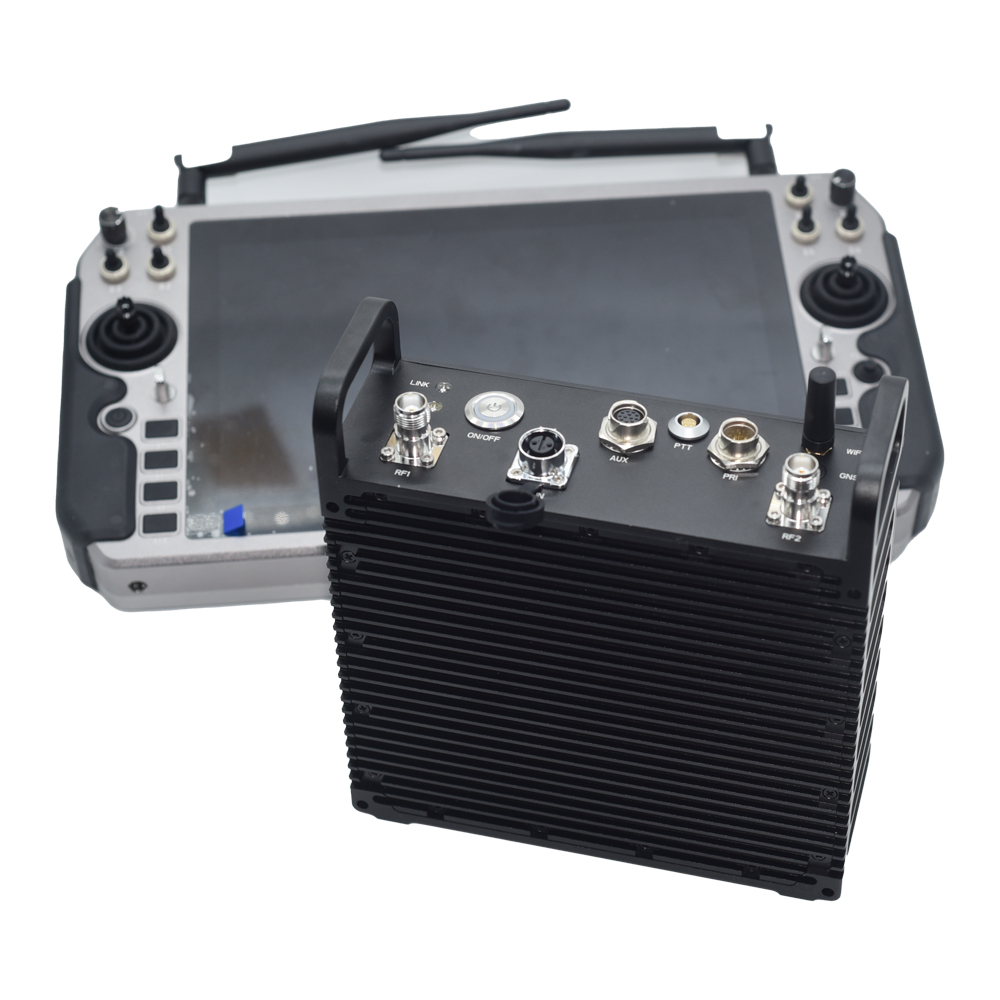

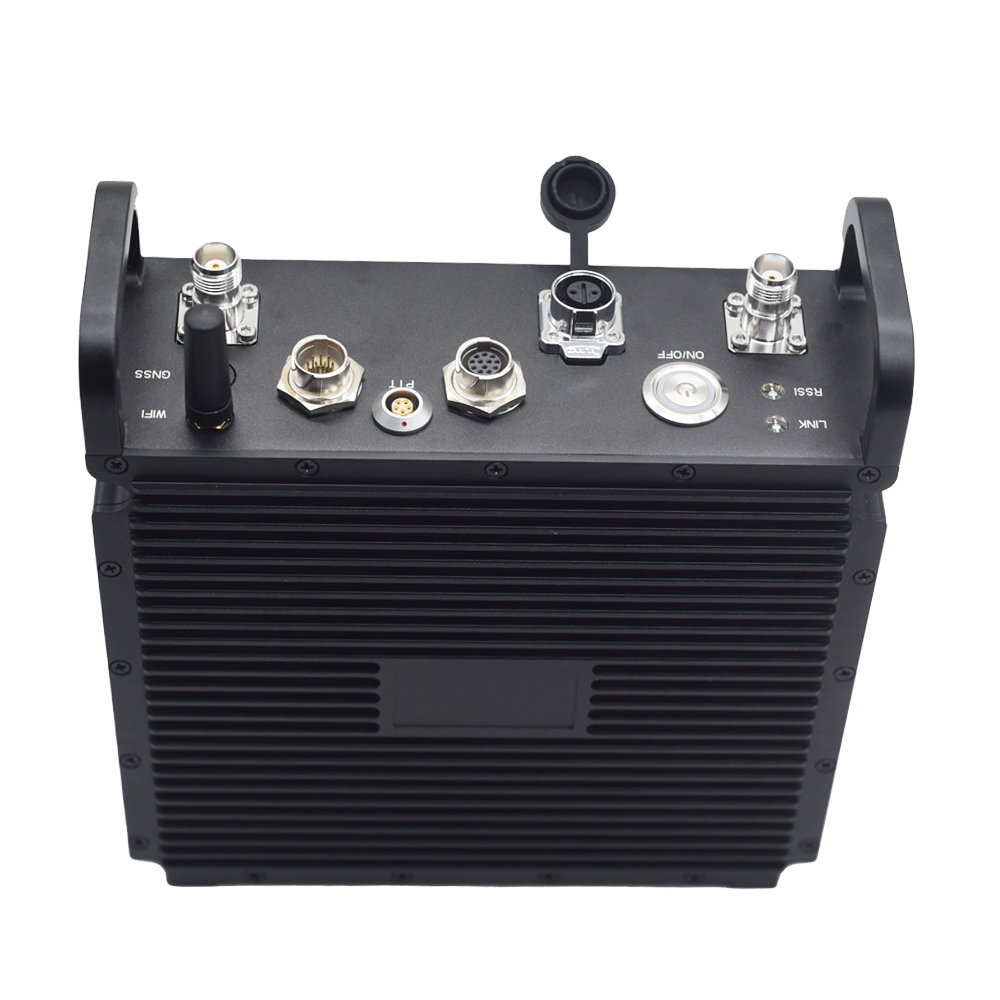

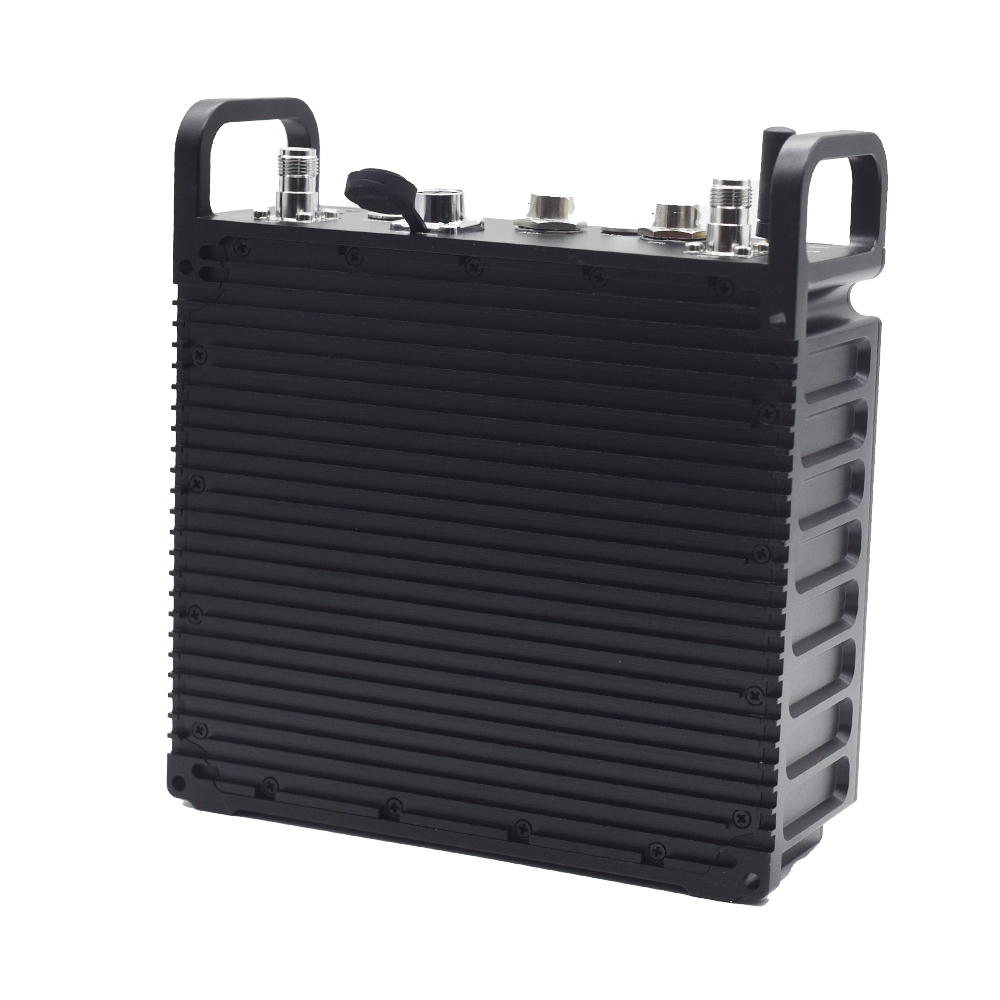

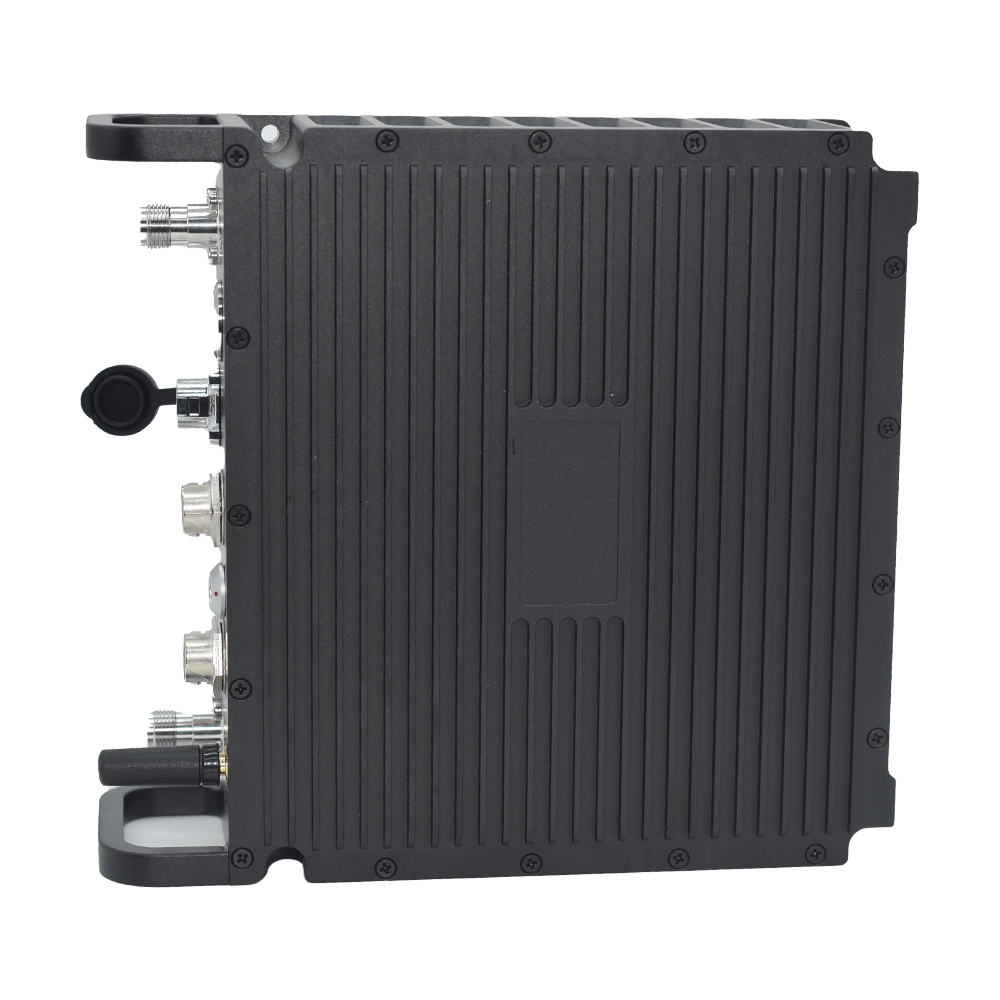

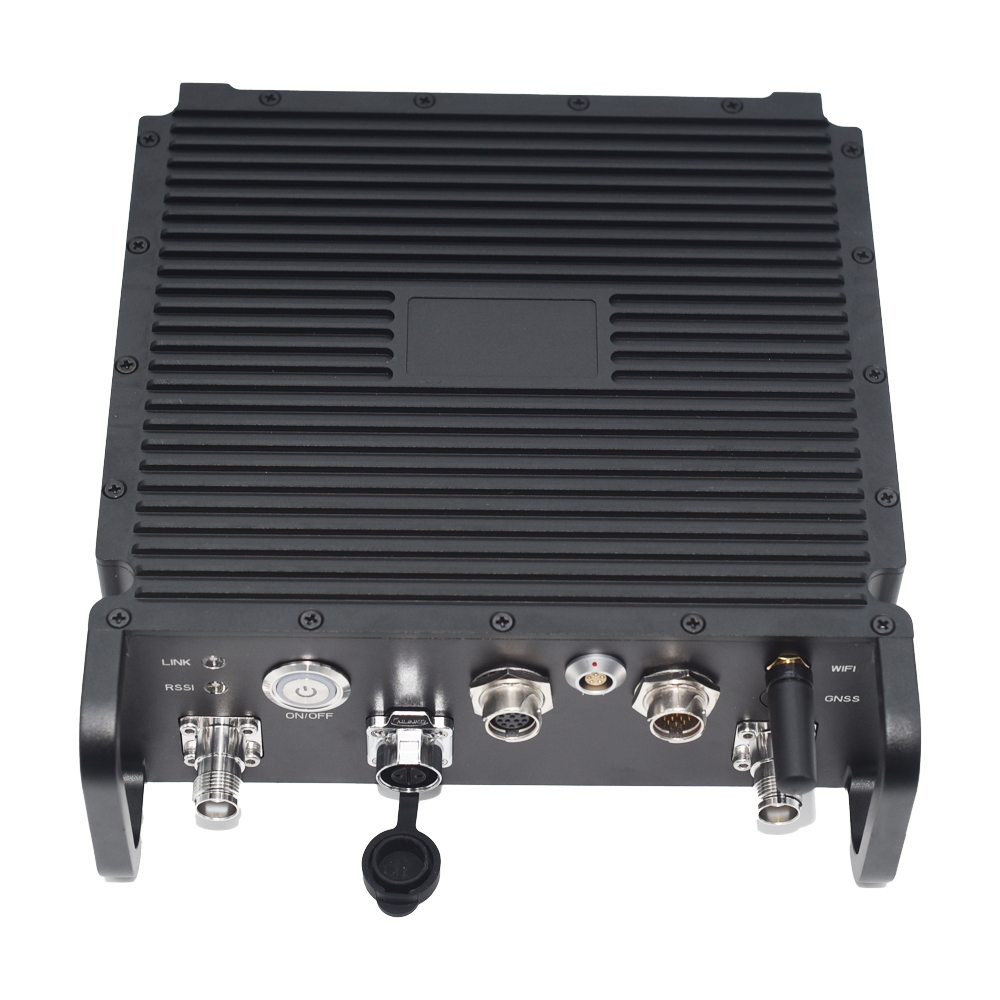

XK-F367 MIMO Mesh Networking 2*20 Watts Digital Mobile Broadband Multimedia Communication UAV System

The broadband mimo mesh networking is a mobile broadband multimedia communication system designed with the new concept of “wireless grid network”. The system with powerful functions and excellent performance; All nodes can realize real-time interaction of multi-channel voice, data, image and other multimedia information by adopting distributed network architecture without central AD hoc network under the condition of non-line-of-sight and fast movement. Supports any network topology, such as point-to-point, point-to-multipoint, chain-like relay, mesh network and hybrid dynamic topology.

The network adopts the same frequency networking and multi-hop relay. Each node device can move quickly and randomly, and the network topology can be changed and updated quickly without affecting the network transmission.The whole network is convenient to deploy, flexible to use, simple to operate and easy to maintain. It can provide users with reliable, timely, efficient and secure full IP clear voice, broadband data, high-definition video and visual command and scheduling and other multimedia integrated services under complex application scenarios such as fast movement and non-line-of-sight shielding.

The broadband self-organizing network can be widely used in the public security, armed , fire protection, civil air defense, electric power, petroleum, mining, transportation, water conservancy, forestry, radio and television, medical, water and air communications and other sectors, providing users with reliable, timely, Rich integrated services such as safe and efficient voice, data, video and visual command and dispatch can meet users’ wireless broadband communication needs in normal or emergency situations to the greatest extent, and truly achieve “anytime, anywhere on demand”.

Performance:

  Mesh network (self-forming, self-healing, self-adapting), high-speed throughput

  Non-visual urban construction jungle multi-path transmission terrain, effective connection

  High-speed movement of ground, water and air, effective connection

  Multiple antenna settings, omnidirectional, high gain orientation or mixing

  GPS and Multicast Support

  Increased 4.5 times coverage in densely populated areas

  The same communication range and transmission volume, reducing transmission power by 10 times

  Increase the distance by 2 times in the visible limit environment

  Increase 2-4 times transmission rate

Significant applications in Non Line of Sight /Multipath Fading environments, video/data/voice critical ommunications:

  Robot / Unmanned Vehicle, Reconnaissance / Surveillance / Anti-Terrorism / Monitoring

  Air-to-air & air-to-ground & ground-to-ground, public safety / special operations

  Urban network, emergency support / normal patrol / traffic management

  Inside and outside the building, fire fighting / rescue and disaster relief / forest / civil air defense / earthquake

  TV broadcast wireless audio / video / live broadcast

  Marine communication / high speed transmission on the opposite side of the ship

  Low deck wireless network / ship landing
