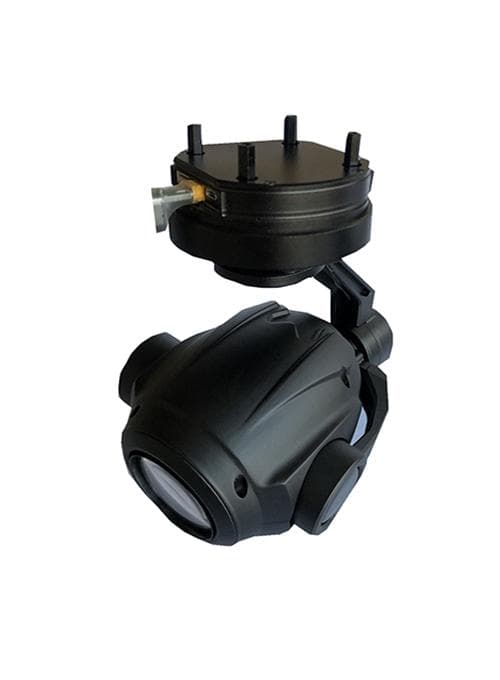

Gimbal Thermal Camera XK-F412rs
$199
Xk-F412rs is a 10x optical zoom gimbal camera integrating a thermal camera and a high-precision 3-axis stabilizing system with an IP network. It adopts a high-precision FOC control method, having advantages such as high stability, small volume, small weight, and strong function. The daylight sensor has 4M effective pixels and can work under low light levels. The thermal sensor uses a 320*240 resolution, block slice design.
Xk-F412rs FEATURES
- 10x optical zoom +thermal
- Thermal pseudo color switch
- RTSP IP video output
- 3-axis FOC Gimbal
- UART or IP network control
- OSD menu setting
- Single TF, two video record
Description
Technical Spec
| Item | Parameter |
|---|---|
| Power Supply | 3S or 6S（DC12V-26V） |
| Power Consumption | About 9W |
| Roll angel | -120~+120° |
| Pitch angel | -45°~ +135° |
| Yaw angel | 360° |
| Jitter Angle | Pitch Direction ±0.02°; Horizontal Direction ±0.03° |
| Gimbal function | One-click restore to the initial position, support angel, and speed control |
| Wireless link | Frequency 800MHz, default bandwidth 20M (can set 5M,10M) |
| Transmitting power &distance | 25dBm 10KM distance |
| Transmitter mode | Bidirectional transmission, video, and data in one link |
| Control mode | IP directly control（UART control option） |
| Feature | Ground system PIP display, pseudo color switch, temperature measure |
| Sensor | 1/3 4M Pixels CMOS sensor |
| Zoom | 10x optical zoom, f= 4.9to49 mm ±5% |
| AF Time | Support quick autofocus, timelapse< 1 sec |
| Video Output | RTSP 1080P 30fps IP output, Local TF record |
| FOV D | WIDE 66.6º±5% TELE 7.2º±5% |
| FOV H | WIDE 53.2º±5% TELE 5.3º±5% |
| FOV V | WIDE 39.8º±5% TELE 4.2º±5% |
| Mode | 1080P 30fps |
| Resolution | 320*240 pixel |
| Pix Spacing | 12μm |
| Type | Uncooled Micro Bolometer IR FPA Fabrication |
| Wavelength | 8～14μm |
| NETD | ≤65mk@30℃ |
| Field Angle | 6.5mm Lens; Angle: 36.4×24.2 |
| Measurement | Center point, highest temperature, over-temperature alert |
| Device Size | 145mm*110mm*145mm |
| Work Condition | -10℃ to +45℃ / 20% to 80% RH |
| Storage Condition | -20℃ to +60℃ / 20% to 95% RH |
| Function | Aerial photograph |
| Weight | 580±20 g |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 200 × 200 × 50 cm |
| Brand |
Xingkai |
