Gimbal Thermal Imaging Camera XK-F603rs
Original price was: $399.$199Current price is: $199.

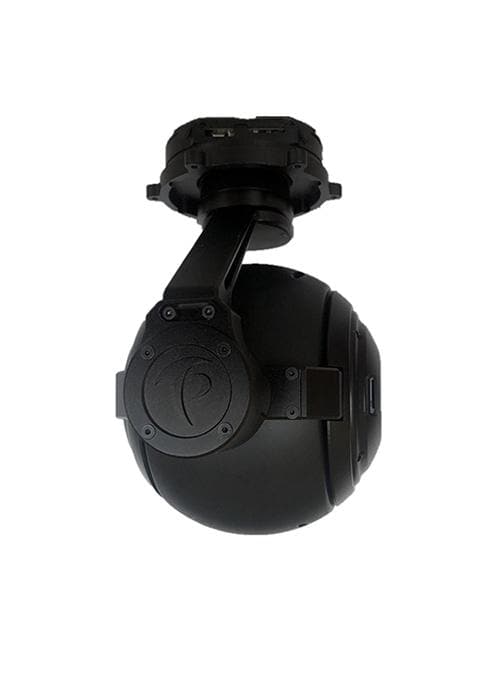

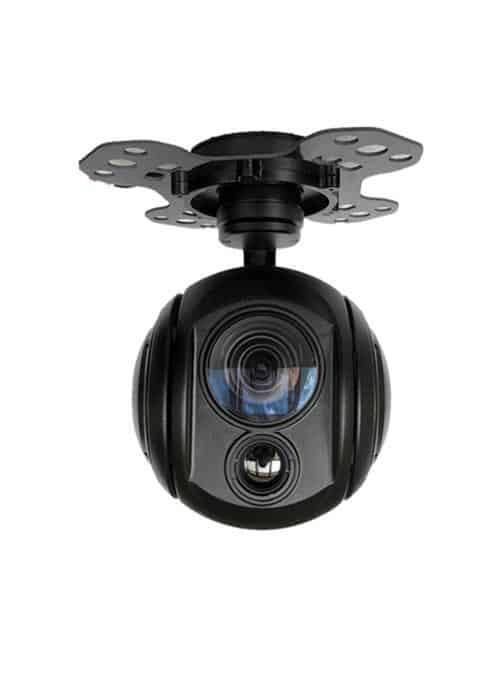

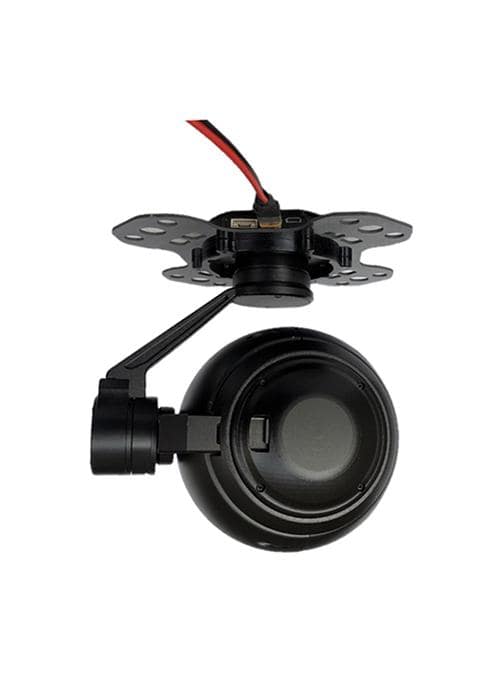

Xk-F603rs integrates a 30x optical zoom camera, a 384*288 / 640×480 thermal imaging sensor, and a high-precision 3-axis stabilizing ball-type gimbal. It is an output RTSP video stream through a network port, and also supports IP control. It adopts a high-precision FOC encoder and it is characterized by high stability, small size, lightweight, and low power consumption. The camera supports visual and infrared imagining. Its low light level sensor has 4M effective pixels and the thermal imaging sensor adopts a 384*288 / 640×480 resolution non-guard sheet imaging detector imported from America. Besides, it provides real-time picture-in-picture(PIP) displaying function in ground software and allows storing their data in a local TF card.
Xk-F603rs FEATURES
- 30x optical zoom +thermal
- Thermal pseudo color switch
- RTSP video through the network
- Realtime switch
- 3 axis FOC Gimbal
- IP, UART, or SBUS control
- OSD menu setting
- Double TF for two video
Technical Spec
| Item | Parameter |
|---|---|
| Power Supply | 3S /6S |
| Power Consumption | Dynamic condition 7.5W |
| Jitter Angle – Pitch and Roll | ±0.02° |
| Jitter Angle – Horizontal Direction | ±0.03° |
| Pitch range | -90°to +90° |
| Roll range | -85°to +85° |
| Yaw range | -150°to +150° |
| One-Click Restore | One-click restore to the initial position |
| Adjustable Gimbal Speed | Low speed at big zoom status and fast speed control at small zoom status. Adaptive speed control based on zooming of daylight sensor. |
| Control Mode | IP, SBUS control, and UART serial port command. |
| Sensor | 1/3 4M Pixels CMOS sensor |
| Zoom | 30x HD optical zoom lens, f = 4.5±10%~135±10%mm |
| AF Time | Support quick autofocus, timelapse < 1 sec |
| Video Output | Output RTSP IP video at 1080P and record video data in the local TF card |
| Control Mode | Support PWM control, serial port control, and OSD menu setting |
| Support Mode | 1080P 30fps |
| Field Angle(FOV) D | WIDE 67.8º±5% TELE 2.77º±5% |
| Field Angle(FOV) H | WIDE 59.8º±5% TELE 2.34º±5% |
| Field Angle(FOV) V | WIDE 40.5º±5% TELE 1.48º±5% |
| Resolution | 384*288 / 640*480 |
| Pix Spacing | 17μm |
| Type | Uncooled Micro Bolometer IR FPA Fabrication |
| Wavelength | 8～14μm |
| (NETD) Thermal Sensitivity | ≤65mk@30℃ |
| Brightness Contras | Adjustable |
| Field Angle | 19mm Lens; Angle: 32.0×24.2 |
| Measurement(Optional) | Center point, highest temperature, lowest temperature, temperature display, over-temperature alert |
| Device Size | L158*W125*H185mm |
| Work Condition | -10℃ to +45℃ / 20% to 80% RH |
| Storage Condition | -20℃ to +60℃ / 20% to 95% RH |
| Function | Aerial photograph |
| Weight | 940±10g |
| Weight | 2 kg |
|---|---|
| Dimensions | 200 × 200 × 50 cm |
| Brand |
Xingkai |
