CVBS Analog FPV Drone Thermal Imaging Camera 256×192 Resolution 4/10mm Lens Uncooled Long Wave Infrared Camera
$223

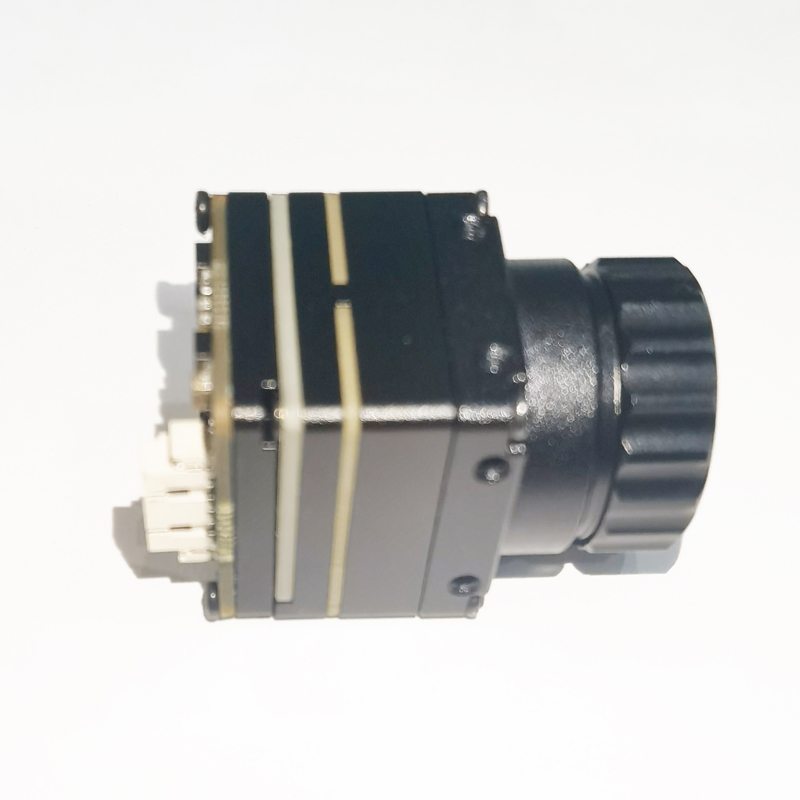

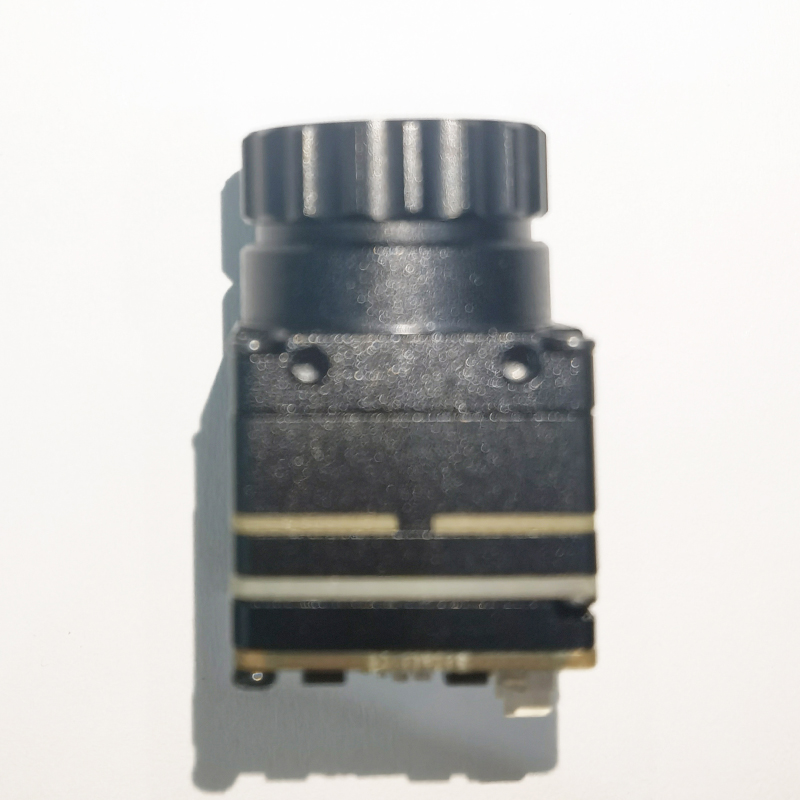

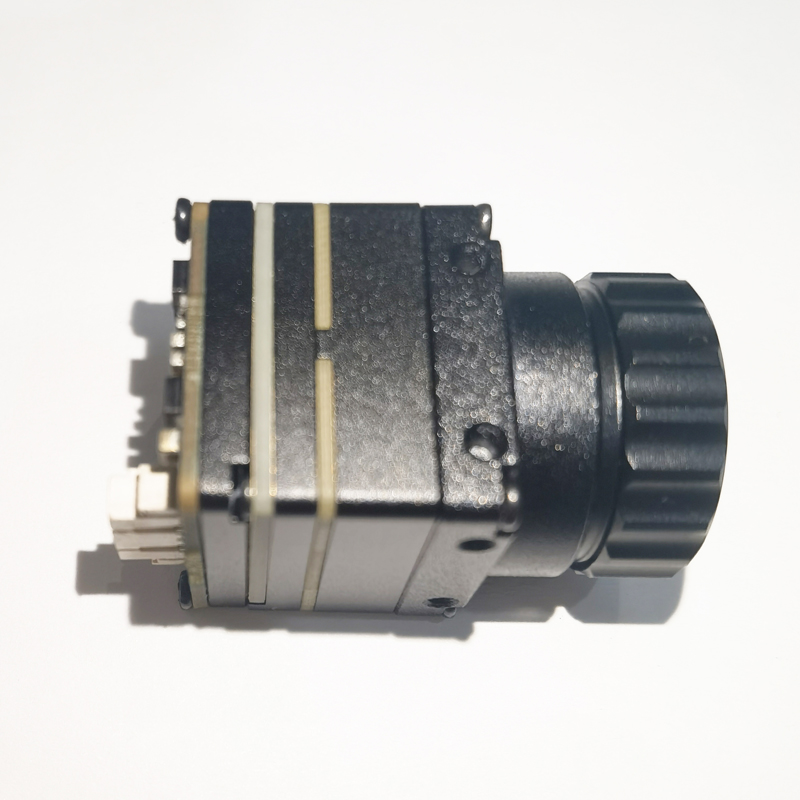

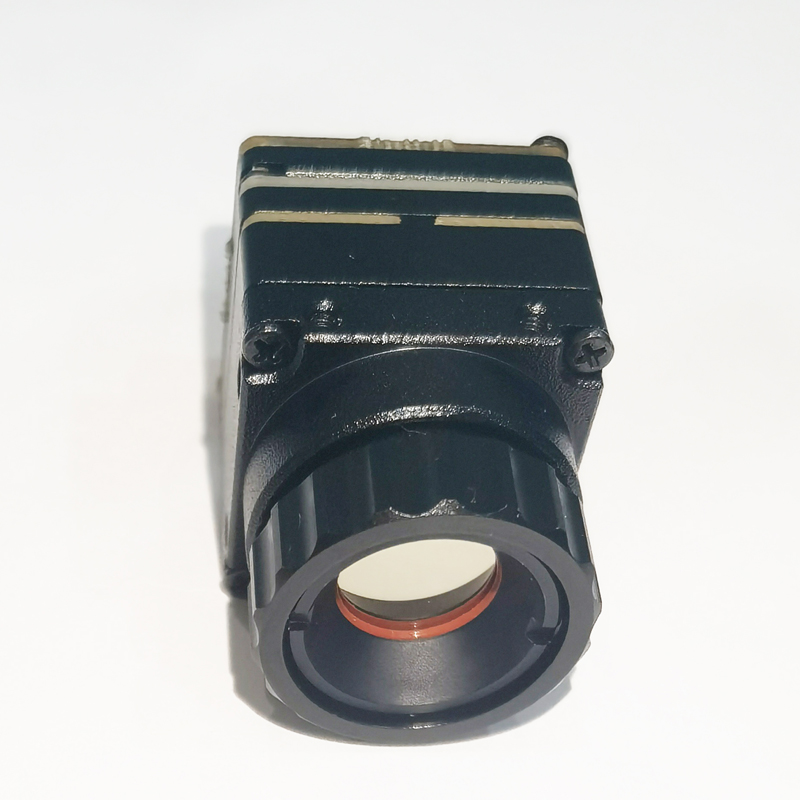

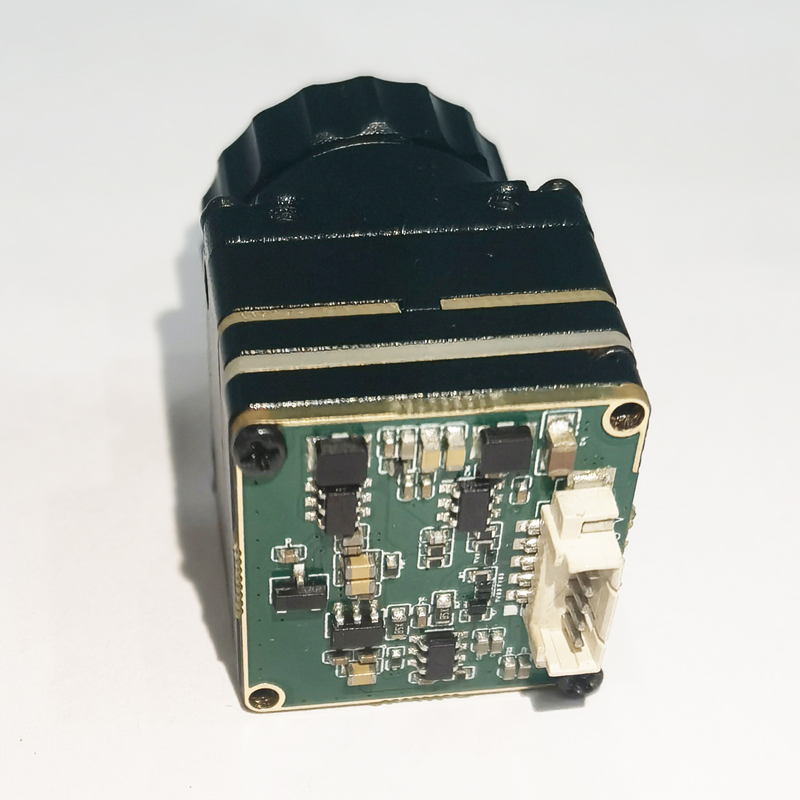

Thermal Imaging Camera XK-C130
CVBS Analog FPV Drone Thermal Imaging Camera 256×192 Resolution 4/10mm Lens Uncooled Long Wave Infrared Camera
The XK-C130 is a miniature FPV thermal camera that combines HD and drone camcorder features and is designed for RC FPV cars, aircraft, racing cars and drones.

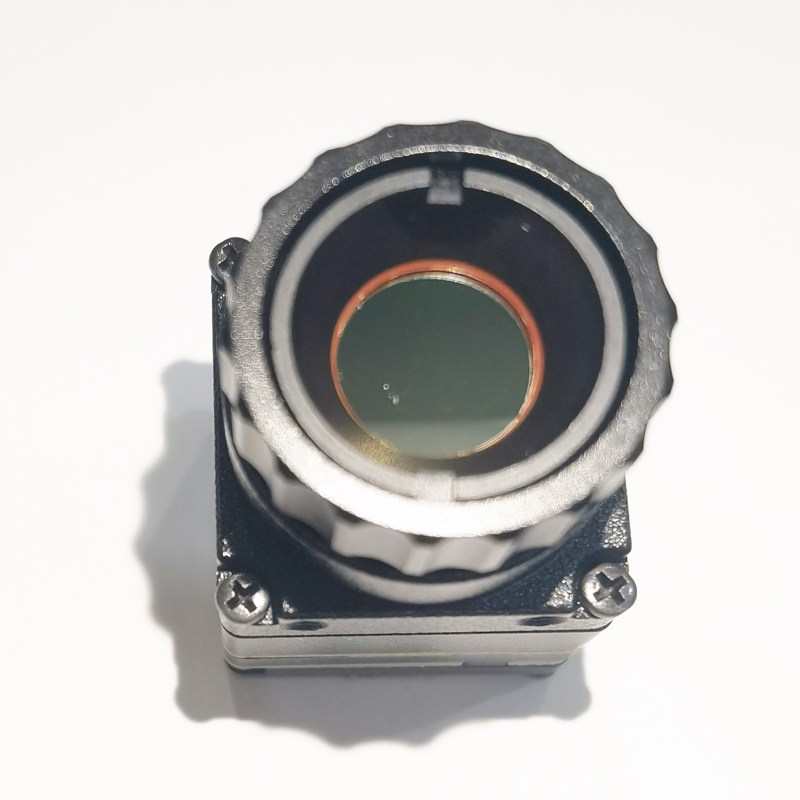

The XK-C130 camera is small and easy to install, and the lens housing design makes it easier to install on your aircraft. Not only does it have all the features of a tiny drone camera, it also has thermal imaging to provide clear images in low-light or total darkness. The camera also comes with a lens cover that effectively protects the lens from dust and dirt.
This camera has a very high resolution, whether it is 256×192 resolution, it provides extremely high image quality. The open-stop shutter and adjustable focus feature allow you to adjust the effect as needed to meet a variety of shooting needs. Most importantly, the output resolution is very high, the picture quality is clear, can capture every moment.
TECHNICAL PARAMETERS
| Model | XK-C130 | |||
| Specification parameters | ||||
|
Movement parameters |
Detector type | Vanadium oxide uncooled infrared focal plane detector | ||
| Resolution | 256×192 | |||
| Pixel Pitch | 12um | |||
| Spectral Band | 8-14um | |||
| NETD | ≤40mK | |||
| Frame rate | 50Hz | |||
| shutter | Automatic shutter correction | |||
|
Lens Parameters |
focusing | Adjustable focus | ||
| aperture | 1.0 | |||
| Lens millimeters | 4mm | 10mm | ||
| FOV(H*V) | 40.1 ° ×30.3 ° | 17.6 ° ×13.2 ° | ||
| Detection distance | people | 440m | 1000m | |
| vehicle | 1051m | 2389m | ||
| Recognition distance | people | 110m | 250m | |
| vehicle | 263m | 597m | ||
|
function |
Pseudo color | White heat | ||
| Standard | PAL | |||
| type of output | CVBS | |||
| Power supply voltage | 4.5-18V | |||
| power | 600mw | |||
| working temperature | -40℃~+80℃ | |||
| Storage temperature | -50℃~+85℃ | |||

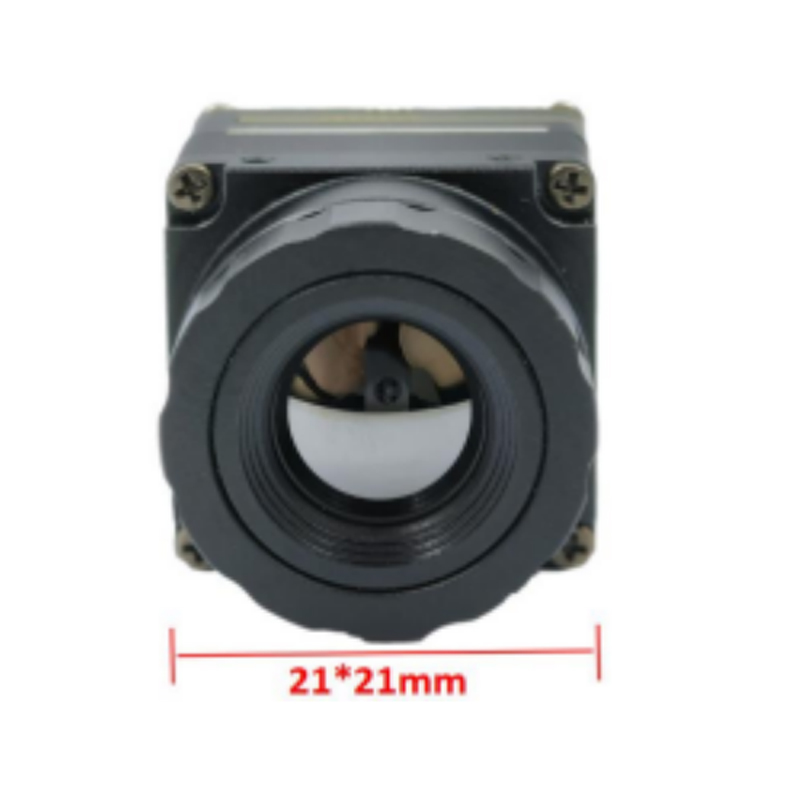

| size | 21*21MM | |||
| weight | 22g | |||
