High Definition Drone Data Link XK-F401E-22 Quadcopters 22km Drone Radio Transceiver Ugv Usv Drone Sprayer Long Range RF Video Telemetry RC Link Nlos Ofdm Hopping
$3,857
Drone Data Link Features
Wide frequency range and wide bandwidth are supported.
Rich control interfaces.
High carrier noise ratio.
Wide input voltage range, supporting DC8 ~ 30V voltage input.
Low power consumption.
All central nodes and slave nodes communicate with a shared operating bandwidth in one direction (20MHz, not less than 100Mbps).
Support OTA upgrade, local and remote upgrade.
Adaptive frequency hopping, strong anti-interference ability.
Drone Data Link XK-F401E
The air unit can be configured as point-to-point and also point to multi-points relay mode, Users only need to add air units to expand the application scenarios. At the same time, it has encryption function, and users can set the channel encryption key independently.
Technical Parameters
|
Item
|
Spec/Parameters
|
|
|
Air Unit
|
Ground Unit
|
|
|
Operation Voltage
|
DC8V~DC30V, Standard input DC12V
|
|
|
Power Consumption
|
≤8W @25dBm
|
|
|
Modulation
|
OFDM
|
|
|
Data interface
|
UART(TTL/RS232/RS485)/SBUS
|
|
|
Frequency
|
600MHz/1.4GHz,(Customizable)
|
|
|
Channel rate
|
20MHz,no less than 100Mbps
|
|
|
Bandwidth
|
3/5/10/20MHz
|
|
|
Latency
|
≤200ms
|
|
|
Tx Power
|
≤25dBm
|
|
|
Working temperature
|
-30ºC~60ºC
|
|
|
Storage temperature
|
-40ºC~75ºC
|
|
|
Protocol
|
IEEE802.3,Transparent serial data
|
|
|
Communication
|
Point to Point, Point to Multi-Points relay mode
|
|
|
Working mode
|
NORMAL,CA,MIMO
|
|

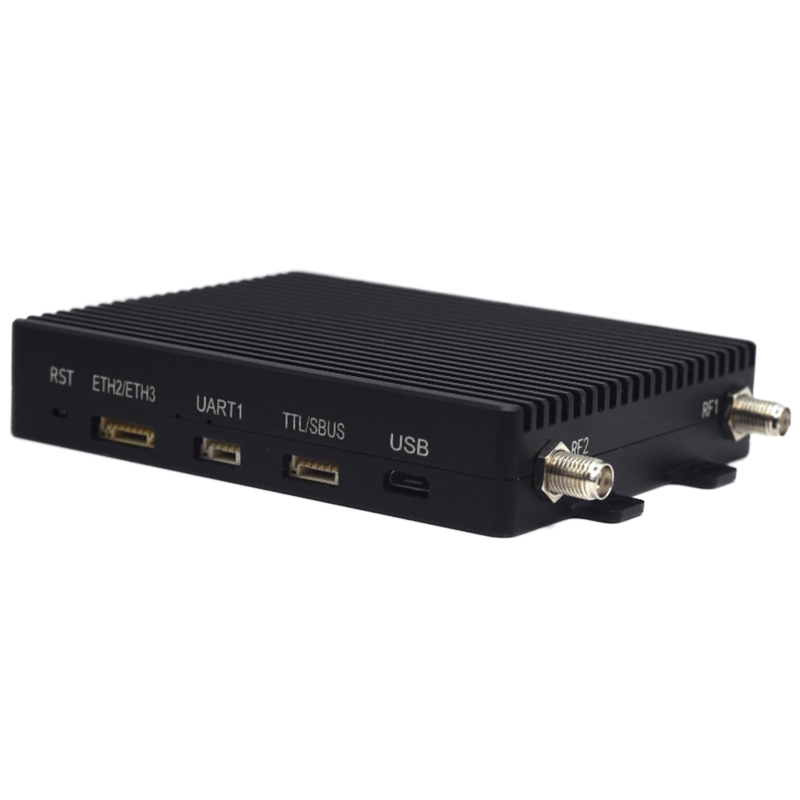

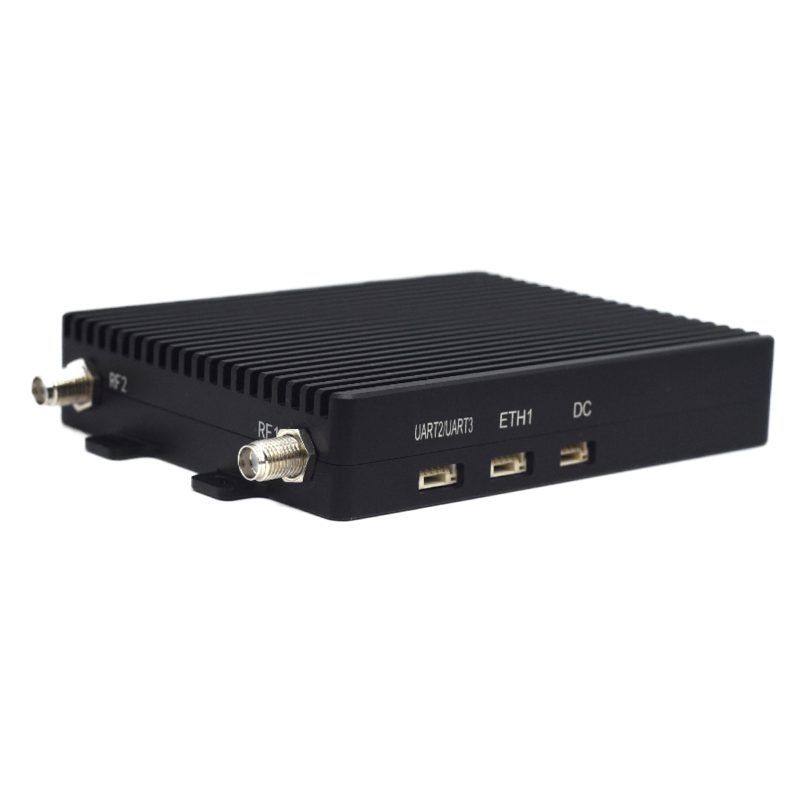

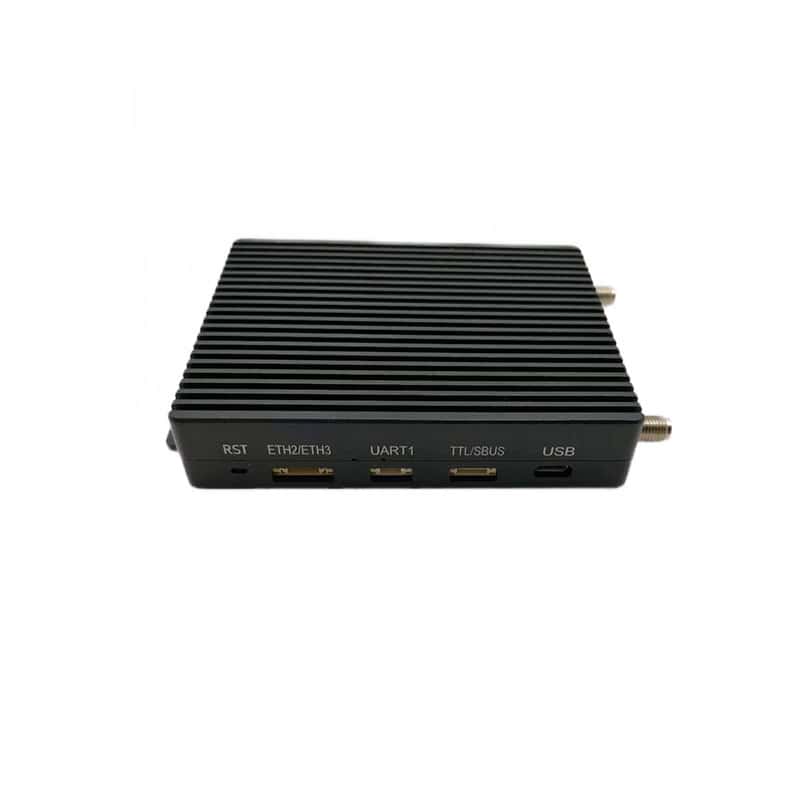

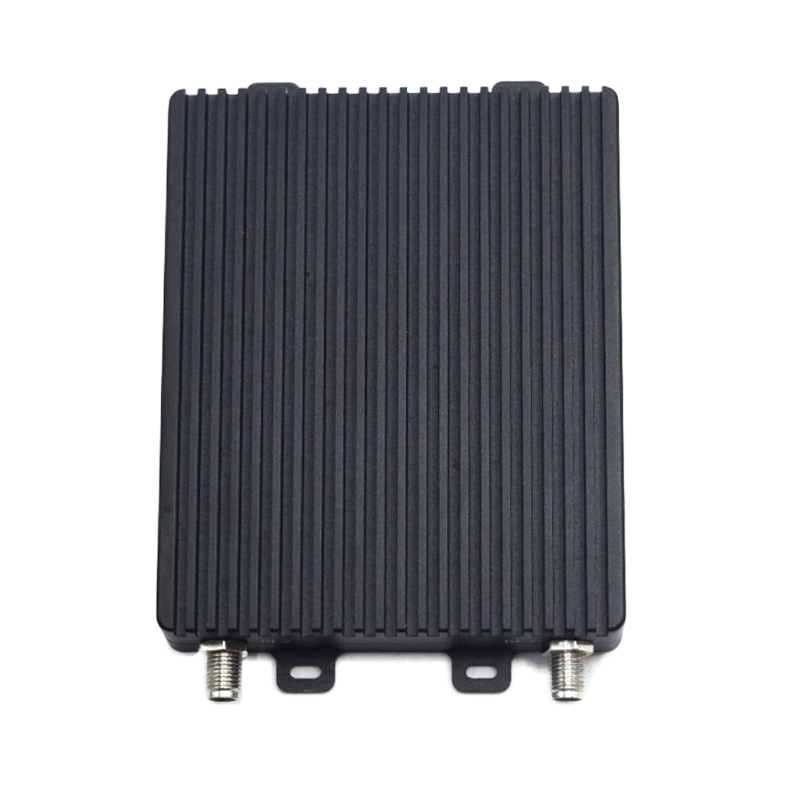

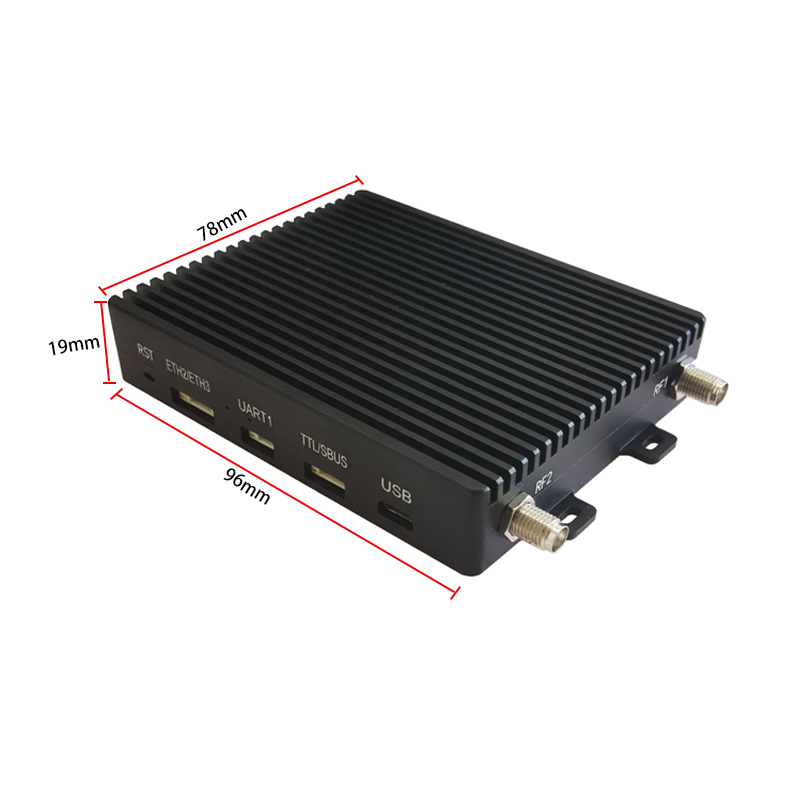

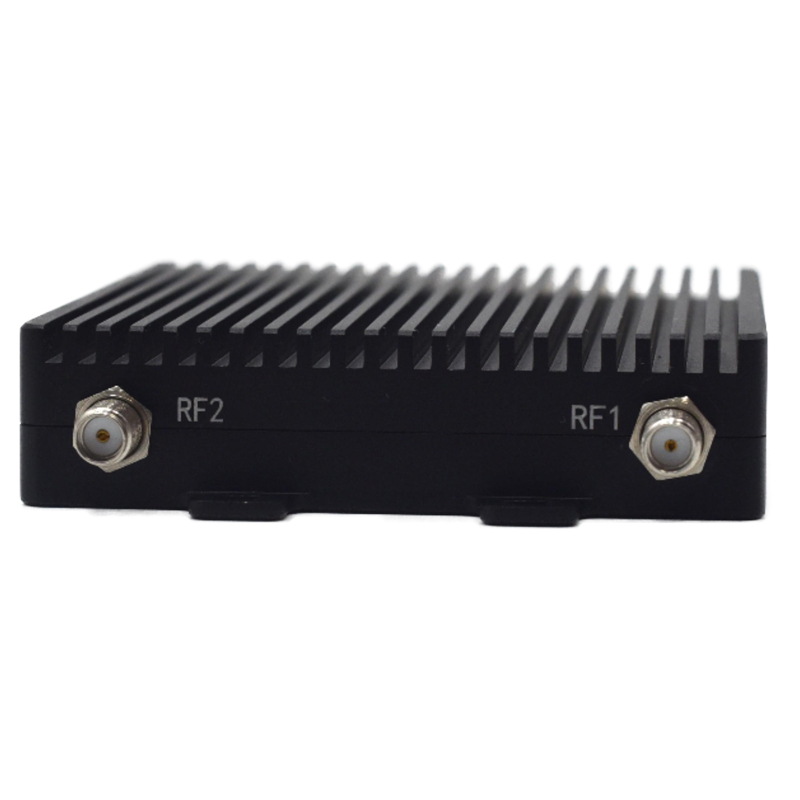

Pictures
The bandwidth is adjustable, including 3MHz, 5MHz, 10MHz and 20MHz.
The mapping mode is adjustable, including QPSK, 16QAM and 64aqm.

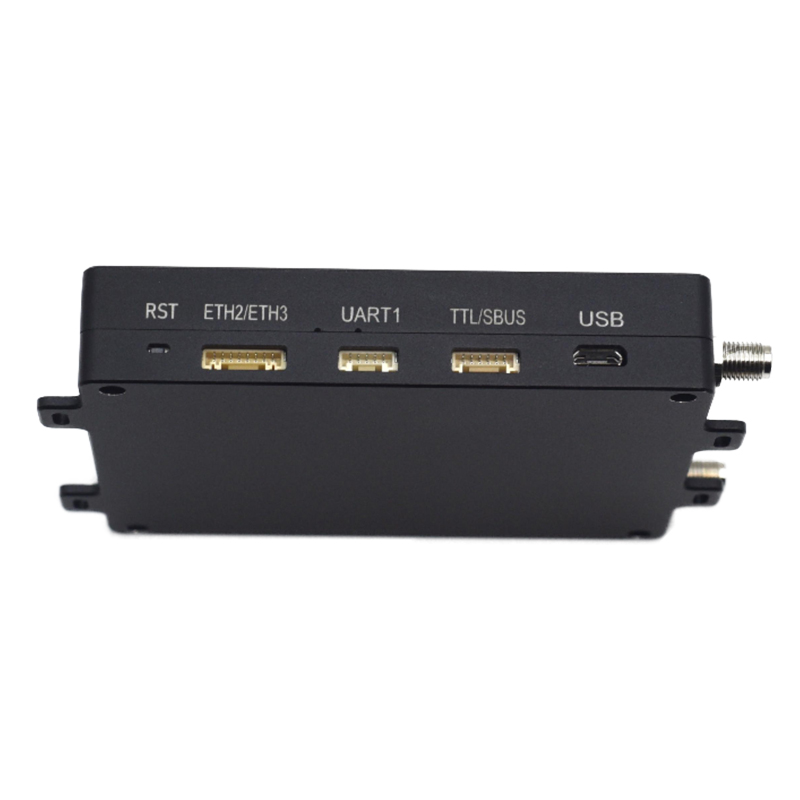

Support Ethernet, serial port and SBUs.
Support AES128 and AES256 encryption.

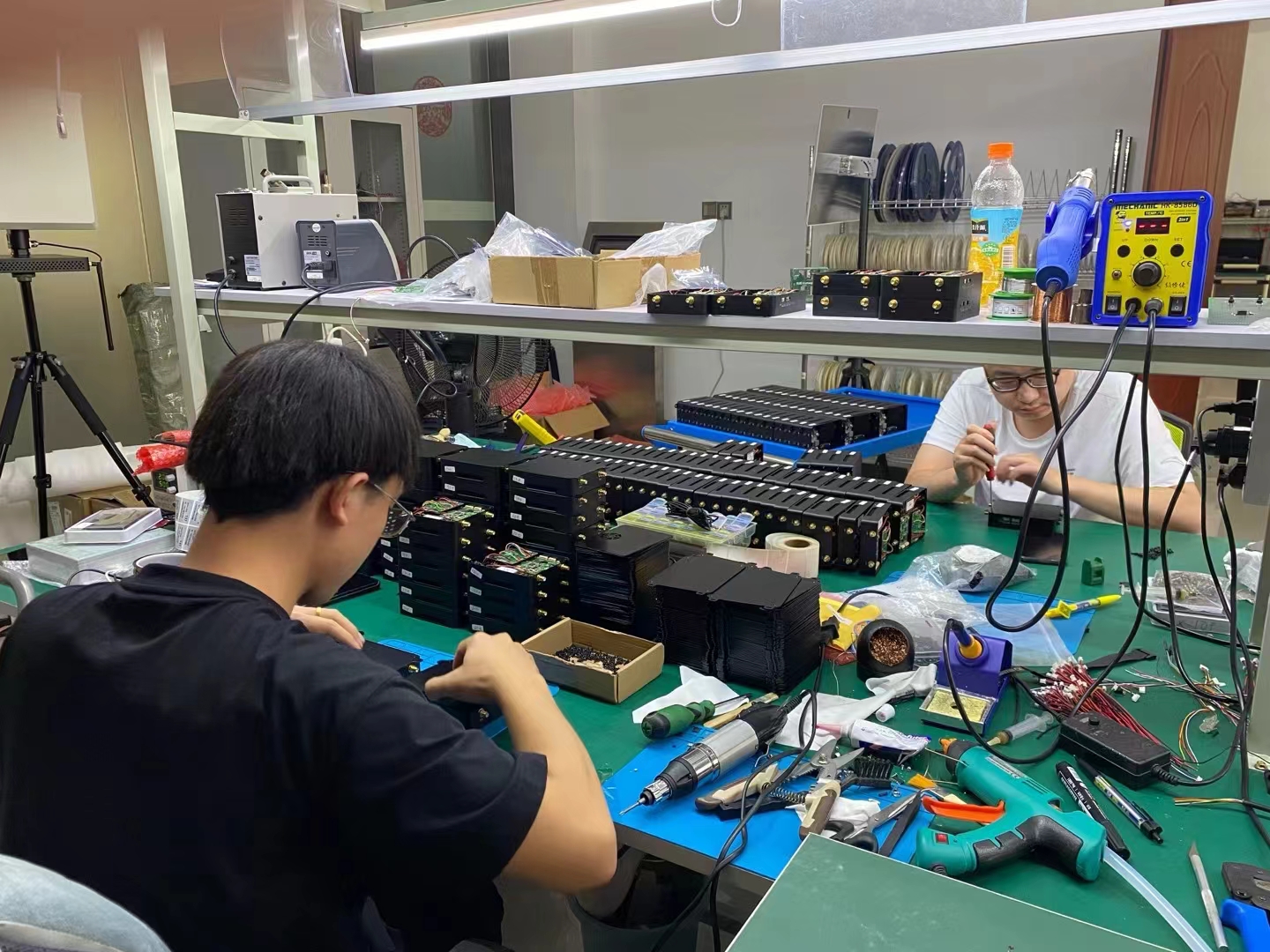

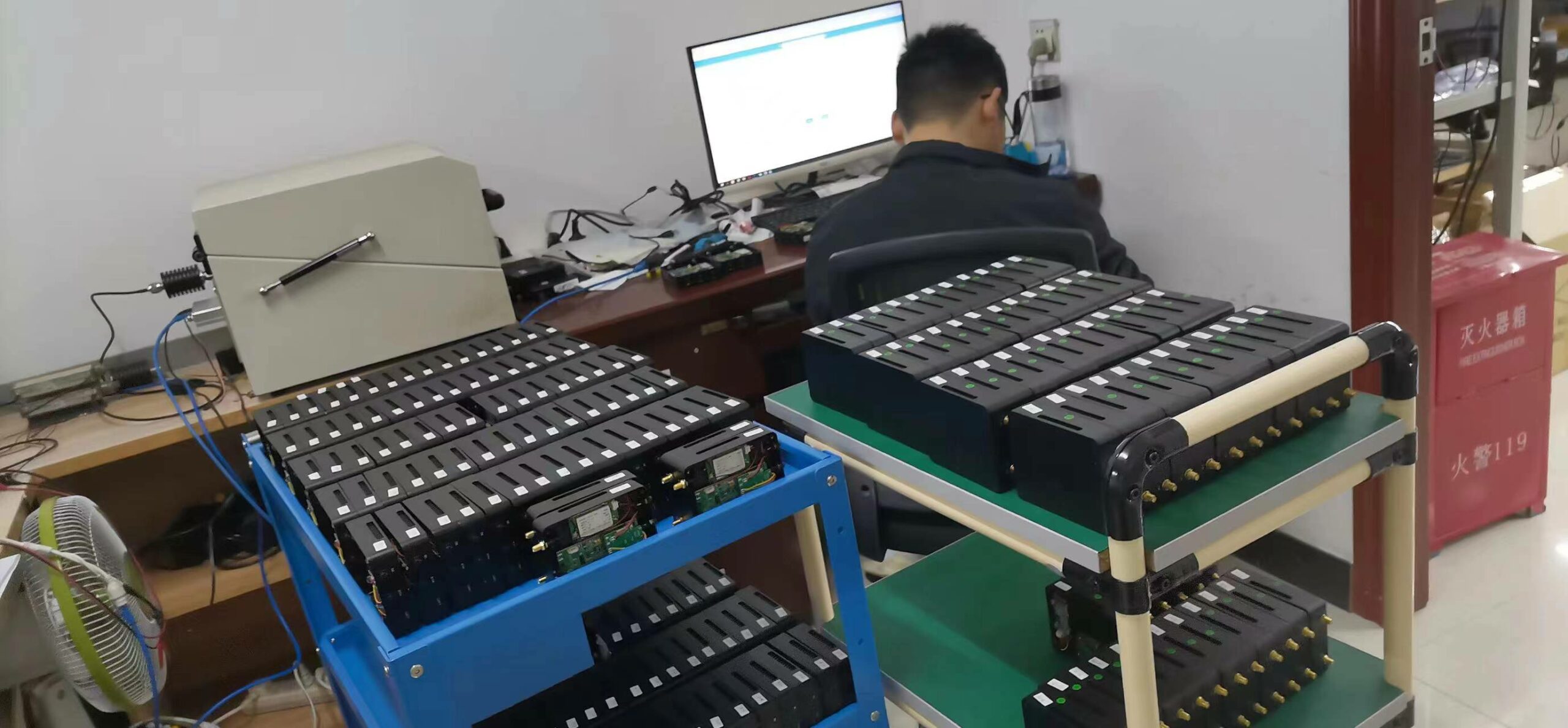

Company Information

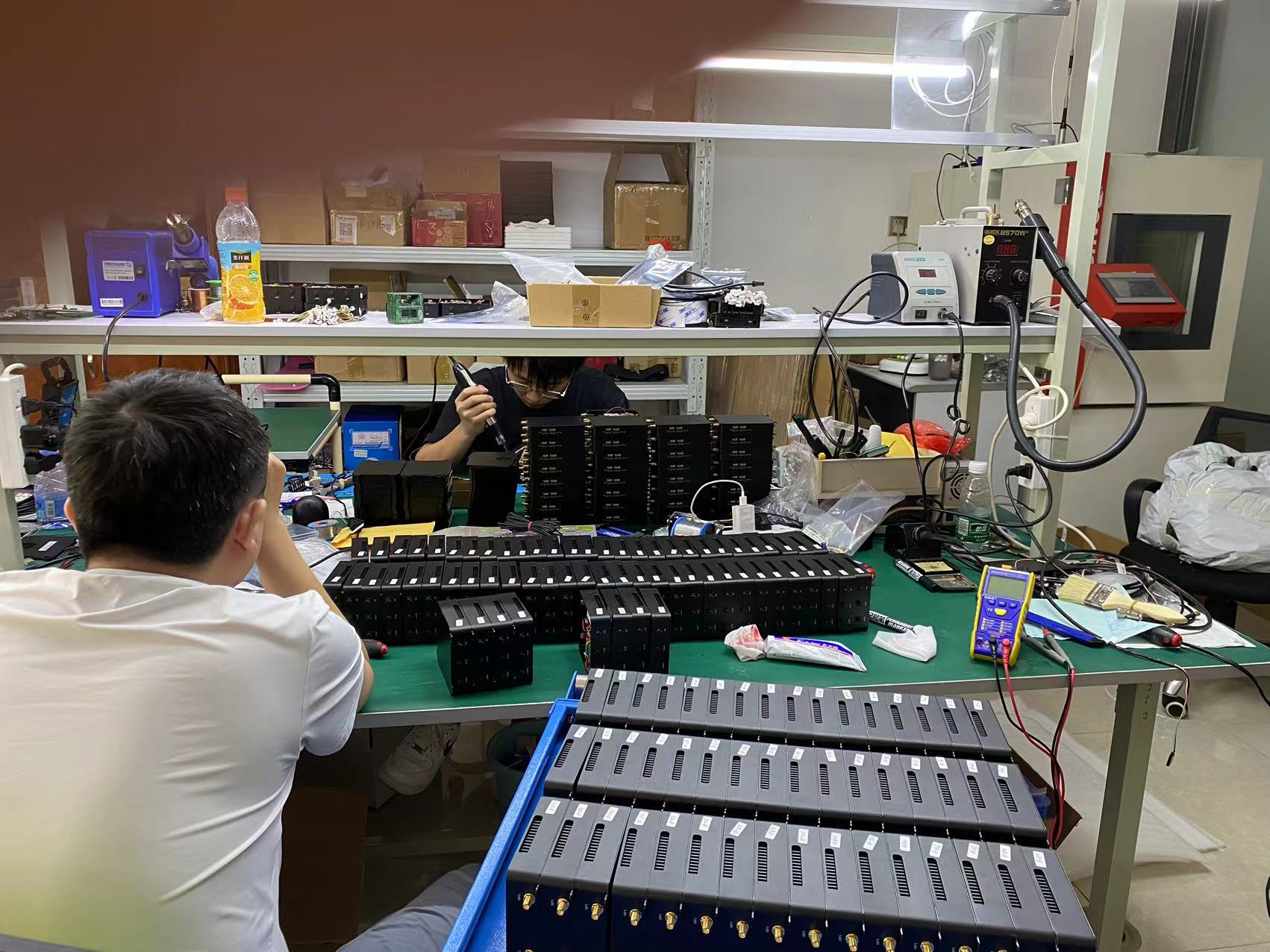

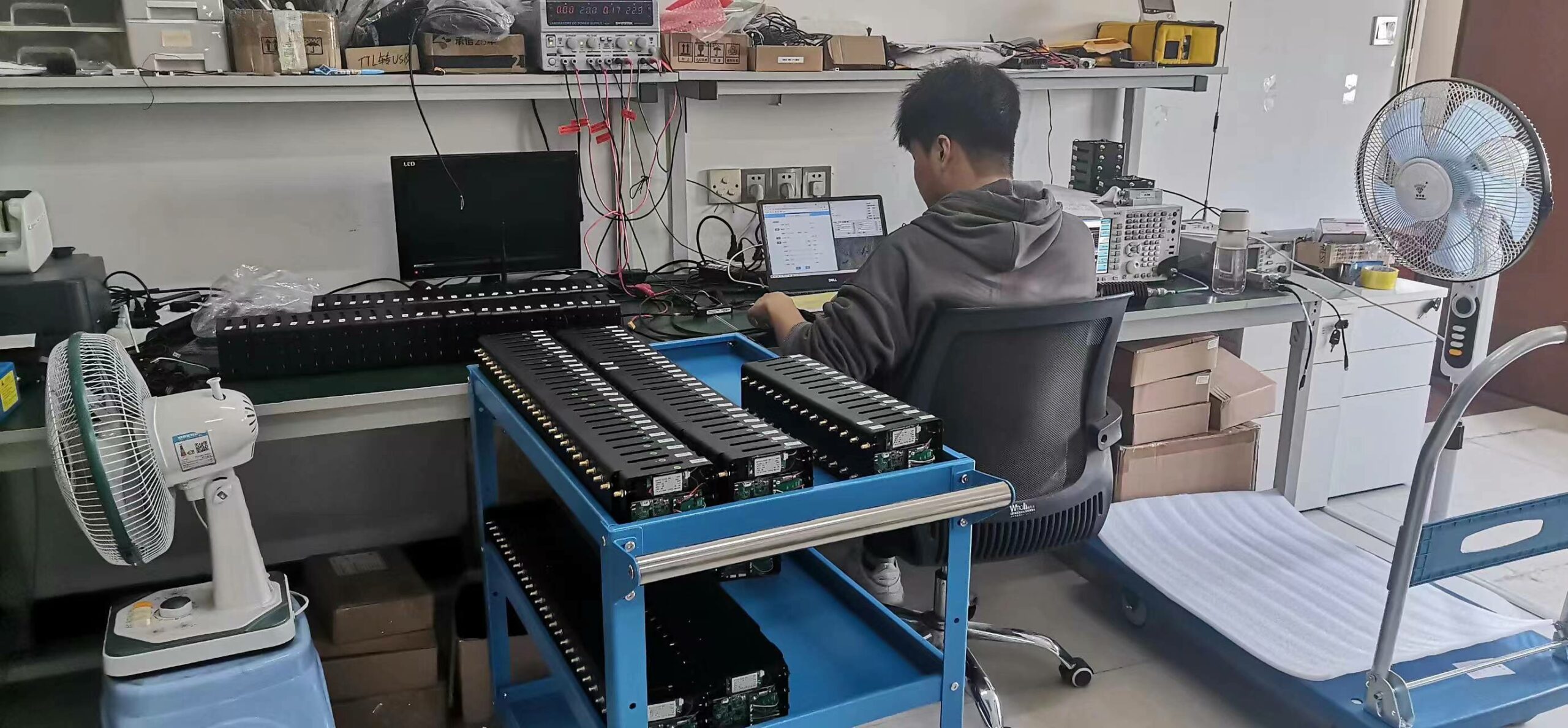

Shenzhen Xingkai Technology Co., Ltd. is a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance, and defense industries.
Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery end-to-end communications & advanced networkings.
Our company attaches great importance to the construction of the R&D team, who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.
Our products range includes mimo mesh network, tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can’t risk communication failure.
Certifications
Packaging & Delivery
Packing: Packed in a professional shipping box
Port: Yantian, Shekou or Hong Kong
FAQ:
A: We are a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance and defense industries.
A: We are able to offer you the best solutions on market by providing you OEM/ODM service.
A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days…
