10W 1000-1400MHz 80CH VTX Module Wireless Video Transmission for Various FPV Drones
Product Features:
Compatible with 1000-1400mHz frequency band for various FPV drones
16 channels to minimize interference and ensure signal stability
10W high output power for long-range stable transmission
Supports one customer-defined frequency point

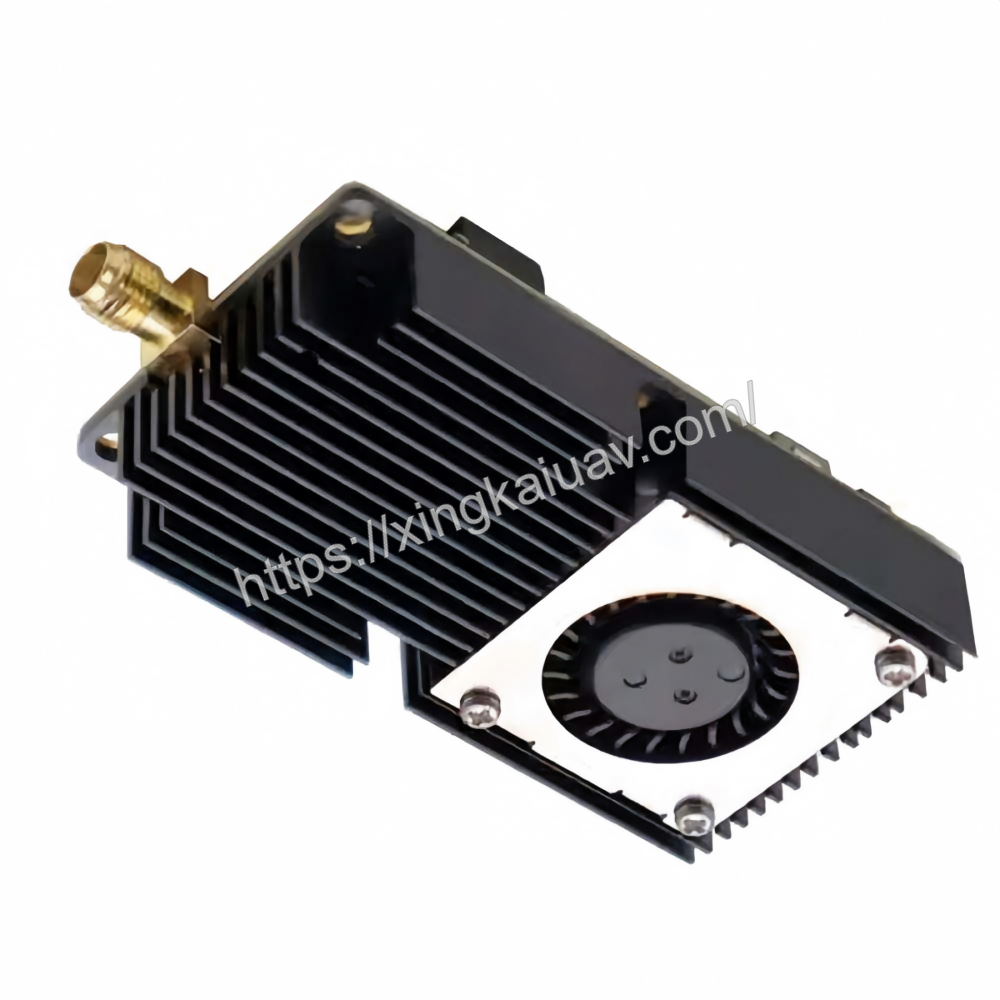

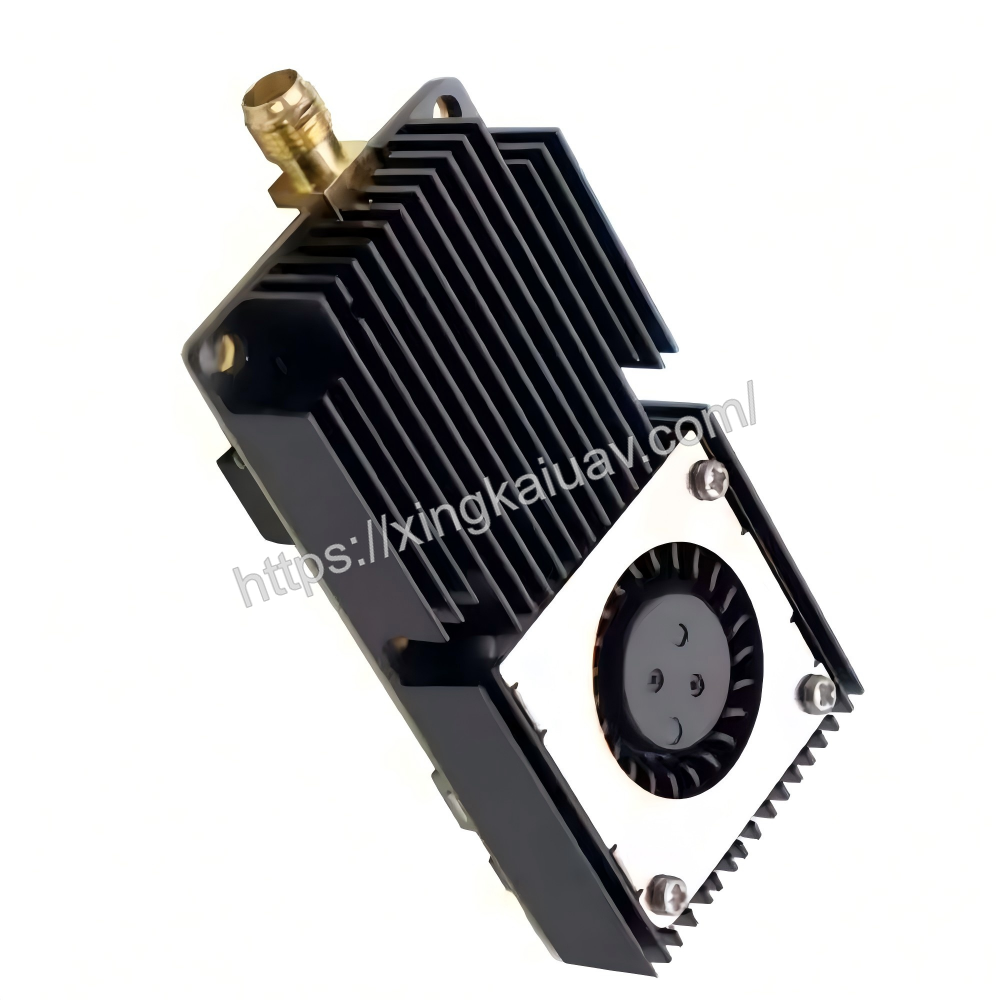

All components protected under heat sink

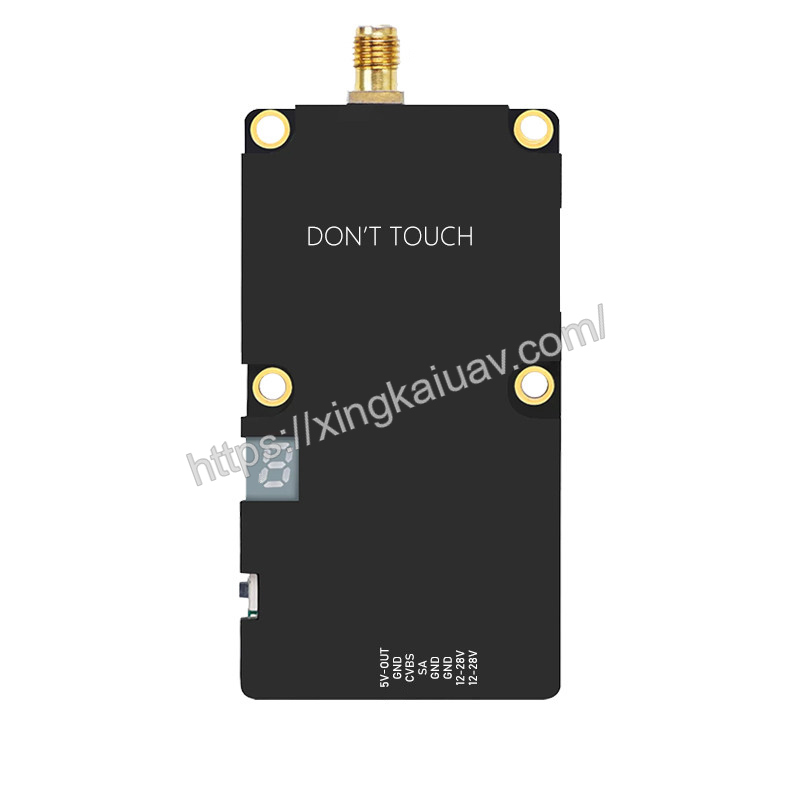

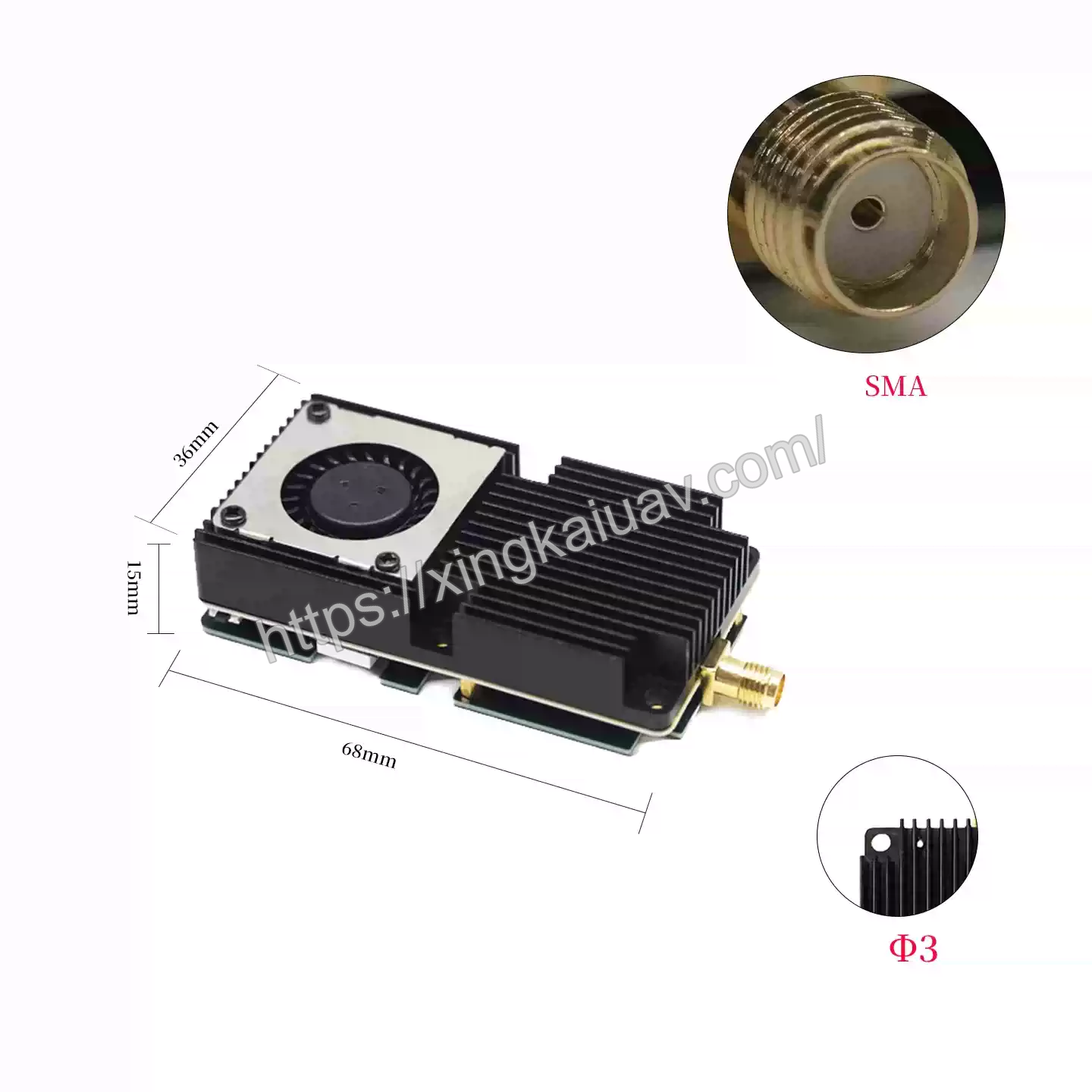

4 Mounting Holes for Easier Installation
Reference Price:
$194
HOWDY, WELCOME TO
GET IN TOUCH WITH US
Bands:
Press button for 3seconds until the English letter flashes in LED,then short press to select band A/b/ E/F/r/P/L/U/O/X.
Channel:
Select channels 1/2/3/4/5/6/7/8/9/10 by simple short presses.
Power:
Press button for 3 seconds until the number quick flashes in LED,then short press to select power.
| Power | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| FV10W-A1 | 1W | 2W | 3W | 4W | 5W | 6W | 7W | 8W | 9W | 10W |
The LED will display “band””channel””power” successively after setting.
Notice: LED flashes a number 2 times quickly while displaying power.
“5”flashes 2 times means “5W”.
Custom Frequency:
