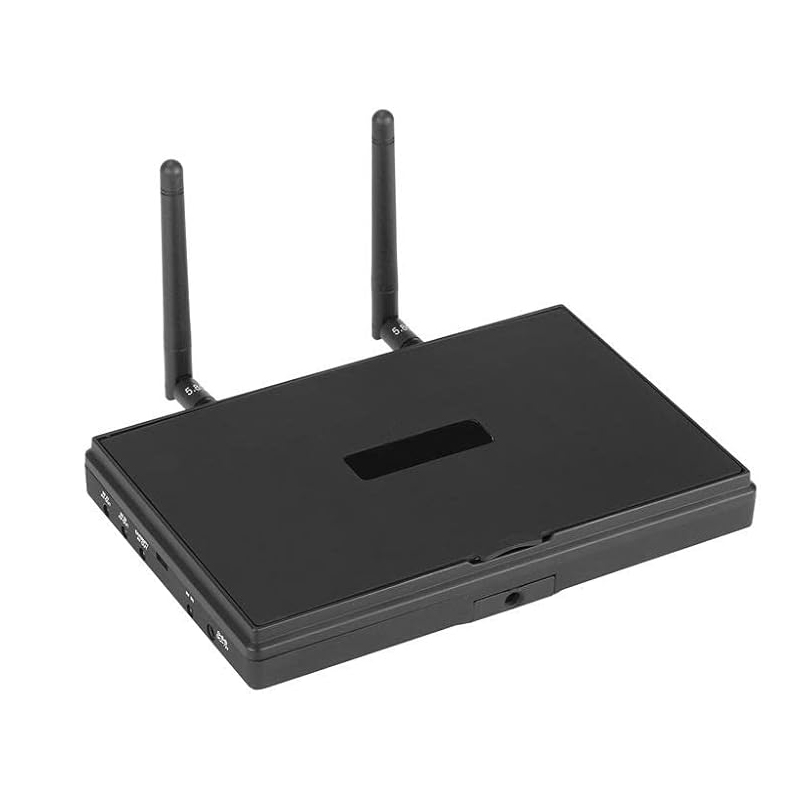

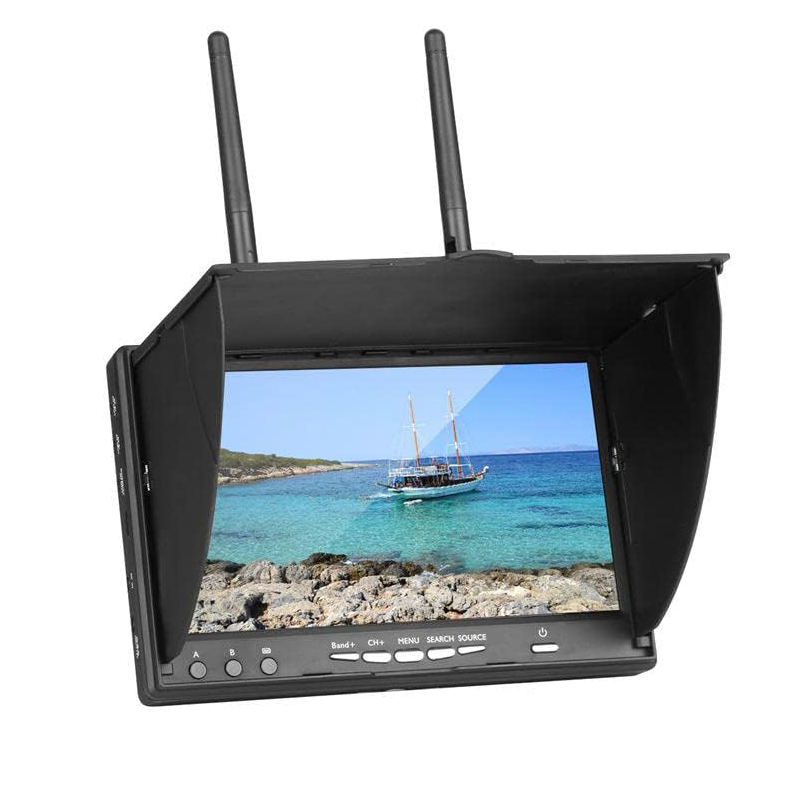

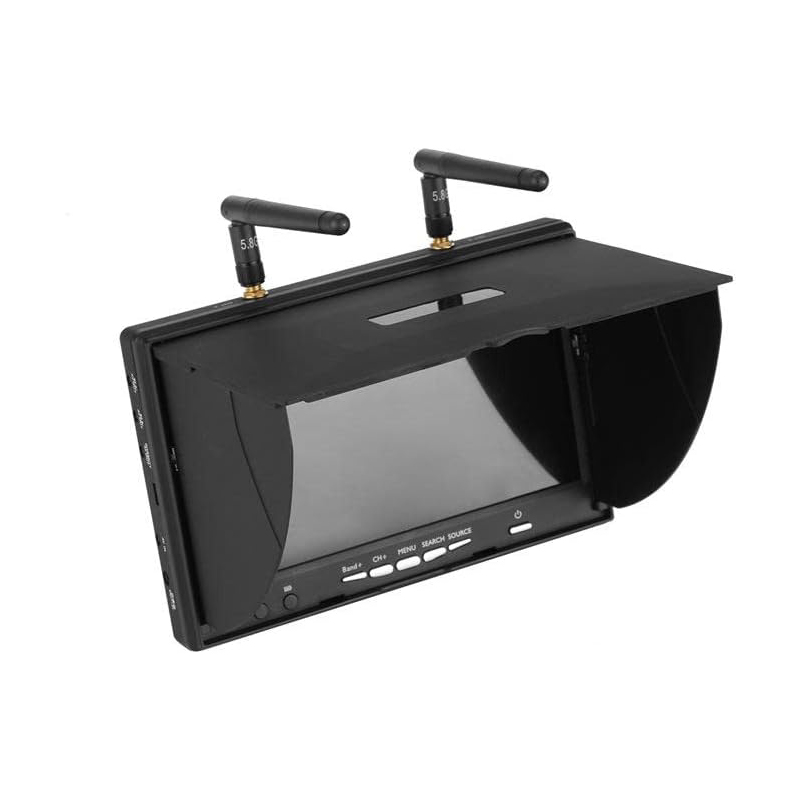

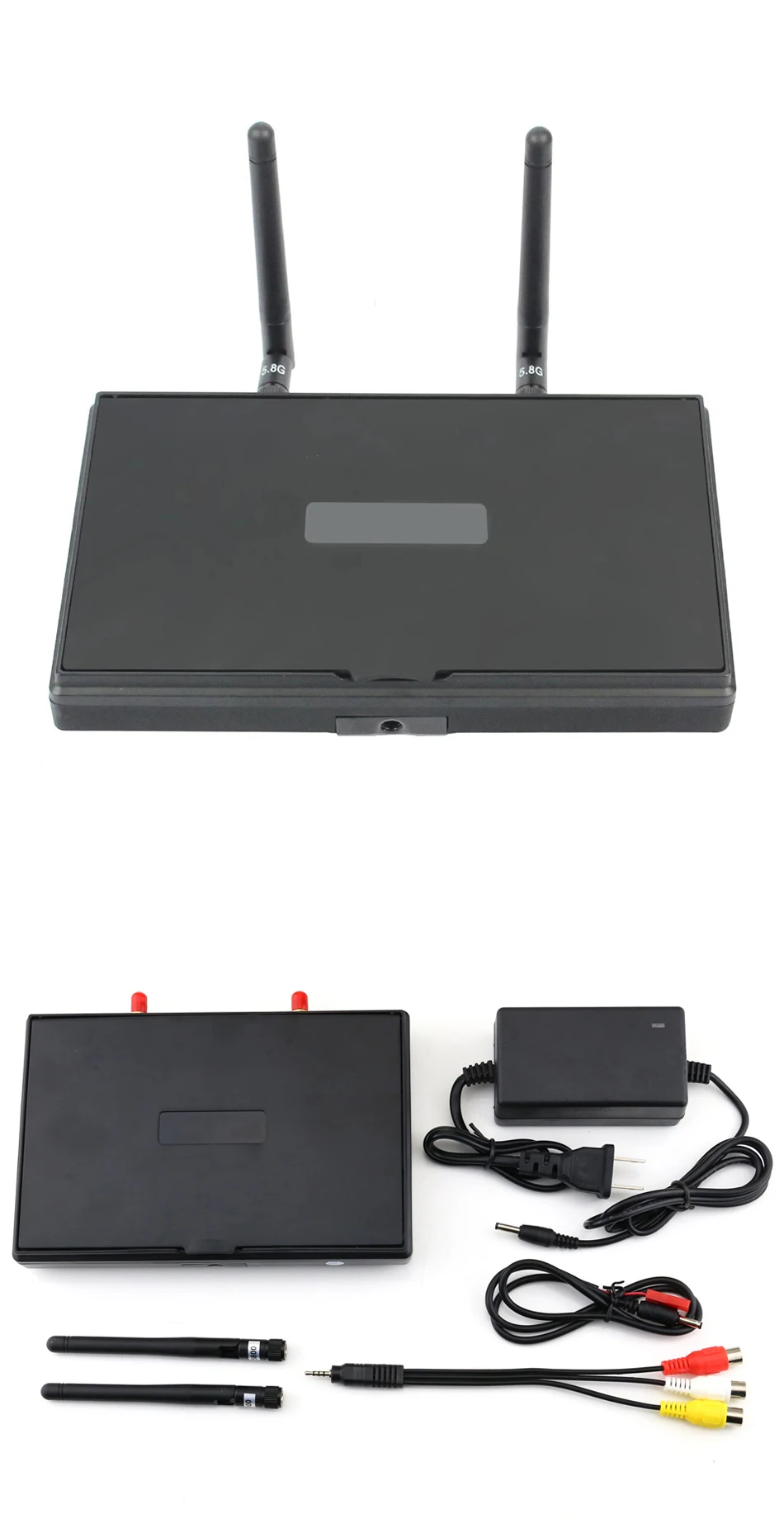

5.8G 40CH 7 Inch FPV Monitor

Description: ​

Brand Name: uuustore

Item Name: LCD5802S Monitor ​

Built-in 5.8Ghz Dual diversity receiver automatically for best reception ​

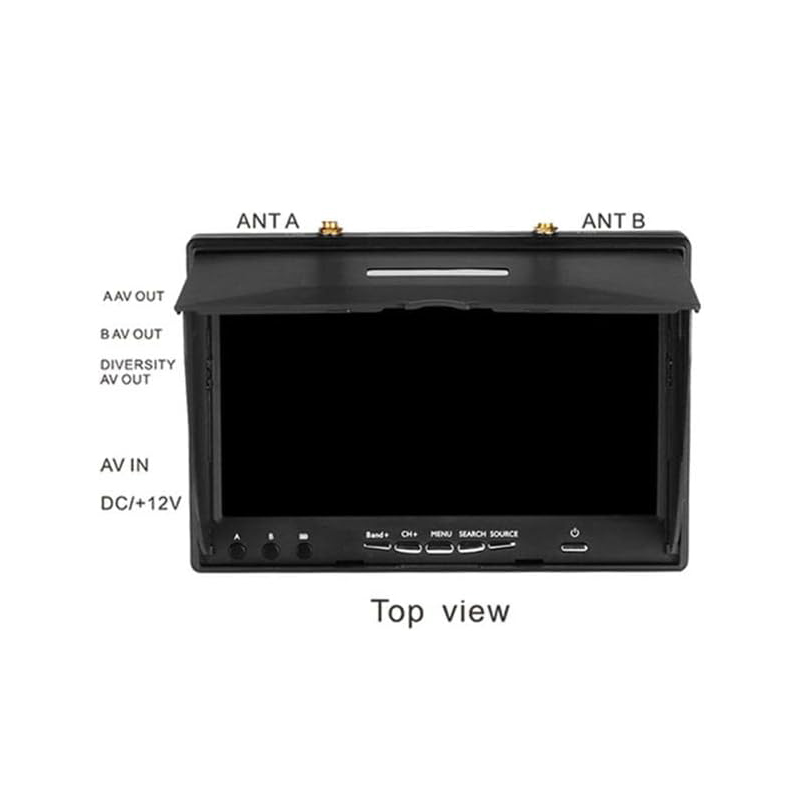

Built-in 2CH 5.8Ghz AV output and 1CH AV input ​

Built-in high performance Li-POLYMER Battery: 2000mAH/7.4V ​

Work status OSD display : RSSI indication ; Battery indicator;Channel indication ​

A key to automatic signal search ​

Support Chinese and English menu ​

Screen size:7” ​

Screen type:TFT LCD Screen/long life, LED backlight ​R

esolution: 800*480 ​

Brightness: 600cd/m2 ​

View Angle:140/120degree (Horizontal/Vertical) ​

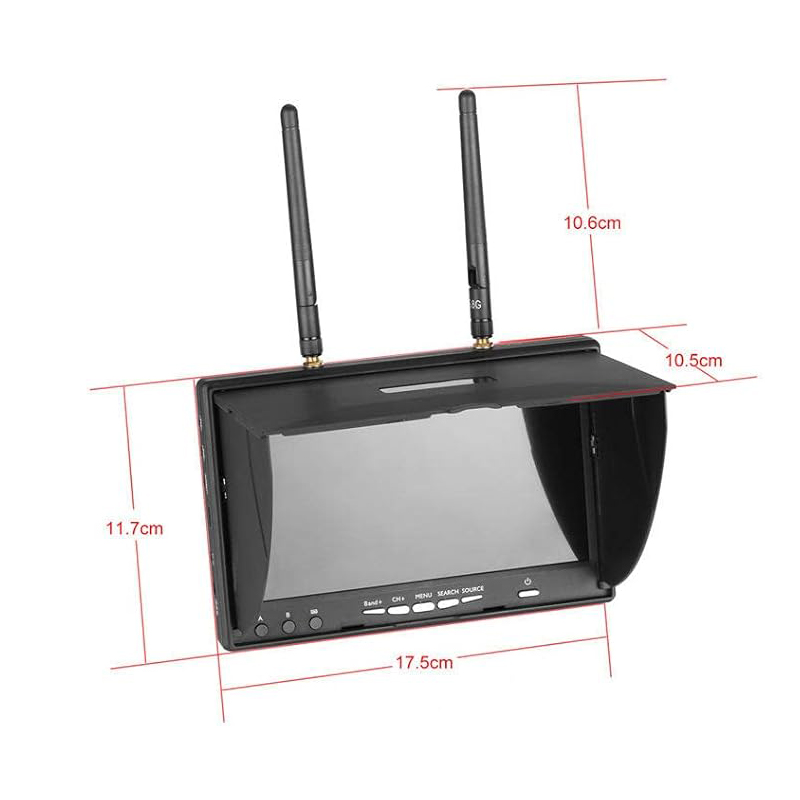

Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm) ​

Working Voltage: DC 7~16V ​

Power Consumption: max 650 mA @12V ​

Battery charging current : 850mA @12V ( max ) ​

Working temperature: -10~+ 65 ​

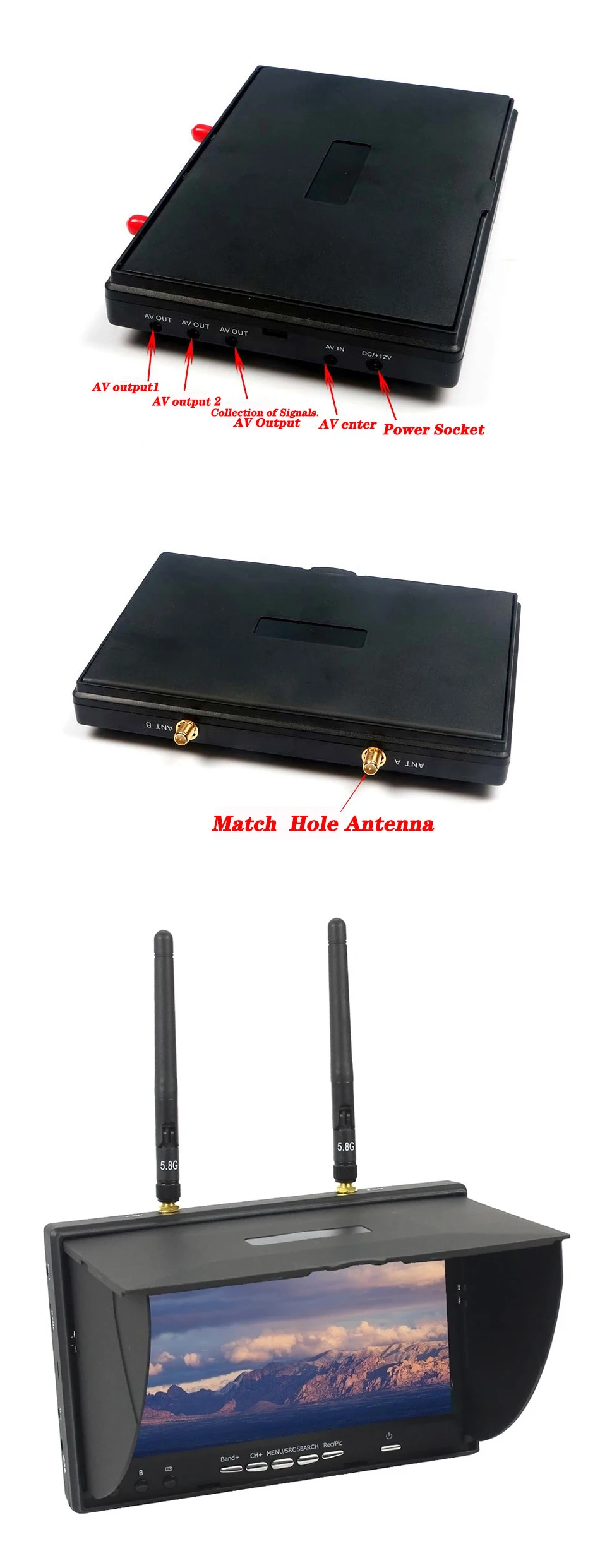

Connectors:RP-SMA female(outer needle) ​

Antennas Connectors:RP-SMA male (inner hole) ​

Features: ​

Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching ​

Dual buffered AV outputs ​

Not affect by 2.4GHz R/C Radios ​

AV Receiver with Diversity inputs ​

Small, light weight, durable ​

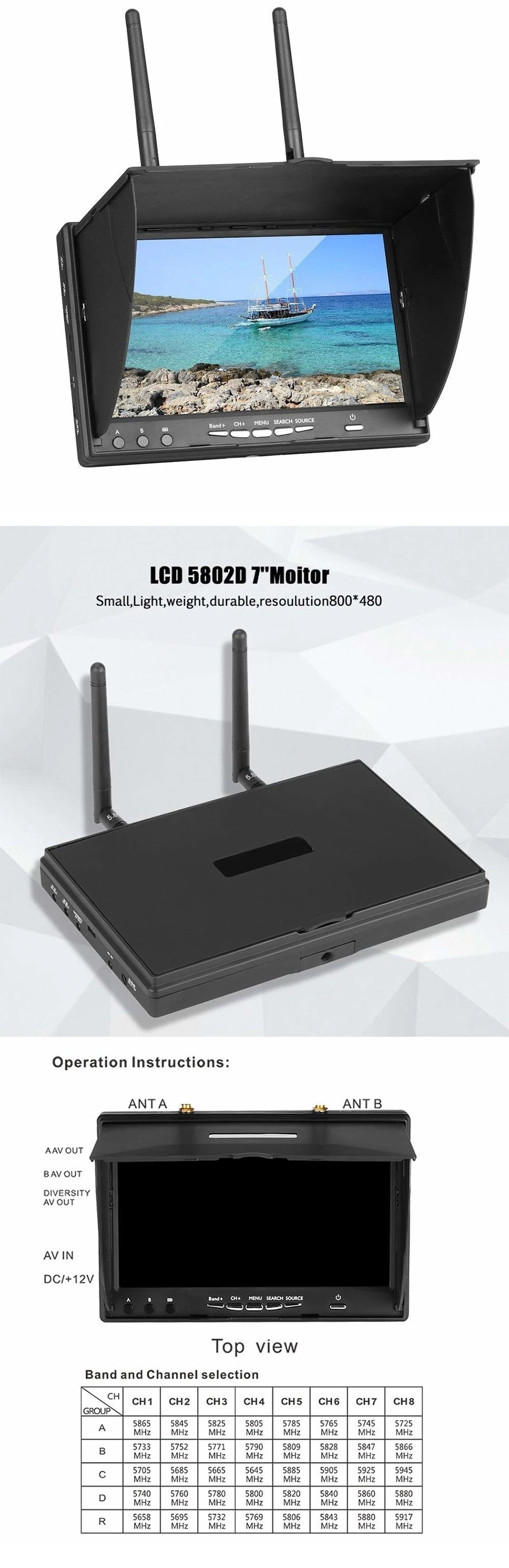

5 bandss and total 40 Channels ​

Built-in battery , easy to carry and outdoor use ​

A key to automatic signal search,Simple operation ​

Work status OSD display:Always be aware of the device working condition.

Notice: It can’t receive 2 different channels at the same time
