Transmitter compatibility
This receiver can be used to frequency different brands of high frequency heads. The ELRS project is an open source project, so as long as the high-frequency headers of the ELRS protocol are used, regardless of the brand, they can be linked to each other, but three conditions must be met:
1. The frequency should be the same, the same is 2.4G or the same 915Mhz, etc
2. There are three types of firmware version certification standards: AU, EU, and FCC. To be consistent, for example, the high-frequency head flashes the FCC 3.0.0 firmware, then the receiver should also flash the FCC 3.0.0 firmware or above;
3. None of them have a linking password, or they all have the same password.

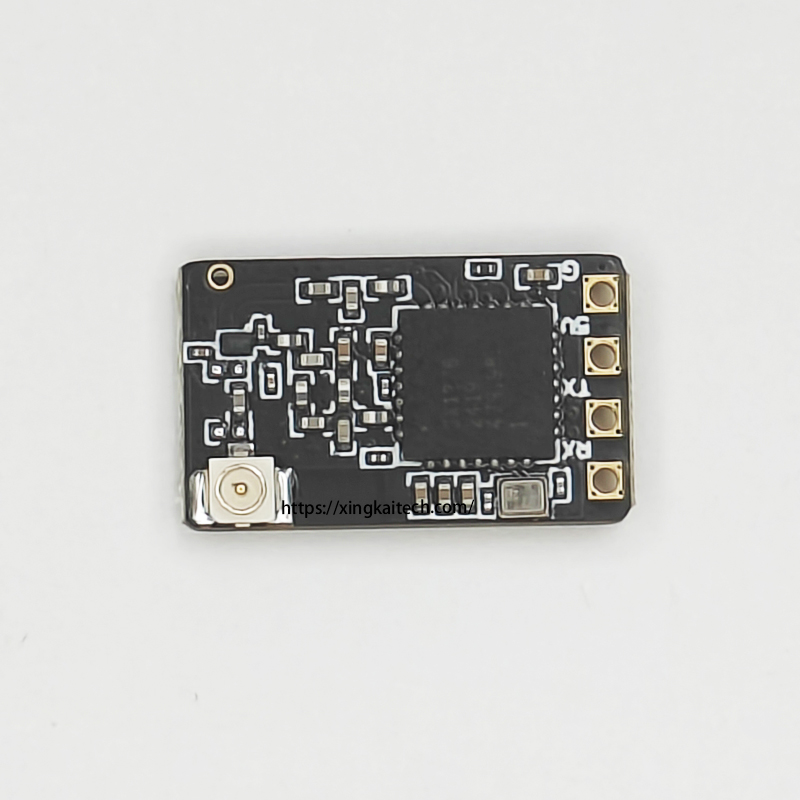

Description
| Model: | 915M-MINI |
| Name: | ExpressLRS Receiverfrequency:915Mhz |

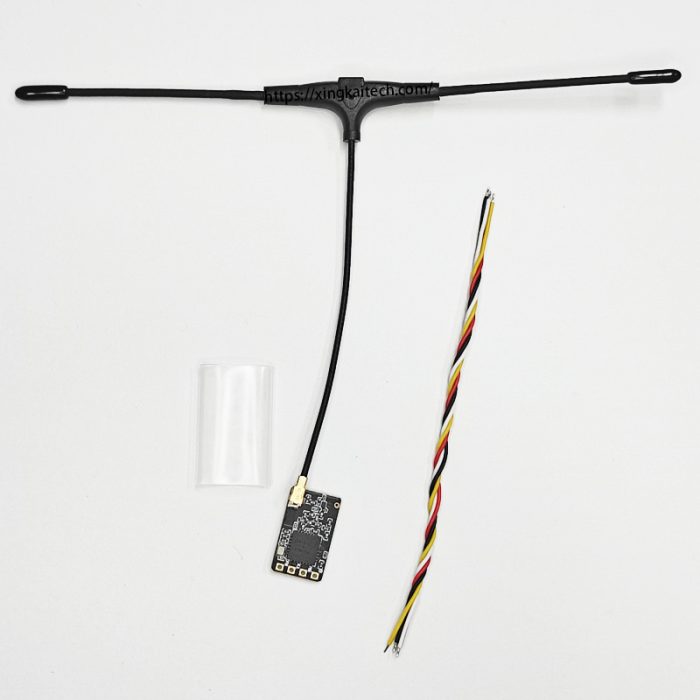

| antenna: | T-shaped |
| chip: | SX1276+ESP8285 |
| color: | black |
| Backhaul power: | 100mW |
| Input voltage: | 3.6V-5.5V |
| Antenna connectors: | IPEX1 |
| weight: | 0.8g(Receiver only) |
| size: | 11mm*22mm |
Shipping & Delivery
SKU:
XK-ELRS 915M
Category: FPV Accessories
