XK-GS300 Portable Drone Ground Control Station Wireless UAV Remote Controller Video Data Link for Border Security
Product Description

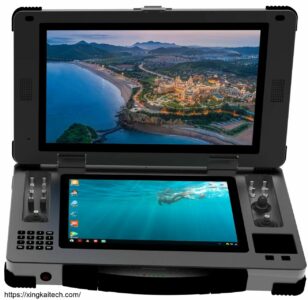

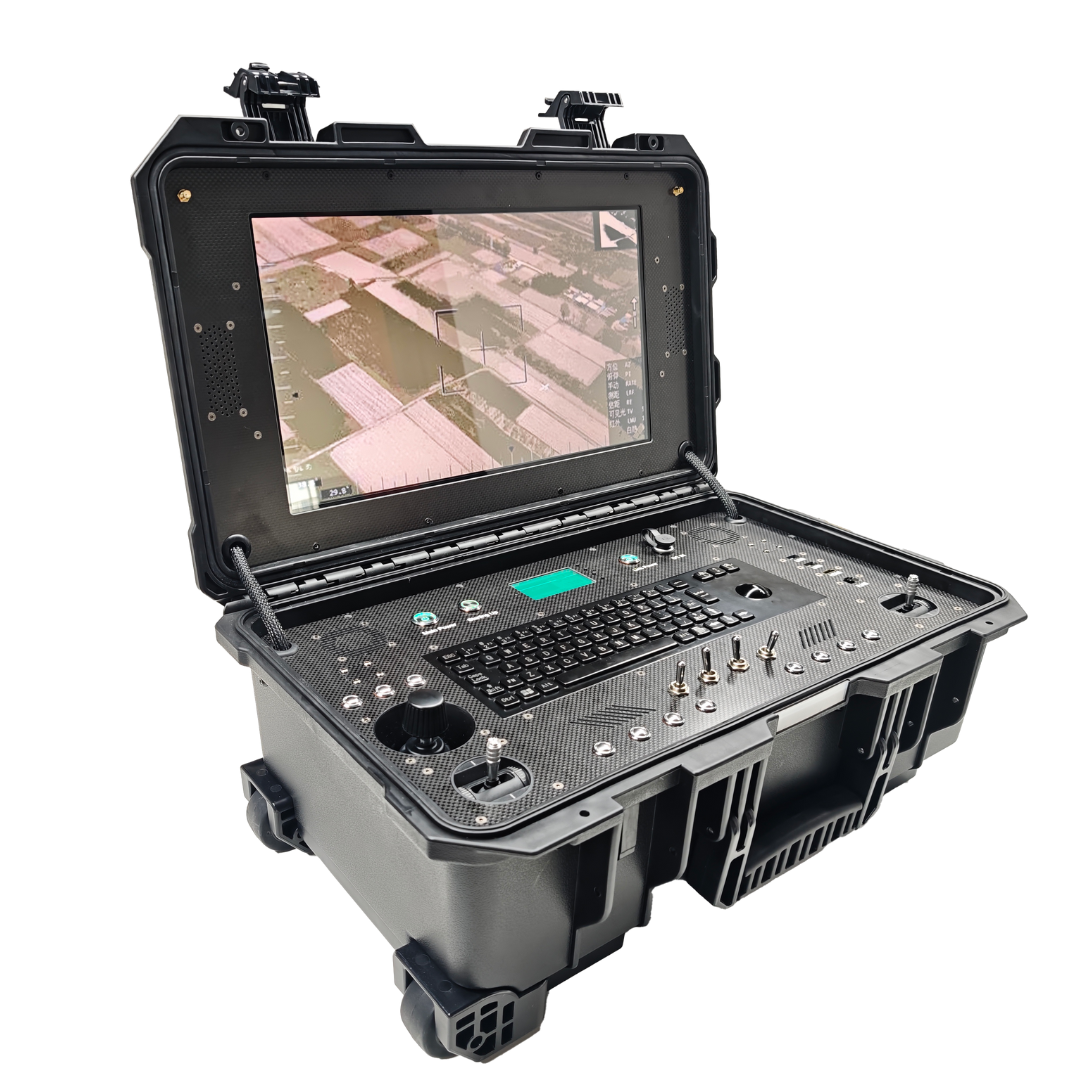

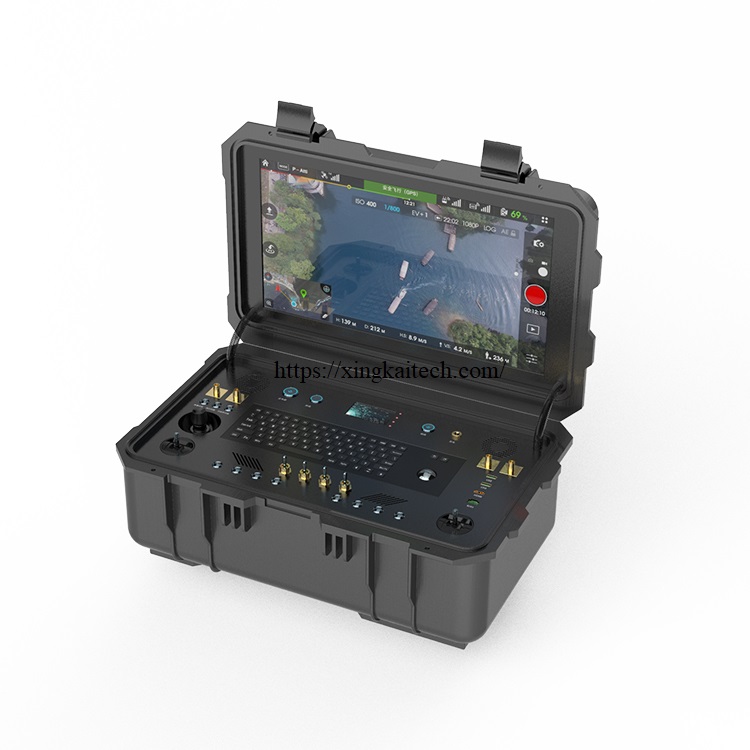

XK-GS300 is a portable ground control station with rugged ground computer, integrated industrial grade PC system and data link remote control system.
XK-GS300 provides the function such as mission planning, attitude control, payload control,remote monitoring, real-time video display, etc.
The off-the-shelf portable ground control station (GCS) is a flexible and universal solution for controlling unmanned vehicles and payloads.
Reference Price:
$4,500
HOWDY, WELCOME TO
GET IN TOUCH WITH US
Technical Parameter
| Box Type | three-proof safety box |
| Portable Features | Built in pull rod, external lifting cover |
| Operation Panel | |
| Panel material | 3K Carbon fiber plate |
| Interface support | USB*2, DC IN, HDMI, RJ45 |
| Feeder and interface | N, SMA |
| Human-computer interaction | Industrial mouse button suit |
| Switch parameters | Main power supply, power on key, link power supply |
| Others | Industrial cooling fan |
| Industrial Control Host | |
| Processor | I5 6500T |
| Operating system | Windows 10 |
| Memory | 8G |
| Hard disk | 256G |
| I/O Interface | USB, Network port, Serial port, HDMI |
| Left and right dual display | |
| Dimensions | 20 inches |
| Resolution ratio | 1920*1080 |
| Screen scale | 16:9 |
| Backlight type | LED |
| Maximum brightness | 1000nit(Automatic induction regulation) |
| Input interface | HDMI |
| Remote lever and button functions | |
| Joysticks | *2 Industrial joysticks with Hall’s sensors |
| Paddle | *4 |
| Knob | *2 |
| Push-button | *4 |
| Communication protocol | SUBS,USB HDI |
| Battery & Power | |
| Display contents | Current voltage, current,current residual capacity, power, etc |
| Management system protection | Overcurrent protection,overvoltage protection, lowvoltage protection, overcapacity protection |
| Battery protection | Overcurrent protection, overtemperature protection, overvoltage protection and low voltage protection |
| Endurance | 4 hours |
FAQ
1. What types of wireless communication products do you offer?
A: We offer a wide range of products designed specifically for various applications, including drone communication video link, remote controller, and telemetry, such as uav video transmission systems, data link modules, and COFDM IP mesh network radios.
2. How resistant is the wireless communication system to interference?
A: Our system utilizes COFDM FHSS hopping frequency technology and robust signal encoding and decoding techniques to effectively reduce external interference, ensuring stable transmission even in complex environments.
3. Do your products support advanced security features?
A: Yes, all our products are equipped with AES128/256 encryption, ensuring secure data transmission and protecting against unauthorized access.
4. Are your data transmission modules compatible with third-party devices?
A: Yes, our data transmission modules are designed to integrate seamlessly with a wide range of third-party devices. They support standard communication protocols like RS232, RS485, and TCP/IP, and are compatible with various UAVs, gimbals, and industrial IoT devices. Additionally, they feature FHSS (frequency hopping spread spectrum) and forward error correction (FEC), ensuring stable and reliable performance across different platforms.
5. What accessories do you offer to enhance the performance of your systems?
A: We provide essential accessories such as high-gain omnidirectional antenna and auto tracking antenna systems. These accessories enhance signal stability and ensure better performance.
6. What are the primary applications for your wireless transmission systems?
A: Our systems are primarily used for drone video and data transmission, remote control for UAS, UGV, and autonomous vehicle communication. We offer tailored solutions for each industry.
7. Can your systems support large-scale networks?
A: Yes, our mimo mesh networkings support multi-node configurations, which are ideal for industrial IoT applications and large-scale deployments, offering flexible networking topologies.
8.Does the wireless transmission system comply with international standards?
A: Our wireless transmission system complies with international wireless communication standards such as CE and FCC, ensuring that the equipment can be used legally and safely worldwide.
9. What payment methods do you accept?
A: T/T (bank transfer) for payment.
10. Why should I choose your products over others?
A: Our factory is located in Shenzhen, Guangdong, covering an area of 1,000 square meters and equipped with 3 production lines certificated with ISO9001. We have a dedicated R&D team of over 30 engineers, with over 20 testing machines such as Field Strength Meter; Spectrum analyzer; Frequency meter; Network Analyzer; Oscilloscope; Power Meters; Vibration testing equipment for preventing cold solder joints; High and low temperature test chamber; Shielded test chamber etc, ensuring our products are innovative, reliable, and meet the highest industry standards.
