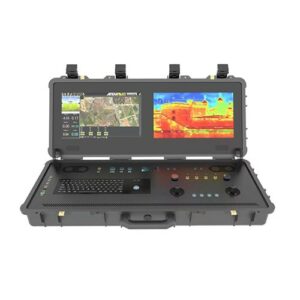

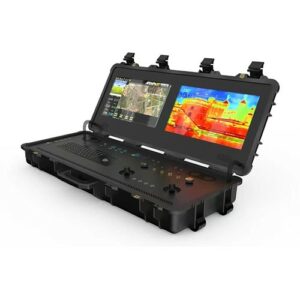

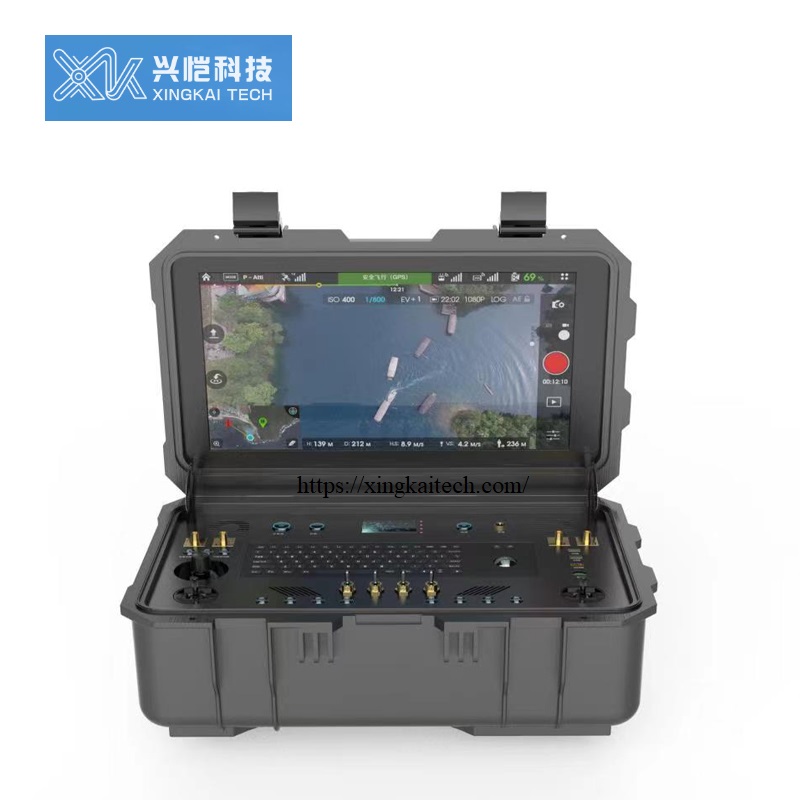

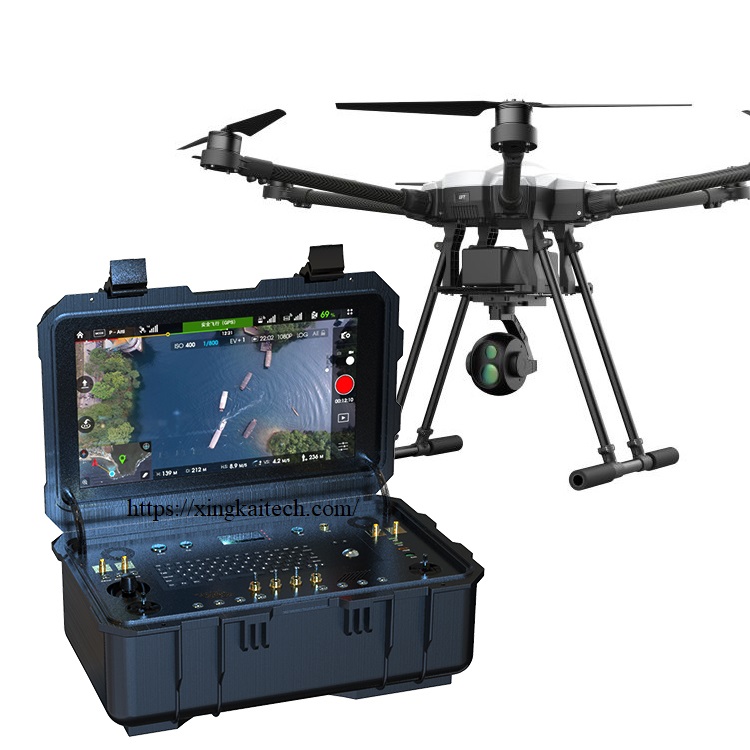

XK-GCS300 Portable UAV Ground Control Station Data Link Remote Control System for Tactical Communication
XK-GS300 is a portable ground control station with a rugged ground computer, integrated industrial-grade PC system, and data link remote control system.
XK-GS300 provides functions such as mission planning, attitude control, payload control, remote monitoring, real-time video display, etc.
The off-the-shelf portable ground control station is a flexible and universal solution for controlling unmanned vehicles and payloads.
Reference Price:
$4,500
HOWDY, WELCOME TO
GET IN TOUCH WITH US
XK-GCS300 is a portable ground control station with rugged ground computer, integrated industrial grade PC system and data link remote control system.
The off-the-shelf portable ground control station (GCS) is a flexible and universal solution for controlling unmanned vehicles and payloads.
Technical Parameter
| Box Type | three-proof safety box |
| Portable Features | Built in pull rod, external lifting cover |
| Operation Panel | |
| Panel material | 3K Carbon fiber plate |
| Interface support | USB*2, DC IN, HDMI, RJ45 |
| Feeder and interface | N, SMA |
| Human-computer interaction | Industrial mouse button suit |
| Switch parameters | Main power supply, power on key, link power supply |
| Others | Industrial cooling fan |
| Industrial Control Host | |
| Processor | I5 6500T |
| Operating system | Windows 10 |
| Memory | 8G |
| Hard disk | 256G |
| I/O Interface | USB,Network port,Serial port,HDMI |
| Left and right dual display | |
| Dimensions | 20 inches |
| Resolution ratio | 1920*1080 |
| Screen scale | 16:9 |
| Backlight type | LED |
| Maximum brightness | 1000nit(Automatic induction regulation) |
| Input interface | HDMI |

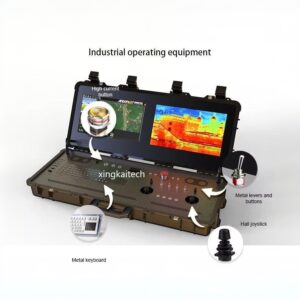

| Remote lever and button functions | |
| Joysticks | *2 Industrial joysticks with Hall’s sensors |
| Paddle | *4 |
| Knob | *2 |
| Push-button | *4 |
| Communication protocol | SUBS,USB HDI |
| Battery & Power | |
| Display contents | Current voltage, current,current residual capacity, power, etc |
| Management system protection | Overcurrent protection,overvoltage protection, lowvoltage protection, overcapacity protection |
| Battery protection | Overcurrent protection, overtemperature protection, overvoltage protection and low voltage protection |
| Endurance | 4 hours |
