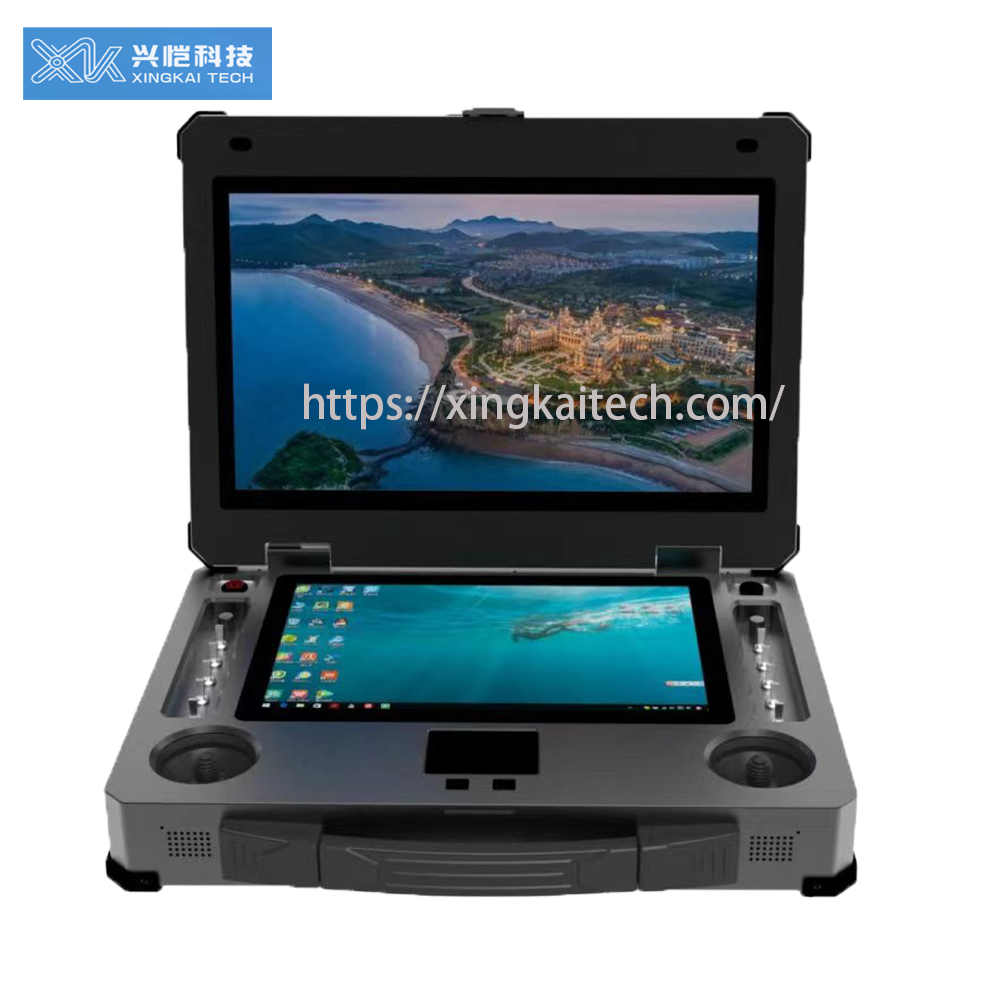

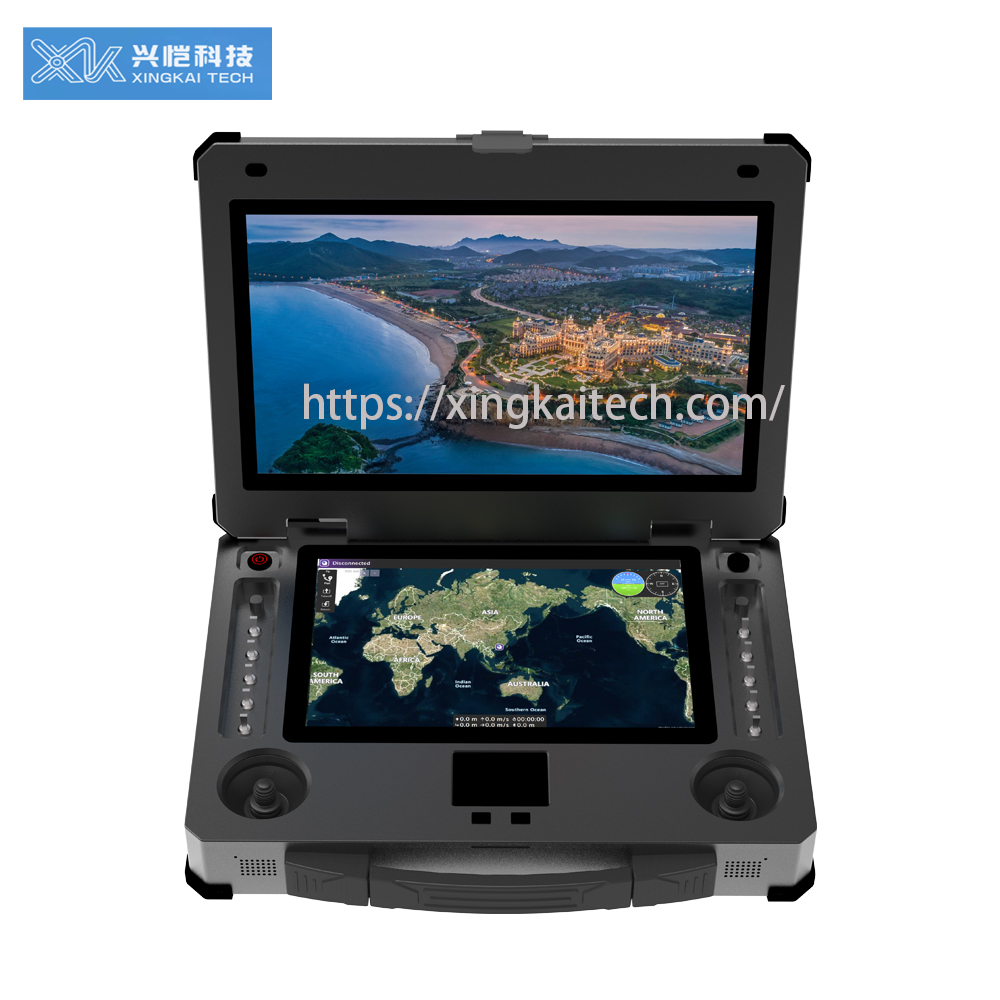

XK-G22 Portable Drone Ground Control Station Optical Fiber Drone Launcher Ground Station Windows 10/Linux System for Surveillance Drone
portable drone ground control station Features
Full body aluminum alloy shell+silicone anti slip, higher protection
12.inch+15.6 inch 1000nit outdoor visual screen
Dual 10 point capacitive touch screen
Intel 15/17 high-performance CPU, capable of supporting independent display
18 physical channel outputs, dual SBUS, and USB-HID outputs
18 physical channel outputs, dual SBUS, and USB-HID outputs support up to RTX3060 independent display
Supports the installation of most data links on the market
Reference Price:
$4,857
HOWDY, WELCOME TO
GET IN TOUCH WITH US
1. XK-G22 dual screen ground station has lntel l5/17 high-performance CPU, supporting up to RTX3060 independent display
2.18 physical channel outputs, dual SBUS and USB-HID outputs
3. Protective measures such as dust and water splashing shall be taken at the interfaces of each peripheral device
4. XK-G22 dual screen ground station configuration with 15.6 inch+12.1 inch 10 point capacitive touch screen
5. Lithium batteries have an ultra long battery life, ensuring normal operation
6. Dual Gigabit Ethernet ports, customizable buttons, internal reserved space for secondary development
7. Supports HDMI output, SIM, TF card, USB interface, dual serial port transparent transmission, dual SBUS and other rich interfaces.
8. Support the installation of most data links on the market
9.The XK-G22 dual screen ground station can operate at -20 to 60 ° C, with a working time between 5-6 hours
10. Integrated industrial grade computers and high-definition image data transmission
11. It has functions such as displaying images, data, information status, flight data, and recording.
Technical Parameters
| Product Parameters | model | XK-G22 |
| material quality | CNC aluminum alloy | |
| anti-seismic | Equipped with 8 anti-collision corners | |
| colour | Black, Silver, Dark Green | |
| CPU | lntel 15-7200U (optional) | |
| Graphics card | intel HD Graphics 620 (0ptional GTX1050ti graphics card) | |
| storage | 8G memory (optional)/256G Solid-state drive (optional) | |
| Mouse and Keyboard | Touch pad with left and right keys/multi-function Numeric keypad | |
| network | Dual Gigabit Ethernet ports | |
| system | windows 10/Linux | |
| wifi | 2.4G/5.8Gwifi, bluetooth 4.0 | |
| screen | 16.8V 18AH | |
| Touch Screen | Computer system display/led battery level | |
| brightness | 1000nit (Customizable far higher brightness | |
| battery | 16.8V 20AH | |
| Power display | 386*300*73mm | |
| working hours | 5-6h | |
| size | 416mm*330mm*82mm | |
| weight | 8kg | |
| operation temperature | -20-60ºC | |
| external interface | 2*USB3.0/1*LAN/1*HDMI/2*SMA-KF | |
| Remote control and video transmission parameters |
Remote control output | 18 channels-dual sbus output/USB-HIDchannels |
| physical channel | 2*Flight joystick/1*Thumb joystick/8*Third gear 2*Second gear paddle/2*Knob(optional) |
|
| Remote control parameter adjustment | Upper computer | |
| Reserved space | 175x130x41mm | |
| interface Internal reserved | 6*RS232/2*USB/1*RJ45 | |
| internal reserved power supply | 12v 3A |
FAQ:
1. What types of wireless communication products do you offer?
A: We offer a wide range of products designed specifically for various applications, including drone communication video link, remote controller, and telemetry, such as uav video transmission systems, data link modules, and COFDM IP mesh network radios.
2. How resistant is the wireless communication system to interference?
A: Our system utilizes COFDM FHSS hopping frequency technology and robust signal encoding and decoding techniques to effectively reduce external interference, ensuring stable transmission even in complex environments.
3. Do your products support advanced security features?
A: Yes, all our products are equipped with AES128/256 encryption, ensuring secure data transmission and protecting against unauthorized access.
4. Are your data transmission modules compatible with third-party devices?
A: Yes, our data transmission modules are designed to integrate seamlessly with a wide range of third-party devices. They support standard communication protocols like RS232, RS485, and TCP/IP, and are compatible with various UAVs, gimbals, and industrial IoT devices. Additionally, they feature FHSS (frequency hopping spread spectrum) and forward error correction (FEC), ensuring stable and reliable performance across different platforms.
5. What accessories do you offer to enhance the performance of your systems?
A: We provide essential accessories such as high-gain omnidirectional antenna and auto tracking antenna systems. These accessories enhance signal stability and ensure better performance.
6. What are the primary applications for your wireless transmission systems?
A: Our systems are primarily used for drone video and data transmission, remote control for UAS, UGV, and autonomous vehicle communication. We offer tailored solutions for each industry.
7. Can your systems support large-scale networks?
A: Yes, our mimo mesh networkings support multi-node configurations, which are ideal for industrial IoT applications and large-scale deployments, offering flexible networking topologies.
8.Does the wireless transmission system comply with international standards?
A: Our wireless transmission system complies with international wireless communication standards such as CE and FCC, ensuring that the equipment can be used legally and safely worldwide.
9. What payment methods do you accept?
A: T/T (bank transfer) for payment.
10. Why should I choose your products over others?
A: Our factory is located in Shenzhen, Guangdong, covering an area of 1,000 square meters and equipped with 3 production lines certificated with ISO9001. We have a dedicated R&D team of over 30 engineers, with over 20 testing machines such as Field Strength Meter; Spectrum analyzer; Frequency meter; Network Analyzer; Oscilloscope; Power Meters; Vibration testing equipment for preventing cold solder joints; High and low temperature test chamber; Shielded test chamber etc, ensuring our products are innovative, reliable, and meet the highest industry standards.
