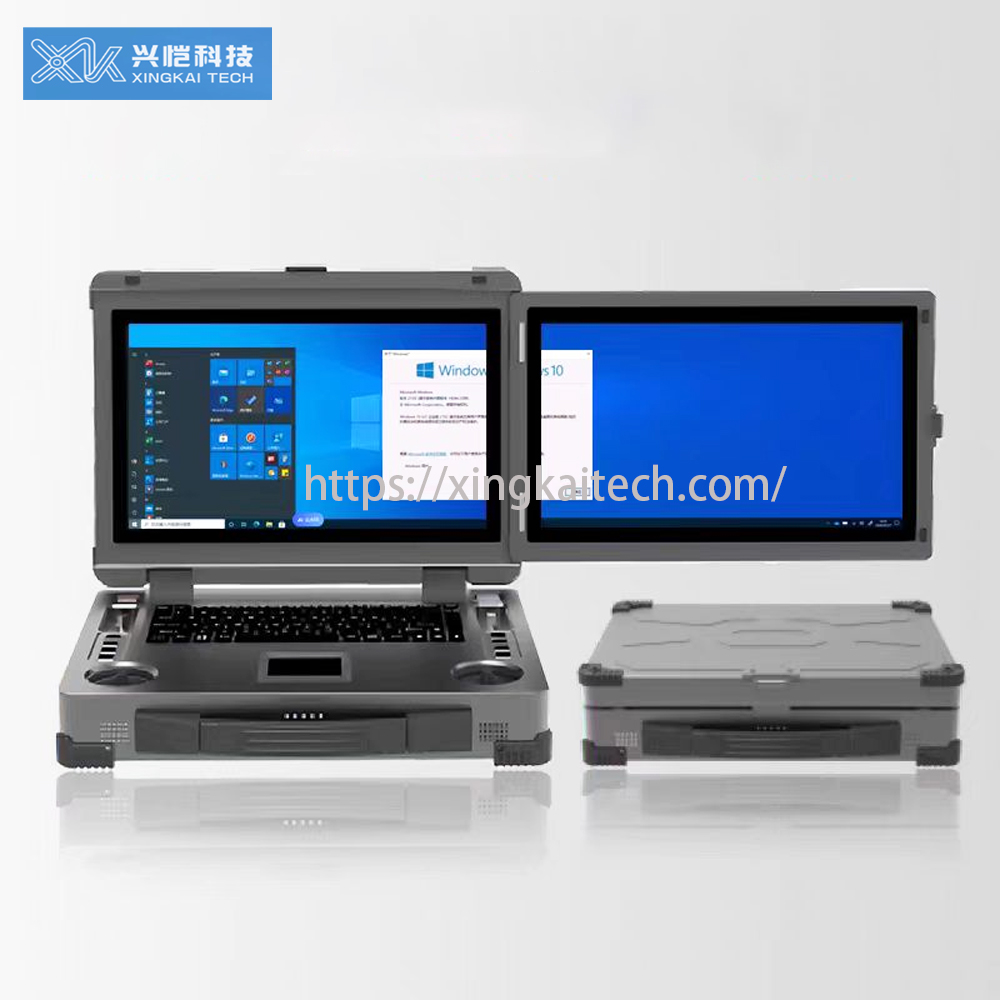

XK-G25 High Quality Uav Ground Control Station Outdoor Dual 15.6-inch Touch Screen Flight Control Data Transmission
UAV Ground Control Station Features
Full body aluminum alloy shell+silicone anti slip, higher protection
Dual 15.6-inch 1000nit outdoor visual screen
lntel15/17 High Performance CPU
Up to RTX3060 independent display support
18 physical channel outputs, dual SBUS, and USB-HID outputs
Touch pad with left and right buttons+86 key standard keyboard
Supports the installation of most data links on the market
Coulomb meter precise battery management, low battery reminder, and low battery automatic shutdown
Reference Price:
$5,714
HOWDY, WELCOME TO
GET IN TOUCH WITH US
1. The entire machine is made of aluminum alloy, using silicone anti slip technology and equipped with 8 anti-collision corners for higher protection
2. Dust and splash prevention measures are taken at all external device interfaces to ensure equipment safety.
3. Dual 15.6-inch 1000nit touch screen outdoor visual large screen
4. Touch pad with left and right buttons+86 key standard keyboard
5. Configure 18 physical channels, support dual serial port data transmission and dual SBUS output
6. It can support custom network segments, better compatibility with various cameras, gimbals, pods and other video devices, support HDMI video output, facilitate the expansion of large screen display
7. Support working in low and high temperature environments to reduce equipment damage in extreme weather conditions
8. Coulomb meter precise battery management, low battery reminder and automatic low battery shutdown
9. Flight control data connection supports USB connection, LAN connection, serial port connection, etc.
10. It can support up to RTX3060 independent display
Technical Parameters
| Product Parameter | Model | G25 |
| Case Material | Aluminum Alloy | |
| Anti-vibration | Chassis with 8 shock-absorbing silicone pads | |
| Color | Gunmetal Gray | |
| CPU | Intel I7 | |
| Memory | 16G | |
| Storage | 256GB SSD | |
| Graphics | Intel 620 Integrated | |
| Keyboard | Standard Keyboard | |
| Mouse Touchpad | with left and right mouse buttons | |
| Network | 1 Gigabit Ethernet port | |
| System | Windows 10 | |
| Screen Size | 15.6 inch | |
| Resolution | 1920*1080 | |
| Brightness | 1000nit | |
| Battery Life | 4-5 hours | |
| Battery Level Display | PC System Display/Led Battery Level | |
| Weight | 10KG | |
| Storage temperature | -20-65ºC | |
| Working temperature | -10-45ºC | |
| External Interface | USB*4, LAN*1,DC IN, | |
| Joystick mode | Dual S-BUS 18 channels/ USB-HID | |
| Rocker | 2*Flying rocker 1*Thumb rocker (customizable) | |
| Toggle | 8*Three-speed toggle/2*Two-speed toggle(can be customized)) | |
| Knob | 2*potentiometer knob (customizable) | |
| Adjustment mode | Upper computer |
FAQ:
1. What types of wireless communication products do you offer?
A: We offer a wide range of products designed specifically for various applications, including drone communication video link, remote controller, and telemetry, such as uav video transmission systems, data link modules, and COFDM IP mesh network radios.
2. How resistant is the wireless communication system to interference?
A: Our system utilizes COFDM FHSS hopping frequency technology and robust signal encoding and decoding techniques to effectively reduce external interference, ensuring stable transmission even in complex environments.
3. Do your products support advanced security features?
A: Yes, all our products are equipped with AES128/256 encryption, ensuring secure data transmission and protecting against unauthorized access.
4. Are your data transmission modules compatible with third-party devices?
A: Yes, our data transmission modules are designed to integrate seamlessly with a wide range of third-party devices. They support standard communication protocols like RS232, RS485, and TCP/IP, and are compatible with various UAVs, gimbals, and industrial IoT devices. Additionally, they feature FHSS (frequency hopping spread spectrum) and forward error correction (FEC), ensuring stable and reliable performance across different platforms.
5. What accessories do you offer to enhance the performance of your systems?
A: We provide essential accessories such as high-gain omnidirectional antenna and auto tracking antenna systems. These accessories enhance signal stability and ensure better performance.
6. What are the primary applications for your wireless transmission systems?
A: Our systems are primarily used for drone video and data transmission, remote control for UAS, UGV, and autonomous vehicle communication. We offer tailored solutions for each industry.
7. Can your systems support large-scale networks?
A: Yes, our mimo mesh networkings support multi-node configurations, which are ideal for industrial IoT applications and large-scale deployments, offering flexible networking topologies.
8.Does the wireless transmission system comply with international standards?
A: Our wireless transmission system complies with international wireless communication standards such as CE and FCC, ensuring that the equipment can be used legally and safely worldwide.
9. What payment methods do you accept?
A: T/T (bank transfer) for payment.
10. Why should I choose your products over others?
A: Our factory is located in Shenzhen, Guangdong, covering an area of 1,000 square meters and equipped with 3 production lines certificated with ISO9001. We have a dedicated R&D team of over 30 engineers, with over 20 testing machines such as Field Strength Meter; Spectrum analyzer; Frequency meter; Network Analyzer; Oscilloscope; Power Meters; Vibration testing equipment for preventing cold solder joints; High and low temperature test chamber; Shielded test chamber etc, ensuring our products are innovative, reliable, and meet the highest industry standards.
