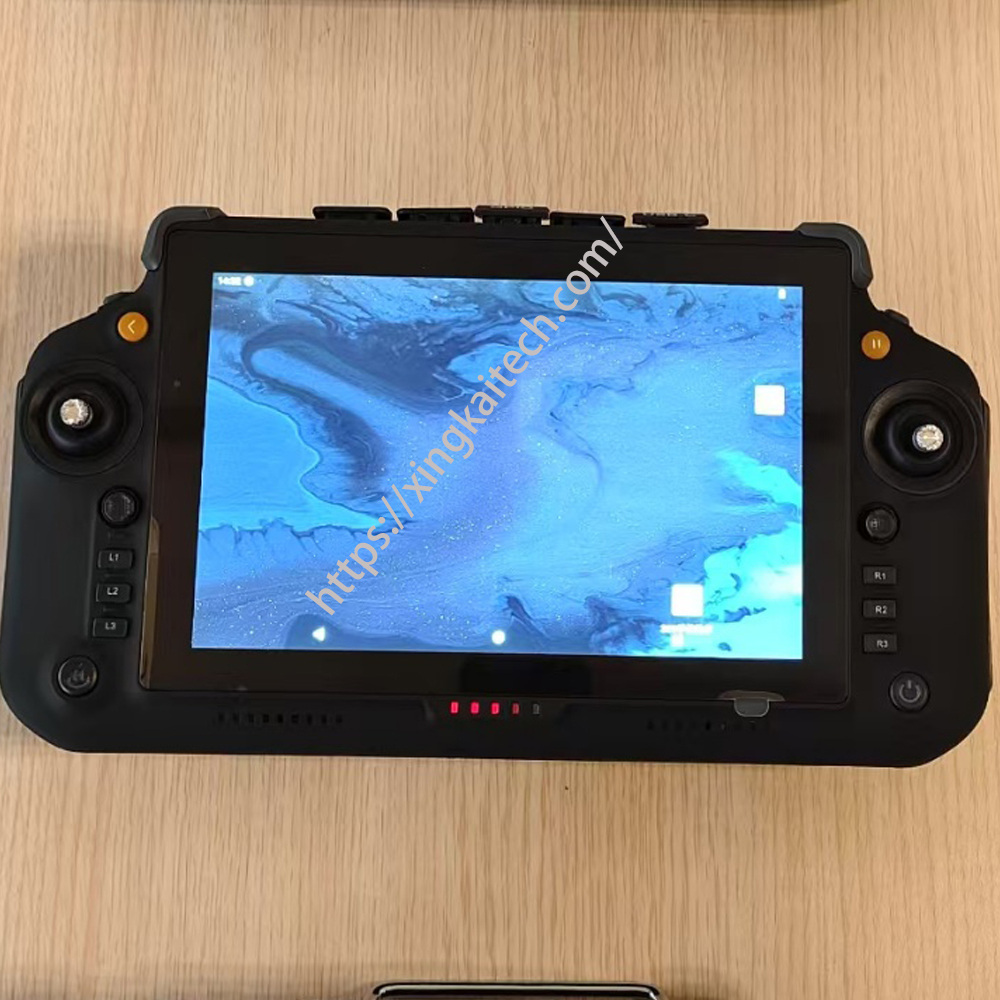

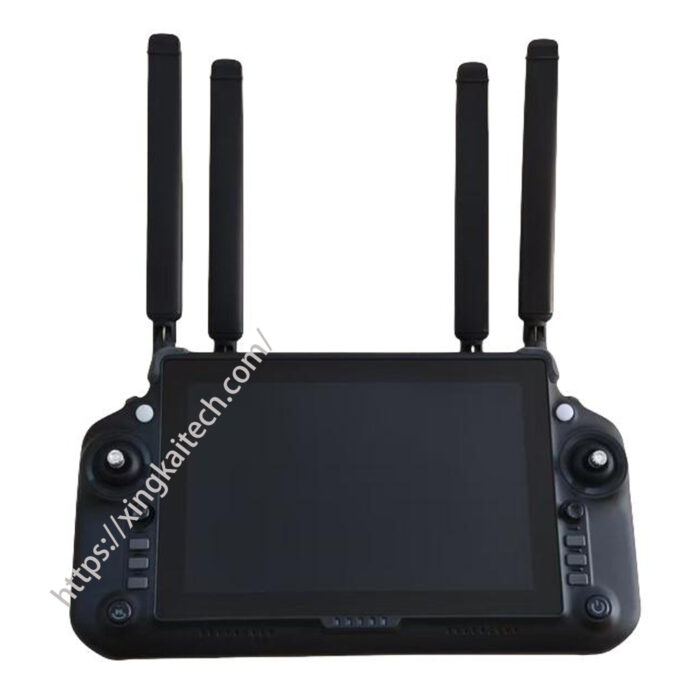

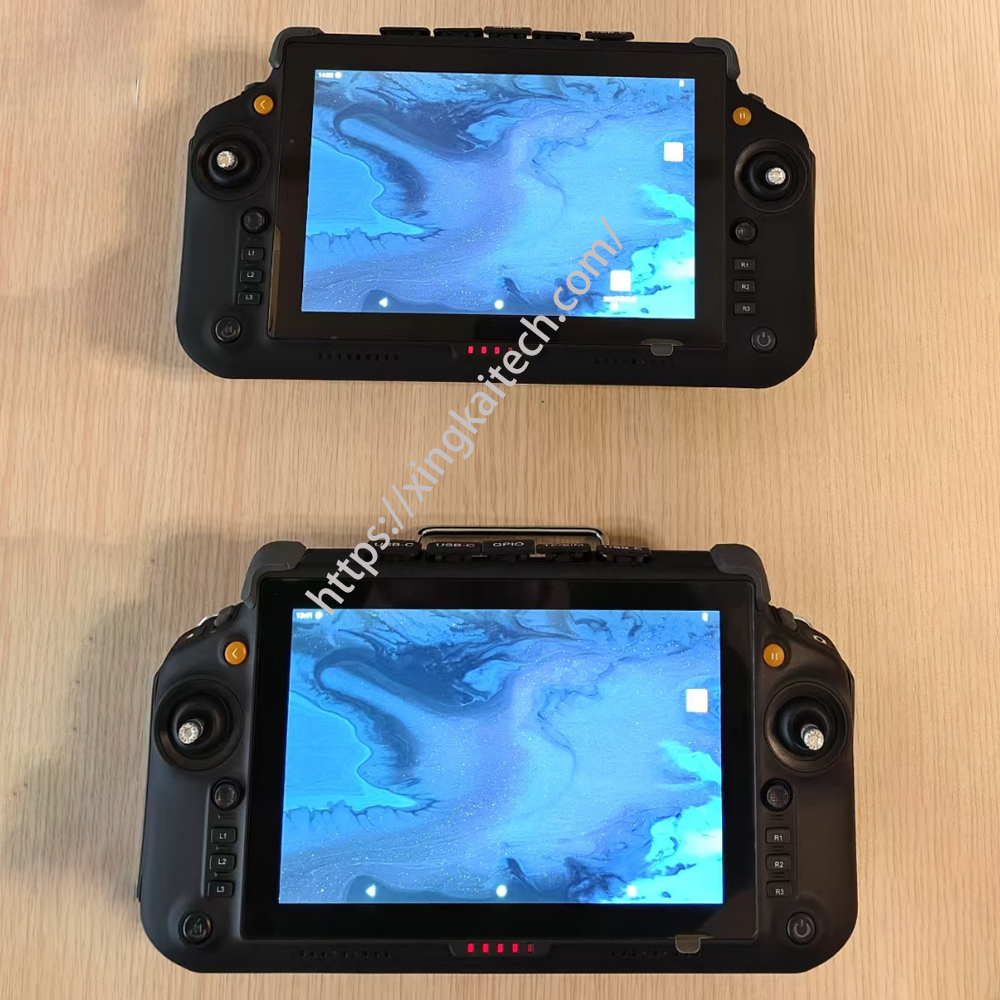

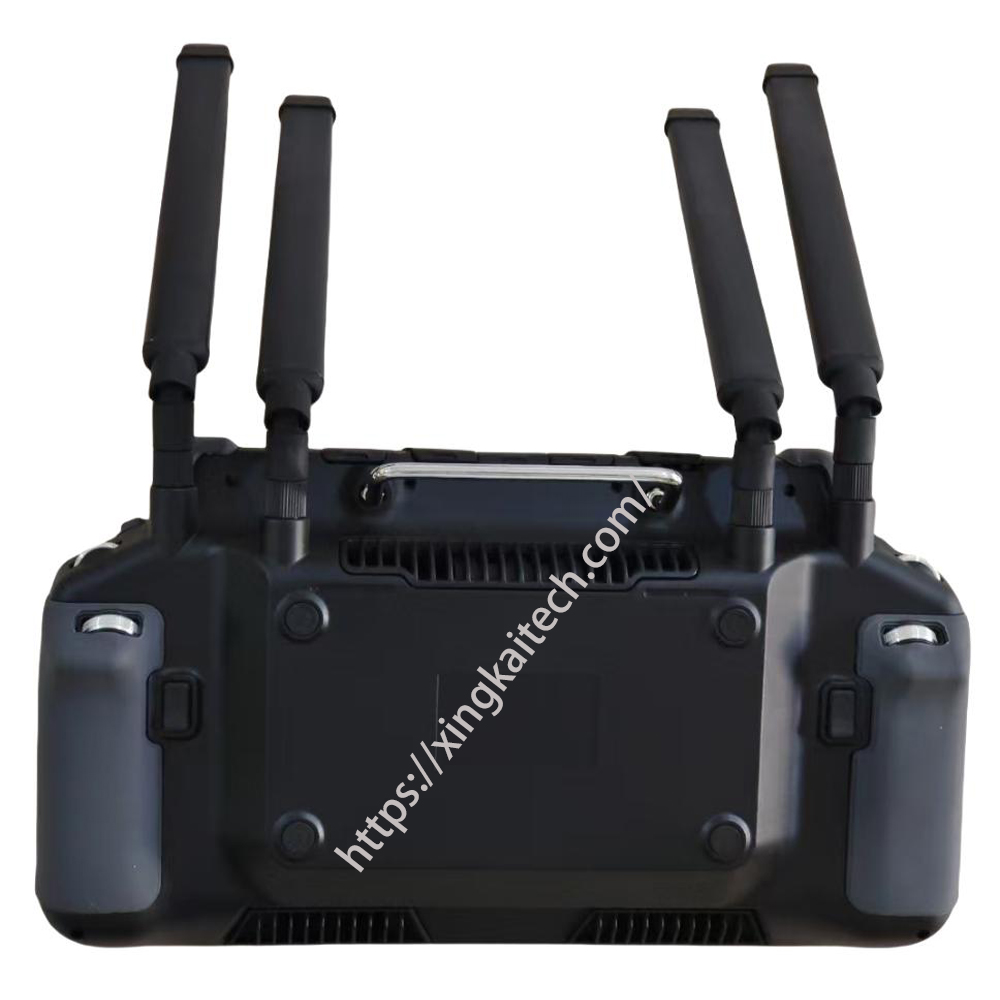

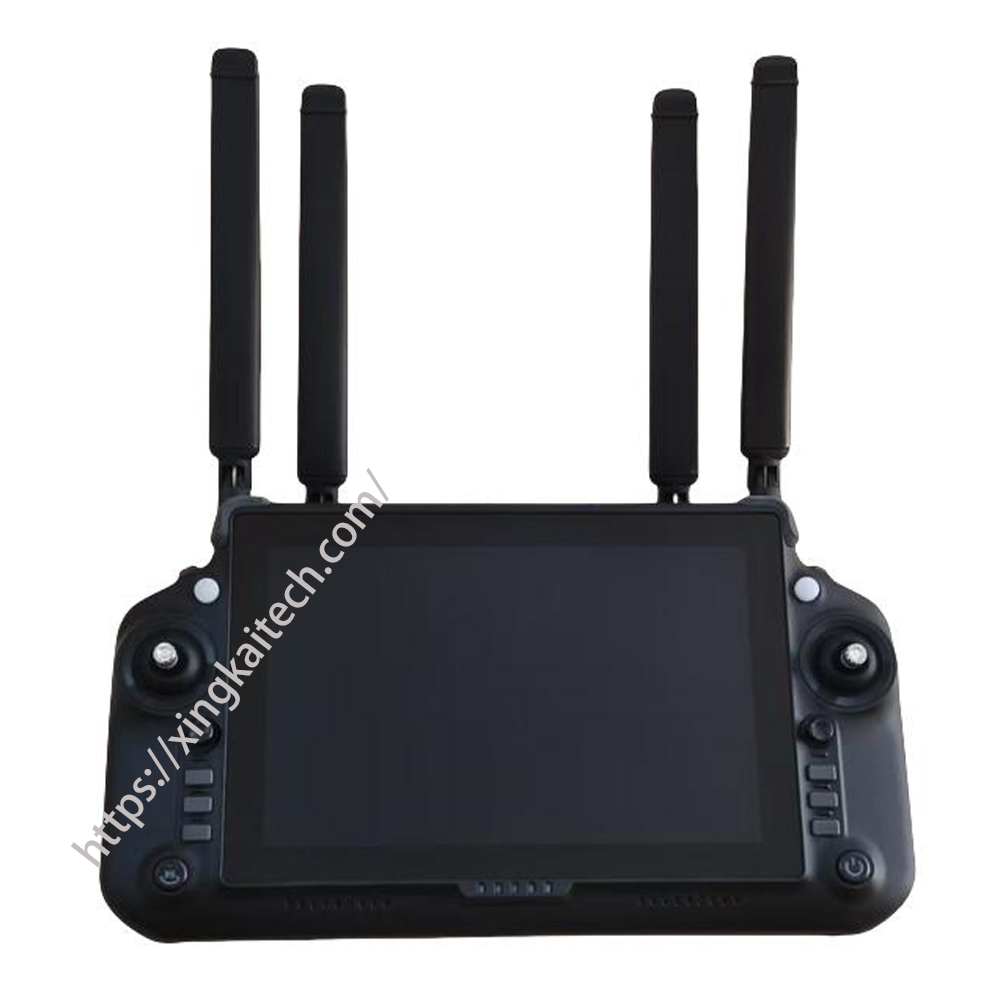

XK50 FPV Drone Ground Control Station 1W Digital Image Transmission UAV Remote Control Ground Station
Shenzhen Xingkal Technology Co, Ltd.is a Globalleading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance, and defense industries. Our R&D team has over 20 years of professtonaltechnical experience in design, develop, build, support and delivery ot end-to-end communications&advanced networkings. The company attaches great importance to the construction of the R&D team. with a team who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.Our products range incudes mimo mesh network tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of C2C3/C4lSR/C5ISR mission systems, borderand perimeter security systems, unmanned aircraft systems.unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can’t risk communication failure.
Reference Price:
$1,667
HOWDY, WELCOME TO
GET IN TOUCH WITH US
Download
| System Components | Component Name | Component Parameter |
| CPU | RK3588 | CPU:4x A76 + 4x A55
NPU: 6T@INT8 Process: 8nm |
| RAM | LPDDR4x | 8G/12G/16GBytes |
| Flash | EMMC | 32G/64G/128G Bytes |
| ExtFlash | TFCard(Micro SD) | 32GBytes |
| Screen | TFTLCD(8.4“) | 2560*1600(60Hz) |
| LCD Backlight | LCD Backlight Brightness | 1200 nits(Max) |
| Touchpad | Capacitive Touch | 10-point capacitive touch |
| Battery | 18650 | 8x3500mAh (2 sets of 4S1P) |
| Charging System | TypeC Charging | 5V/12V/20V@3A(Max) |
| Proximity Wireless | Wifi+BT | Wifi+BT both work at 2.4Ghz, note that this is not a map transfer, wifi is used to connect to a nearby router in close proximity, BT is used for wireless serial communication in close proximity. |
| Speaker | Speaker power | 1W |

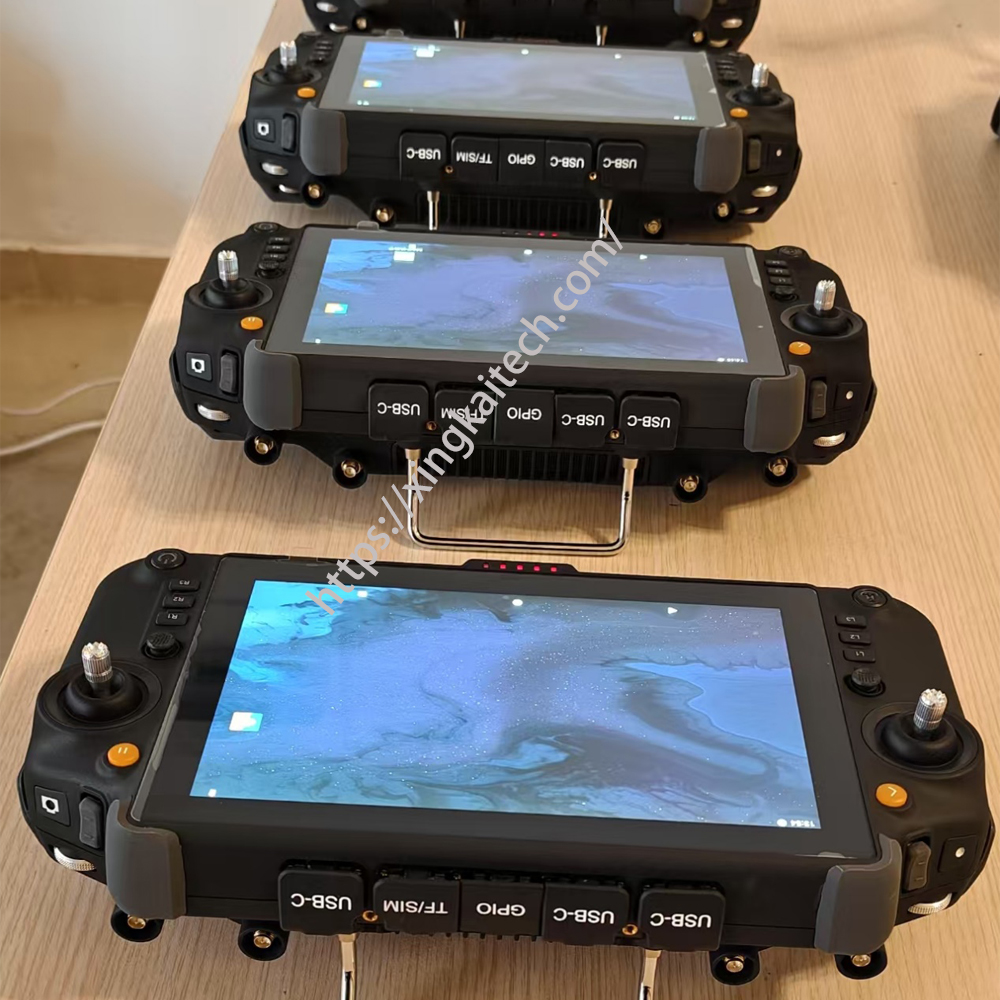

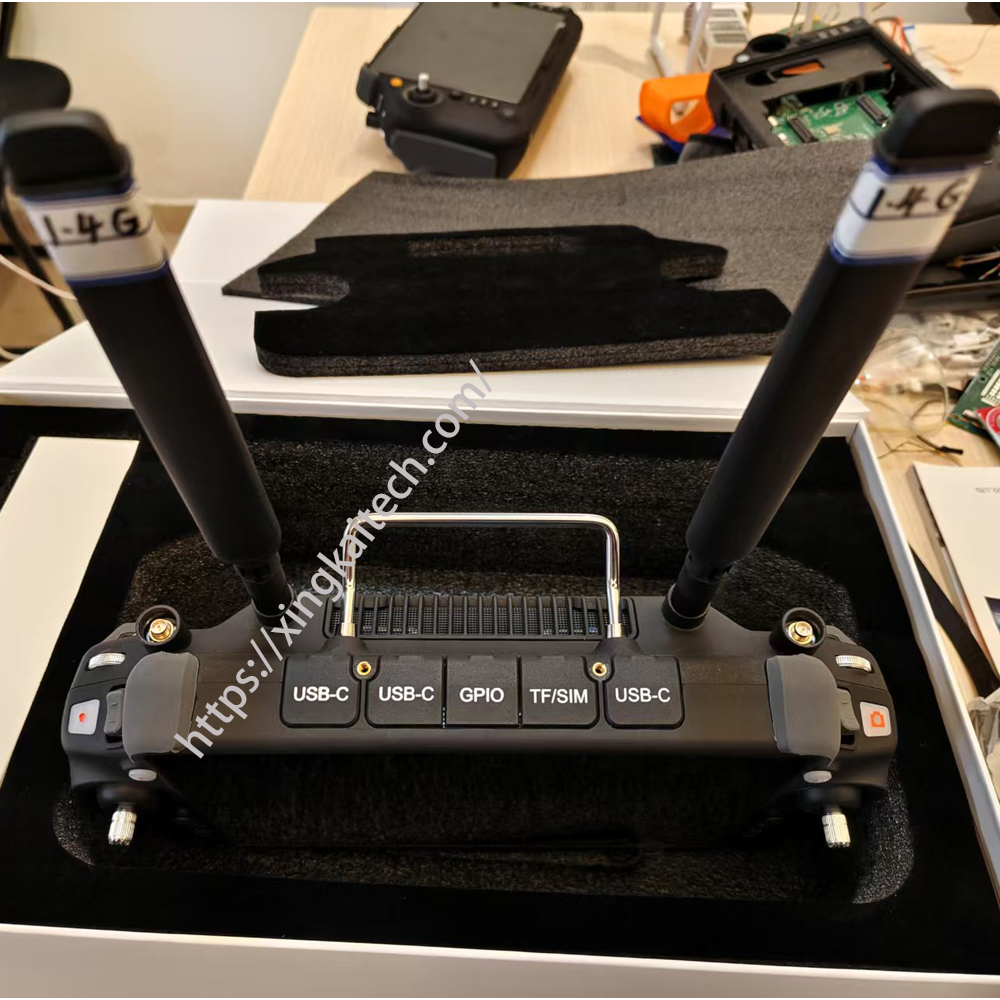

| USB Interface | USB TypeC | 2-channel USB TypeC, one of which can be used to download and upgrade system firmware. |
| GPIO communication interface | GH1.25-12P | A total of 2-way GH1.25-12P, one of which is used to upgrade the remote control motherboard firmware and tablet system to print debugging information, the other way can be used as a Gigabit network port as needed. |
