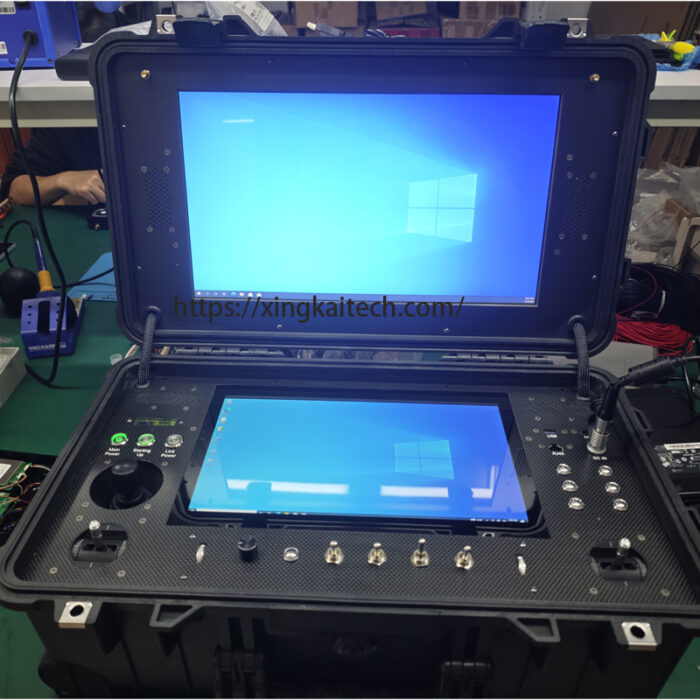

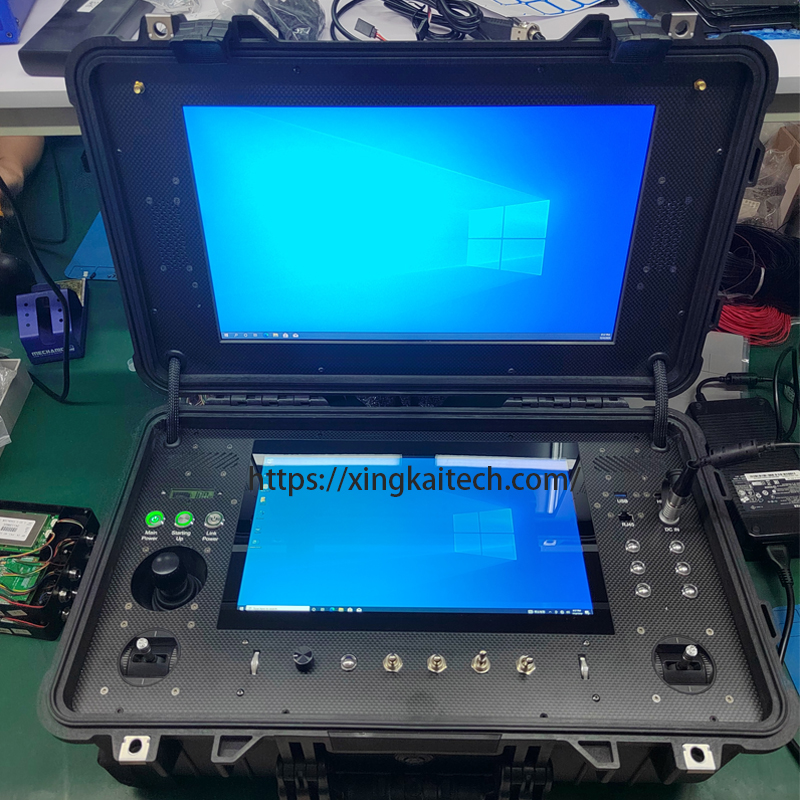

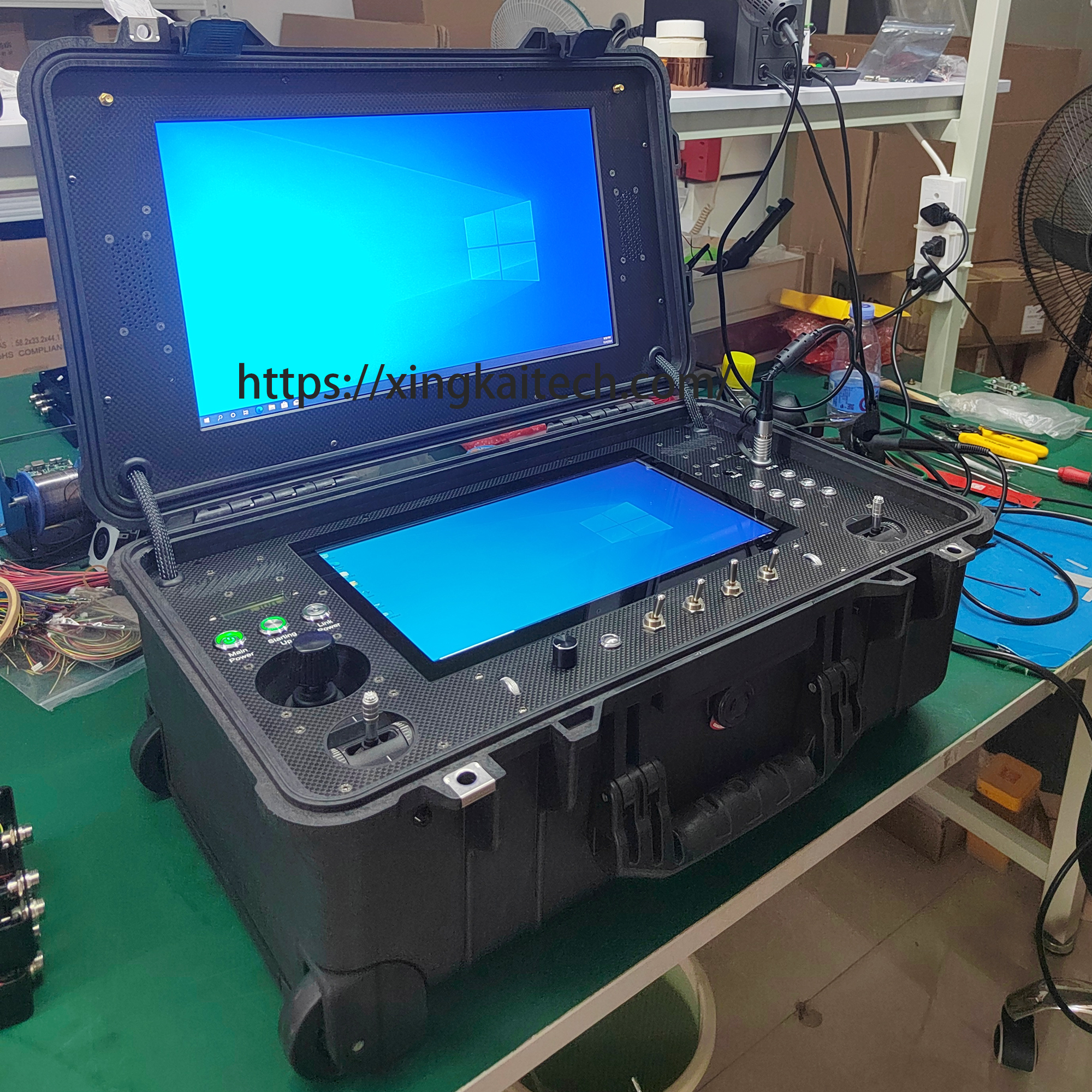

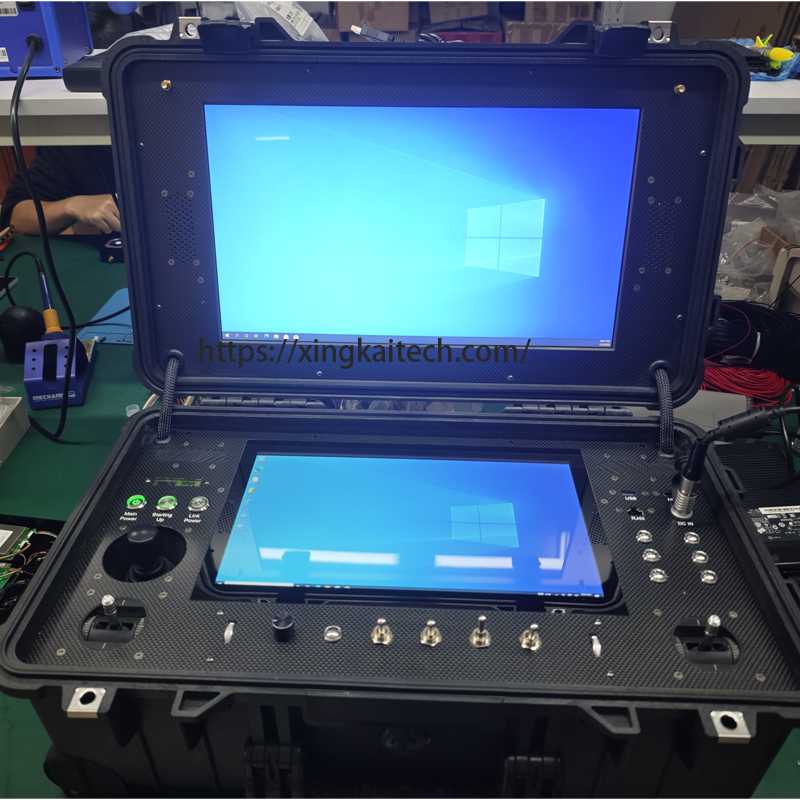

XK-GS420 UAV Dual-Screen Ground Control Station Outdoor Work for Long-Range VTOL Drone Remote GCS Remote System

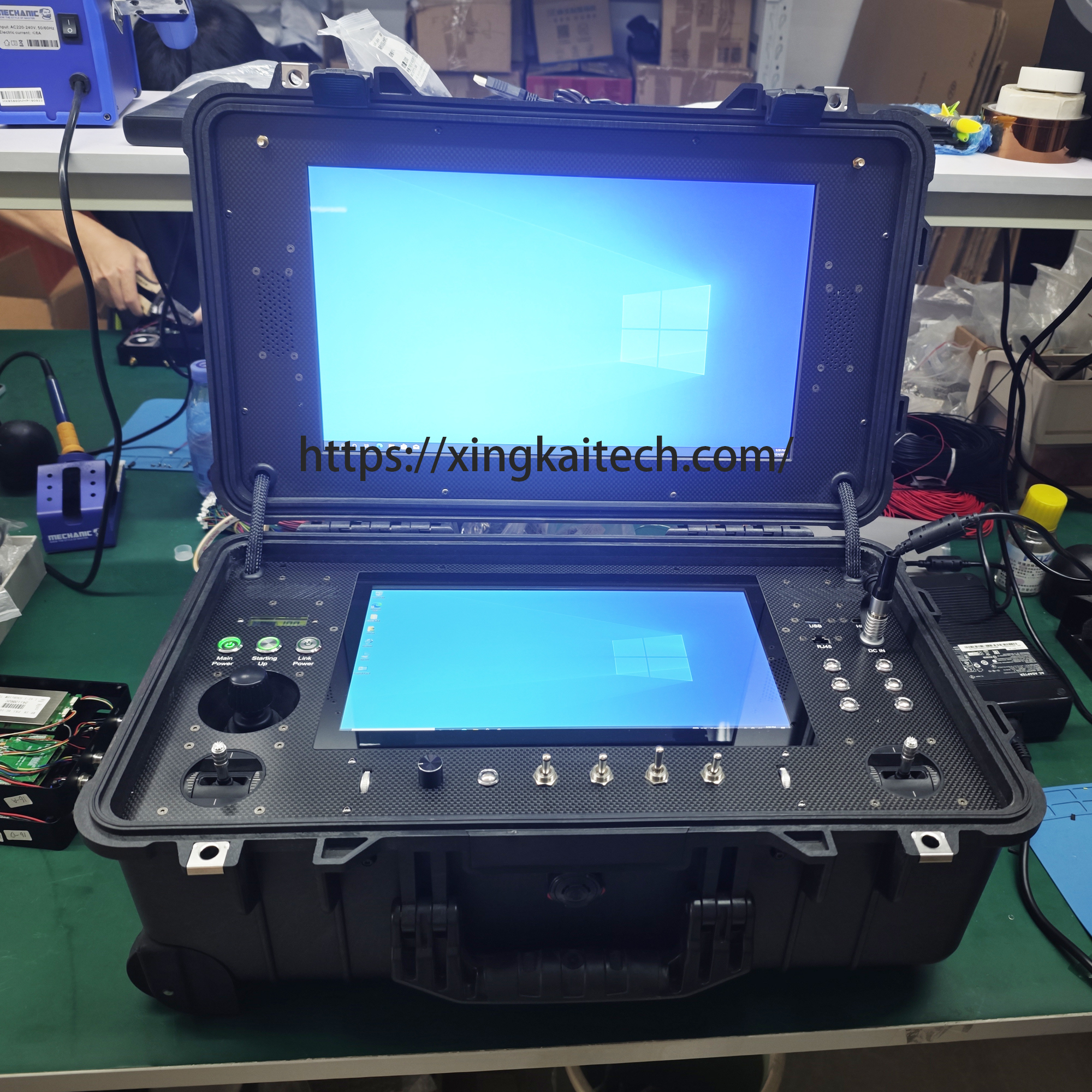

XK-GS420 UAV Ground Station is a multi-functional portable ground station, the appearance adopts a suitcase design, easy to carry and deploy, internal integration of remote telemetry, pod remote control, image and the use of highlight screen technology, visible under the sun, configured with the mainstream WINDOWS operating system, can be pre-installed with a variety of software. Equipped with lithium battery pack, it can continuously supply power for more than 6 hours, suitable for long-term field missions.
Reference Price:
$7,857
HOWDY, WELCOME TO
GET IN TOUCH WITH US
Description
| Ground station box | |
| Enclosure type | Three-proof safety box |
| Cap size | 556mm×358mm×230mm |
| Overall weight | 15KG |
| Housing material | PVC Composites |
| Degree of protection | Close the lid IP67 |
| Operating temperature | -10°C~ 50°C |
| Color type | Matte black |
| Portable features | Ready-to-use with open lid, external handle, built-in lever |
| Battery and battery life | 3h |
| Operation panel | |
| Panel material | 3K Carbon fiber plate |

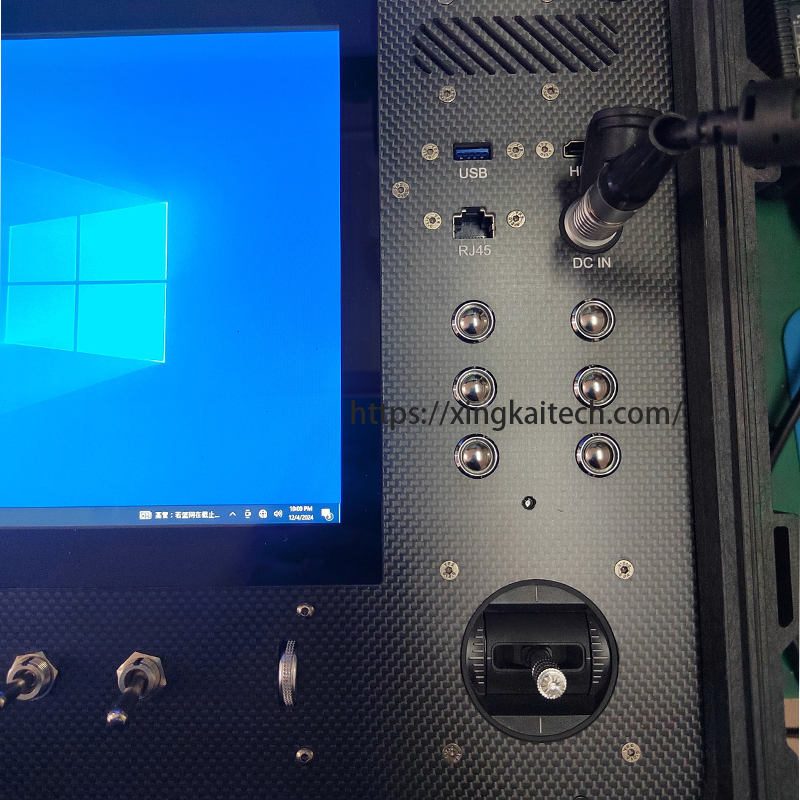

| Interface support | USB,DC IN,HDMI,RJ45 |
| Interactive | Industrial control mouse key set, joystick, button, paddle |
| Pushbutton switch | Keystroke×8,Two-stage lever×3,Three-stage lever×3 |

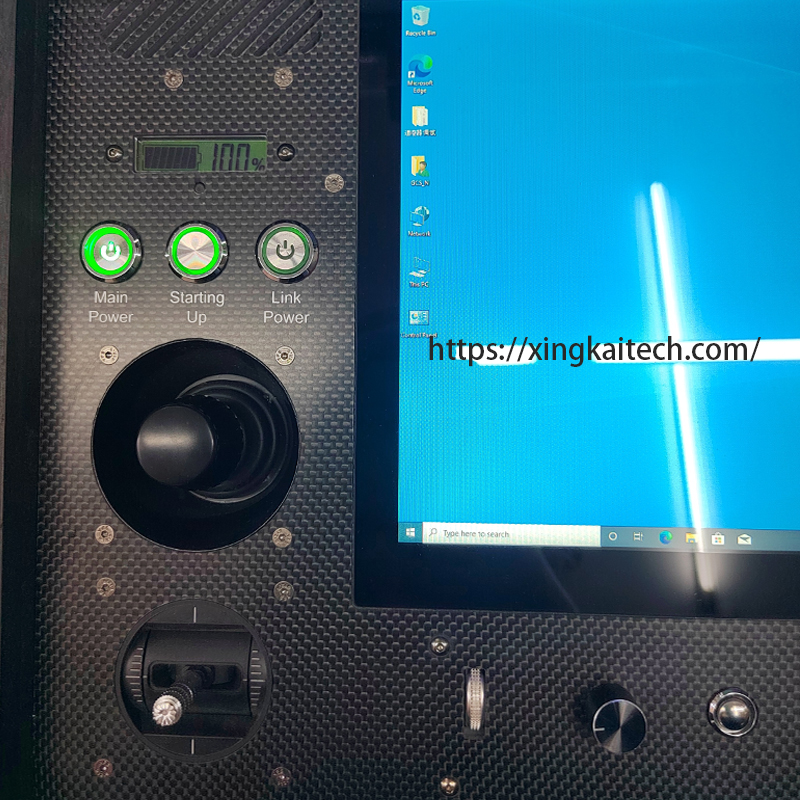

| Switch | Total power, power on button,Link switch |
| Other devices | Industrial cooling fans |
| Action controller | Hall three-axis gimbal remote pole |
| Industrial control host | |
| CPU | i7- 1195G7 |
| Operating system | Windows 10 |
| GPU | Intel Graphics |
| Memory | 16G DDR4 |
| Hard disk | 256G SSD |
| Primary display | |
| Rize | 17.3 inches |
| Resolution | 1920×1080 |
| Screen ratio | 16:9 |
| Backlight type | LED |
| Max brightness | 1000nit(Automatic induction adjustment) |
| Input interface | HDMI |
| Lower monitor | |
| Rize | 13.3-inch touch screen |
| Resolution | 1920×1080 |
| Screen ratio | 16:9 |
| Backlight type | LED |
| Input interface | HDMI |
| Battery & Power | |
| Battery indicator | Current voltage, current current, current remaining capacity, power, etc |
| Power management system protection | Overcurrent protection, overvoltage protection, low voltage protection, overcapacity protection, overpower protection |
