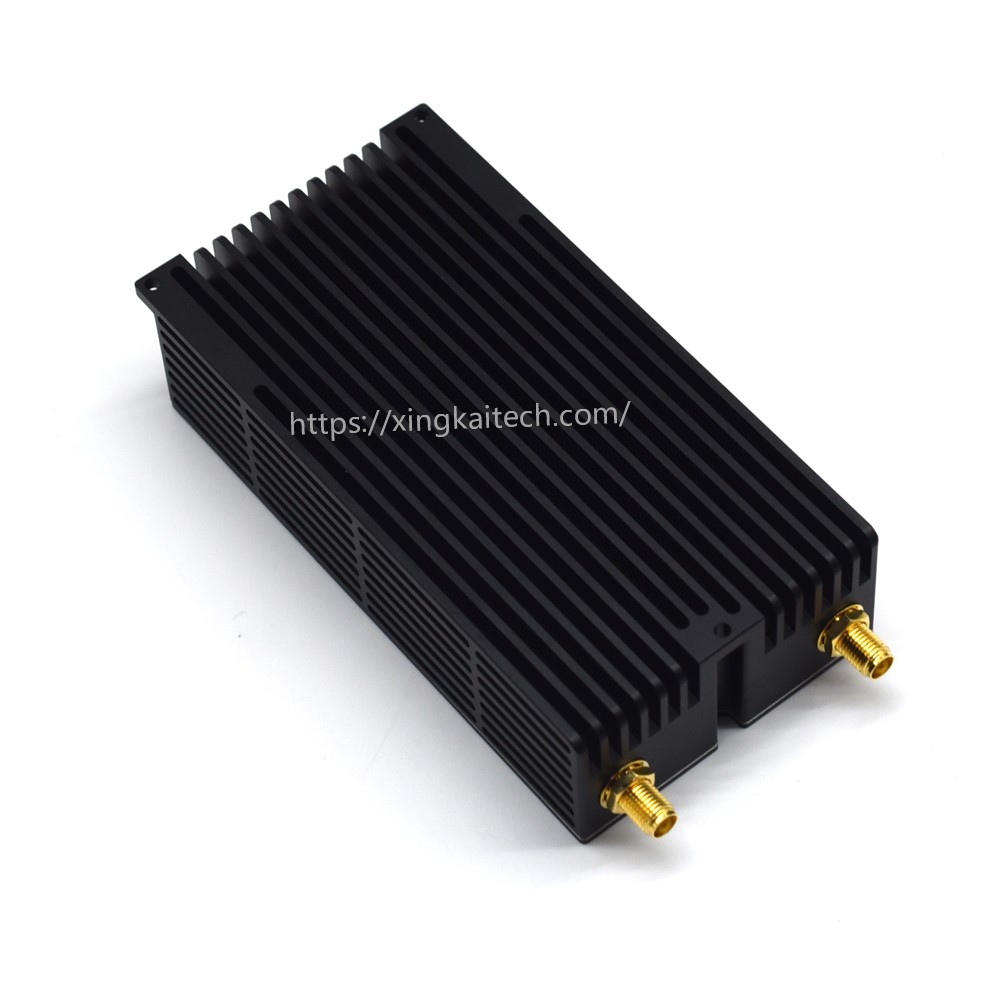

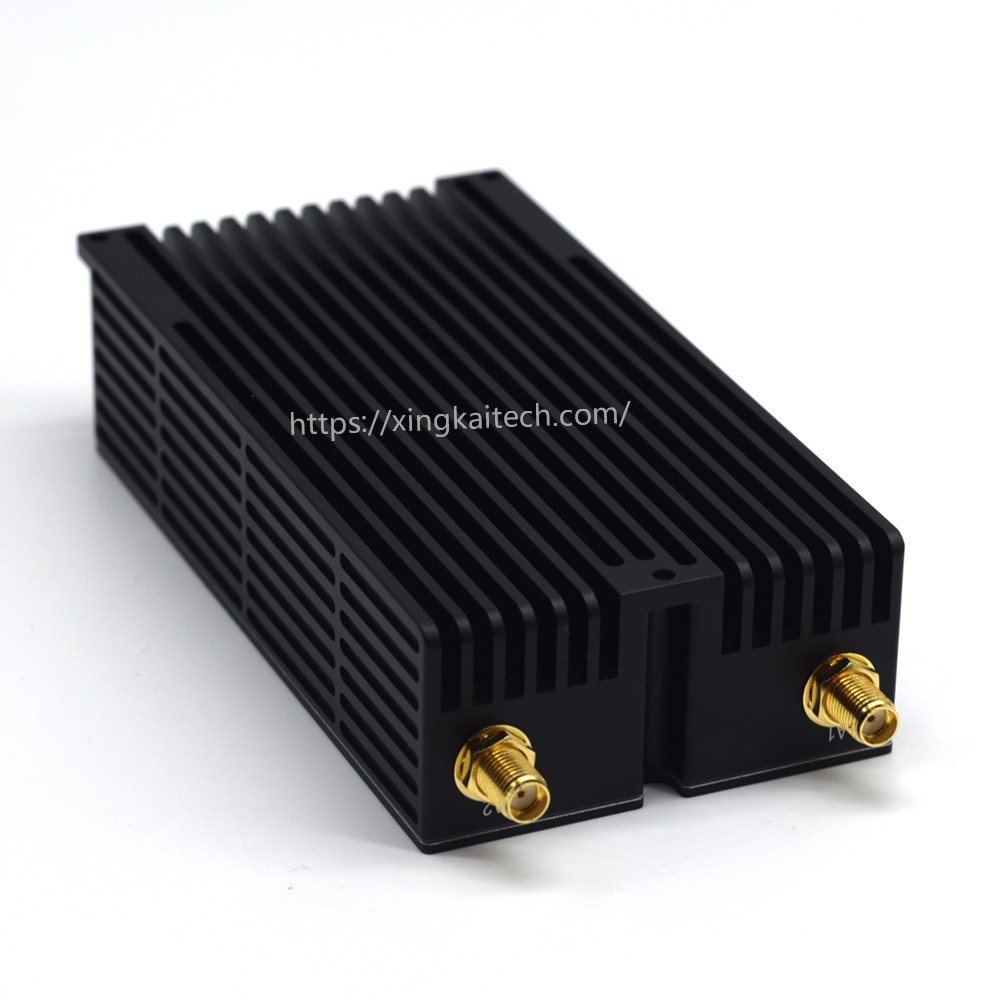

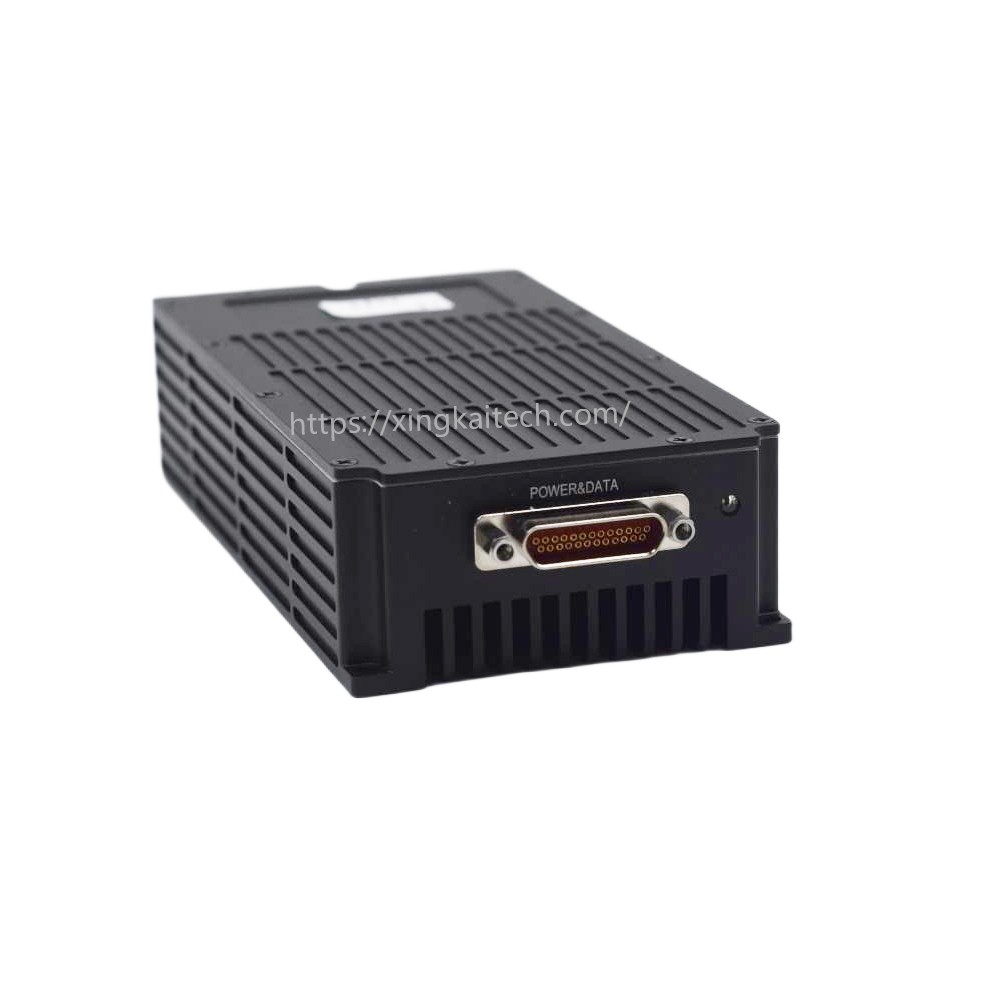

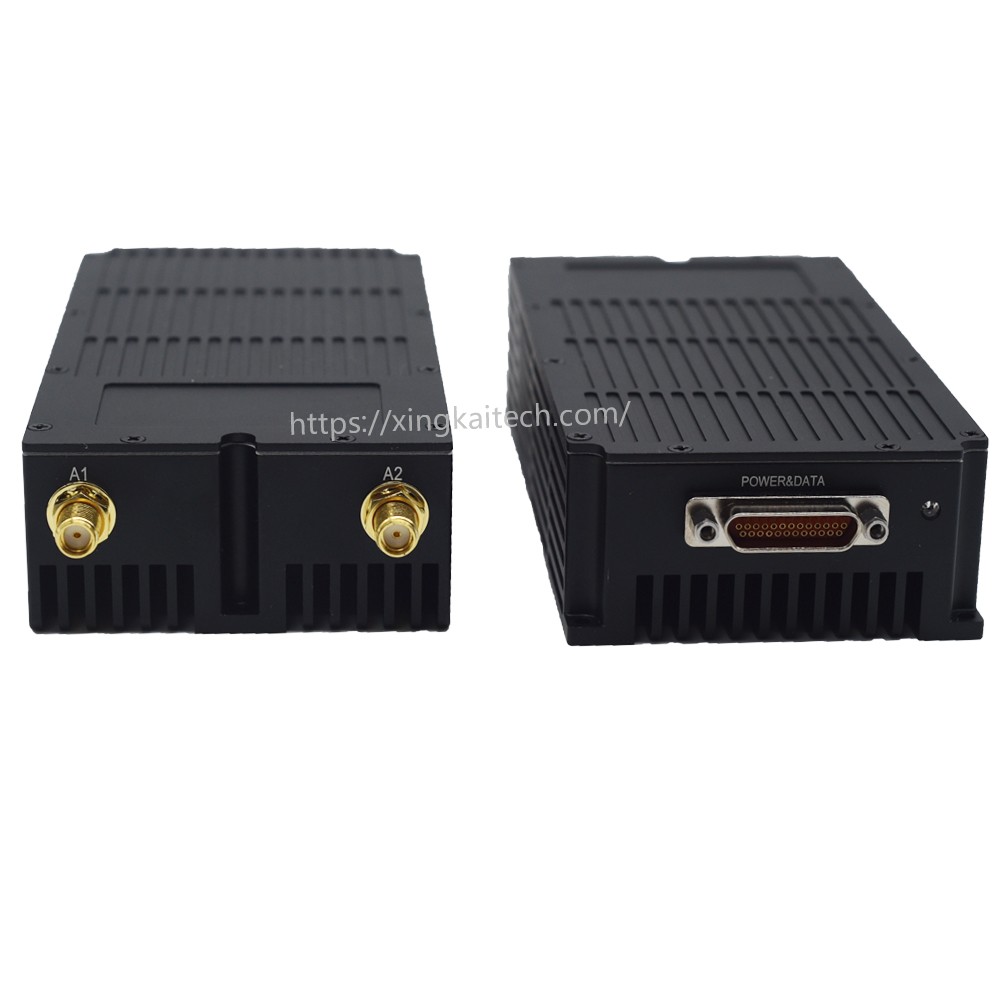

XK-F356 5Watts*2 UAV Data Link FHSS Hopping Frequency Swarm Communication for Fpv Quadcopter Drone
Product features and functions
- No central co frequency self-organizing network
- Point to point, point to multipoint, relay, mesh networking, etc
- Multi node fast networking
- Strong anti-interference ability
- Anti multipath capability
- Support DES56, AES128, and AES256 source encryption
- Full IP networking and interconnection
- Support multiple services (image, and other services)
Reference Price:
$7,058
HOWDY, WELCOME TO
GET IN TOUCH WITH US
Download
The XK-F356 FHSS IP Mesh Network adopts co frequency networking and multi hop relay. Each node device can move randomly and quickly, and the network topology can change and update quickly without affecting network transmission. The entire network is easy to deploy, flexible to use, easy to operate, and easy to maintain. It can provide users with reliable, timely, efficient, and secure all IP clear voice, broadband data, high-definition video, and visual command and scheduling multimedia comprehensive services in complex application scenarios such as fast movement and blocking of non line of sight.
Wireless broadband ad hoc networks can be widely used in various sectors such as the military, public security, armed police, fire protection, civil air defense, power, oil, mining, transportation, water conservancy, forestry, broadcasting, medical, water and air communication, providing users with reliable, timely, safe, and efficient comprehensive services such as voice, data, video, and visual command and dispatch, meeting their wireless broadband communication needs to the greatest extent possible in normal or emergency situations, truly achieving “anytime, anywhere, on-demand communication”.
| Performance | ||
| Wave Form | Mobile network MIMO（MN-MIMO） | |
| MIMO Technology | Space time coding, spatial diversity, TX/RX beamforming, spatial multiplexing | |
| Receiving Sensitivity | -103dBm@5MHz BW | |
| Working Channel Bandwidth | 2.5/5/10/20MHz Settable，40MHz Optional configuration；
FDD dual antenna cross frequency transceiver (CA carrier aggregation) optional configuration |
|
| Transmission Speed | 1-100Mbps（20MHz BW）/180Mbps（40MHz BW）self-adaption | |
| Modulation Method | TD-COFDM，BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM self-adaption | |
| Working Frequency Band | 600MHz、900MHz、1.2GHz、1.4GHz(Regular)；300MHz-6GHz(Customized) | |
| RF Output Power | Mimo 5W*2； | |
| Single Hop Communication Distance | 100-200KM(Intervisibility)，1-30KM(Urban area) | |
| Communication Mode | Distributed decentralized point-to-point/point-to-point/many to many, layer 2 or layer 3 dynamic routing, multi hop relay, star/linear/mesh/hybrid dynamic | |
| Single Hop delay | average 7ms（20MHz BW） | |
| Secure Encryption | DES，AES128/256，SNOW3G/ZUC Optional configuration | |
| Anti Interference Working mode | Channel selection for manual spectrum scanning, full band enhanced intelligent options (spectrum sensing)/full band adaptive frequency hopping/roaming mode selection,FHSS Hopping | |
| Local/Remote Management | Parameter settings such as working frequency, channel bandwidth, Network ID, transmission power, spectrum scanning, real-time display and statistical recording of network topology, link field strength signal-to-noise ratio, upload and download traffic, node to node distance, GPS/BeiDou electronic map, temperature/voltage/interference monitoring, software upgrade. | |
| Other | The startup time is less than 28 seconds, and the network access/update/switch time is less than 1 second.
There is no limit to the capacity of a single system user (256 or more), and there is no limit to the number of self-organized network hops (15+data hops, 10+voice hops, and 8+video hops). The total loss of multi hop bandwidth is less than 70%. Automatic carrier tracking, adapted to ± 6kHz frequency offset and Laplace frequency shift, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second). |
|
| Environment | ||
| Working Temperature | -40℃~+80℃ | |
| Protection Lev | IP66，IP67/IP68 customization | |
| Whole Machine Structure | ||
| Colour | Black | |
| Size | 120mm*63mm*30mm | |
| Weight | 268g | |
| Other | ||
| Voltage Range | DC 9-28V | |
| Interface | 2*TNC RF，1-3*RJ45 Ethernet 100/1000BaseT，RS232/TTL（UART），WiFi AP，GPS/ Beidou，DC input | |
FAQ
1. What types of wireless communication products do you offer?
A: We offer a wide range of products designed specifically for various applications, including drone communication video link, remote controller, and telemetry, such as uav video transmission systems, data link modules, and COFDM IP mesh network radios.
2. How resistant is the wireless communication system to interference?
A: Our system utilizes COFDM FHSS hopping frequency technology and robust signal encoding and decoding techniques to effectively reduce external interference, ensuring stable transmission even in complex environments.
3. Do your products support advanced security features?
A: Yes, all our products are equipped with AES128/256 encryption, ensuring secure data transmission and protecting against unauthorized access.
4. Are your data transmission modules compatible with third-party devices?
A: Yes, our data transmission modules are designed to integrate seamlessly with a wide range of third-party devices. They support standard communication protocols like RS232, RS485, and TCP/IP, and are compatible with various UAVs, gimbals, and industrial IoT devices. Additionally, they feature FHSS (frequency hopping spread spectrum) and forward error correction (FEC), ensuring stable and reliable performance across different platforms.
5. What accessories do you offer to enhance the performance of your systems?
A: We provide essential accessories such as high-gain omnidirectional antenna and auto tracking antenna systems. These accessories enhance signal stability and ensure better performance.
6. What are the primary applications for your wireless transmission systems?
A: Our systems are primarily used for drone video and data transmission, remote control for UAS, UGV, and autonomous vehicle communication. We offer tailored solutions for each industry.
7. Can your systems support large-scale networks?
A: Yes, our mimo mesh networkings support multi-node configurations, which are ideal for industrial IoT applications and large-scale deployments, offering flexible networking topologies.
8.Does the wireless transmission system comply with international standards?
A: Our wireless transmission system complies with international wireless communication standards such as CE and FCC, ensuring that the equipment can be used legally and safely worldwide.
9. What payment methods do you accept?
A: T/T (bank transfer) for payment.
10. Why should I choose your products over others?
A: Our factory is located in Shenzhen, Guangdong, covering an area of 1,000 square meters and equipped with 3 production lines certificated with ISO9001. We have a dedicated R&D team of over 30 engineers, with over 20 testing machines such as Field Strength Meter; Spectrum analyzer; Frequency meter; Network Analyzer; Oscilloscope; Power Meters; Vibration testing equipment for preventing cold solder joints; High and low temperature test chamber; Shielded test chamber etc, ensuring our products are innovative, reliable, and meet the highest industry standards.
