XK-M501E COFDM 0.5W*2 FPV Drone IP Mesh Network FHSS Hopping Frequency Transmission System for Mapping Drone
-
Flexible networking: Supports self-organizing networks without a central hub to build various network topologies.
-
Full IP interconnection: Featuring a fully IP-based architecture, it enables seamless data transmission across all protocols.
-
Anti-jamming capability: The optional wideband carrier frequency hopping technology and ARQ mechanism ensure reliable data transmission.
-
High reliability: The integrated design of power amplifier and core board ensures stable operation in harsh environments.
-
Specialized UAV waveforms (optional): Optional specialized waveforms optimize transmission delay and ensure priority transmission of flight control data.
-
Custom development: Support customized development according to the customer’s specific working frequency band.
-
Efficient maintenance: Built-in dynamic routing mechanism eliminates complex system configuration and improves maintenance efficiency.
Reference Price:
$2,000
HOWDY, WELCOME TO
GET IN TOUCH WITH US
Download

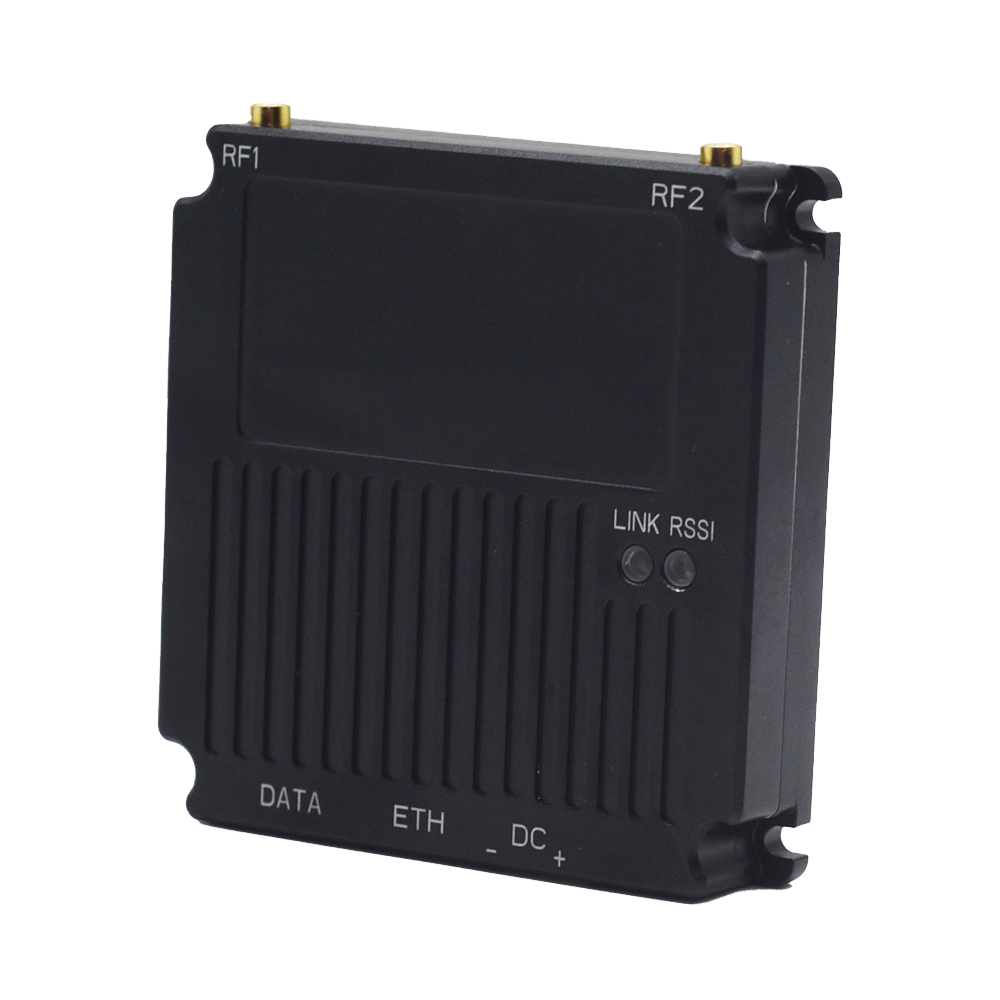

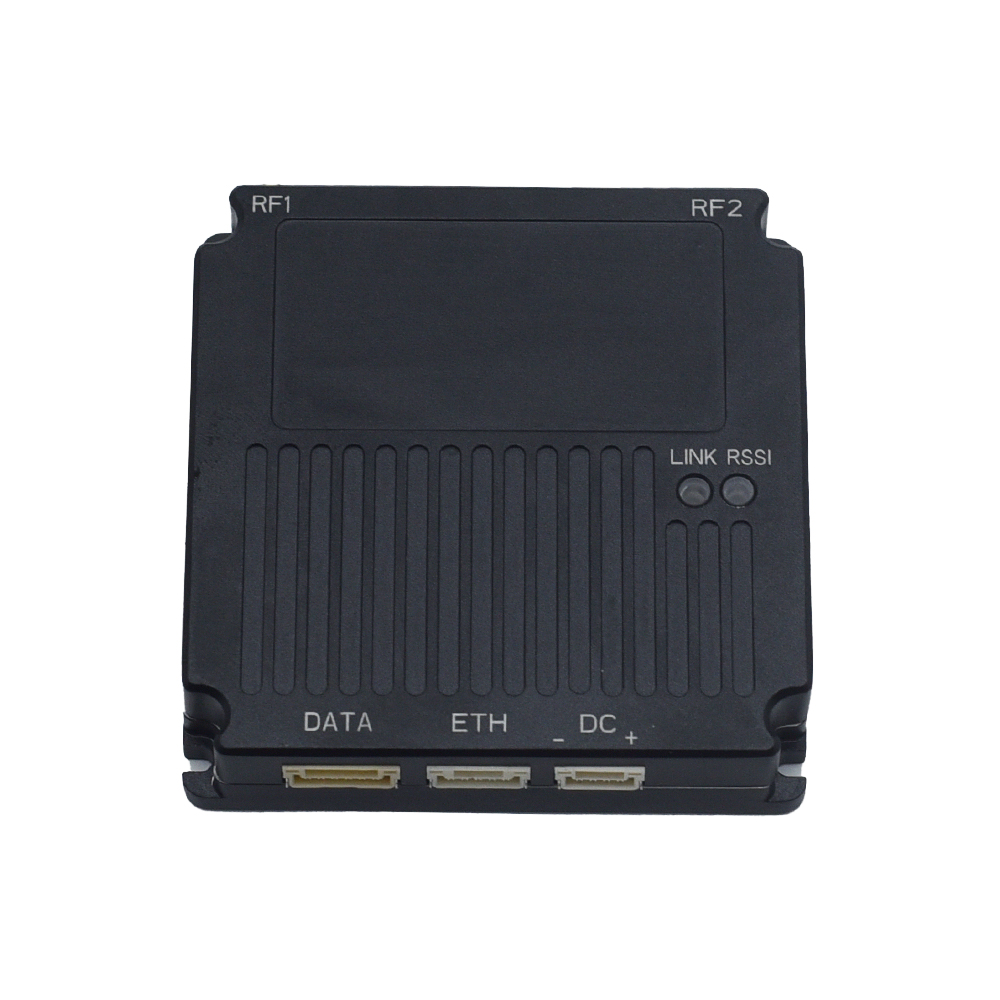

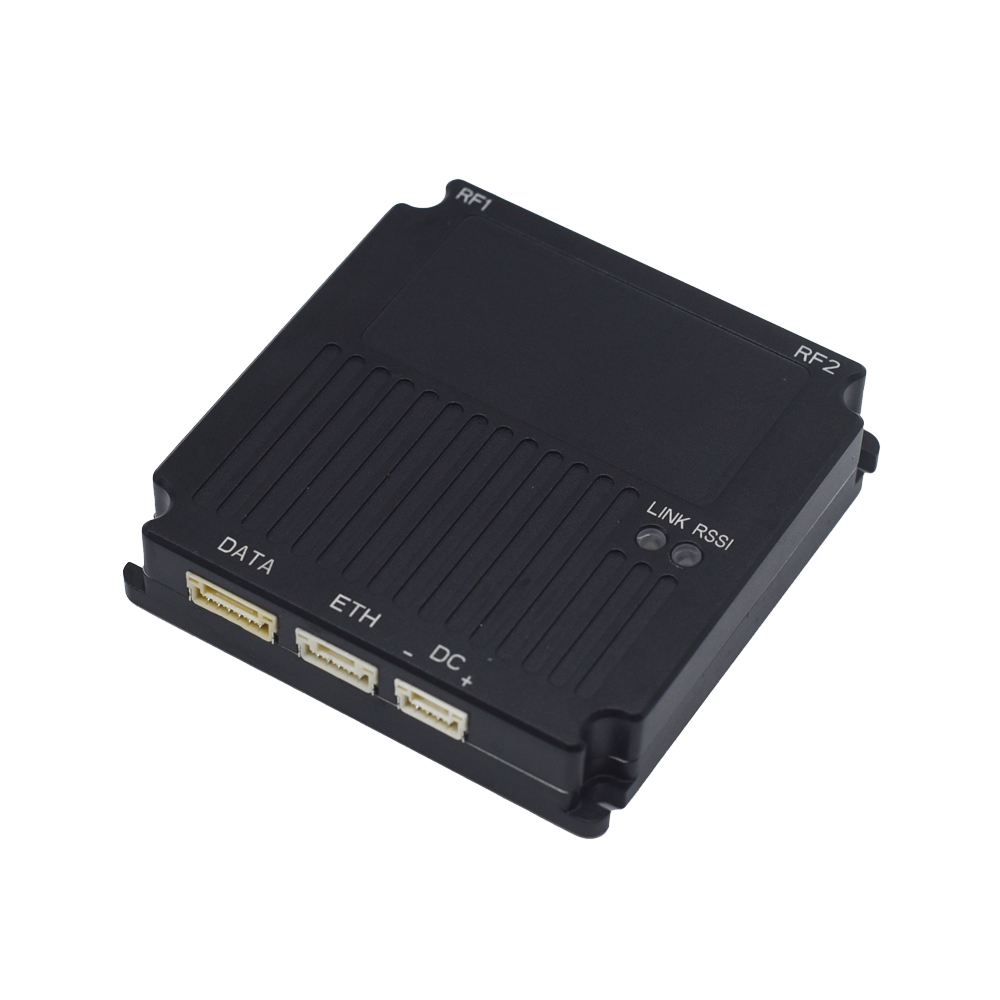

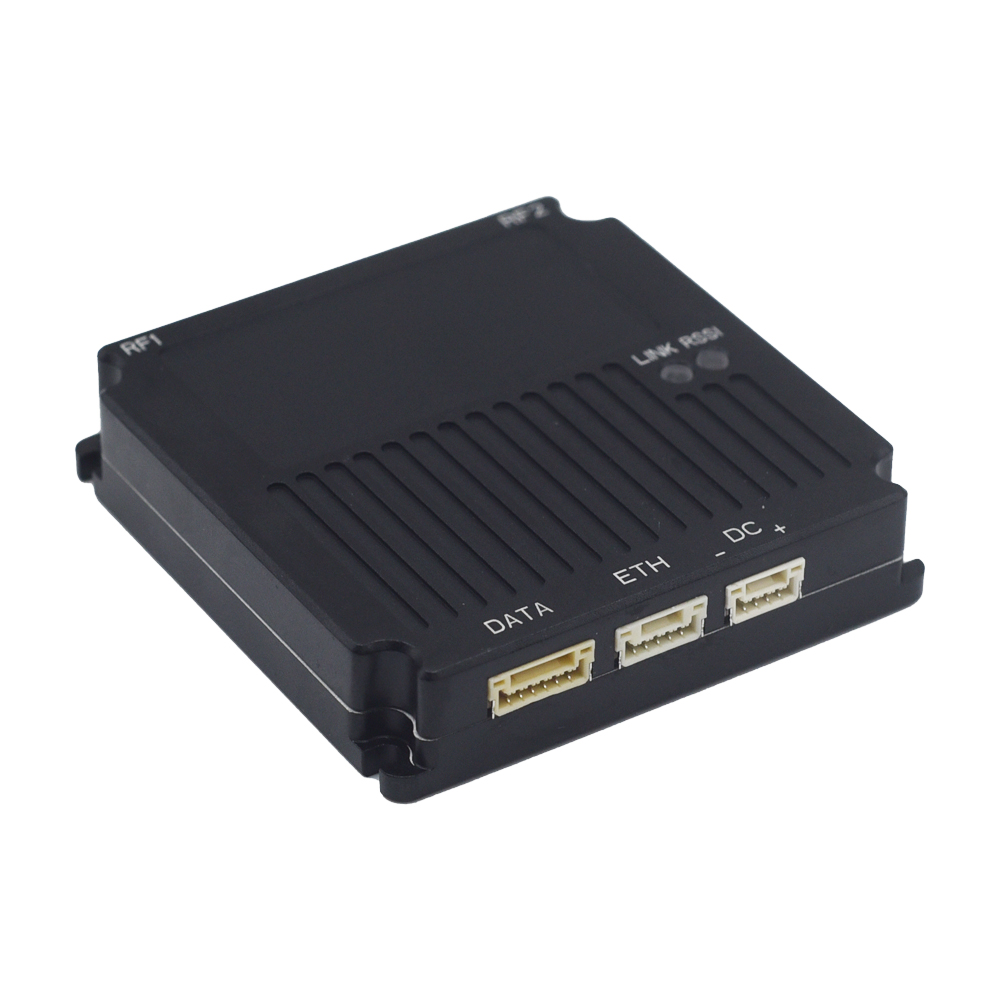

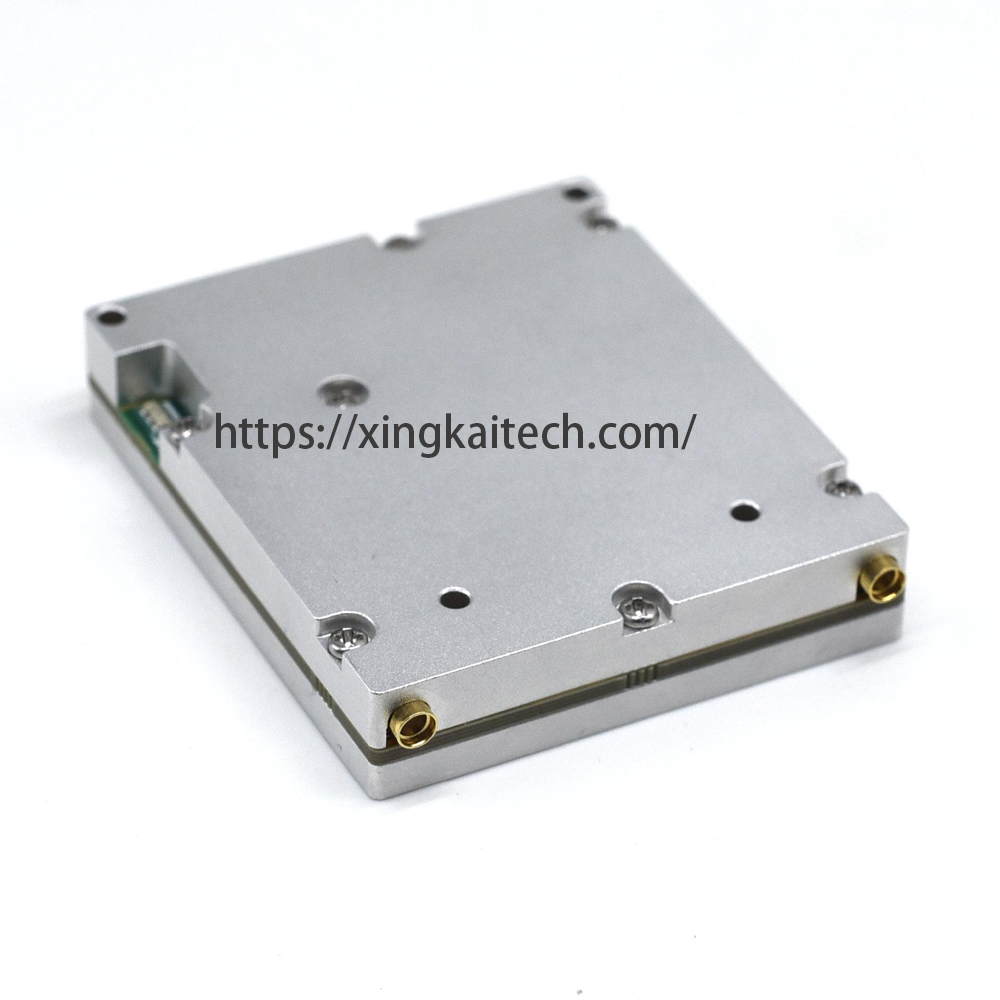

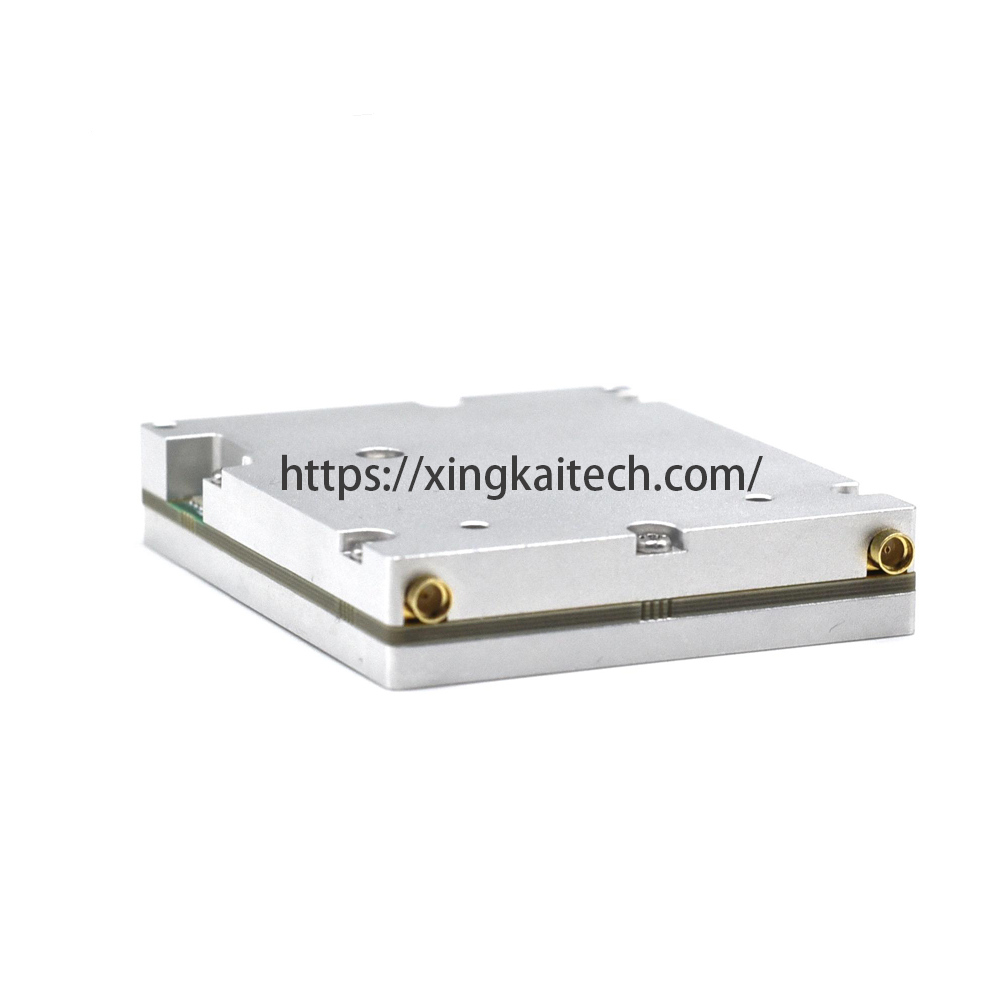

The XK-M501E COFDM IP Mesh Network is a compact wireless mesh module with integrated RF power amplifier, designed for UAV systems to support high-performance mesh networks without a central hub. It features multiple interface options (SBUS, RS232, TTL) and a user-friendly design. This versatile module can be mounted on various UAV models as an onboard station, used in light-load drones, or embedded in remote controllers and other programmable devices.
Use Cases
* Emergency Communications, Emergency Rescue Command, and MESH Self-organizing Network
* Optical-electronic smart city/outdoor power, surveying/airborne ship transmission
* City Patrol Network Construction / Emergency Communications Vehicle / UAV Video and Data Transmission
| classify | function | Â description | ||
| Essential parameter | Frequency Bands | Bands from 350MHz to 6GHz Available | ||
| Frequency Band Options | ||||
| Band(Freq. Code) | Frequency Range(MHz) | Band (Freq. Code) | Frequency Range(MHz) | |
| UHF | 350-650 | S Band | 1800-2500 | |
| LÂ Band | 1000-1500 | Lower CÂ Band | 4400-5000 | |
| MIIT | 336-344/450-550/512-582/566-626/606-678/580-700/600-800/1420-1520/1430-1444 | Upper C Band | 5100-6000 | |
| Transmitting power | 0.5W*2 | |||
| Carrier bandwidth | 1.25/2.5/5/10/20MHz (Adjustable) | |||
| Modulation mode | BPSK/QPSK/16QAM/64QAM/256QAM (adaptive) | |||
| Receiving sensitivity | -103dBm@5MHz | |||
| Transmission speed | 50Mbps@20MHz | |||
| Network size | The same-frequency networking supports 64 nodes, video encoding, and other extensions. | |||
| Transmission distance | 30-50KM | |||

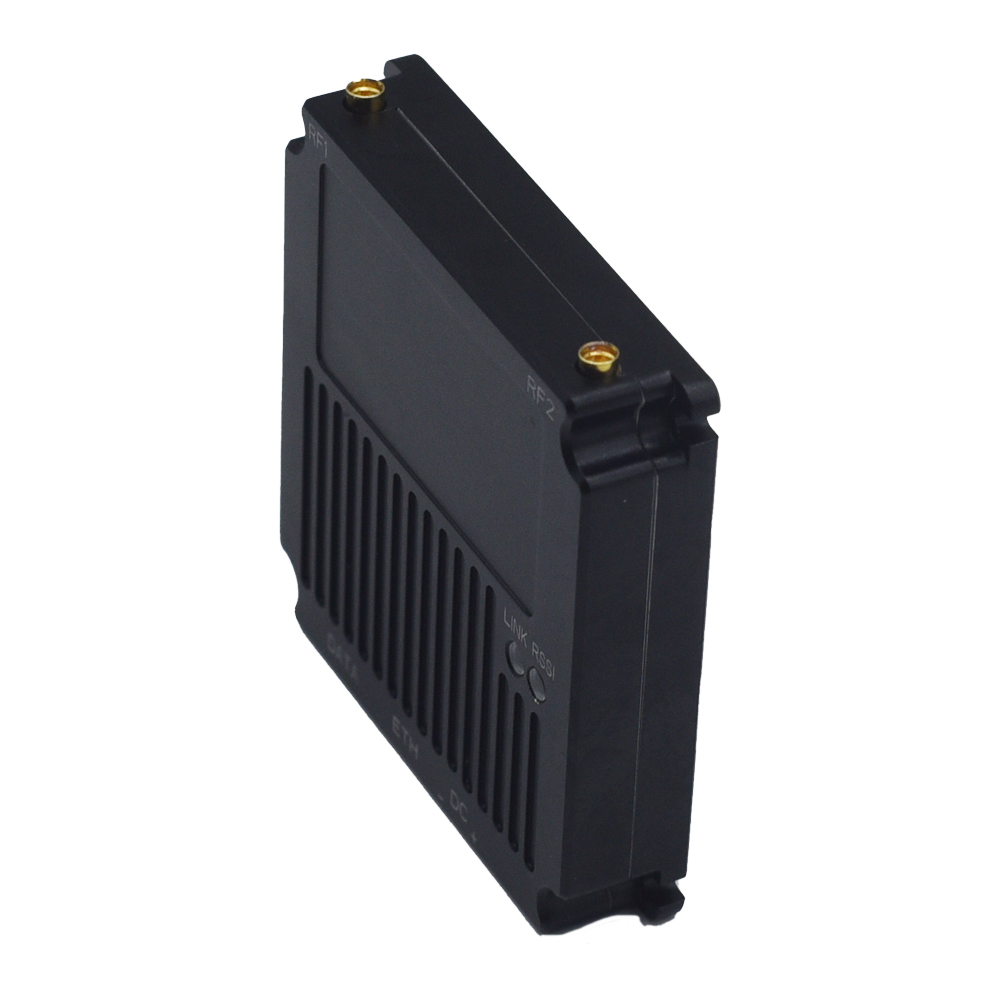

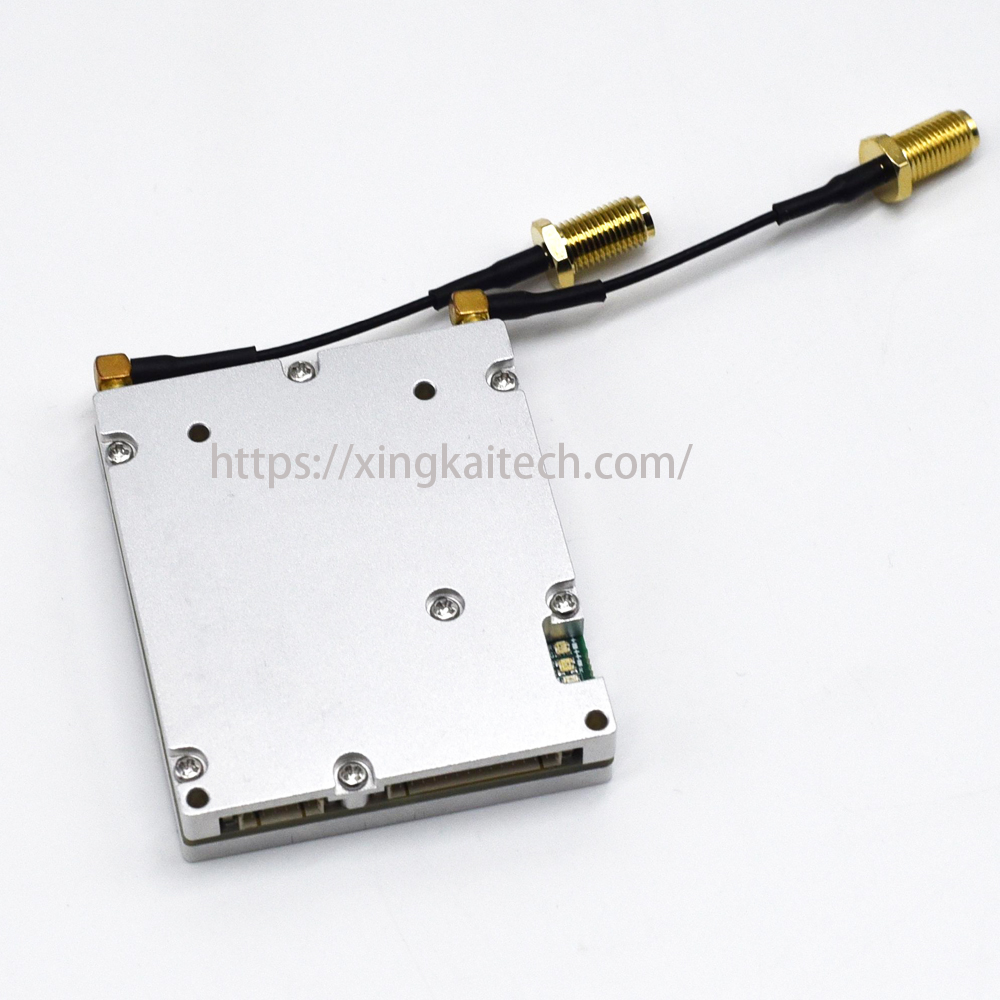

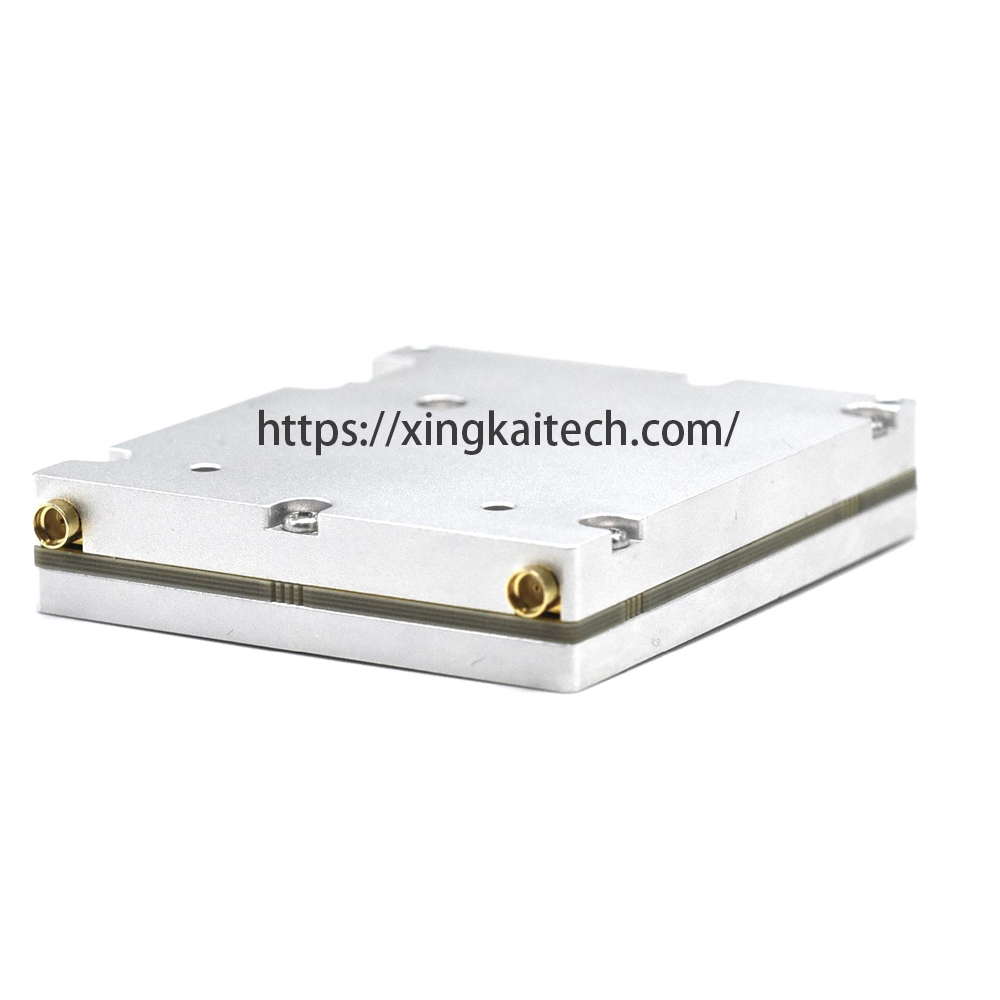

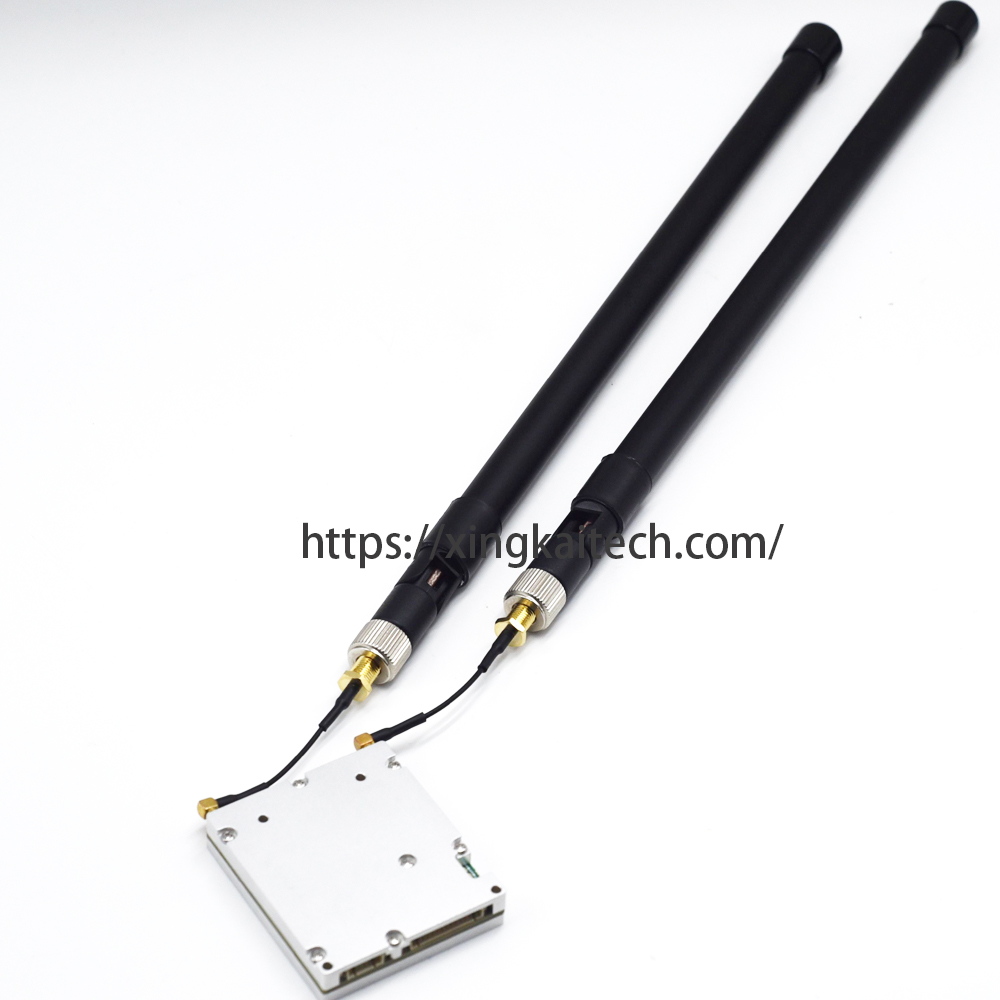

| Device interface | Antenna interface | MESH MMCX type ×2 | ||
| Internet access | Network port ×1 | |||

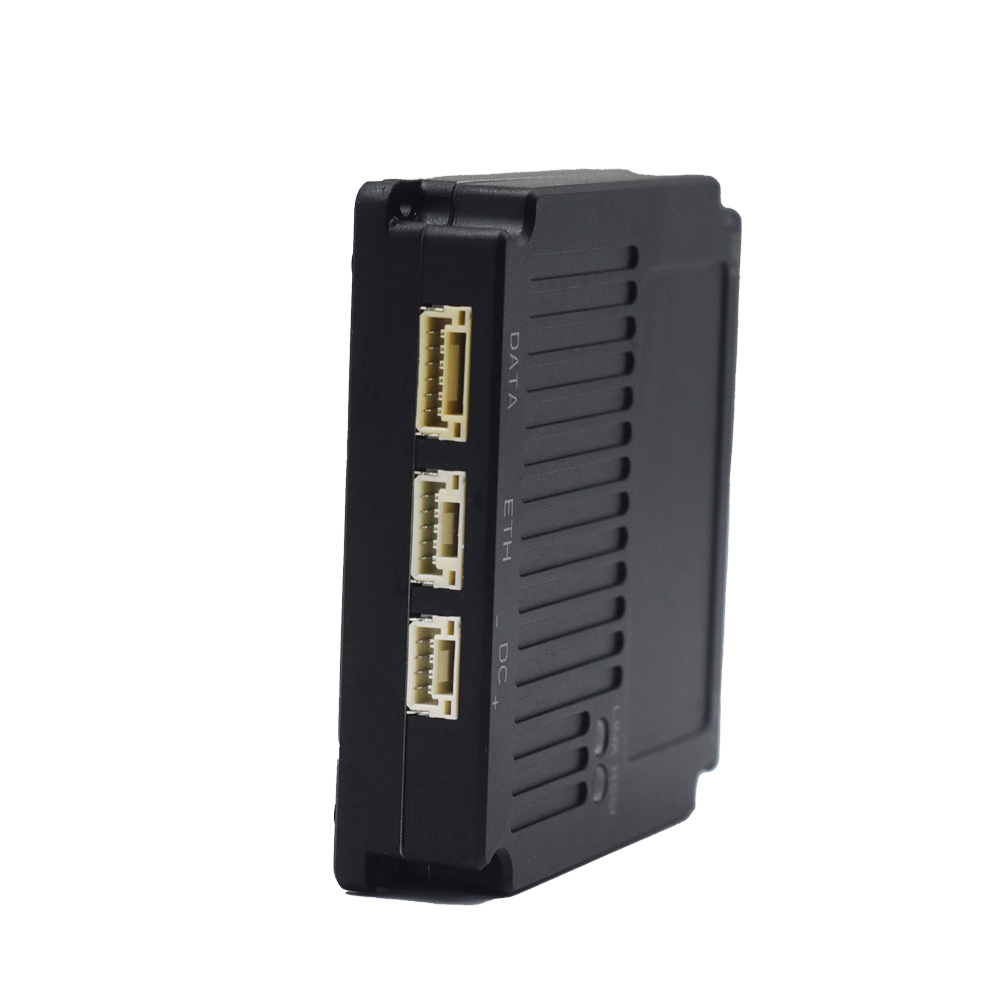

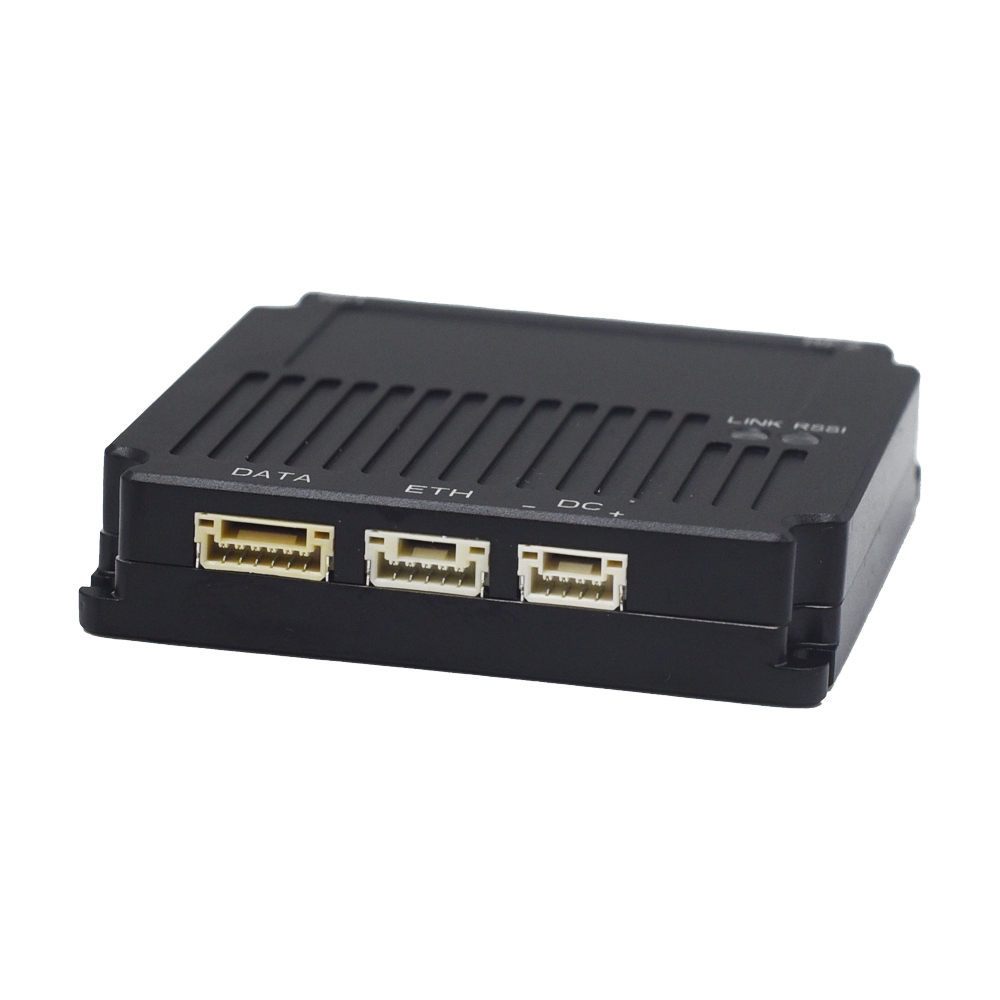

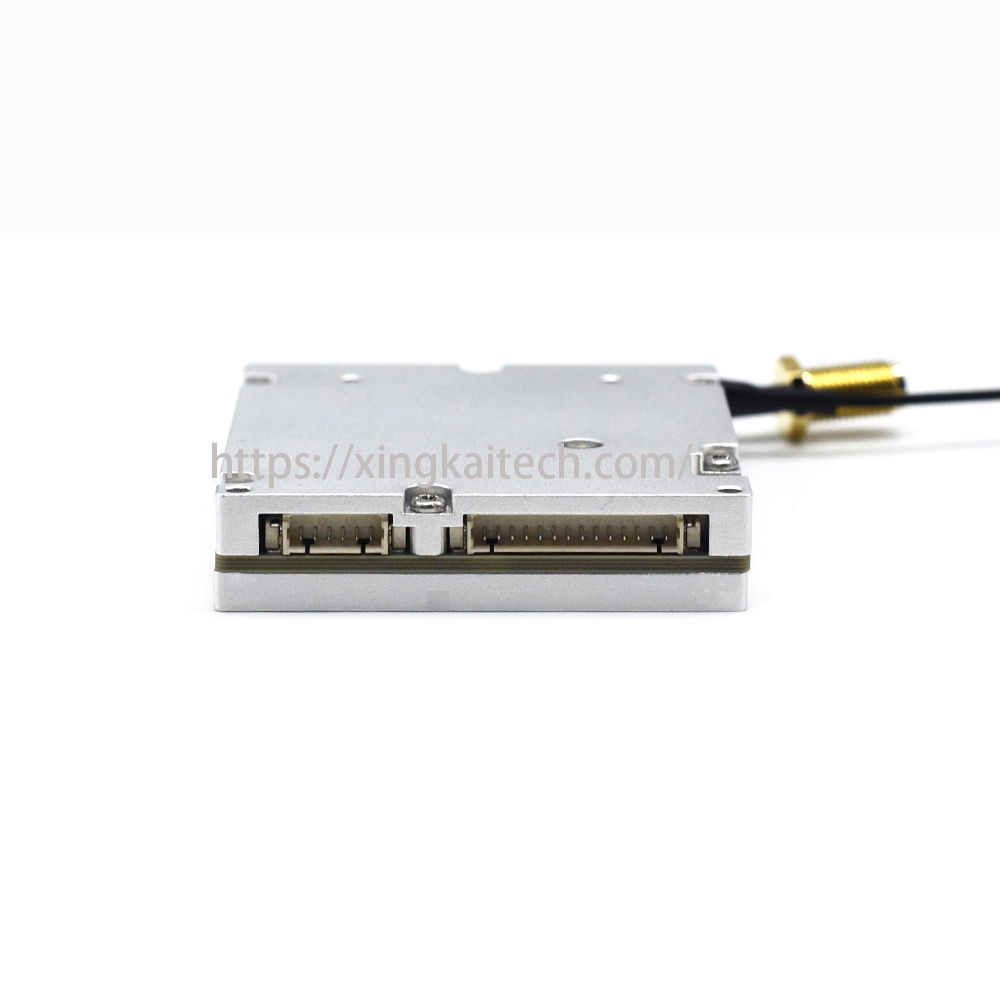

| Functional interface | ETH×1,SBUS×1,RS232×2,TTL×1 | |||
| Power supply port | 1 DC 12-24V power socket (24V/2A or higher) | |||
| Pilot lamp | Link indicator light ×1, signal indicator light ×1, 10M network port indicator light ×1, 100M network port indicator light ×1, power indicator light ×1 | |||
| Physical index | Network power consumption | ≤5W | ||
| Peak Power Consumption | ≤9.5W | |||
| Service voltage | 24V | |||
| Working temperature | -40℃～+55℃ | |||
| Storage temperature | -40℃～+85℃ | |||
| Working humidity | 5%～95% | |||
| Weight of equipment | 64g (including heatsink) | |||
| Device size | 57×56×15mm (with heat sink) | |||
