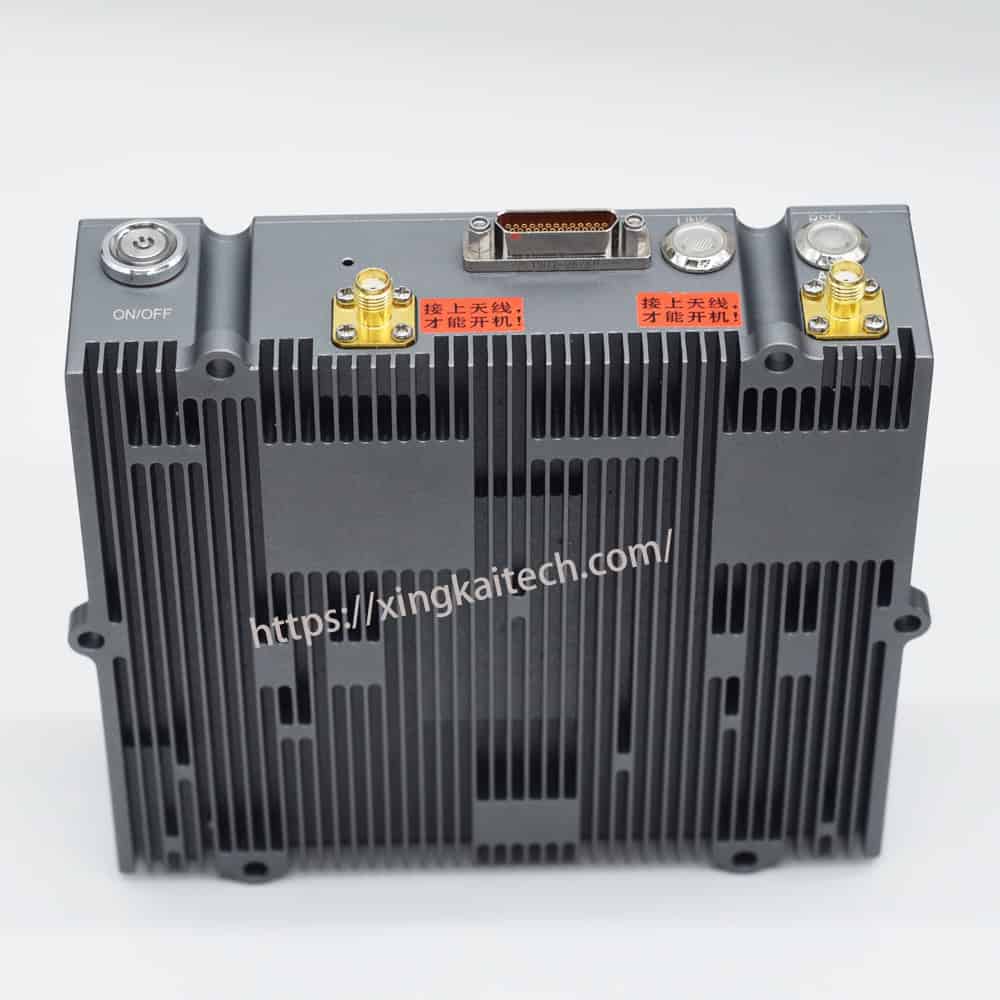

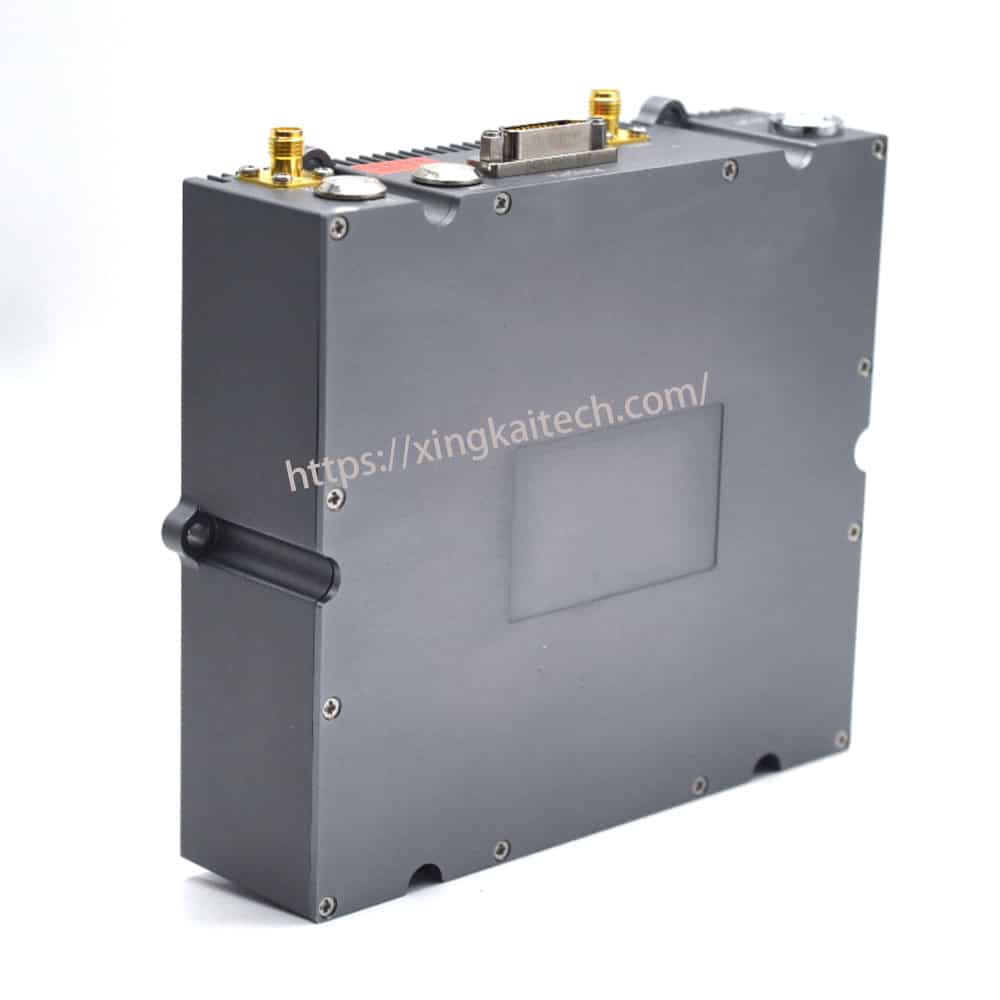

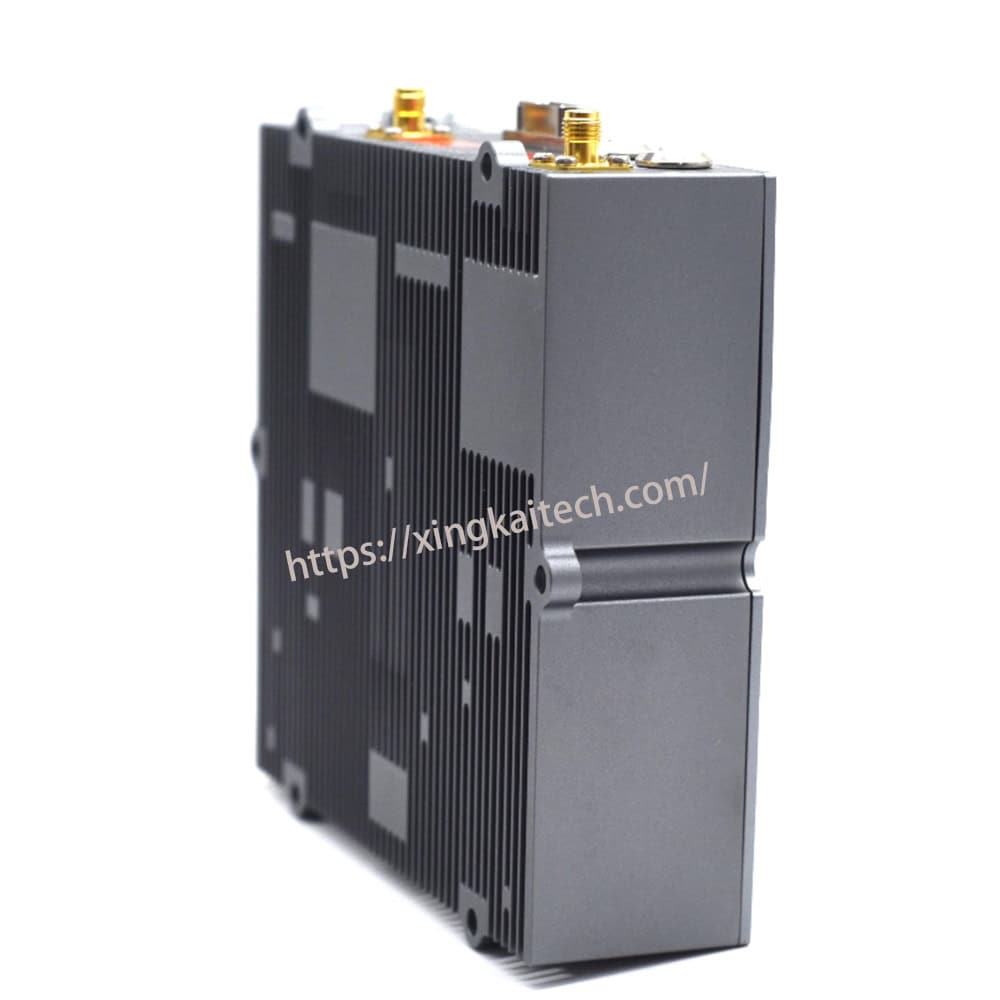

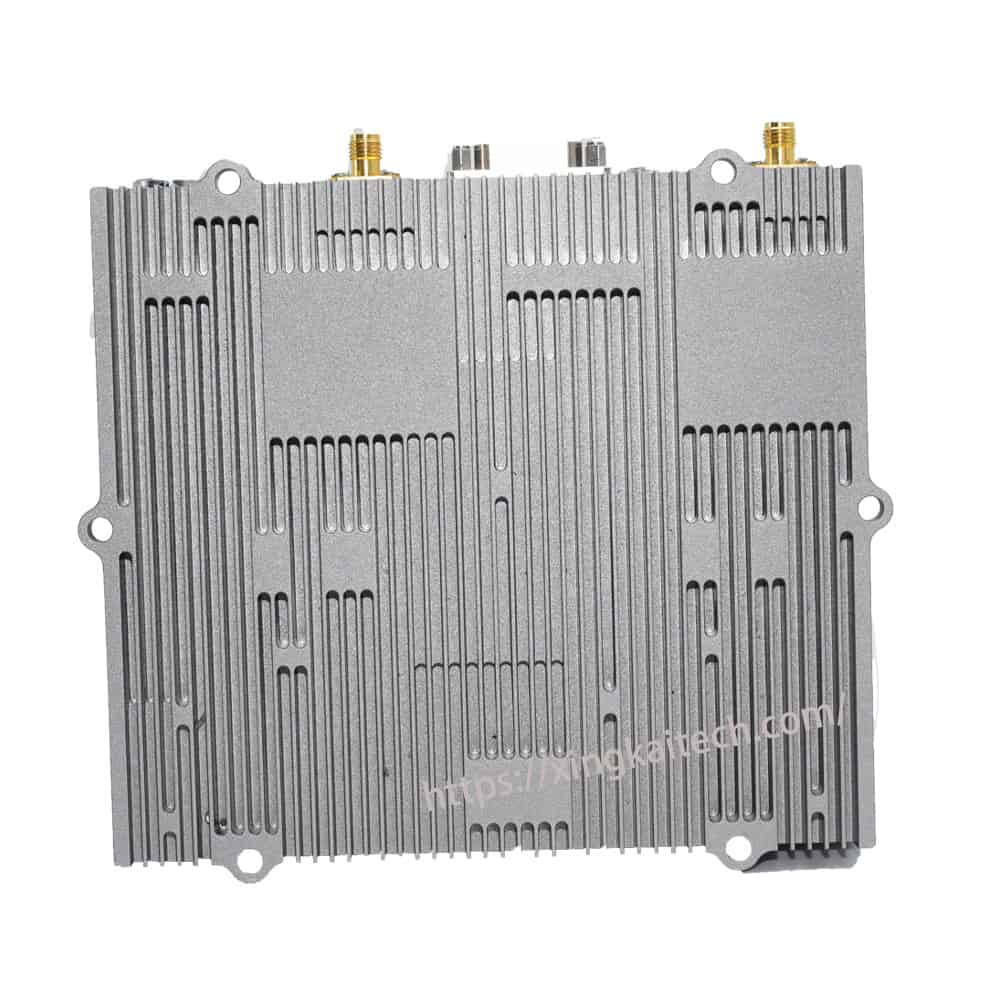

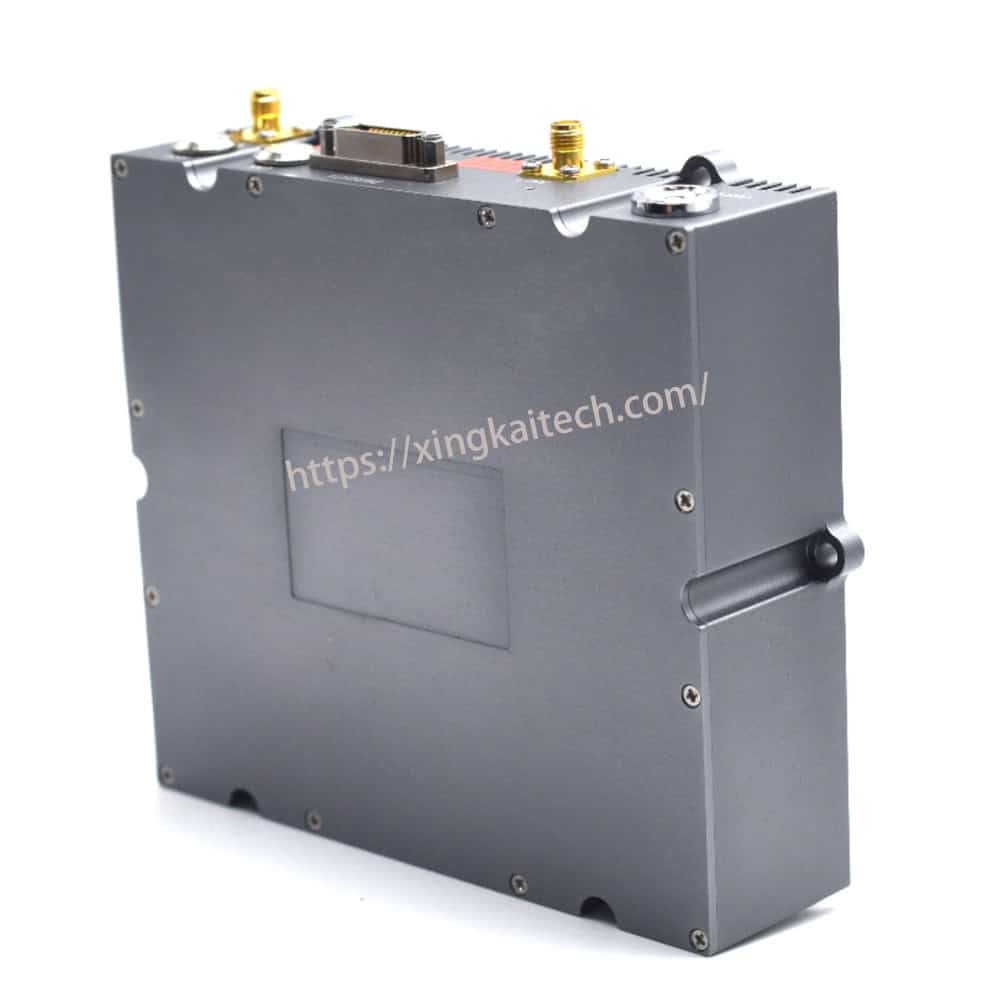

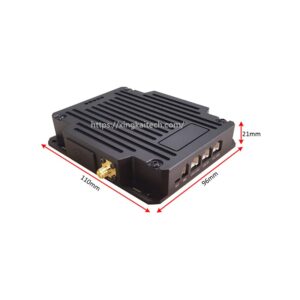

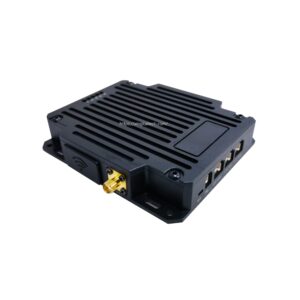

XK-F359 SDR MIMO Mesh Network Cofdm IP Mesh Radio FHSS Hopping Broadband Multimedia Communication System Agriculture Drone Accessories
Flexible networking:Supports hubless, same-frequency self-organizing networks for various topologies, maintaining communication at 300km/h relative speed.
Full IP interconnection:Features a fully IP-based architecture for seamless cross-protocol transmission, supporting up to 100Mbps bandwidth and 100km distance.
Anti-jamming capability:Uses frequency hopping, real-time optimal frequency selection, adaptive modulation, and ARQ data retransmission to ensure reliability.
High reliability:The integrated power amplifier and core board design ensures stable operation in harsh environments.
Specialized UAV waveforms (optional):Optional waveforms optimize transmission delay and ensure priority transmission of flight control data.
Custom development:Support customized development according to the customer’s specific working frequency band.
Efficient maintenance:Built-in dynamic routing eliminates complex configuration, supporting WEBUI management and local/remote OTA upgrades.
Anti-jamming capability:Uses frequency hopping, real-time optimal frequency selection, adaptive modulation, and ARQ data retransmission to ensure reliability.
High reliability:The integrated power amplifier and core board design ensures stable operation in harsh environments.
Specialized UAV waveforms (optional):Optional waveforms optimize transmission delay and ensure priority transmission of flight control data.
Custom development:Support customized development according to the customer’s specific working frequency band.
Efficient maintenance:Built-in dynamic routing eliminates complex configuration, supporting WEBUI management and local/remote OTA upgrades.
Reference Price:
$9,800
HOWDY, WELCOME TO
GET IN TOUCH WITH US
Download
Description

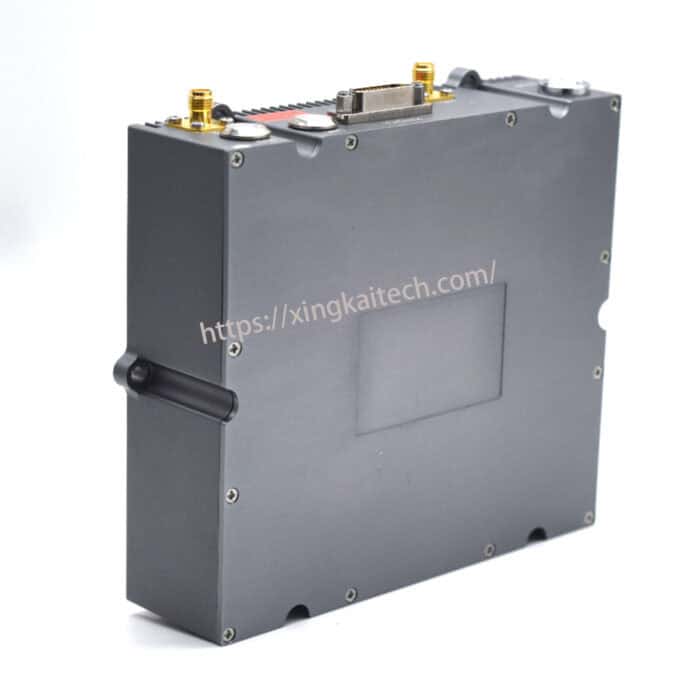

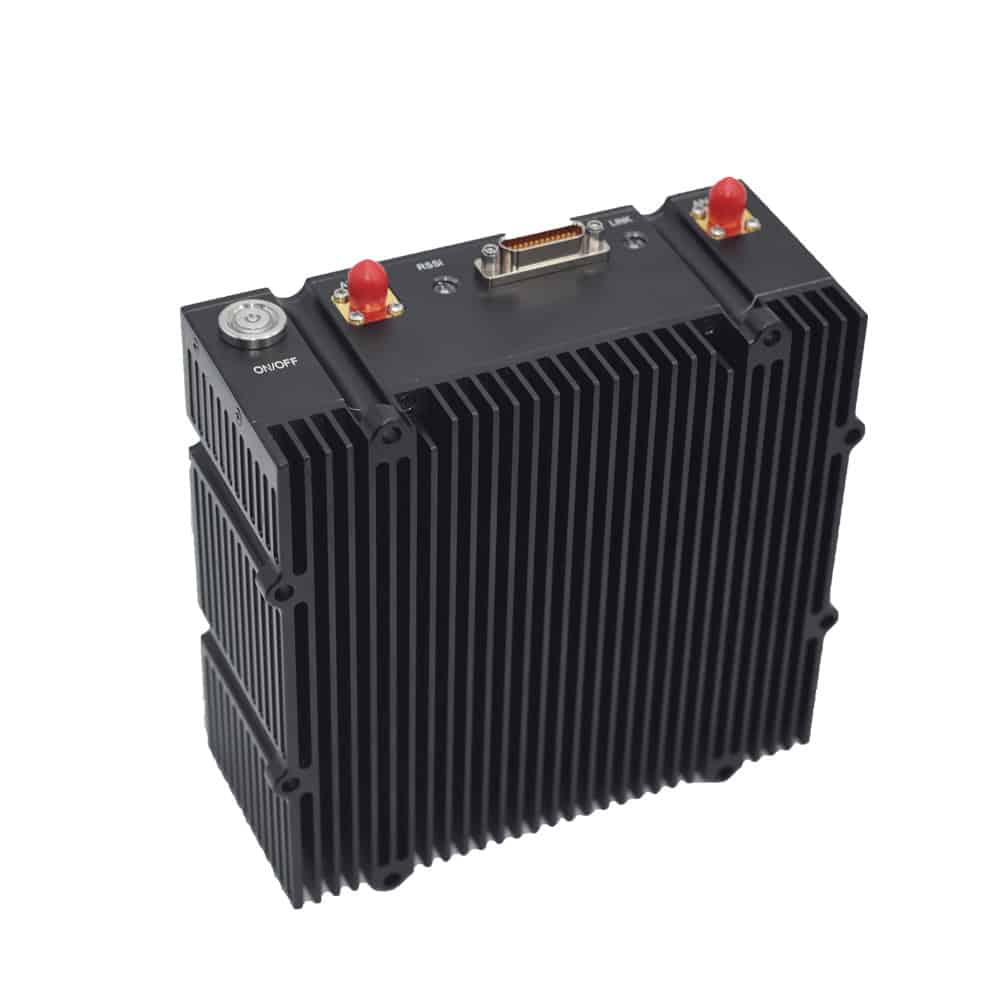

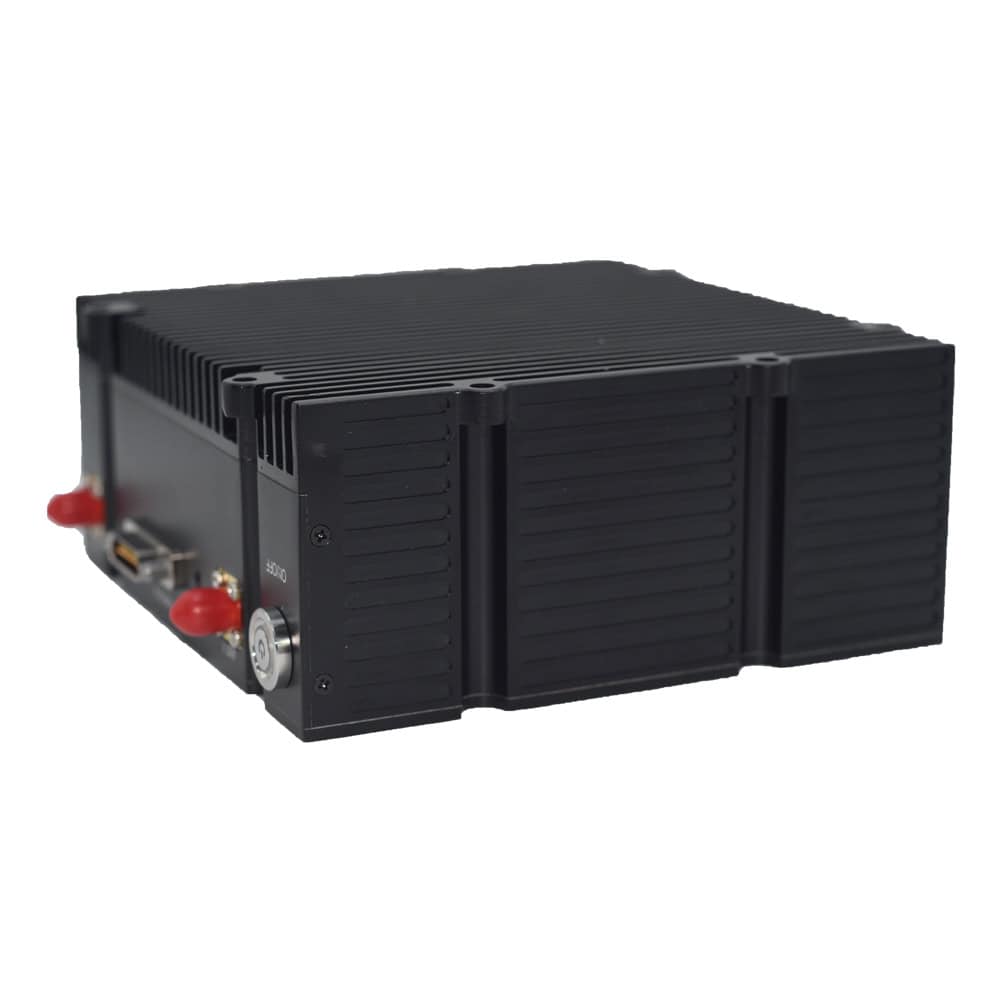

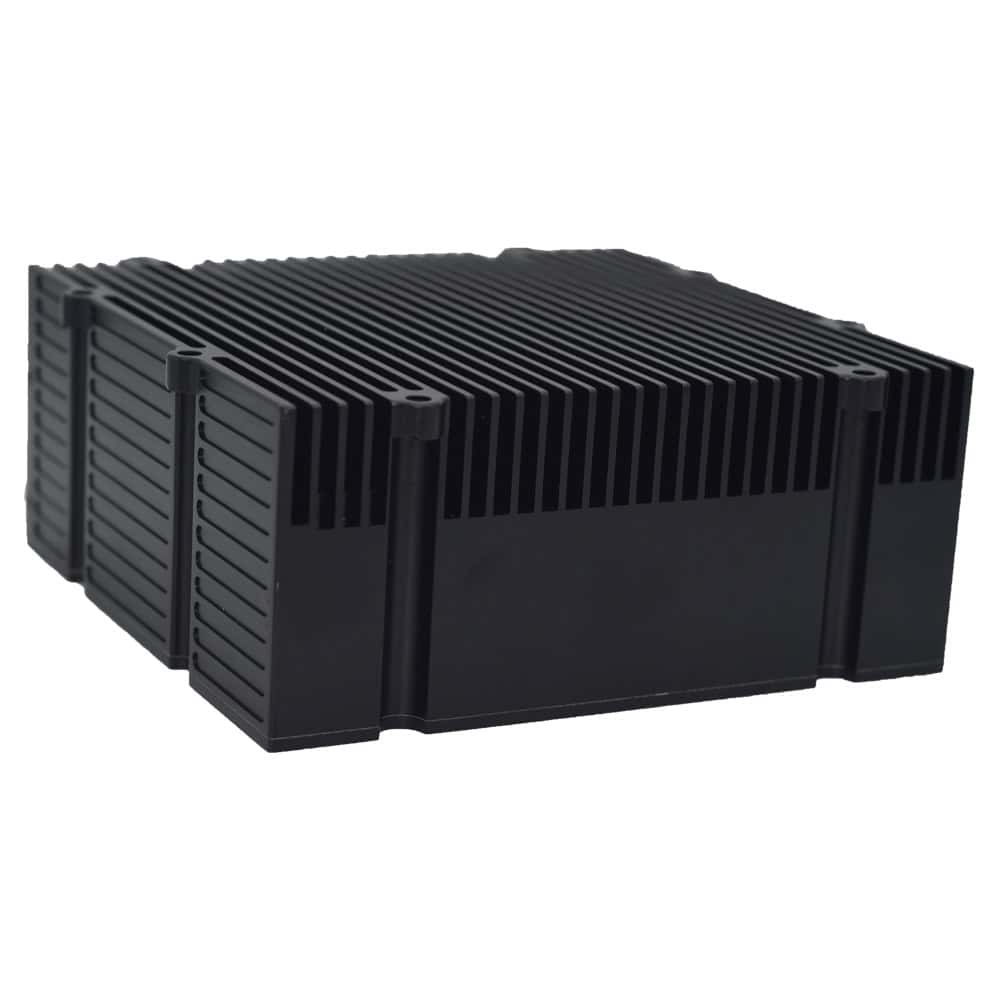

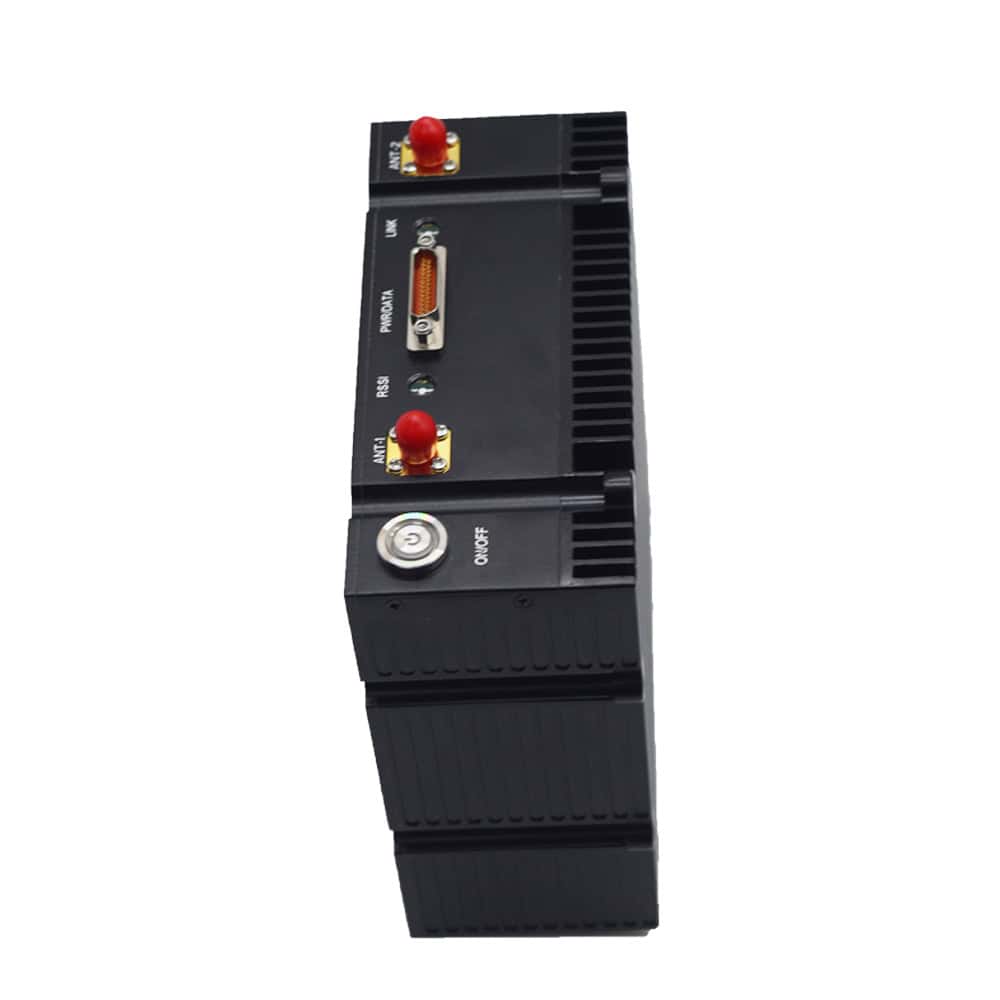

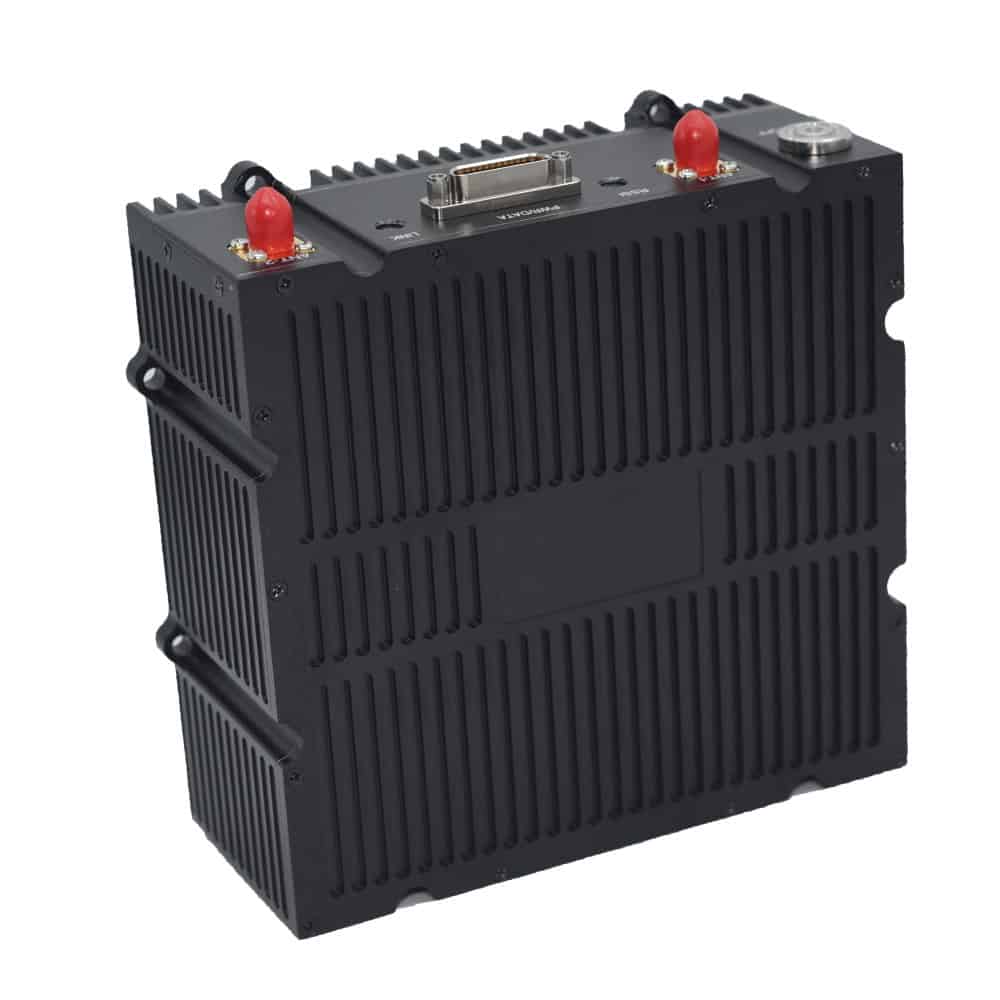

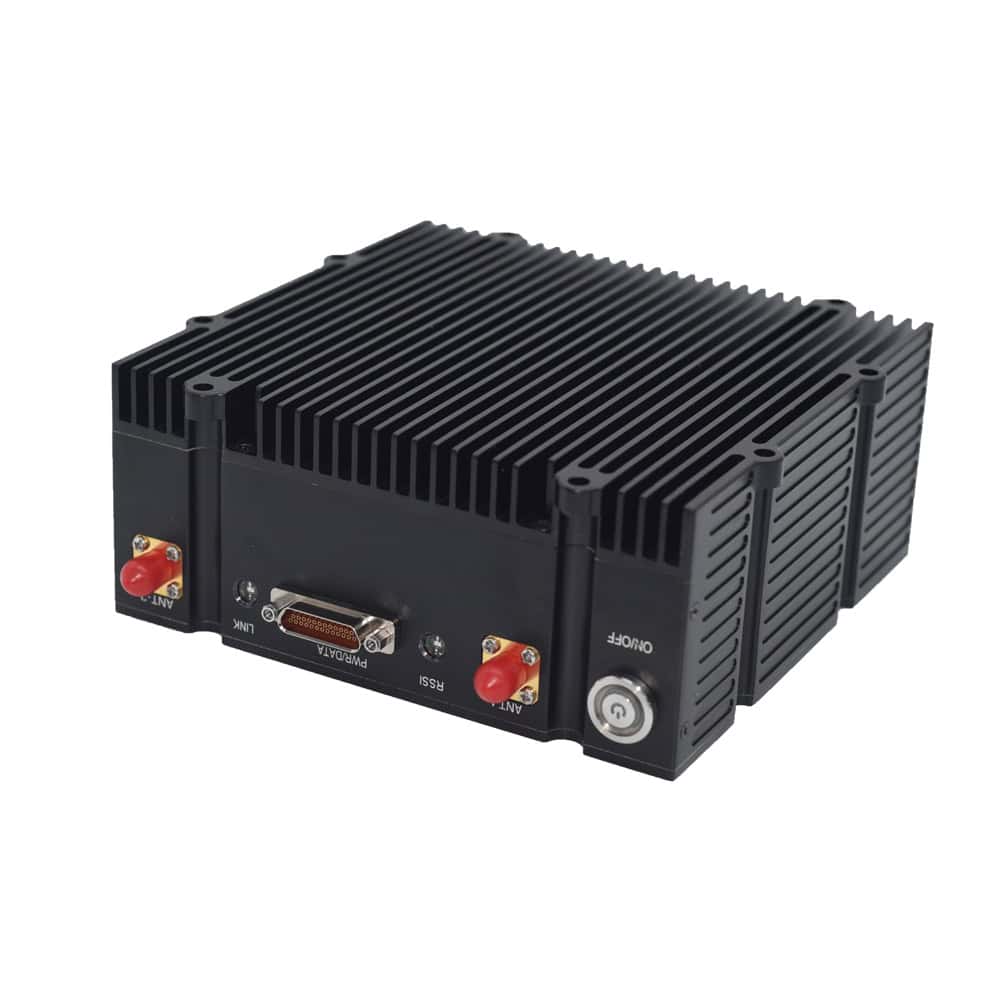

The Airborne COFDM IP Mesh Radio XK-F359 is a mobile broadband multimedia communication system designed with the new concept of “wireless grid network”.The system with powerful functions and excellent performance; All nodes can realize real-time interaction of multi-channel voice, data, image and other multimedia information by adopting distributed network architecture without central AD hoc network under the condition of non-line-of-sight and fast movement. Supports any network topology, such as point-to-point, point-to-multipoint, chain-like relay, mesh network and hybrid dynamic topology.
The network adopts the same frequency networking and multi-hop relay. Each node device can move quickly and randomly, and the network topology can be changed and updated quickly without affecting the network transmission. The whole network is convenient to deploy, flexible to use, simple to operate and easy to maintain. It can provide users with reliable, timely, efficient and secure full IP clear voice, broadband data, high-definition video and visual command and scheduling and other multimedia integrated services under complex application scenarios such as fast movement and non-line-of-sight shielding.
The broadband self-organizing network can be widely used in the public security, armed fire protection, civil air defense, electric power, petroleum, mining, transportation, water conservancy, forestry, radio and television, medical, water and air communications and other sectors, providing users with reliable, timely, Rich integrated services such as safe and efficient voice, data, video and visual command and dispatch can meet users’wireless broadband communication needs in normal or emergency situations to the greatest extent, and truly achieve “anytime, anywhere on demand”.
Significant applications in Non Line of Sight /Multi path Fading environments, video/data/voice critical communications:
Robot/Unmanned Vehicle,Reconnaissance/Surveillance/Anti-Terrorism/Monitoring
Air-to-air&air-to-ground&ground-to-ground,public safety/special operations
Urban network,emergency support/normal patrol/traffic management
Inside and outside the building,firefighting/rescue and disaster relief/forest/civil air defense/earthquake
TV broadcast wireless audio/video/live broadcast
| General | ||||
| Waveform | Mobile Network MIMO (MN-MIMO) | |||
| MIMO Technology | Space-time coding、Space Diversity、TX /RX beamforming、Spatial multiplexing | |||
| Receive Sensitivity | -103dBm@5MHz BW | |||
| Channel Bandwidth | 1.25/2.5/5/10MHz optional | |||
| Data Rate | 1-70Mbps(10MHz BW) Adaptive,QoS | |||
| Modulation Mode | TD-COFDM,BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive(Fixed
setting optional) |
|||
| RF Output Power
(Support TPC, transmisson power control) |
20Watts x2 | |||
| Single Hop
Communication Distance |
100-300 KM (visible), 1-30 KM (urban area) | |||
| Mode | Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Layer 2 or 3 of Dynamic routing、Multi-hop relay, Star/Line/Network/Hybrid | |||
| Single Hop Delay | Average 7mS (20MHz BW) | |||
| Encryption | DES, AES128/256, SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine | |||
| Anti-jamming Mode | Manual spectrum scanning channel selection, Full band enhanced intelligent frequency selectting(spectrum awareness)/Full band adaptive frequency hopping/ Roaming mode optional | |||
| Local/Remote Management | Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic,node distance, GPS/Beidou electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional | |||
| Others | The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second.
There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops). The total bandwidth loss of multiple hops is less than 70%. Automatic carrier tracking, adapted to a Doppler frequency deviation of ± 6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second). |
|||
| Bands(70M-6GHz. 2T2R at single band, or 1T2R at dual band selectable/smart change*) | ||||
| BAND | Frequency range (MHz) | BAND | Frequency range (GHz) | |
| UHF | 430-550/570-700/800-950,
225-400/320-470* |
S Band | 1.6-1.8/1.8-2.0/2.0-2.2/2.2-2.5/
2.5-2.7/2.7-2.9,1.6-2.3/1.9-2.7* |
|
| L Band | 1000-1200/1300-1500,
1200-1700* |
C Band | 4.4-5.0/5.25-5.85,
4.2-5.2/5.5-6.0* |
|

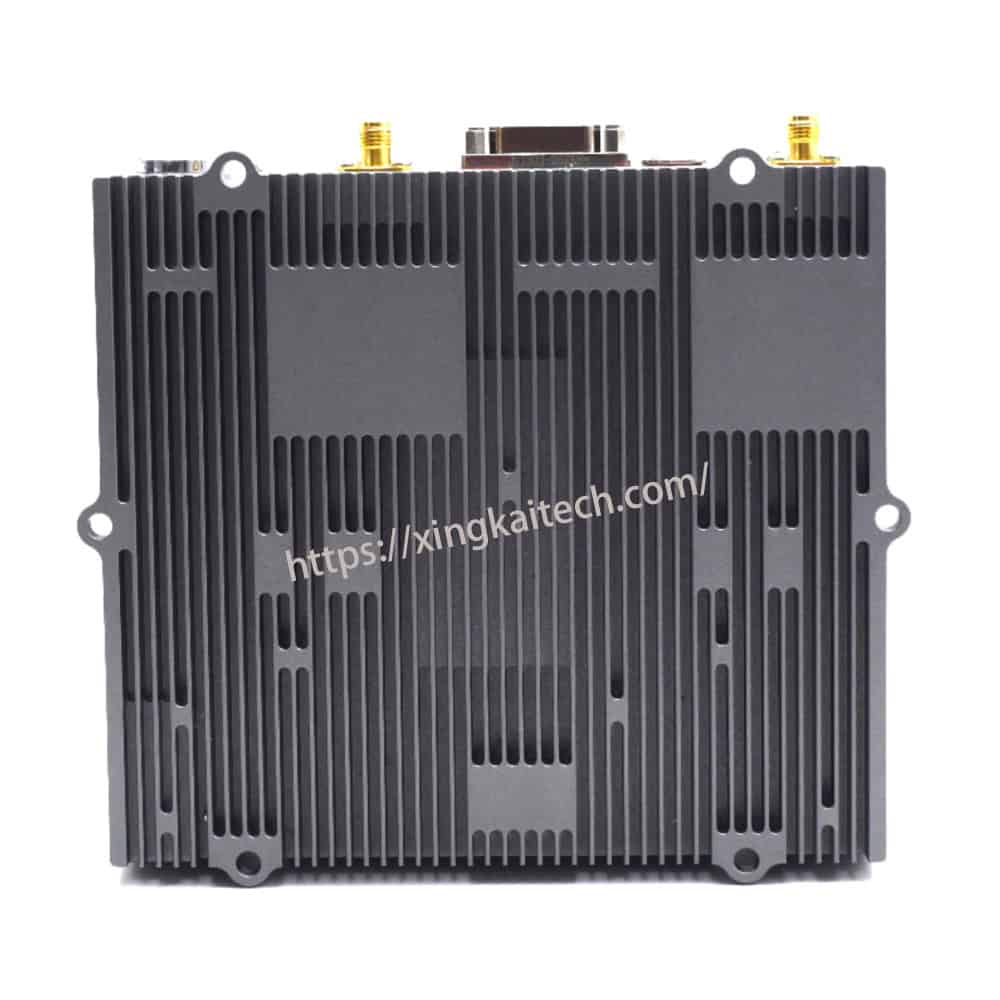

| MIIT | 336-344/512-582/566-626/606-678/1420-1520/1430-1444 | |||
| Environmental | ||||
| Operation Temperature | -40℃ ~+80℃ | |||
| Protection Level | IP66, IP67/IP68 Customized | |||
| Mechanicl | |
| Size/Weight | 12.7×11.0x3.3cm/635g (20Watts×2 Airborne Radio-Lron Gray) |
| Color | Lron Gray |
| Installation | 4 Mounting Holes |
| Power | |
| Supply Voltage | 18-36VDC (20Watts×2) |
| Power consumption | Operation 3-6A/Standby 0.7-0.9A@16.8V (20Watts×2) |
| Power Selection | Power Supply by Twist-Lock Battery or Main Cable |
| Interface | |

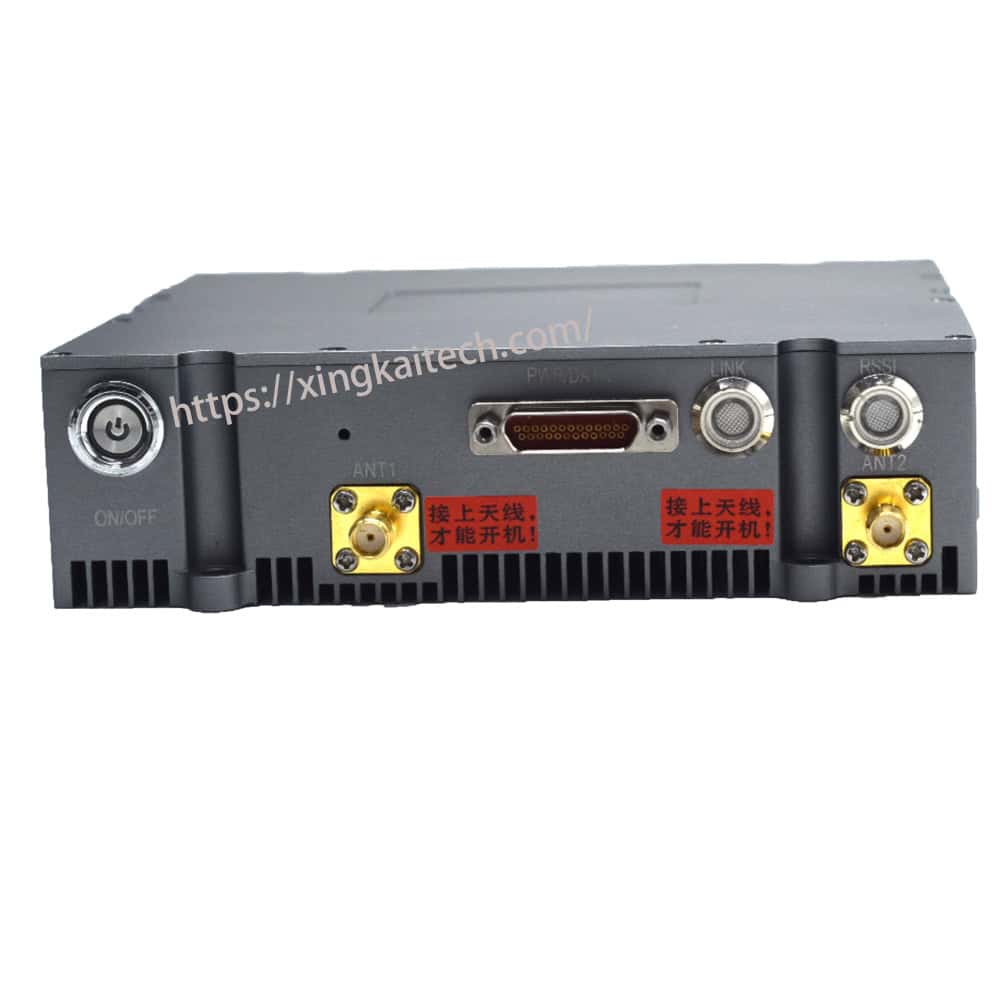

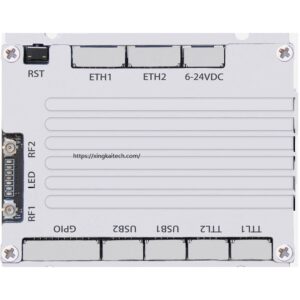

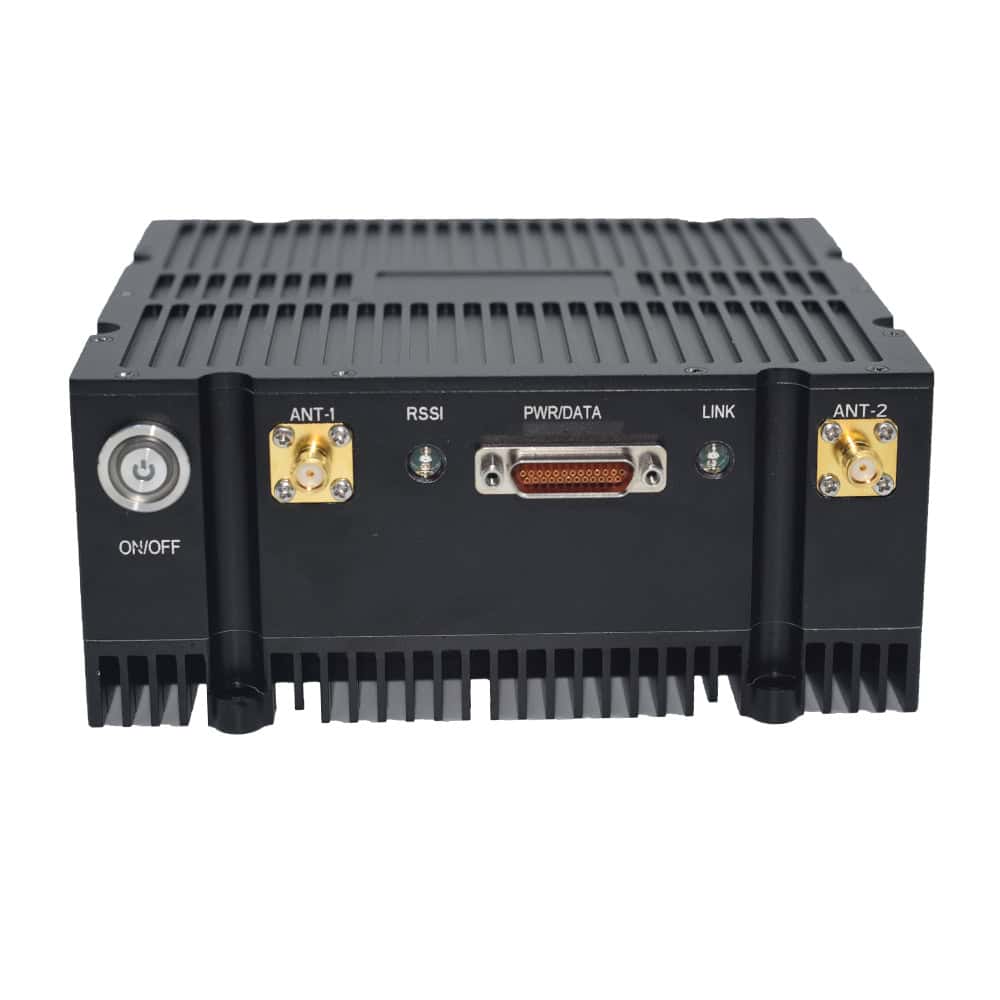

| Basic interface | 2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WiFi AP,GPS/BD RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input |
| Push to talk/Auxiliary interface | MIC, SP, PTT, GND, RS485/422, USB2.0 OTG |
| Network Extension Optional | Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite |
| Video Extension Optional | Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
| Link Status Indicator | Steady red – The network is not connected
Blinking red – Starting/not connected to the network Steady green – The network is connected Blinking green – Voice PTT is down |
| RSSI Link Indicator | Steady green – The link quality is excellent Steady Blue – The link quality is good Steady yellow – The link quality is medium
Steady purple – The link quality is slightly worse Steady red – The link quality is poor or link is down |
| Management Interface/Control Interface | Web-based network management/GUI, API for secondary development interface/ SNMP |
