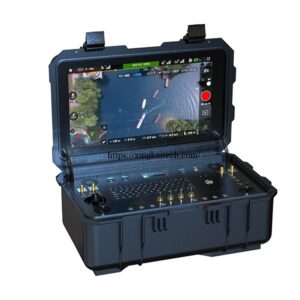

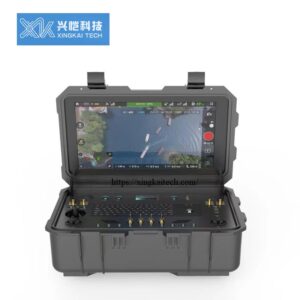

XK-G21 High Quality Drone Ground Control Station Long Distance Transmission Remote Control Flight Remote Controller
drone ground control station Features
Full body aluminum alloy shell+silicone anti slip, higher protection
12.inch+15.6 inch 1000nit outdoor visual screen
Dual 10 point capacitive touch screen
Intel15/17 high-performance CPU, capable of supporting independent display
18 physical channel outputs, dual SBUS, and USB-HID outputs
Touch pad with left and right keys+multi-function Numeric keypad
Supports the installation of most data links on the market
Coulomb meter precise battery management, low battery reminder, and low battery automatic shutdown
Reference Price:
$4,571
HOWDY, WELCOME TO
GET IN TOUCH WITH US
1. The entire machine is made of aluminum alloy material, equipped with silicone anti slip, which is more sturdy and durable

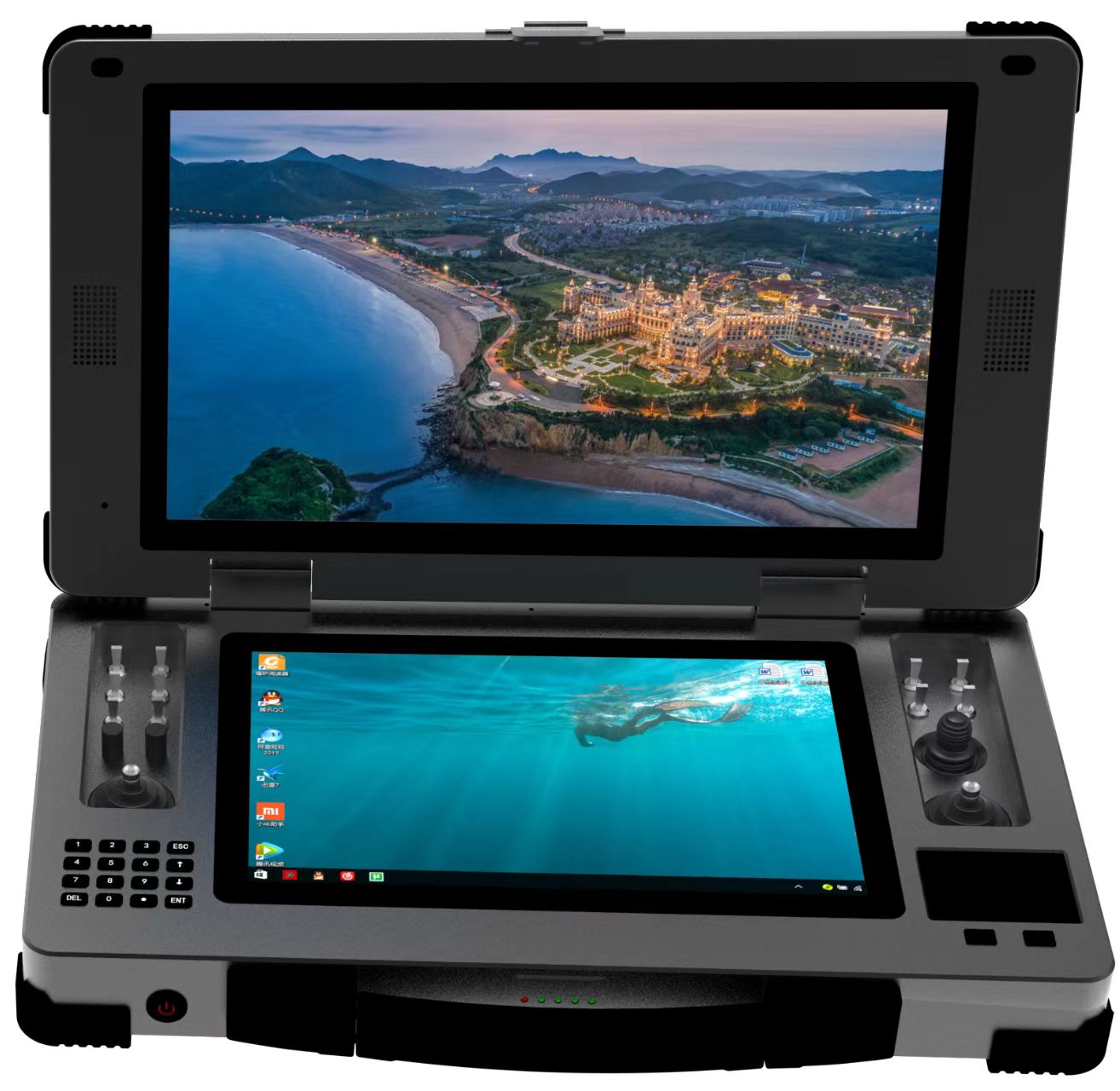

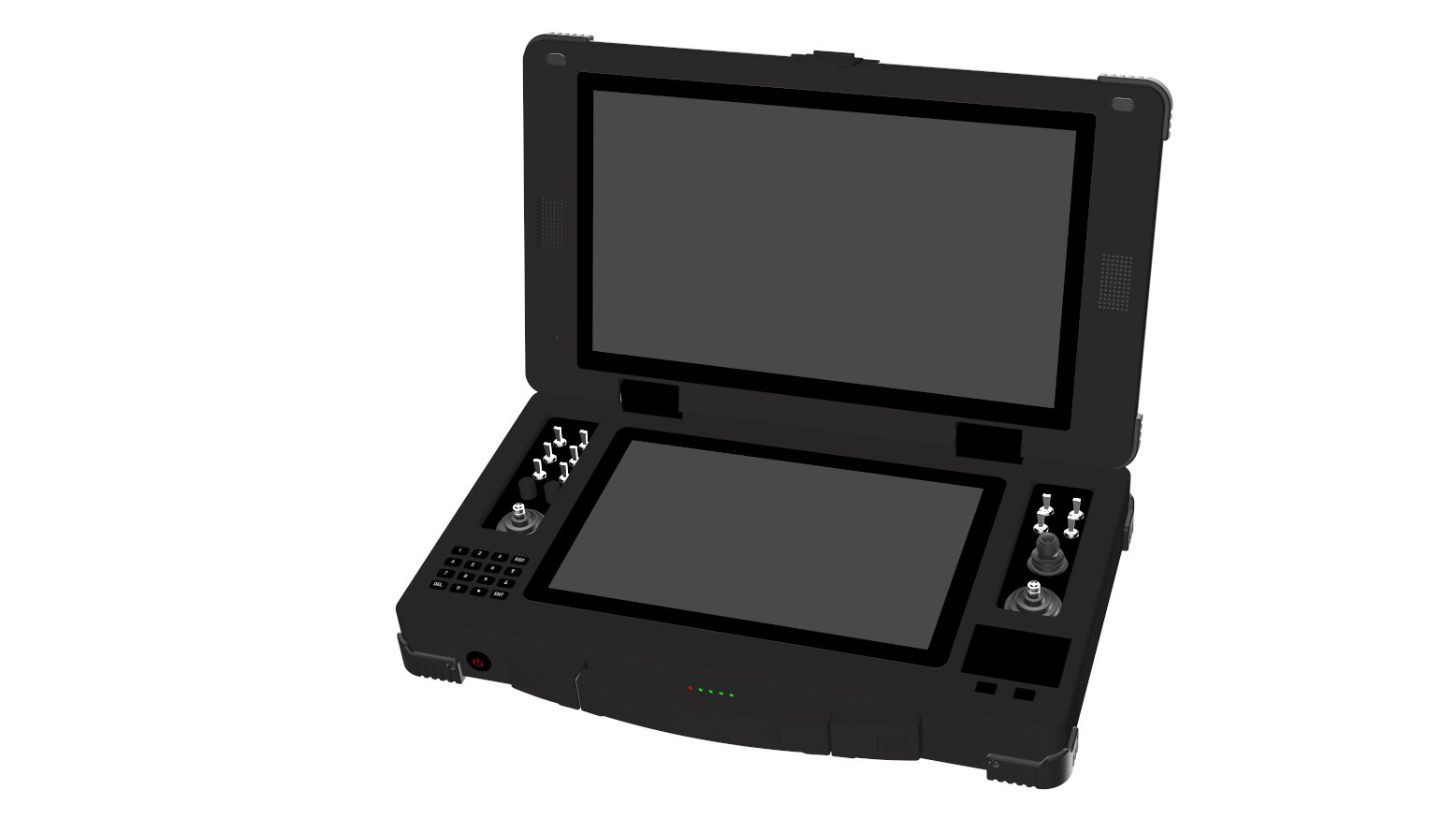

2.XK-G21 adopts a 15.6-inch+12.1-inch touch screen and an outdoor visible large screen
3. The screen brightness uses 1000nit and supports customized screen brightness
4. On the left side, there is a multifunctional numeric keyboard, and on the right side, there is a touchpad with buttons
5. Equipped with powerful image and data transmission functions. It supports real-time video transmission and can also transmit and receive data such as sensor data, navigation information, and task data
6. Large storage space can store more files, and high running memory can ensure high-speed operation of the computer and improve work efficiency
7. Support working in low and high temperature environments to reduce equipment damage in extreme weather conditions
8.18 physical channel outputs, dual SBUS and USB-HID outputs
9. Coulomb meter precise battery management, low battery reminder, and low battery automatic shutdown
10. Support the installation of most data links on the market
Technical Parameters
| Product parameters | Model | XK-G21 |
| CPU | I3/I5/I7 7th generation processor (standard I5) | |
| Memory | Maximum support 16G (standard 4G) | |
| Storage | Maximum support 3T SSD (standard 128G) | |
| Graphics | Intel HD Graphics 620 | |
| Network | 2 Gigabit Ethernet ports | |
| System | Windows7/10/Linux | |
| Screen Size | Upper:15.6 inch Down:12.1 inch | |
| Resolution | Upper:1920*1080 Down:1280*800 | |
| Brightness | 1000ccd/m | |
| Touch screen | 10-point capacitive touch screen | |
| Battery | 16.8V 12AH | |
| Battery level display | Computer system display/led battery level | |
| Charging time | 3-4 hours | |
| Working time | 3-4 hours | |
| Size | 462*256*75mm | |
| Weight | 7.9KG | |
| Storage temperature | -20-70ºC | |
| Operating Temperature | -10-60ºC | |
| External Interface | 2*USB3.0/1*LAN/1*HDMI out | |
| Internal Reserved Interface | 2*USB/6*RS232/RS422/RS485 | |
| Remote control and other parameters | Number of channel | 18 channels Dual SBUS |
| Rocker | 2*flying rocker+1*center hall rocker | |
| Toggle | 8*Three-speed Toggle+2*Two-speed Toggle | |
| Knob | 2*potentiometer knob | |
| Adjustment mode | Upper computer | |
| Image access | HDMI or network port | |
| Internal reserved space | 140*70*27mm | |
| Output power supply | 12V(Max 3A) | |
| Antenna interface | 2*external sma | |
| Joystick output method | S-BUS/USB-HID | |
FAQ:
1. What types of wireless communication products do you offer?
A: We offer a wide range of products designed specifically for various applications, including drone communication video link, remote controller, and telemetry, such as uav video transmission systems, data link modules, and COFDM IP mesh network radios.
2. How resistant is the wireless communication system to interference?
A: Our system utilizes COFDM FHSS hopping frequency technology and robust signal encoding and decoding techniques to effectively reduce external interference, ensuring stable transmission even in complex environments.
3. Do your products support advanced security features?
A: Yes, all our products are equipped with AES128/256 encryption, ensuring secure data transmission and protecting against unauthorized access.
4. Are your data transmission modules compatible with third-party devices?
A: Yes, our data transmission modules are designed to integrate seamlessly with a wide range of third-party devices. They support standard communication protocols like RS232, RS485, and TCP/IP, and are compatible with various UAVs, gimbals, and industrial IoT devices. Additionally, they feature FHSS (frequency hopping spread spectrum) and forward error correction (FEC), ensuring stable and reliable performance across different platforms.
5. What accessories do you offer to enhance the performance of your systems?
A: We provide essential accessories such as high-gain omnidirectional antenna and auto tracking antenna systems. These accessories enhance signal stability and ensure better performance.
6. What are the primary applications for your wireless transmission systems?
A: Our systems are primarily used for drone video and data transmission, remote control for UAS, UGV, and autonomous vehicle communication. We offer tailored solutions for each industry.
7. Can your systems support large-scale networks?
A: Yes, our mimo mesh networkings support multi-node configurations, which are ideal for industrial IoT applications and large-scale deployments, offering flexible networking topologies.
8.Does the wireless transmission system comply with international standards?
A: Our wireless transmission system complies with international wireless communication standards such as CE and FCC, ensuring that the equipment can be used legally and safely worldwide.
9. What payment methods do you accept?
A: T/T (bank transfer) for payment.
10. Why should I choose your products over others?
A: Our factory is located in Shenzhen, Guangdong, covering an area of 1,000 square meters and equipped with 3 production lines certificated with ISO9001. We have a dedicated R&D team of over 30 engineers, with over 20 testing machines such as Field Strength Meter; Spectrum analyzer; Frequency meter; Network Analyzer; Oscilloscope; Power Meters; Vibration testing equipment for preventing cold solder joints; High and low temperature test chamber; Shielded test chamber etc, ensuring our products are innovative, reliable, and meet the highest industry standards.
