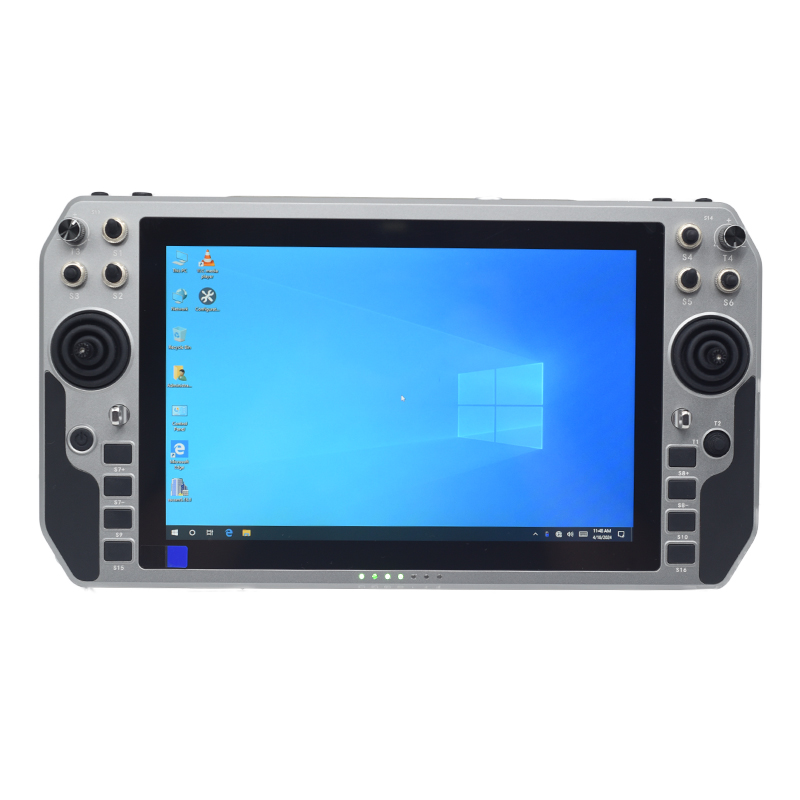

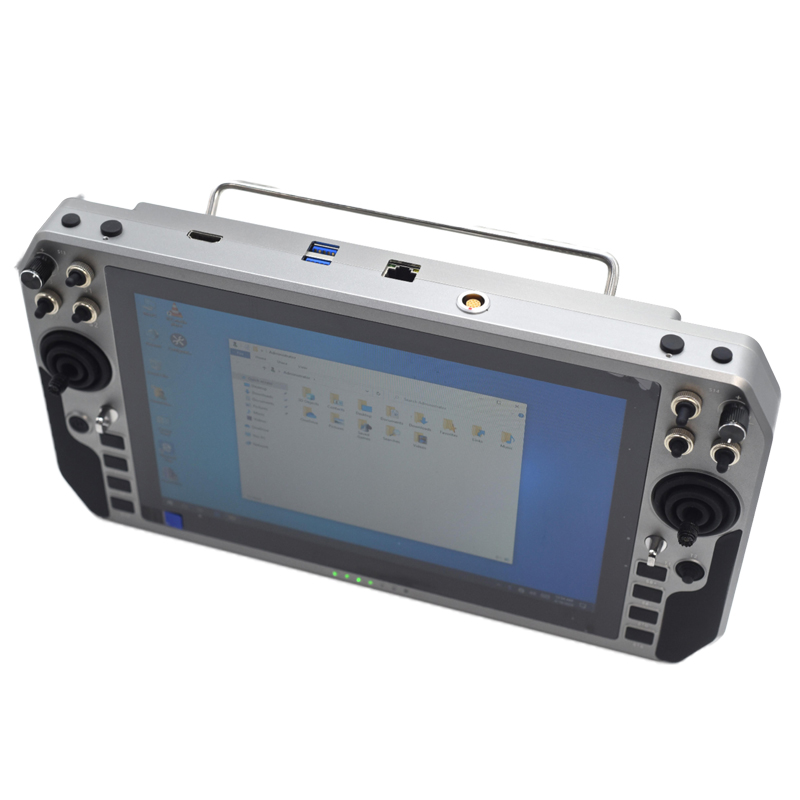

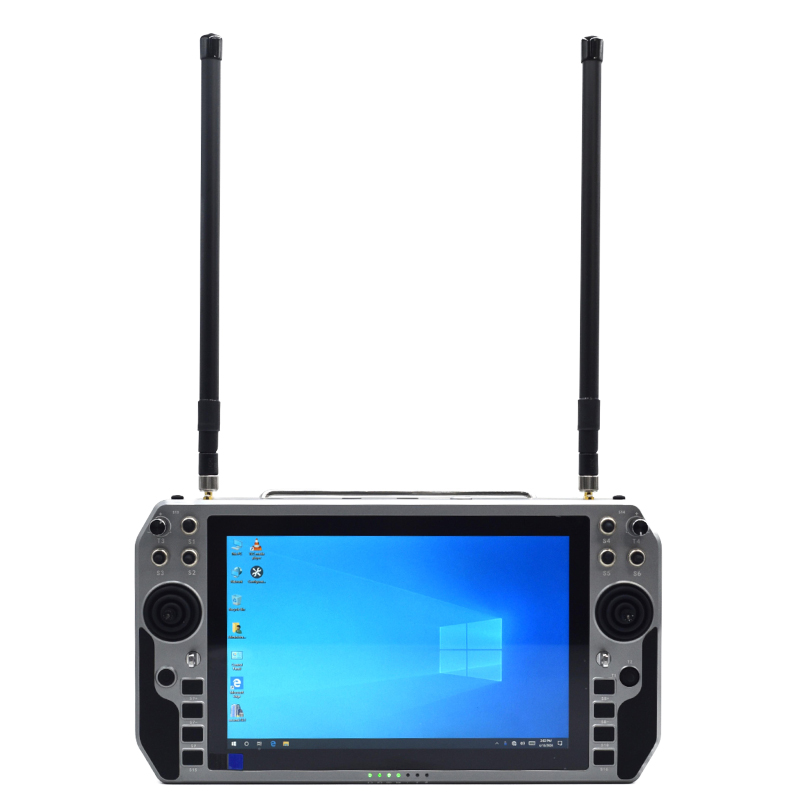

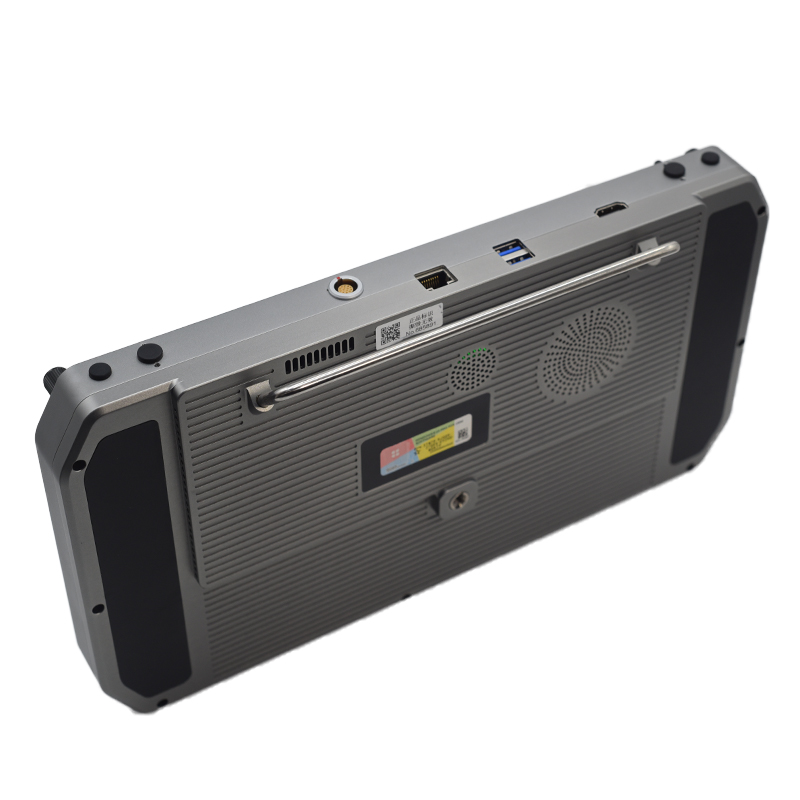

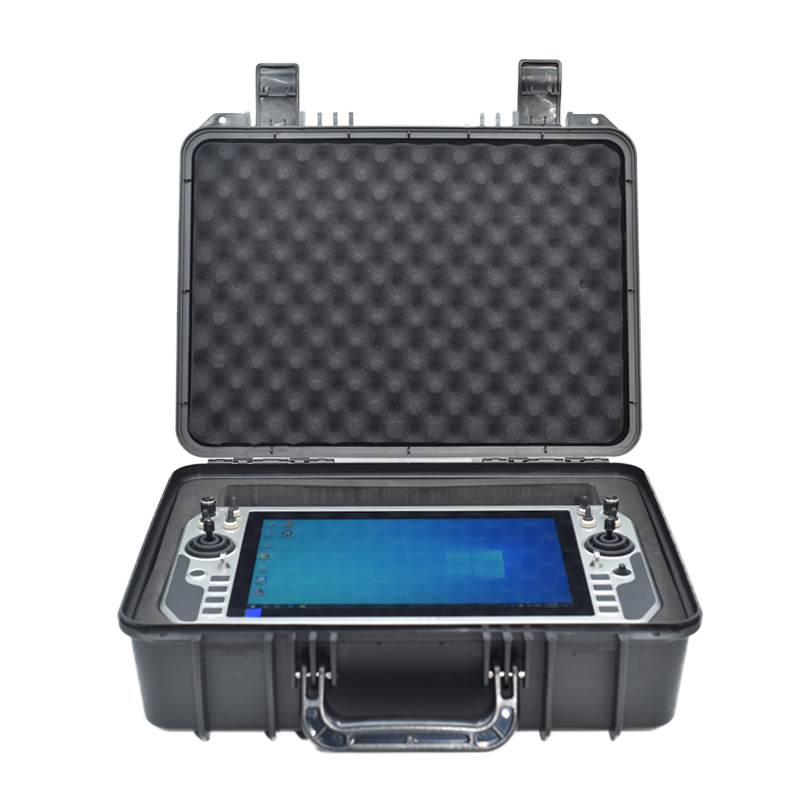

XK-H10 Handheld Integrated Ground Control Station OFDM 10.1-inch Remote Image Data Transmission for Heavy Lift Drone
Windows Handheld drone ground control station
Aluminum alloy shell for higher protection;
10.1-inch 1000nit outdoor visual screen;
intel15/17 high-performance CPU;
AG anti glare 10 point touch screen;
Built-in 1W high-power image transmission, 22 kilometers long-distance transmission;
22 physical channel dual sBUS and USB-HID outputs;
Can carry data links of different distances;
5-hour long endurance, PD3.0 fast charging.
Reference Price:
$5,000
HOWDY, WELCOME TO
GET IN TOUCH WITH US
（1）Ground Control Station XK-H10 series adopted six core processor Rockchip RK3399, Android 8.1 system，built-in OFDM remote image data transmission，and advanced wireless channel coding technology and channel control technologyto make images clearerwith lower delay,farther distanceand stronger anti-interference.
（2）It supports HDMI output (remote control terminal), SIM 4G card , TF card, USB interface, two-way serial port transmission, dual SBUS and other rich interfaces.
（3）Adopt aviation aluminum alloy material，reasonable structure design ensures small volume, light weight and good hand feel.XK-H10 adopts 10.1-inch anti glare AG industrial touch screen and 1000CD/m2 sunlight visual screen.The image transmission frequency supports 800M, 1.4G, 2.4G, the farthest image transmission distance can reach 22KM, and it support 1080P video transmission, and the delay is as low as 200ms.
（4）It uses high energy density lithium battery which can work for 6 hours at full power.Support PD/QC protocol charging, and use the charging bank to supply power when the outdoor power is insufficient.
（5）XK-H10 supports dual serial port data transmission and dual sbus output, Up to 22 physical channels. It is convenient to control the aircraft and the PTZ and other equipment at the same time. XK-H10 can support customized network segments, and is more compatible with various cameras, PTZ, pods and other video device.The handheld terminal supports HDMI video output, which facilitates the expansion of large screen display, and also supports WiFi hotspot sharing of flight video and data for other devices to view at the same time,Flight control data connection supports USB connection, UDP/TCP and serial port connection, which is more compatible with various ground station software on the market.
（6）All peripheral interfaces shall be protected against dust and splash to ensure stable and smooth operation of equipment in harsh environment.
Product parameters
| RC parameters | |
| CPU | Rockchip RK3399, 6-core processor |
| RAM | 4G |
| ROM | 32G |
| net port | Intranet LAN |
| wifi&Bluetooth | 2.4Gwifi&4.0Bluetooth |
| screen size and resolution | 10.1 inch and 1280*800 |
| Screen brightness | 1000ccd/m² |
| touch panel | 10 points capacitance |
| OS | Android 8.1 |
| Charging power | type C PD3.0 36W |
| Battery capacity | 12.6V 12000mah |
| Electric quantity display | system and external LED |
| External interface | 1*USB，1*HDMI 1*3.5 headphone hole ，1*SIM card, 1*type C |
| Charging time | 5hours |
| Working time | 6hours |
| Size | 335*212*75mm |
| N.W. | 1.8kg |
| Storage temperature | -20-70℃ |
| Operating temperature | -10-60℃ |
| gimbals sticks | 2*sticks |
| Button | 10*Button |
| Thumb rocker/Dial wheel | 1*Thumb rocker |
| Third gear switch | 6*Third gear switch |
| Knob | 2*Knob |
| Remote control signal format | 2*SBUS(22 channels) |
| Link parameters | ||
| Wireless Performance | Frequency band | 800MH、1.4GHz、2.4GHzOptional |
| Band width | 5MHz/10MHz/20MHz | |
| Modulation | OFDM | |
| Tx Power | 24dBm±1dB | |
| Sensitivity | ≤-102dBm | |
| Range | 22km（Intervisibility without occlusion） | |
| Bit rate | 30Mbps@20MHz | |
| Power Range | DC 9~28V | |
| Power consumption | ≤8.5W | |
| Interface | Power | XT60 |
| UART | UART RS232/TTL | |
| SBUS | 1*SBUS OUT | |
| Ethernet | 4Pin | |
| Antenna | Interface | SMA |
| Type | Air：Glue stick antenna 20cm, 2.5dBi Ground：Glue stick antenna 30cm,4dBi |
|
| Environment | Work temperature | -30℃–+60℃ |
| Storage temperature | -40℃–+75℃ | |
| Humidity | 5-95%，non-condensing | |
| Appearance | Size | 102*58*24mm |
| weight | 130 g | |
