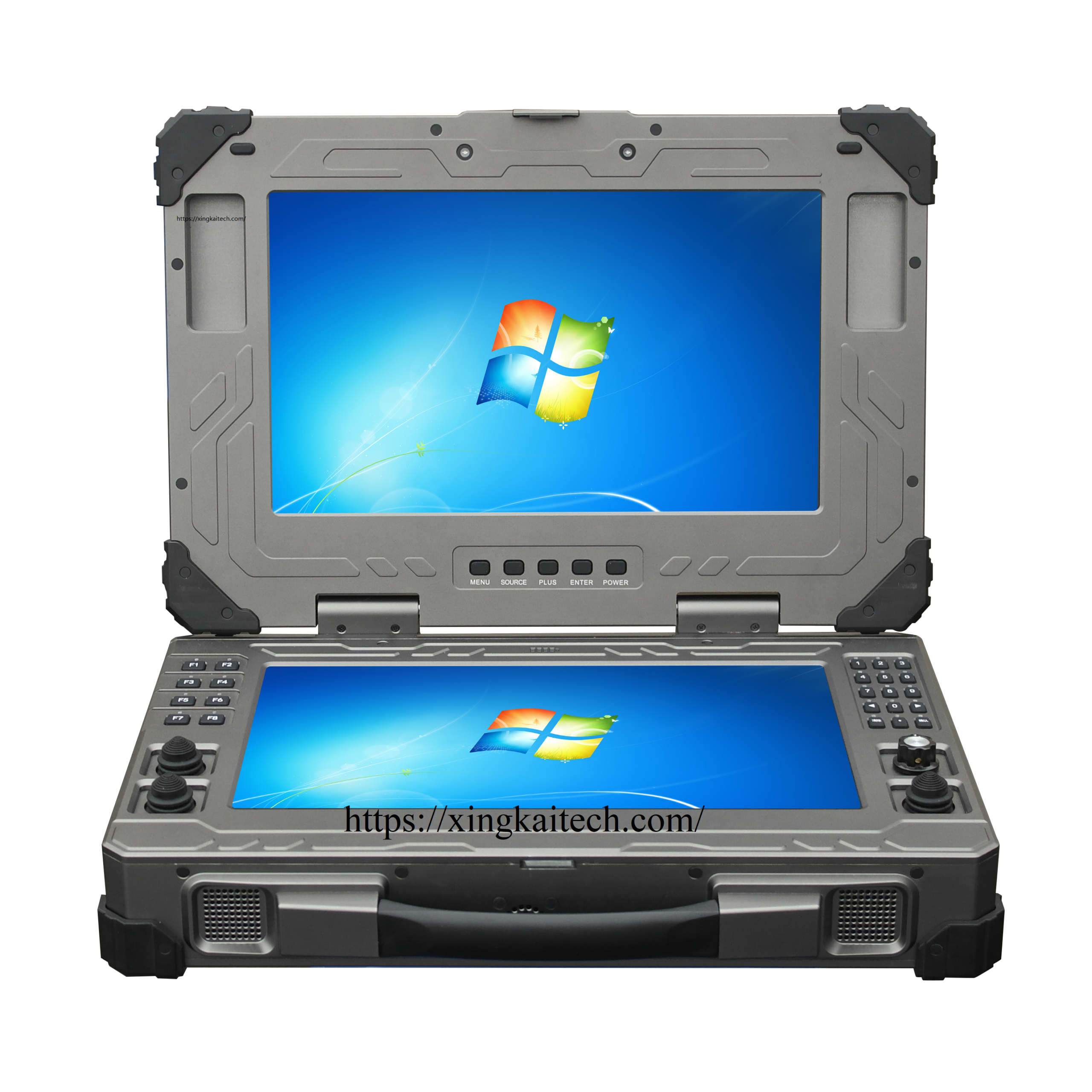

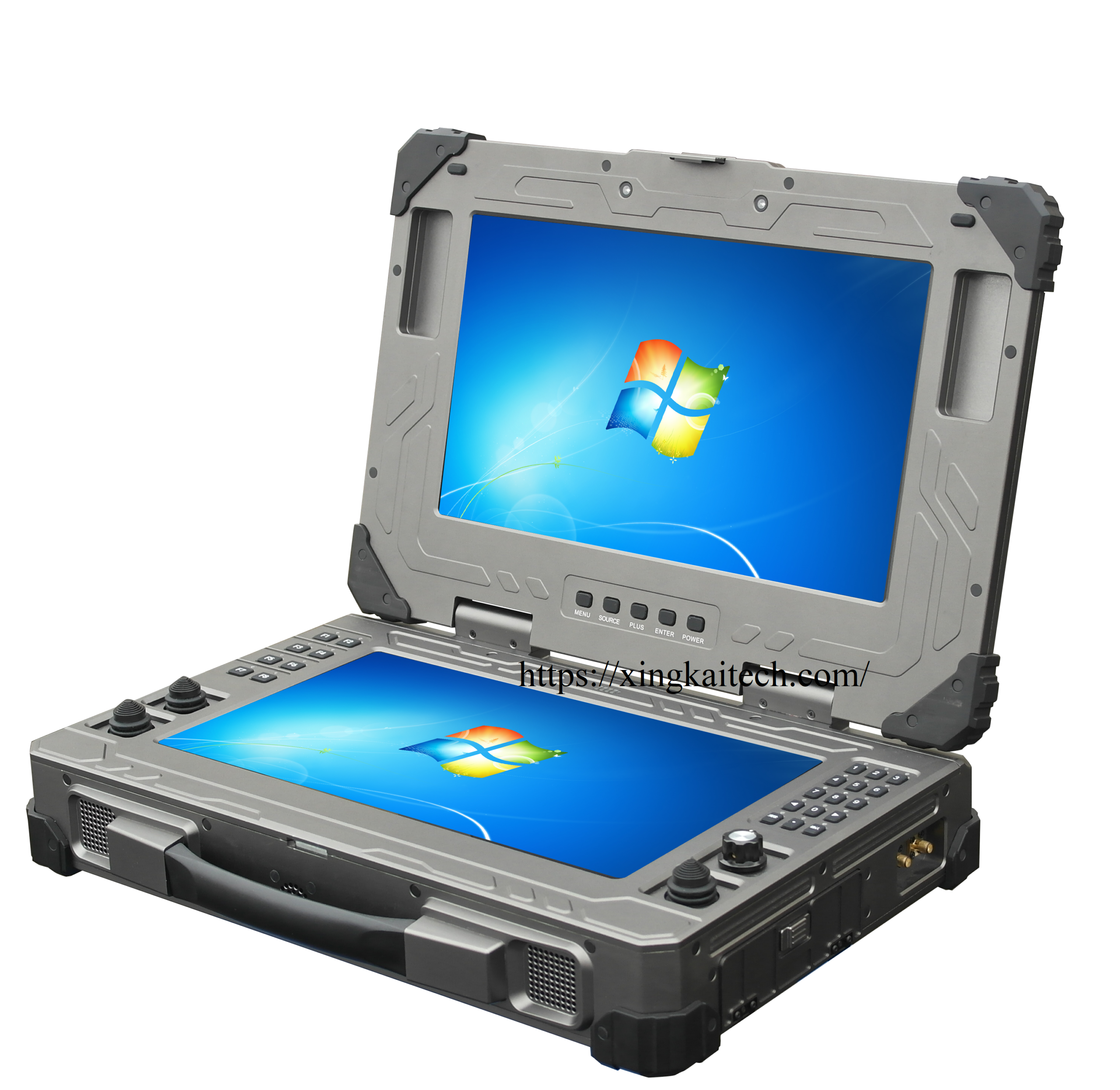

XK-M02 Portable Dual Screen Touch Ground Control Station Professional Drone Remote Controller for Firefighting Drone
XK-M02 is a universal solution for controlling the unmanned vehicle and its payload. It is specially designed for unmanned ground vehicles and robots.
The system offers functions like real-time data feedback, remote control status display, route planning, etc. With Windows and Linux OS for choice.

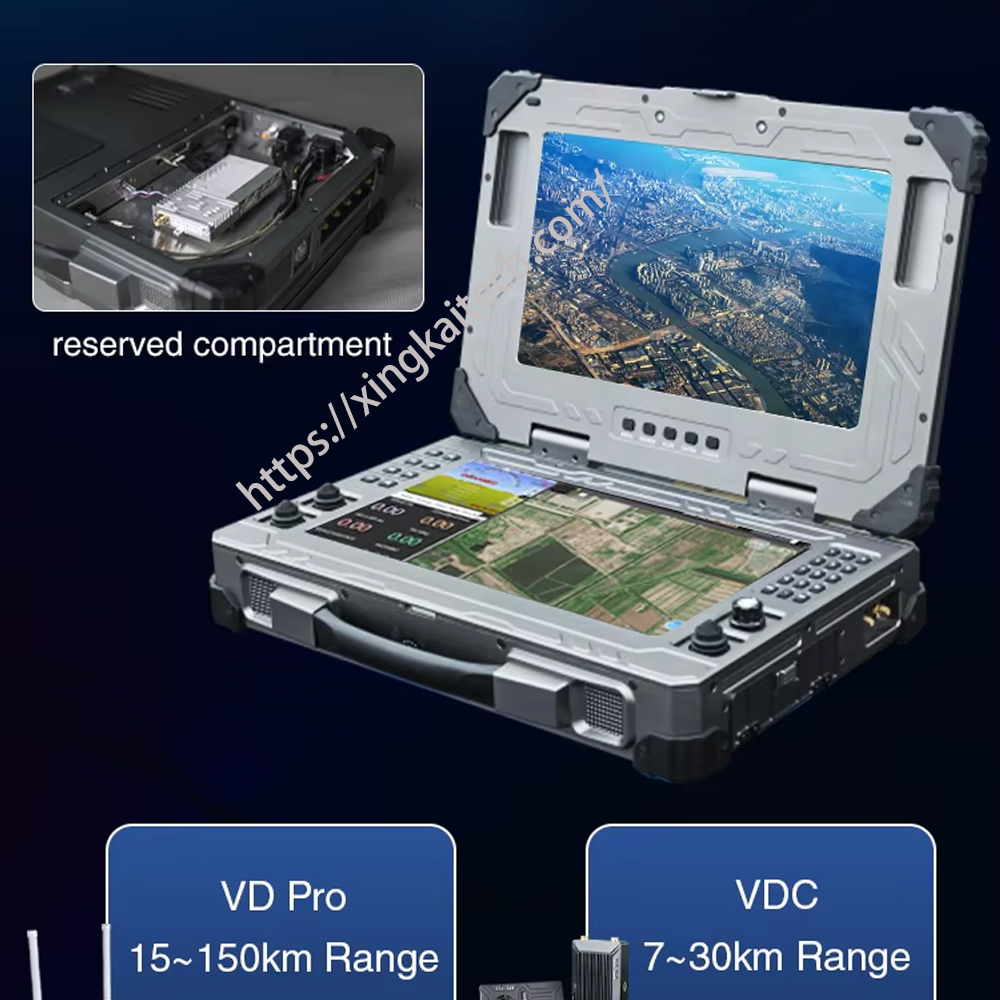

Two high-brightness LCDs with screen brightness adjustment, memory, and solid-state disk size selectable; two Gigabit LAN ports, 8 customizable keys; long Endurance with lithium battery, internal space reserved for secondary development; whole aluminum alloy with hard anodized sandblasted finish; operating system supports Windows 7 / Linux system.
Reference Price:
$5,787
HOWDY, WELCOME TO
GET IN TOUCH WITH US
Two high-brightness LCD displays with screen brightness adjustment, memory and solid state disk size selectable; two Gigabit LAN ports, 8customizable keys; long Endurance with lithium battery, internal space reserved for secondary development; whole aluminum alloy with hard anodized sandblasted finish; operating system supports Windows 7/ Linux system.
XK-M02 is a universal solution for controlling the unmanned vehicle and its payload. It is especially designed for unmanned ground vehicle and robot. The system offers functions like real-time data feedback, remote control status display, route planning, etc. With Windows and Linux OS for choice.
Technical Specifications

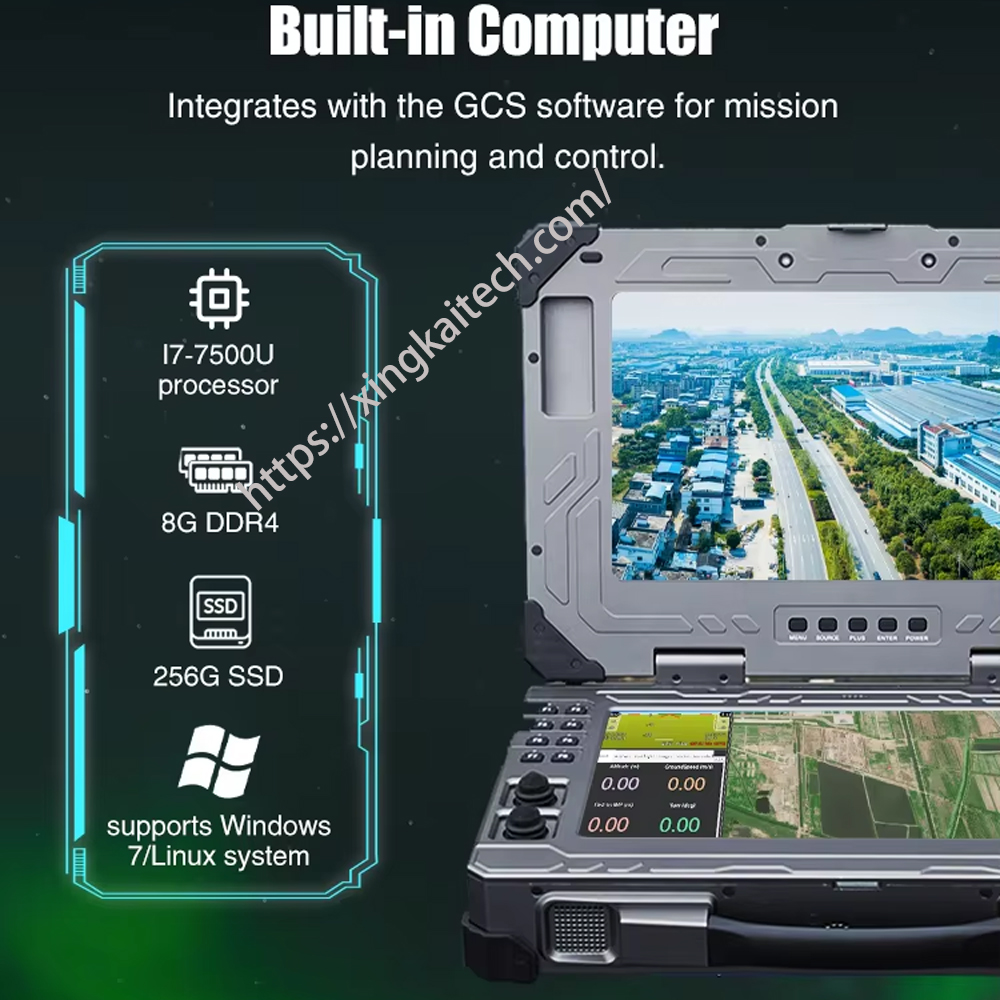

| System parameters | Processor | IntelI7-7500U |
| Lithium batteries | 6 hours | |
| Memory | Memory DDR4 8G | |
| Disks | Solid State Drives 256G | |
| LCD screen | Display | 2*13.3″FHD TFTLCD |
| Maximum resolution | 1920*1080 | |
| Maximum colour | 16M | |
| Display area | 293.472 × 165.078 mm | |
| Brightness | 1000nits | |
| Touch Screen | Top screen | Optional resistive touch screen |
| Lower screen | Capacitive touch screens | |
| Push buttons | Screen adjustment buttons | Brightness/source adjustment |
| Customised keys | 8 | |
| Number Key | 1 | |
| Twist switches | / | |
| Knobs | 1 | |
| Two-axis joystick | 3 | |
| I/O Interface | Network port | 2 |
| USB | 5*USB | |
| HDMI | 2 | |
| SIM | 1 | |
| Power input | DC19V | |
| SMA antennas | 5(Reserved) | |
| WIFI/4G | 2 | |
| Internal reserved interfaces | Internal space reserved to support secondary development (244.5*164.5*31mm) | |
| 4*RS232/DC 5V/DC 12V/2*USB port/1*HDMI /1*LAN | ||
| Others | loudspeaker*2 | |
| Operating systems | win10 win7/Linux system | |
FAQ:
1. What types of wireless communication products do you offer?
A: We offer a wide range of products designed specifically for various applications, including drone communication video link, remote controller, and telemetry, such as uav video transmission systems, data link modules, and COFDM IP mesh network radios.
2. How resistant is the wireless communication system to interference?
A: Our system utilizes COFDM FHSS hopping frequency technology and robust signal encoding and decoding techniques to effectively reduce external interference, ensuring stable transmission even in complex environments.
3. Do your products support advanced security features?
A: Yes, all our products are equipped with AES128/256 encryption, ensuring secure data transmission and protecting against unauthorized access.
4. Are your data transmission modules compatible with third-party devices?
A: Yes, our data transmission modules are designed to integrate seamlessly with a wide range of third-party devices. They support standard communication protocols like RS232, RS485, and TCP/IP, and are compatible with various UAVs, gimbals, and industrial IoT devices. Additionally, they feature FHSS (frequency hopping spread spectrum) and forward error correction (FEC), ensuring stable and reliable performance across different platforms.
5. What accessories do you offer to enhance the performance of your systems?
A: We provide essential accessories such as high-gain omnidirectional antenna and auto tracking antenna systems. These accessories enhance signal stability and ensure better performance.
6. What are the primary applications for your wireless transmission systems?
A: Our systems are primarily used for drone video and data transmission, remote control for UAS, UGV, and autonomous vehicle communication. We offer tailored solutions for each industry.
7. Can your systems support large-scale networks?
A: Yes, our mimo mesh networkings support multi-node configurations, which are ideal for industrial IoT applications and large-scale deployments, offering flexible networking topologies.
8.Does the wireless transmission system comply with international standards?
A: Our wireless transmission system complies with international wireless communication standards such as CE and FCC, ensuring that the equipment can be used legally and safely worldwide.
9. What payment methods do you accept?
A: T/T (bank transfer) for payment.
10. Why should I choose your products over others?
A: Our factory is located in Shenzhen, Guangdong, covering an area of 1,000 square meters and equipped with 3 production lines certificated with ISO9001. We have a dedicated R&D team of over 30 engineers, with over 20 testing machines such as Field Strength Meter; Spectrum analyzer; Frequency meter; Network Analyzer; Oscilloscope; Power Meters; Vibration testing equipment for preventing cold solder joints; High and low temperature test chamber; Shielded test chamber etc, ensuring our products are innovative, reliable, and meet the highest industry standards.
