1700-2000mHz 10W 16CH Anti-interference VRX Module FPV Long Range Drone Analog Video Receiver
Product Features:
Wide frequency coverage: 1700-2000mHz reception, 16 channels compatible with mainstream FPV bands.
High sensitivity: -98dBm receiver sensitivity, stable long-range signal without dropout.

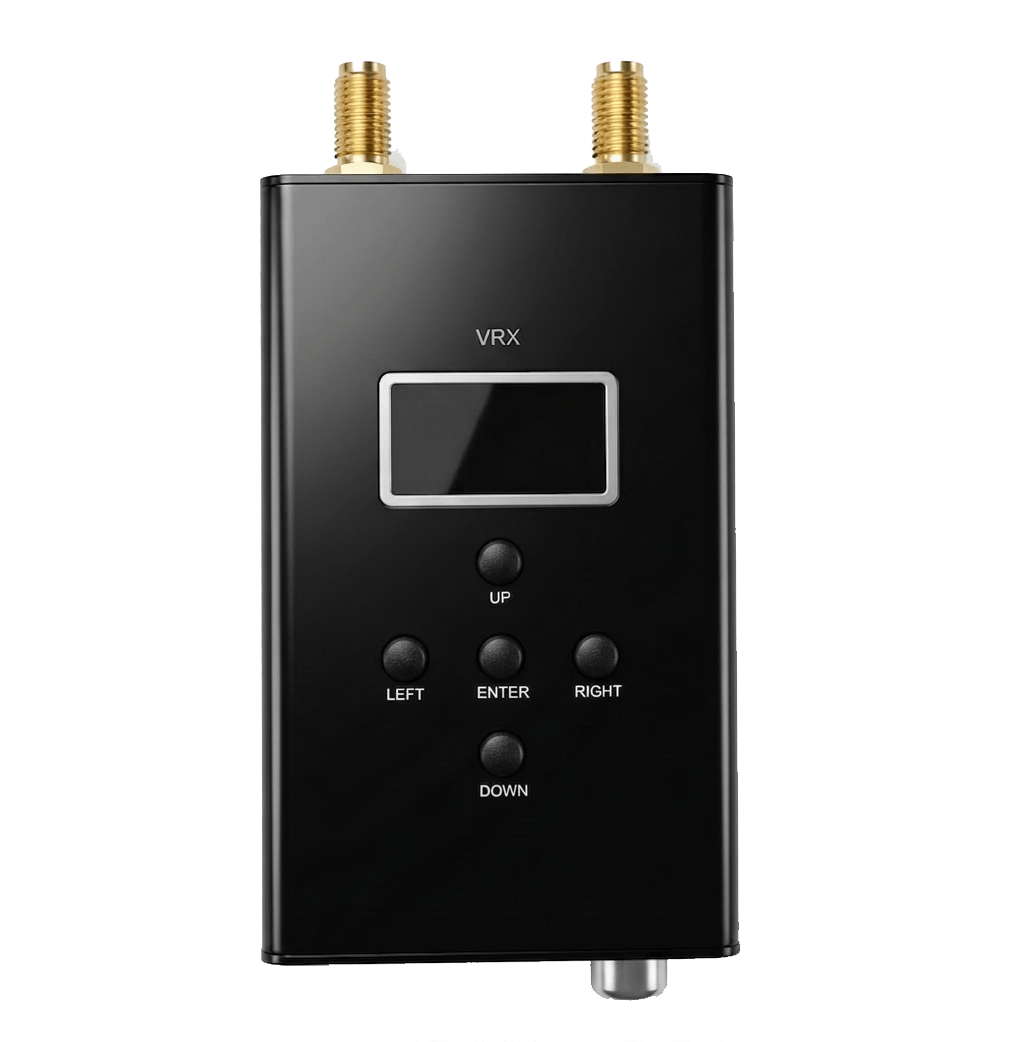

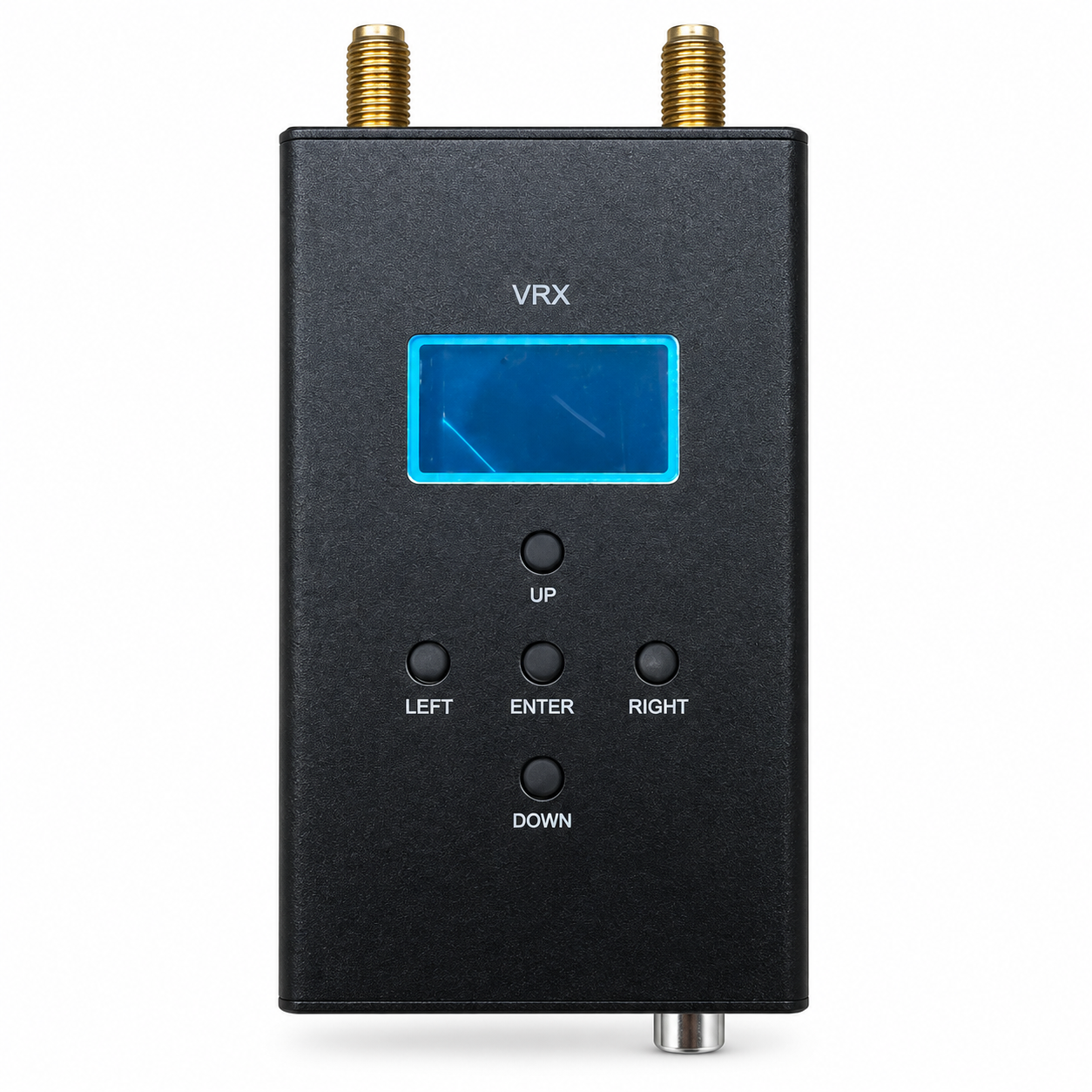

Real-time signal display: OLED screen shows band, channel and RSSI for easy debugging.
Low-latency video output: CVBS video output for FPV drone real-time video transmission.
High-definition image restoration: Video SNR ≥38dB, clear image and high transmission fidelity.
Reference Price:
$224
HOWDY, WELCOME TO
GET IN TOUCH WITH US
Description
Technical Specifications:
| Model Specifications | 1700-2000mHz |
| Power Supply | 5~28V |
| Current Consumption | 600mA（MAX) |
| Operating Temperature | -10~+65℃ |
| Storing Temperature | -30~+85℃ |
| Operating Humidity | 85% RH |
| Receiving Frequency Range | 1700-2000mHz |
| Voltage Standing Wave Ratio | < 1.5 |
| Demodulation System | FM/PLL |
| IF | 480MHz |
| Antenna Input Impedance | 50Ω, Typ. |
| LO Frequency Stabilization | ±100kHz |
| LO Frequency Precision | ±100kHz |
| LO Control | PLL |
| Input LO Leak | -55dBm |
| Receiving Sensitivity | -85dBm（minimumvalue） (IndoorInterference-FreeTestResults) |
| Input Level Range | -98dBm ~ +5dBm |
| Video Output impedance | 75Ω, Typ. |
| Video Output Level | 1Vp-p, Typ. |
| Video Polarity | NEGATIVE |
| Video Frequency Response | ±5dB,Max.50Hz~6MHz |
| Differential Gain | ±5%,Max |
| Differential Phase | ±5Deg.,Max |
| IF Bandwidth(-3dB) | 16.5MHz |
| S/N | 38dB,Min (IndoorInterference-FreeTestResults) |
| Size | 83*50*21mm |
| Maximum Power Supply | 12V@6W |
| Maximum Limit Input Power | +5dBm(Exceeding this value will cause irreversible damage to the device) |
2.Operating Environment Specifications
Operating Temperature: -10°C ~ +65°C
3.Test Conditions
| Ambient Temperature | 25℃ |
| Video Input Voltage | 1.0Vp-p,150 (IRE) |
4.Product Dimensions & Interface Definition

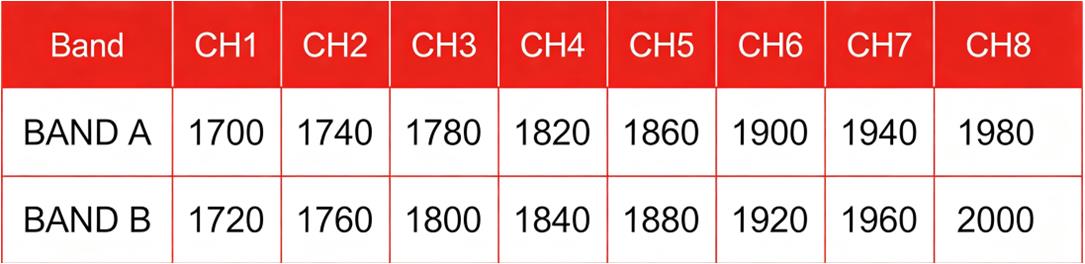

Band and Channel Frequency Table:
