Thermal Camera 640*512 Drone Long Detection Distance Mini Uncooled Infrared for RC FPV Drone
$750
Thermal Imaging Camera XK-C132
Thermal Camera 640*512 Drone Long Detection Distance Mini Uncooled Infrared for RC FPV Drone
The XK-C132 is a miniature FPV thermal camera that combines HD and drone camcorder features and is designed for RC FPV cars, aircraft, racing cars and drones.
The XK-C132 camera is small and easy to install, and the lens housing design makes it easier to install on your aircraft. Not only does it have all the features of a tiny drone camera, it also has thermal imaging to provide clear images in low-light or total darkness. The camera also comes with a lens cover that effectively protects the lens from dust and dirt.
This camera has a very high resolution, whether it is 640×512 resolution, it provides extremely high image quality. The open-stop shutter and adjustable focus feature allow you to adjust the effect as needed to meet a variety of shooting needs. Most importantly, the output resolution is very high, the picture quality is clear, can capture every moment.
TECHNICAL PARAMETERS
| Model | XK-C132 | |
| Specification parameters | ||
|
Movement parameters |
Detector type | Vanadium oxide uncooled infrared focal plane detector |
| Resolution | 640×512 | |
| Pixel Pitch | 12um | |
| Spectral Band | 8-14μm | |
| NETD | ≤40mK | |
| Frame rate | 50Hz | |
| shutter | Automatic shutter correction | |
|
Lens Parameters |
focusing | Adjustable focus |
| aperture | 1.0 | |
| Lens millimeters | 9mm | |
| FOV(H*V) | 48.9 ° ×39.1 ° | |
| Detection distance | people | 1200mm |
| vehicle | 2650mm | |
| Recognition distance | people | 350mm |
| vehicle | 700mm | |
|
function |
Pseudo color | White heat |
| Standard | PAL | |
| type of output | CVBS | |
| Power supply voltage | 4.5-18V | |
| power | 1000mw | |
| working temperature | -40℃~+80℃ | |
| Storage temperature | -50℃~+85℃ | |

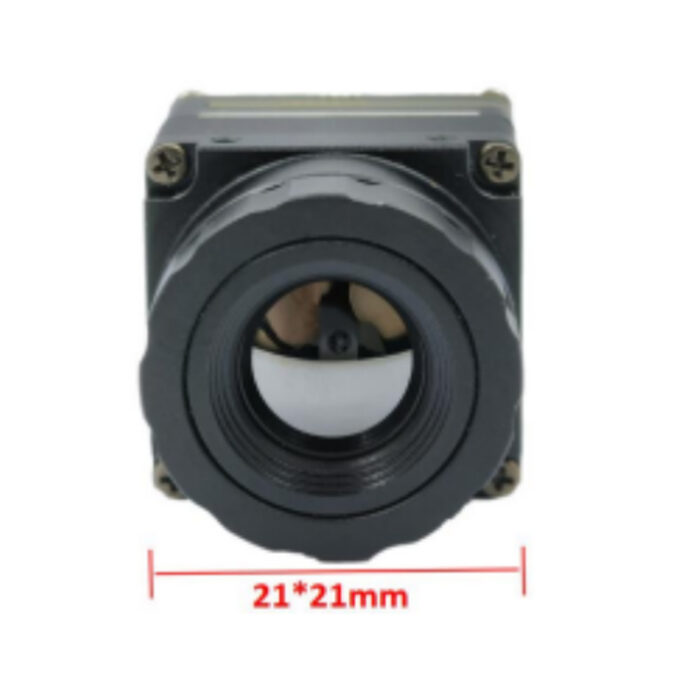

| size | 21*21MM | |
| weight | 22g | |
Company Information
Shenzhen Xingkai Technology Co., Ltd. is a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance, and defense industries.
Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery end-to-end communications & advanced networkings.
Our company attaches great importance to the construction of the R&D team, who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.
Our products range includes mimo mesh network, tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can’t risk communication failure.
Certifications
Packaging & Delivery
Packing: Packed in a professional shipping box
Port: Yantian, Shekou or Hong Kong
FAQ:
A: We are a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance and defense industries.
A: We are able to offer you the best solutions on market by providing you OEM/ODM service.
A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days…
A. We will protect our partner’s profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface & RF indicators & sensitivity & meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
A: T/T, Western Union
